Grid layout
2022-07-24 06:30:00 【PS notes】
grid Layout overview ：
flex The layout is a pile of layouts ,grid It's a two-dimensional layout
flex Consider the layout of items in rows or columns ,grid The layout needs to consider both rows and columns
Set up grid Containers ：
.container{
Display:grid;
Grid-template-columns:100px 100px 100px;
Grid-template-rows:100px 100px 100px }

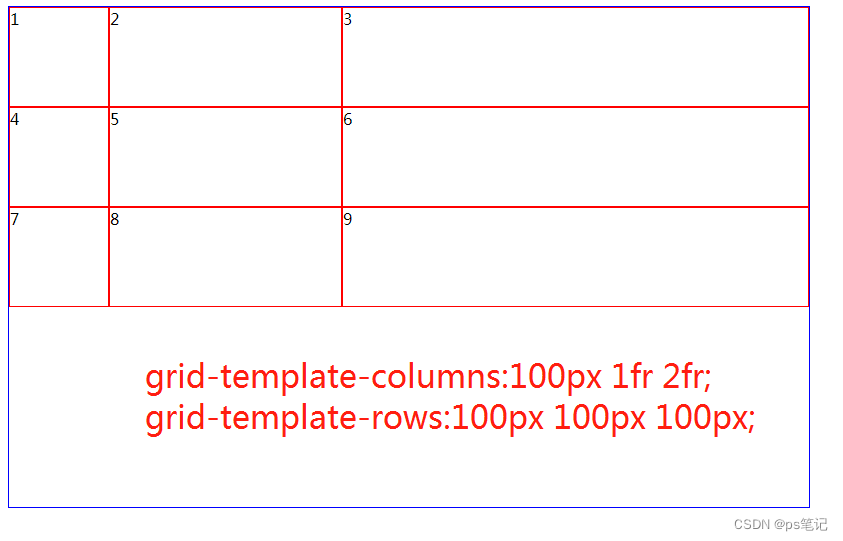

.container{
Display:grid;
Grid-template-columns:100px 1fr 2fr;
Grid-template-rows:100px 100px 100px }
<style>
.container {
display: grid;
width: 800px;
height: 500px;
border: 1px solid blue;
grid-template-columns:100px 100px 100px;
grid-template-rows:100px 100px 100px;
}
.item{
border: 1px solid red ;
}
</style>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</body>
</html>
<style>
.container {
display: grid;
width: 800px;
height: 500px;
border: 1px solid blue;
/* grid-template-columns:100px 100px 100px; */
/* grid-template-rows:100px 100px 100px; */
grid-template-columns:100px 1fr 2fr;
grid-template-rows:100px 100px 100px;
}
.item{
border: 1px solid red ;
}
</style>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</body>
</html>

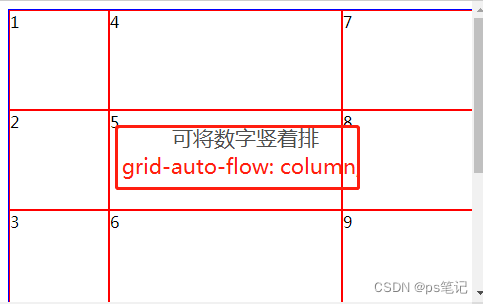

grid-auto-flow:column; Elements are arranged vertically
.container{
display:grid;
grid-auto-flow:column;
grid-template-columns:100px 100px 100px;
grid-template-rows:100px 100px 100px }
Container attribute ：
gird Alignment of items in cells ：
justify-items attribute Horizontal alignment
align-items attribute Vertical alignment

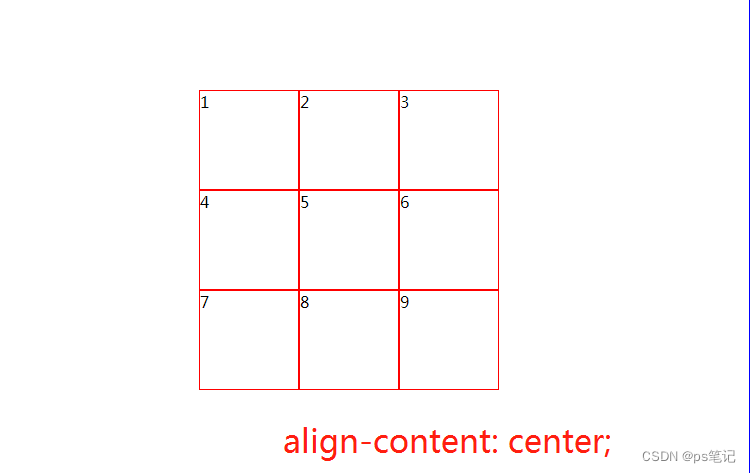

The cell is in the whole gird The way to it in the container
justify-content attribute
align-content attribute
<style>
.container {
display: grid;
width: 800px;
height: 500px;
border: 1px solid blue;
grid-template-columns:100px 100px 100px;
justify-content: center;
align-content: center;
}
.item{
border: 1px solid red ;
}
</style>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</body>
</html>

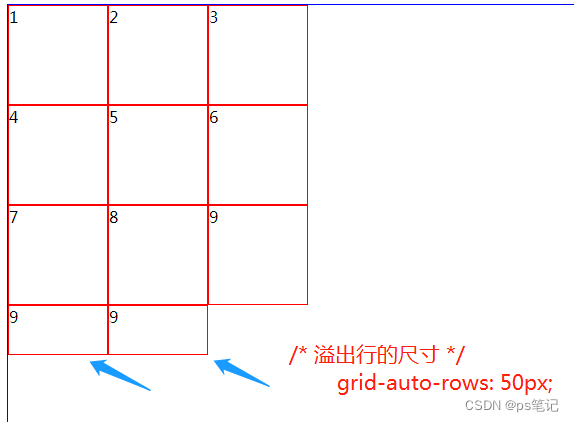

grid-auto-columns attribute Set the size of the overflow line
grid-auto-rows attribute Set the size of the overflow column
<style>
.container {
display: grid;
width: 800px;
height: 500px;
border: 1px solid blue;
grid-auto-flow: column;
grid-template-columns:100px 100px 100px;
grid-template-rows:100px 100px 100px;
/* Size of overflow */
grid-auto-rows: 50px;
/* The size of the overflow column */
grid-auto-columns: 50px;
}
.item{
border: 1px solid red ;
}
</style>
<body>
<div class="container">
<div class="item">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
<div class="item">9</div>
<div class="item">9</div>
</body>
</html>
style>
.container{
display:grid;
width: 800px;
height: 500px;
border:1px solid blue;
/* grid-auto-flow: column; */
grid-template-columns: 100px 100px 100px;
grid-template-rows: 100px 100px 100px;
}
.item{
border:1px solid red ;
}
.first{
/* grid-column-start: 1;
grid-column-end: 3; */
/* It can be abbreviated as follows */
grid-column: 1/3;
grid-row: 1/3;
}
</style>
</head>
<body>
<div class="container">
<div class="item first">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</div>
</div>
</body>
</html>
<style>
.container{
display:grid;
width: 800px;
height: 500px;
border:1px solid blue;
/* grid-auto-flow: column; */
grid-template-columns: 100px 100px 100px;
grid-template-rows: 100px 100px 100px;
}
.item{
border:1px solid red ;
}
.first{
/* grid-column-start: 1;
grid-column-end: 3; */
/* It can be abbreviated as follows */
grid-column: 2 / 4;
grid-row: 2 / 4;
justify-self: center;
align-self: center;
}
</style>
</head>
<body>
<div class="container">
<div class="item first">1</div>
<div class="item">2</div>
<div class="item">3</div>
<div class="item">4</div>
<div class="item">5</div>
<div class="item">6</div>
<div class="item">7</div>
<div class="item">8</div>
<div class="item">9</div>
</div>
</div>
</body>
</html>

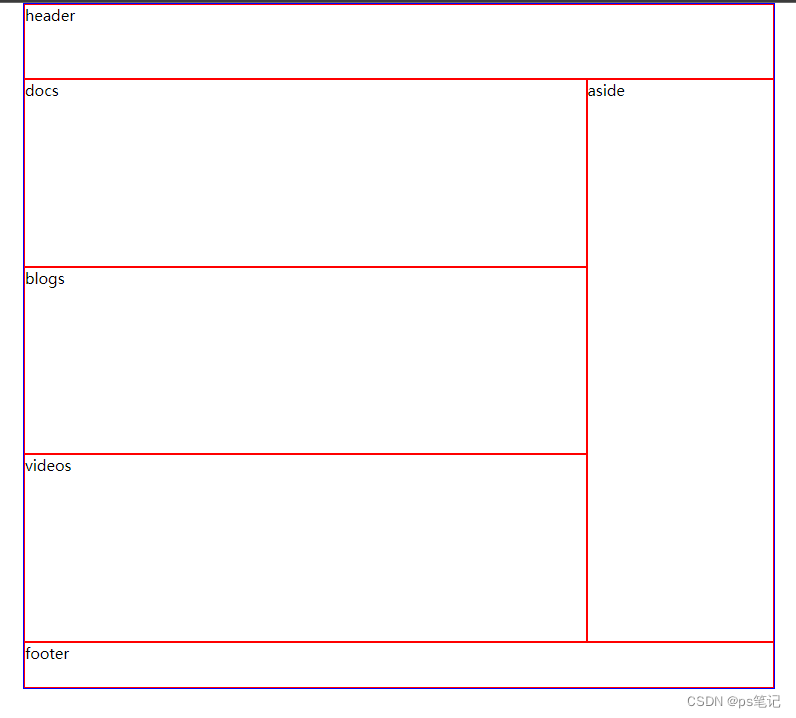

Make a layout case as follows ;
<style>
*{
margin: 0px;
padding:0px;
}
.container {
display: grid;
width: 800px;
margin: 0 auto;
border: 1px solid blue;
grid-template-columns: 600px 200px;
grid-template-rows: 80px 200px 200px 200px 50px;
}
.item{
border:1px solid red;
}
.header{
grid-column: 1 / 3;
}
.aside{
grid-row: 2 / 5;
grid-column: 2 / 3;
}
.footer{
grid-column: 1 / 3;
}
</style>
</head>
<body>
<div class="container">
<div class="item header">header</div>
<div class="item docs">docs</div>
<div class="item blogs">blogs</div>
<div class="item videos">videos</div>
<div class="item aside">aside</div>
<div class="item footer">footer</div>
</div>
</body>
</html>
