Jenkins' common build trigger and hook services (V)

One 、Jenkins built-in 4 Build triggers ：

• Trigger remote build
• Trigger after other projects are built （Build after other projects are build）
• Time to build （Build periodically）
• polling SCM（Poll SCM）

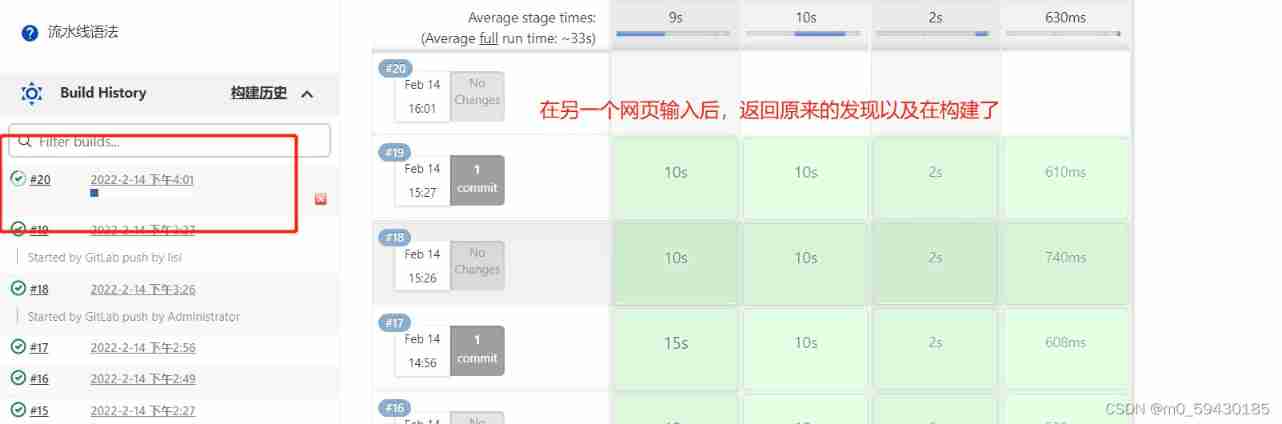

1. Trigger remote build

The website path that triggers the construction is url：http://192.168.74.8:8888/job/web_demo_pipeline/build?token=8888
Format ：

jenkins website + The path of replication （ hold TOKEN_NAME Change to the authentication token you entered ）

2. Trigger after other projects are built

First create a free build project


Configure in the previous project

Build the pre project of the configuration after saving

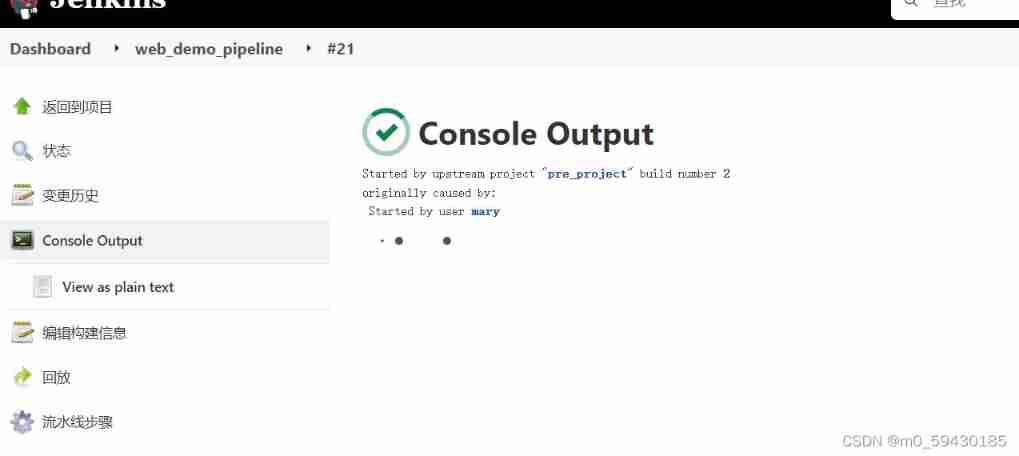

After the pre project is built , The configured project has also started to build

3. Time to build

Enter the project configuration and click Build periodically

Some examples of timed expressions ：

 Every time 30 Build once in minutes ：H On behalf of the parameter  H/30 * * * * 10:02 10:32
 Every time 2 Build once an hour : H H/2 * * *
 Daily 8 spot ,12 spot ,22 spot , Build... In a day 3 Time ： ( Multiple time points are separated by commas ) 0 8,12,22 * * *
 Every day at noon 12 Build once on a regular basis  H 12 * * *
 Every afternoon 18 Build once on a regular basis  H 18 * * *
 Every... In the first half of every hour 10 minute  H(0-29)/10 * * * *
 Every two hours , Every weekday in the morning 9 Point to the afternoon 5 spot ( Maybe in the morning 10:38, Afternoon 12:38, Afternoon 2:38, Afternoon
4:38) H H(9-16)/2 * * 1-5

Every time 2 Minutes to start automatic build

4. polling SCM

polling SCM, When specified, scan the local code warehouse for code changes , If the code changes, the project build is triggered .
The only difference between it and timed construction is , Only when the code warehouse changes , Will trigger the build , If there is no change , It doesn't trigger ,

Waiting for 2 Minutes to find out if the code doesn't change , Will not build .

Summary ：
Build and poll regularly SCM The difference is that , A scheduled build does not look at changes in the code in the project , Automatically build when time comes , And polling SCM The code of the local code warehouse will be scanned for changes according to the specified time , If the code changes, the project build is triggered

Two 、Gitlab To configure webhook

1. Turn on webhook function

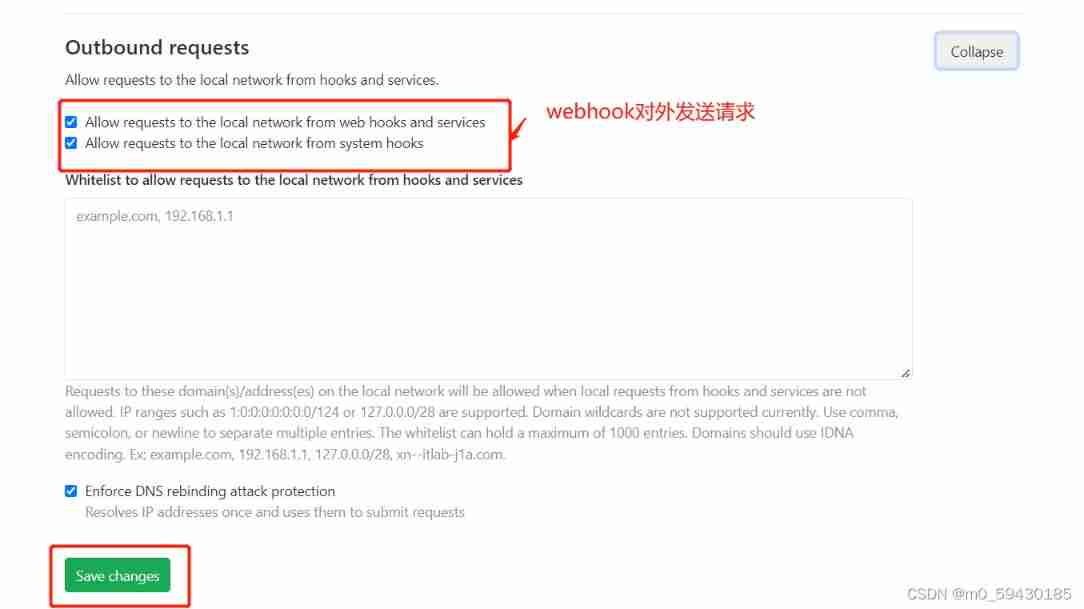

Gitlab On the server root Account login to the background , Click on Admin Area -> Settings -> Network Check "Allow requests to the local network from web hooks and services"

First use root Administrator login Gitlab

Switch to the current project for setting

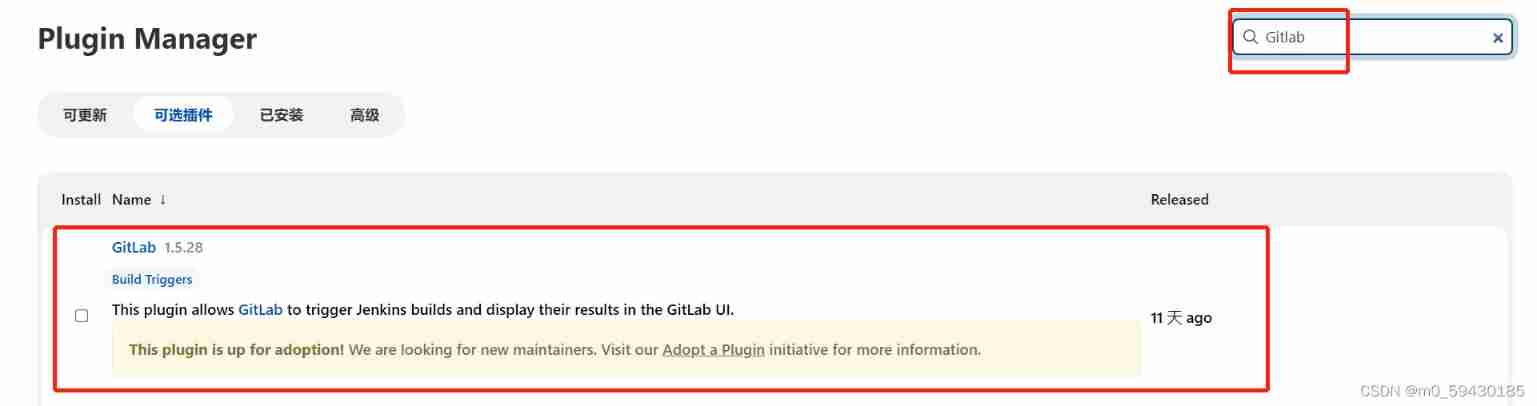

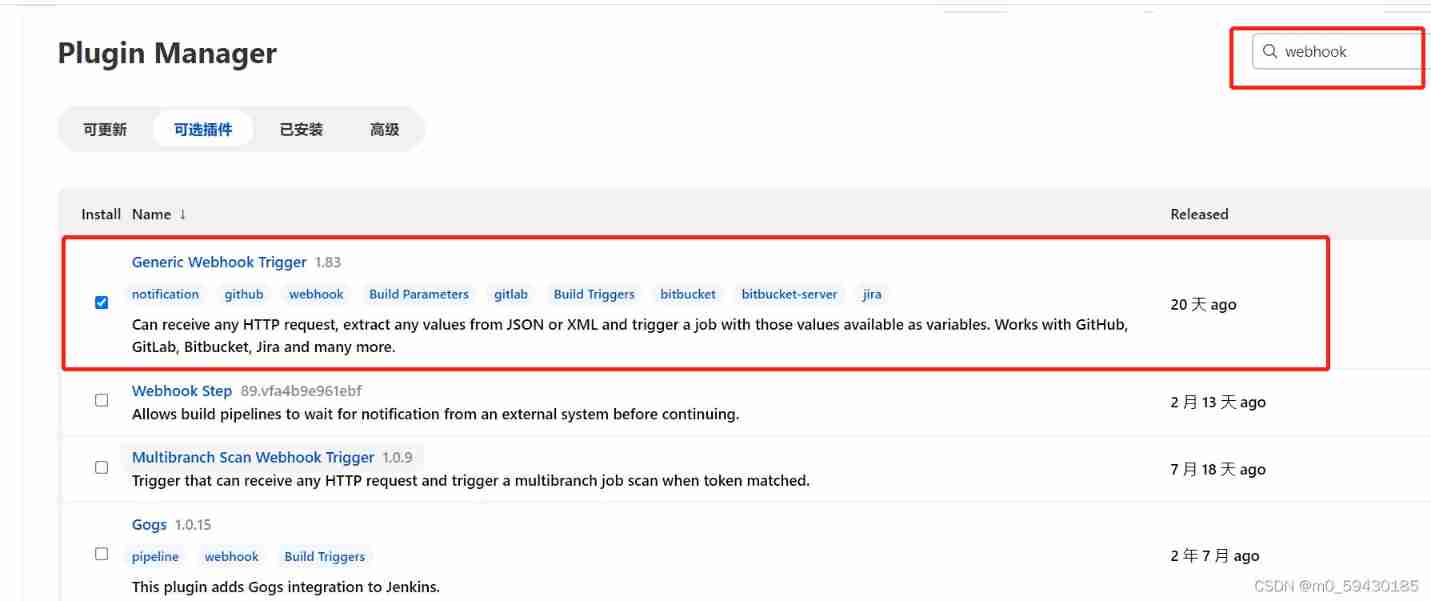

2. Add... To the project webhook, add to webhook and Gitlab plug-in unit

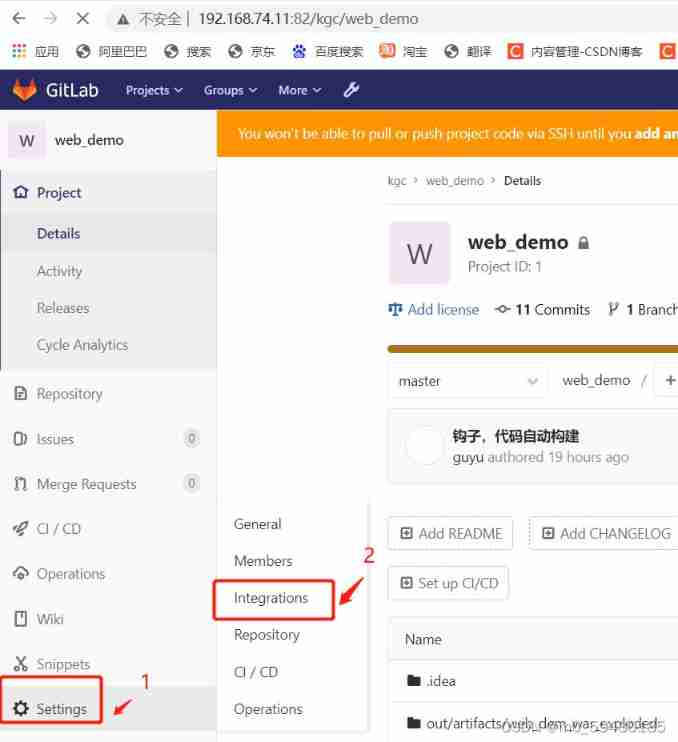

Click item ->Settings->Integrations

To test

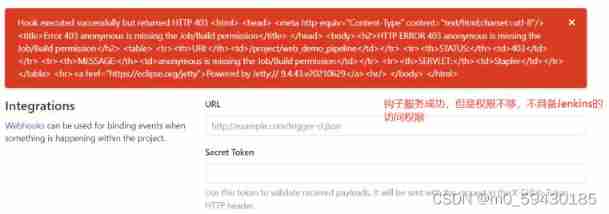

Will report a mistake

Manage Jenkins->Configure System

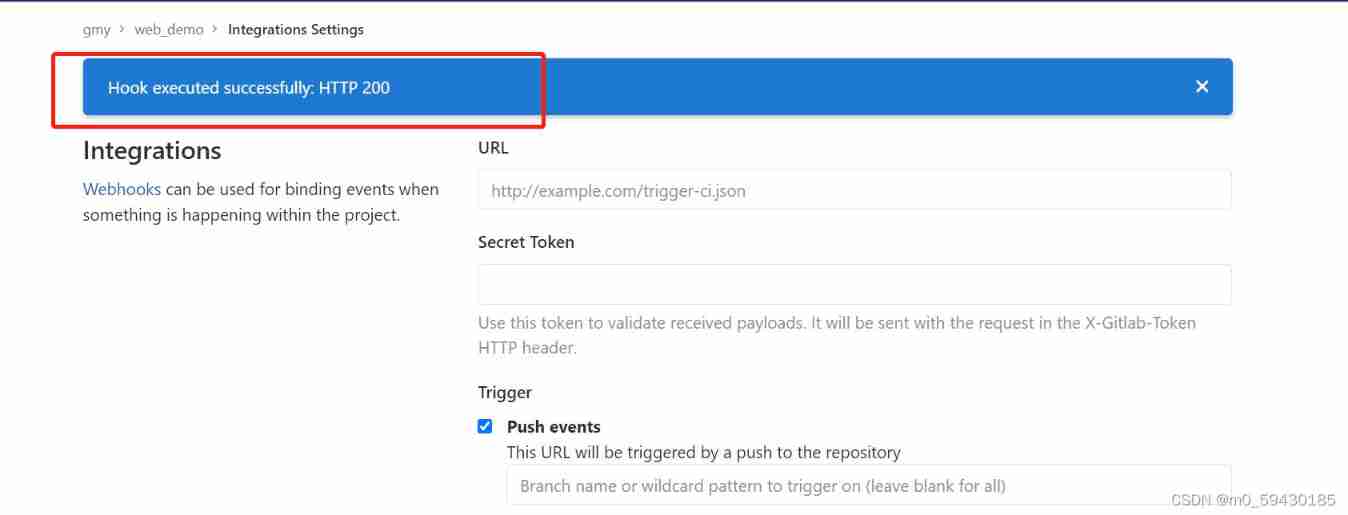

go back to gitlab Last time test

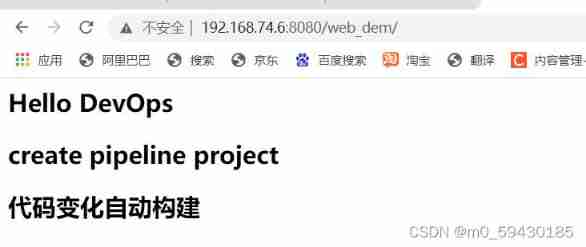

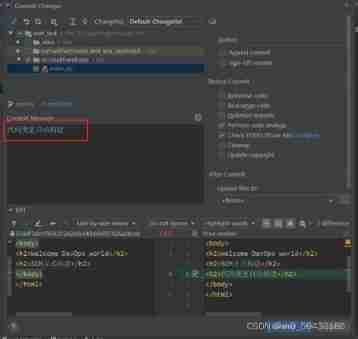

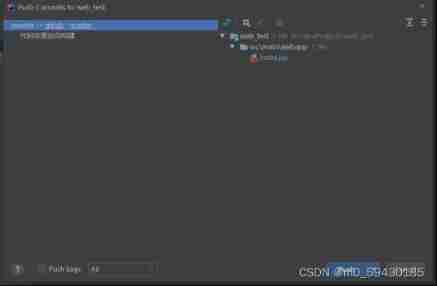

idea Change the development environment code and submit the code

3、 ... and 、Jenkins Parametric construction of

• Sometimes in the process of building a project , We need to input some parameters dynamically according to the user's input , This will affect the results of the entire build , In this case, we can use parametric construction

• Jenkins Support very rich parameter types

1. Building configuration

go back to web_demo_pipeline Remove all build trigger options from the project

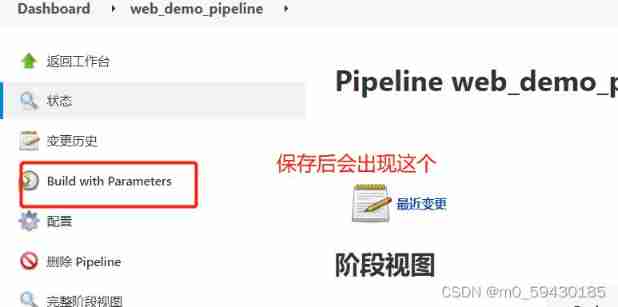

After saving successfully, you will see the following effect

Next, I'll show you how to enter gitlab The branch name of the project to deploy different branch projects .

2. Project creation Branch , And push it to Gitlab On

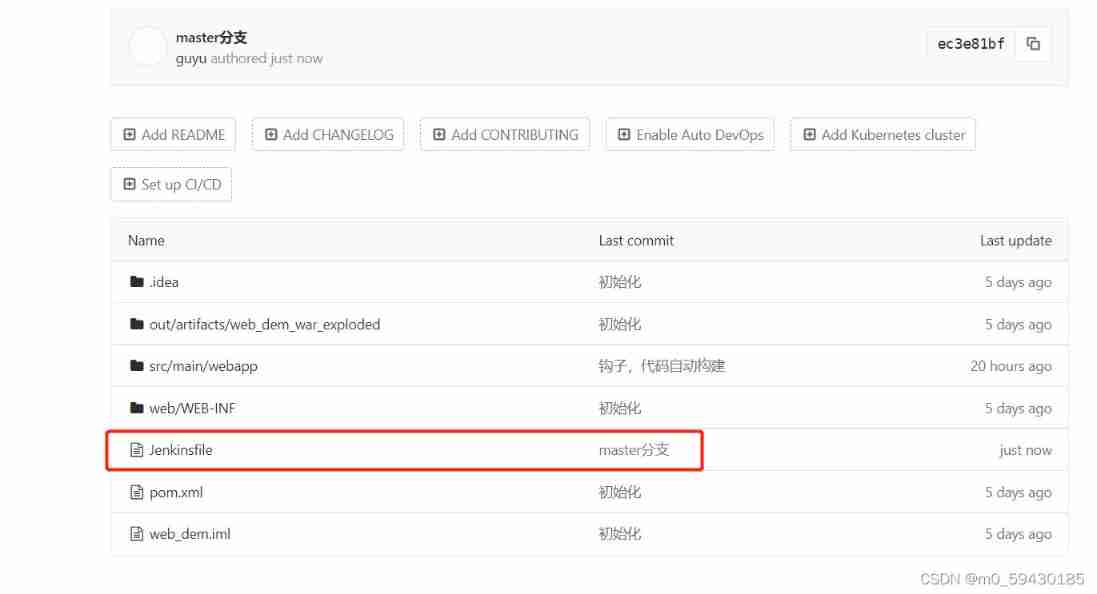

3. see Gitlab The branch on
