Remote access and control - SSH Remote Management and TCP wrappers access control

One 、SSH Remote management

1、 Definition

SSH（Secure Shell ） It's a secure channel protocol , It is mainly used to realize the remote login of character interface 、 Remote replication and other functions .
SSH The protocol encrypts the data transmission between the two sides , It includes the user password entered when the user logs in . therefore SSH The protocol has good security .

2、 advantage



3、 Client and server

client ：Putty、Xshell、CRT
Server side ：OpenSSH

• OpenSSH It's the realization of SSH Open source software agreement for the project , Applicable to all kinds of UNIX、Linux operating system .
• CentOS 7 The system is installed by default openssh Related packages , And sshd Service added as bootstrap .

4、SSH Service opening 、 Port number and configuration file

SSH Service opening

• perform “systemctl start sshd” Command to start sshd service
  SSH The port number of the service
• sshd The default port number used by the service is 22
  SSH The configuration file for the service
• sshd_config The configuration file is for the server
• ssh_config It's a profile for the client

Two 、 To configure OpenSSH Server side

1、 Configuration file common settings options









2、AllowUsers and DenyUsers

AllowUsers and DenyUsers Can't be used at the same time . There will be conflict







3、 ... and 、 Use SSH Client program

1、SSH Remote login

ssh [ Options ] [email protected]

When a user logs in for the first time SSH Server time , Must accept the server from ECDSA Secret key （ Enter... At the prompt "yes"） Before you can continue to verify . The received secret key information will be saved to ~/.ssh/known_hosts In file , After successful password verification , You can log in to the command environment of the target server .

Options explain
-1 Compulsory use ssh Protocol version 1
-2 Compulsory use ssh Protocol version 2
-4 Compulsory use IPv4 Address
-6 Compulsory use IPv6 Address
-A Turn on the authentication agent connection forwarding function
-a Turn off the authentication agent connection forwarding function
-b Use the address specified by this machine as the source of the peer-to-peer connection IP Address
-C Request to compress all data
-F Appoint ssh The configuration file for the command , The default configuration file is “/etc/ssh/ssh_config”
-f The background to perform ssh Instructions
-g Allow the remote host to connect to the forwarding port of this machine
-i Specify the identity file （ Private key file ）
-l Specify the login user name to connect to the remote server
-N Do not execute remote instructions
-o Specify configuration options
-p Specify the port on the remote server
-q silent mode , All warning and diagnostic messages are disabled
-X Turn on X11 Forward capability
-x close X11 Forward capability
-y Turn on trust X11 Forward capability

2、SCP Remote Replication

①、 Downlink replication
scp -r [email protected]:/etc/ /root/
Copy 192.168.0.5 The host /etc All contents in the directory are transferred to this computer /root Directory
②、 Uplink replication
scp -r /etc/ [email protected]：/root
Copy the of this machine /etc Contents in directory to 192.168.0.6 The host /root Under the table of contents

3、sftp Security FTP

Because of the use of encryption / Decryption technology , So the transmission efficiency is higher than the ordinary FTP Be low , But it's more secure .
sftp [email protected]
[email protected]'s password:
Connected to 192.168.226.20.
sftp> ls
sftp> get file name # Download the file
sftp> put file name # Upload files
sftp> exit # sign out





Four 、sshd The service supports two authentication methods

1、 Password authentication

Login name of the local system user in the server 、 Password verification . Simple and convenient , But it could be brutally cracked

2、 Key pair verification

Matching key information is required to pass the verification . Usually create a pair of key files in the client first （ Public key 、 Private key ）, Then put the public key file in the specified location in the server . When logging in remotely , The system will use the public key 、 The private key is encrypted / Decryption Association verification . Can enhance security , No login and interaction .
When password verification 、 When key pair verification is enabled , The server will take precedence over key pair Authentication . The verification mode can be set according to the actual situation .
vim /etc/ssh/sshd_config
PasswordAuthentication yes # Enable password authentication
PubkeyAuthentication yes # Enable key pair validation
AuthorizedKeysFile .ssh/authorized_keys # Specify the public key library file



①、 Create a secret key pair on the client
adopt ssh-keygen Tool to create a key pair file for the current user . The available encryption algorithms are RSA、ECDSA or DSA etc. （ssh-keygen Ordered “-t” Option to specify the type of algorithm ）.

useradd admin
echo "123456" | passwd --stdin admin
su - admin

ssh-keygen -t rsa
Generating public/private ecdsa key pair.
Enter file in which to save the key (/home/ljm/.ssh/id_rsa): # Specify the private key location , Press enter to use the default location
Created directory '/home/admin/.ssh'. # Generated private key 、 The public key file is stored in the hidden directory in the host directory by default .ssh/ Next
Enter passphrase (empty for no passphrase): # Set the password for the private key
Enter same passphrase again: # Confirm input

ls -l .ssh/id_admin* #id_ecdsa It's a private key file , Permissions default to 600;id_ecdsa.pub It's a public key file , To provide to SSH The server



②、 Upload the public key file to the server
scp ~/.ssh/id_r
sa.pub [email protected]:/opt
or

This method can be used directly on the server /home/admin/.ssh/ The public key text is imported into the directory

cd ~/.ssh/
ssh-copy-id -i id_rsa.pub [email protected]

 ③、 Import the public key text into the server ( The second one )
mkdir .ssh
ls -A
cat /id_rsa.pub >> .ssh/authorized_keys
cat authorized_keys

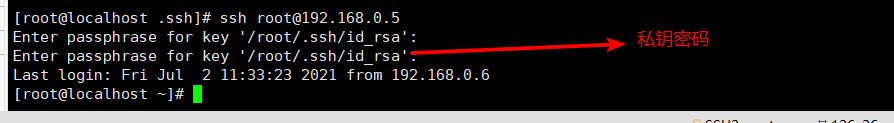

 ④、 Use secret key pair authentication on the client
ssh [email protected]
@192.168.226.20's password: # Enter the password for the private key

 ⑤、 Set up on the client ssh Agent function , Realize interactive login free
ssh-agent bash
ssh-add
Enter passphrass for /root/.ssh/id_rsa: # Enter the password for the private key
[email protected]

  5、 ... and 、TCP Wrappers Access control



TCP Wrappers take TCP Service program “ The parcel ” get up , Monitor for TCP The port of the server , Added a security detection process , External connection requests must first pass this layer of security detection , Access to the real service program is only possible with permission .
majority Linux Distribution version ,TCP Wrappers It's a default feature .
rpm -q tcp_wrappers
Query whether to install

1、 There are two ways to implement the protection mechanism

Use it directly tcpd Programs protect other services , Need to run tcpd Program .
Called by other network service programs libwrap.so.* Link library , No need to run tcpd Program . This method is more widely used , And more efficient .
①、 Viewing program libwrap.so.* Link library ——ldd command
ldd [ Parameters ] [ file ]

Description of common parameters -v Detail mode , Print all relevant information
-u Print unused direct dependencies
-d Perform relocation and report any missing objects
-r Perform relocation of data objects and functions , And report any missing objects and functions
– -help Display help information
The file needs to be written with an absolute path
When we don't know the absolute path of the file , have access to which Command query
You can also use two commands together ：ldd $(which sshd)

2、TCP Wrappers Access policy for

TCP Wrappers The protection objects of the mechanism are various network service programs , Access control for the client address of the access service .
The corresponding two policy files are /etc/hosts.allow and /etc/hosts.deny, It is used to set the allow and reject policies respectively .



3、TCP Wrappers The basic principles of the mechanism

First check /etc/hosts.allow file , If you find a matching strategy , Access to ;

Otherwise continue to check /etc/hosts.deny file , If you find a matching strategy , Access denied ;

If you check the two files above and find no matching policy , Access to .

Allow all , Refuse individual
Just in /etc/hosts.deny Add the corresponding rejection policy to the file

Allow individual , Reject all
In addition to the /etc/hosts.allow In addition to the allowed policy , Still need to be in /etc/hosts.deny Set in file “ALL:ALL” The rejection strategy of .

4、 Example

Just hope from IP The address is 12.0.0.1 The host of or located in 192.168.80.0/24 Host access of network segment sshd service , Other addresses are rejected .
vi /etc/hosts.allow
sshd:12.0.0.1,192.168.80.*

vi /etc/hosts.deny
sshd:ALL
