Cloud native observability tracking technology in the eyes of Baidu engineers

author | daydreamer

One 、 The concept is introduced

In the cloud native domain , Observability refers to inferring and measuring the internal state of the system from the external output , Describe the level of understanding of what happens in the system . The three common foundations of observability are Metrics、Tracing and Logging：

• Monitoring indicators (Metrics): The defining characteristics of monitoring indicators are aggregatable , It is to form a single logical indicator within a period of time 、 Atoms of counters or histograms . for example ： Incoming http The number of requests can be modeled as a counter , Its update aggregation is simple addition .

• track (Tracing): Its defining feature is that it processes information within the scope of the request , Any data or metadata that can be bound to the life cycle of a single transaction object in the system . for example ： Actual sent to database sql The text of the query .

• journal (Logging): The defining feature of a log is that it handles discrete events . for example ： Application debugging or error messages are sent to the cluster for unified processing through a cuttable file .

In these three areas , Monitoring indicators often require the least resources to manage , Because in essence , they “ Compress ” It's done quite well ; Logging tends to overwhelmingly exceed the production traffic it reports . From the perspective of data volume and cost , From monitoring ( low ) To the log ( high ), Tracking technology tracing Maybe somewhere in the middle .

Of course , The significance of observability is to better serve business systems , In practice, the application is often tailored to business needs , Analyze it abstractly , You can see the functions and characteristics of several observable systems , for example , Open source prometheus The project was initially started as a monitoring system , as time goes on , It may develop in the direction of tracking , To enter the requested scope (request-scope) Monitoring in , But it probably won't go deep into the log space .

Two 、 Track technical data models （ With OpenTelemetry Standards, for example ）

We use OpenTelemetry standard [1] For example , Brief introduction tracing General data model .

The classic model of tracking data originally came from Google The classic paper of [2], It defines a set of general data reporting interfaces , Each distributed tracking system is required to implement this interface , So as to adapt to various distributed tracking systems that comply with this standard , And for developers , Can be based on business needs , Switch different distributed tracking systems at will .

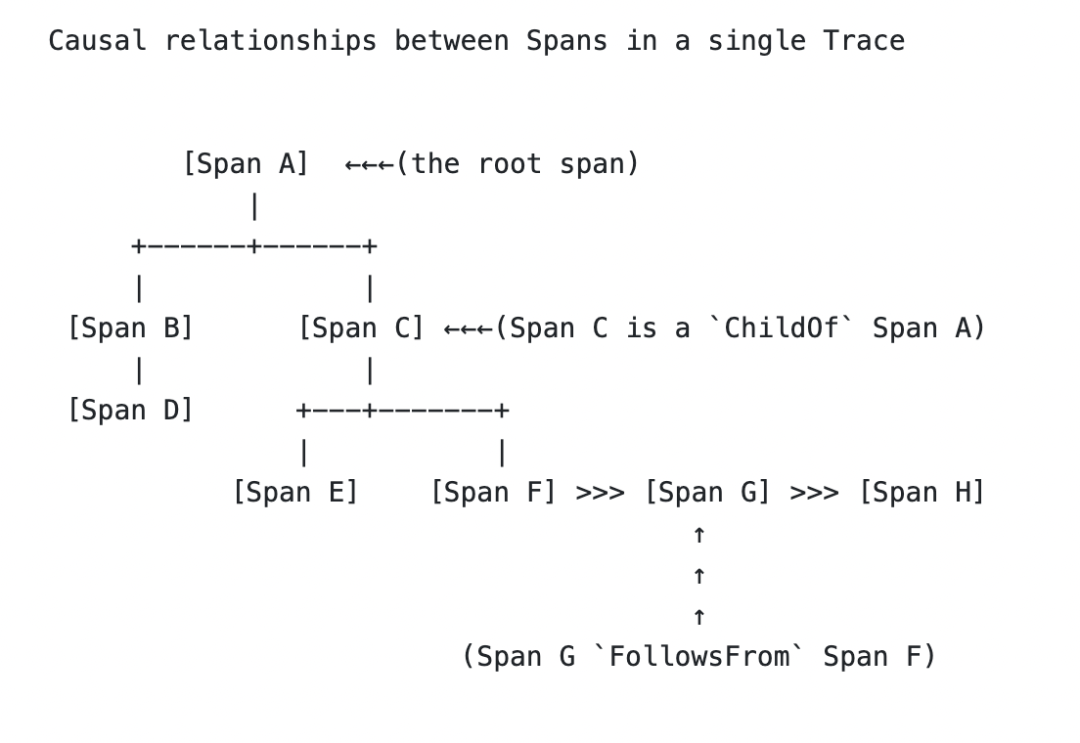

OpenTelemetry The trace in the standard is determined by their Span The implicit definition . especially , Can be Trace As Spans Directed acyclic graph of （DAG）, among Spans The edge between is called References.

Every Span The following states are encapsulated ：

• Name

• Start and End Timestamps

• Span Context

• Span context uses two identifiers to provide specific context about tracking and span ：Trace ID and Span ID. Every Span By one in Trace The only one ID identification , be called Span ID.Span Use Trace ID To mark span Relationship with its tracking .Span Context To describe the relationship across service and process boundaries .

• Attributes

• Key value pairs containing metadata （key-value）, You can use metadata to annotate Span To carry information about the operation it is tracking .

• Span Events

• Is considered to be Span Structured log messages on （ Or comments ）, Usually used to indicate Span Meaningful single point in duration .

• Span Links

• You can put a span With one or more span Related to , So as to describe the upstream and downstream relationship of execution . for example , Suppose we have a distributed system , In response to some of these actions （ Call it operation a）, An extra operation （ Call it operation b） Queued for execution , operation b The execution of is asynchronous . We hope to operate b And operation a Related to , But we cannot predict the operation b When to start . At this time, the operation a the last one span Link to action b first span, So as to describe their upstream and downstream relationship .

• Span Status

• Status code

3、 ... and 、 industry tracing to ground Uber Jaeger

Uber The company 2016 In, it opened source excellent in the field of cloud native tracing platform Jaeger[3]. At that time, the background of the project was ,Uber Facing the exponential growth of business, the number of micro services has increased , For the observability of large-scale distributed microservice architecture , There is still a lack of a perfect tracking platform . After the project is open source , Has been sought after by the industry ,2017 By the CNCF Accept as a graduation project . The platform features a single API The design of the times has changed into distributed design , Realize unified context propagation context, And the decision of sampling strategy is transferred to the tracking backend , Allow the backend to dynamically adjust the sampling rate . The platform fully supports OpenTelemetry standard , It has always been a de facto standard product in the cloud native field .

Jaeger The overall architecture of is as follows ：

among jaeger-client It is a client-side collection component , Support dynamic traffic simulation , Perceptible to storage pressure .jaeger-agent Responsible for sampling related strategies .jaeger-collector be responsible for tracing Data collection , Sorting and transferring .jaeger-ui and jaeger-query Responsible for the platform UI Interaction . The access method supports middleware embedding , Support HTTP Other protocols , The underlying storage uses Cassandra,Elasticsearch And other open source storage platforms .

about Jaeger See the official website for details of ：https://www.jaegertracing.io/

Alibaba eagle eye platform

Eagle eye is a new generation of log based distributed call tracking system created by Alibaba for mass traffic activities such as the double 11 . It solves the difficulty of fault location , Capacity estimation is difficult , Waste more resources , It is difficult to sort out links and other online problems . The platform has the following characteristics ：

1. Architecture iterations are becoming lighter , Data presentation is more real-time , Upgrade from batch to streaming

2. Visualize the monitoring process , Reduce access costs , The construction design is handed over to the user

3. Sample the data according to the analysis scenario , For example, the analysis of link morphology does not require full data

The platform adopts unified log printing form and measurement standard , Hot spots and capacity estimates can be found , Support pressure measurement , Illegal traffic . Achieve global call statistics ,trace Query, real-time monitoring and other functions . Support http/tcp Such agreement , The access method supports middleware embedding , Bytecode enhancement, etc , The bottom layer uses HDFS/HBASE/HSTORE/MPP Wait to store the database . The following figure shows the global call topology of the platform .

For the introduction of the platform, please refer to Alibaba cloud's introduction article 《 Best practice in building a three-dimensional monitoring system 》.

Four 、 Difficulties encountered in actual work and solutions

In Baidu's actual production system , We also widely use tracking technology to realize real-time monitoring of the whole link 、 Traffic performance statistics and requests trace Query and case Troubleshooting and other functions . In the process of application , We also have some practical experience ：

1. The amount of data tracked is large , Mainly in ：

• High acquisition pressure , requirement SDK High performance , Due to the decentralized reporting and transmission of requests, there is little pressure

• Optimize and realize reasonable sampling strategy

• Deep optimization coding and Mapping Algorithm

• Data is classified according to types and usage scenarios , Choose different underlying storage

2. Access costs are very important , Need to keep costs very low . Mainly in ：

• Developers are not very active in accessing non business code , In this case, the interface design is simple 、 Easy to use , A large number of buried points can rely on the underlying framework , Custom burying points are easy to use

• SDK Use the conciseness of documentation 、 accurate , There are good existing practice scenarios that can be reused directly

• The cost performance of investment should be high , We can see the practical problems solved by the system

3. High stability requirements , The main experience is ：

• Use local persistence as a buffer

• The combination of flow and task , Insert trick task etc.

4. The need to implement some advanced features , for example ：

• Confidence analysis of indicators , And data science

• Real time analysis of multiple aggregation windows , Both short-term timeliness and long-term trend analysis

• More intuitive display form , How to intuitively display as much information as possible with as few indicators

in general , With OpenTelemetry Standard landing , Cloud native observability tracking technology is also developing , It has also been widely used in the production environment , It strongly supports the stability of large-scale distributed microservice systems , performance , Efficiency and other aspects . We start from the perspective of a Baidu engineer , Can also see the leopard , At first sight, the breadth and depth of observability .
