D2dengine edible tutorial (3) -- export rendering targets as image files

D2DEngine Resource link ：https://blog.csdn.net/DGAF2198588973/article/details/125909836

The goal is ： Draw the picture on the render target , And export the image on the rendering target as a file

Direct2D API It is not difficult to , however , Because there is no Internet like Win32 API Such a large amount of detailed information , Once its in-depth study , It will be difficult to walk , The only way is to look for a needle in the sea of official Microsoft documents .
about How to export an image in a render target to a file , There are few online tutorials
—————————————————————————————————————————————————————

Windows Window client area and non client area

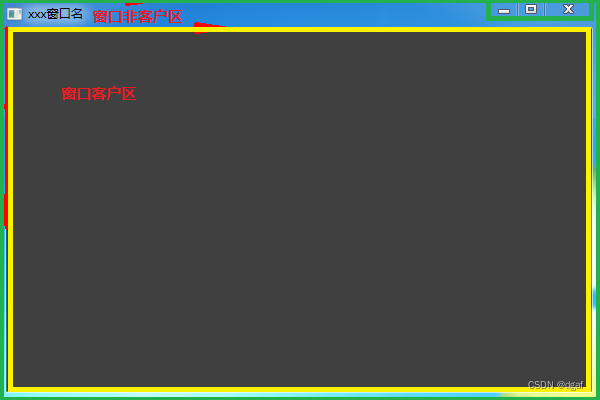

With the classic Windows7 The ground glass window is an example

Pictured , Green border —— Yellow border ( Including the minimization of the upper right corner , Maximize , close button ) by Non customer area ( The response message WM_NCPAINT) . The non client area accounts for a certain size of the total size of the window . Control creation , Draw operation You can't In non customer areas , When the window properties change , Will produce WM_NCPAINT news , Only then can the non customer area be operated .
Inside the yellow border ( Grey areas ) by Customer area ( The response message WM_PAINT) . Control , You can draw here .

Direct2D Most of the drawings are in Customer area Drawing ( Including previous examples )

Render Target

As shown in the red box , Here, set the rendering target to the whole window , The image covers the whole customer area

As shown in the figure, the red box is the rendering target , Painting beyond the rendered area will bring " beat all " Result

Render Target It is a set of resources , Contains Render area and Rendering devices ( Drawing board , A brush , Palette and so on ) , All operations related to rendering and painting are inseparable from the rendering target . The following figure shows their relationship .

—————————————————————————————————————————————————————

D2DEngine Member functions	effect
bool PackRenderTargetAsImageFile (Pathname,Filename,Transformat);	Package rendering target Finished drawing Image , Become a bitmap file , Path error or occurrence COM The error will return false, Parameters ：Pathname Pathname ,Filename file name ,Transformat Format to convert ( File extension ) , Between path name and file name " \ " It will automatically add

D2DPackImage.CPP

#include<windows.h>

#include"D2D_DRAW.h"

using namespace std;
using namespace D2D1;


LRESULT CALLBACK CallBackFunc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{

	switch(message)
	{


	case WM_DESTROY:
		PostQuitMessage(0);
		break;

	default:
		return DefWindowProc(hwnd, message, wParam, lParam);
	}

	return 0;
}


int WINAPI WinMain(HINSTANCE hin, HINSTANCE, LPSTR, int CmdShow)
{


	MSG msg = {
    };
	WNDCLASSEX wcex = {
    };

	memset(&wcex, 0, sizeof(wcex));
	wcex.cbSize = sizeof(WNDCLASSEX);
	wcex.lpfnWndProc = CallBackFunc;
	wcex.lpszClassName = L"D2D";
	wcex.hInstance = hin;
	wcex.style = CS_GLOBALCLASS;
	wcex.hbrBackground = (HBRUSH)GetStockObject(NULL_BRUSH);

	RegisterClassEx(&wcex);

	HWND hwnd = CreateWindowW(wcex.lpszClassName, L"D2D",
		WS_OVERLAPPED | WS_SYSMENU,
		300, 0, 640, 480,
		nullptr,
		nullptr,
		hin,
		nullptr
	);

	ShowWindow(hwnd, CmdShow);






	D2DEngine* Engine = new D2DEngine; //  establish  D2DEngine object

	Picture Photo(L" Cao Cao .jpeg"); // Store in this folder   Cao Cao .jpeg  Picture path for

	Engine->Initialize(hwnd); //  initialization  D2DEngine equipment , The render target specifies the entire window client area by default

	Engine->TransformPictureIntoBitmap(Photo, SINGLE_FRAME); // Picture format conversion

	Engine->BeginDraw(); // Began to draw

	Engine->DrawPicture(Photo, 0, 0, 640, 480); // Draw the picture on the client area of the window

	Engine->EndDraw(); // Stop drawing

	// thus , D2DEngine Finished drawing

	Engine->PackRenderTargetAsImageFile
	(L"", L" Cao Cao ", Picture_Format::BMP);
	// Intercept the entire window  ( Because no rendering target is specified ) , And convert the image of the window into an image file
	// Because the pathname is not specified , The program will create a program called   Cao Cao .bmp  The image file of is exported to its local disk
	// You can go and see if there are any more local disks





	while (GetMessage(&msg, NULL, 0, 0) > 0)
	{

		TranslateMessage(&msg);
		DispatchMessage(&msg);
	}

	return msg.wParam;
}

attach ：PackRenderTargetAsImageFile Realization principle of function ( The code is longer than the , You can skip )

The following code is taken from D2D_DRAW.CPP

// D2D_DRAW.CPP

namespace D2D_DRAW_BITMAP_FORMAT_MATCH // The content is only available in this file
{

	const struct   // For image format comparison
	{

		Picture_Format _format_;
		GUID _GUID_format_;
		WCHAR* _Extension_;
	}
	_match_format_table_[] =
	{

		{
    Picture_Format::BMP,  GUID_ContainerFormatBmp,  L".bmp" },
		{
    Picture_Format::PNG,  GUID_ContainerFormatPng,  L".png" },
		{
    Picture_Format::JPEG, GUID_ContainerFormatJpeg, L".jpeg"},
		{
    Picture_Format::DDS,  GUID_ContainerFormatDds,  L".dds" },
		{
    Picture_Format::JPG,  GUID_ContainerFormatJpeg, L".jpg" },
		{
    Picture_Format::ADNG, GUID_ContainerFormatAdng, L".adng"},
		{
    Picture_Format::HEIF, GUID_ContainerFormatHeif, L".heif"},
		{
    Picture_Format::RAW,  GUID_ContainerFormatRaw,  L".raw" },
		{
    Picture_Format::WEBP, GUID_ContainerFormatWebp, L".webp"},
		{
    Picture_Format::GIF,  GUID_ContainerFormatGif,  L".gif" },
		{
    Picture_Format::ICO,  GUID_ContainerFormatIco,  L".ico" },
		{
    Picture_Format::WMP,  GUID_ContainerFormatWmp,  L".wmp" },
		{
    Picture_Format::TIFF, GUID_ContainerFormatTiff, L".tiff"}
	};
}



// Package the image on the render target ,  Become a bitmap file
bool D2DEngine::PackRenderTargetAsImageFile(WCHAR* Pathname,
	WCHAR* Filename, Picture_Format TransformFormat)
{

	// About "D2D Bitmap Export " There are few online tutorials
	// The big hole left by Microsoft ,MSDN The official tutorial is useless ( because FilePacker need WinRT System )
	/*  The process ： 1. Copy a temporary bitmap from the original rendering target (ID2D1Bitmap) 2. Create an export WIC Bitmap (IWICBitmap), And a WIC Render Target (ID2D1RenderTarget)  And will WIC Bitmap bound to WIC Render on target  3. Draw a temporary bitmap to WIC Render on target  4. Create file stream , And initialize with file path  5. establish Encoder equipment , Set up Encoder The path and frame that will be written to the file (EncodeFrame) 6. establish EncodeFrame equipment , Bind and write a frame bitmap (WICBitmap) 7. End writing , Close file ,Encoder and EncodeFrame Conduct Commit operation   Be careful :  The original render target is the same as WIC Render the renderer target on the target (RenderTargetType) Must be software! ( because  WIC  Only software rendering is supported ) */

	try
	{

		D2DDestRenderTarget.Reset();
		WICBitmap.Reset();
		WICStream.Reset();
		WICEncoder.Reset();
		WICEncodeFrame.Reset();

		Microsoft::WRL::ComPtr<ID2D1Bitmap> _ExtraBitmap;

		UINT _RTw = D2DRenderTarget->GetSize().width;
		UINT _RTh = D2DRenderTarget->GetSize().height;

		WICPixelFormatGUID _WICformat = GUID_WICPixelFormatDontCare;
		D2D1_POINT_2U _destPoint = D2D1::Point2U();

		D2D1_RECT_U _Rect = D2D1::RectU(0, 0, _RTw, _RTh);
		D2D1_RECT_F _Rect2 = D2D1::RectF(0, 0, _RTw, _RTh);




		// 1. Copy a temporary bitmap from the original rendering target (ID2D1Bitmap)
		D2DRenderTarget->CreateBitmap(D2D1_SIZE_U{
     _RTw, _RTh },
			D2D1::BitmapProperties(D2D1::PixelFormat(DXGI_FORMAT_B8G8R8A8_UNORM,
				D2D1_ALPHA_MODE_PREMULTIPLIED)), &_ExtraBitmap);

		_ExtraBitmap->CopyFromRenderTarget(&_destPoint, D2DRenderTarget.Get(), &_Rect);



		// 2. Create an export WIC Bitmap (IWICBitmap),  And a WIC Render Target (ID2D1RenderTarget)
		//  And will WIC Bitmap bound to WIC Render on target
		WICFactory->CreateBitmap(_RTw, _RTh, GUID_WICPixelFormat32bppPBGRA,
			WICBitmapCacheOnDemand, &WICBitmap);

		D2DFactory->CreateWicBitmapRenderTarget(WICBitmap.Get(),
			D2D1::RenderTargetProperties(D2D1_RENDER_TARGET_TYPE_SOFTWARE,
				D2D1::PixelFormat(DXGI_FORMAT_B8G8R8A8_UNORM, D2D1_ALPHA_MODE_PREMULTIPLIED)),
			&D2DDestRenderTarget);



		// 3. Draw a temporary bitmap to WIC Render on target
		D2DDestRenderTarget->BeginDraw();
		D2DDestRenderTarget->Clear(0);
		D2DDestRenderTarget->DrawBitmap(_ExtraBitmap.Get(), _Rect2, 1.0f,
			D2D1_BITMAP_INTERPOLATION_MODE_NEAREST_NEIGHBOR,_Rect2);
		D2DDestRenderTarget->EndDraw();



		// 4. Create file stream , And initialize with file path
		WICFactory->CreateStream(&WICStream);

		size_t _result = 0;
		while (true)
		{

			if (_result == sizeof(D2D_DRAW_BITMAP_FORMAT_MATCH::_match_format_table_))
			{

				return false;
			}
			if (D2D_DRAW_BITMAP_FORMAT_MATCH::_match_format_table_[_result]._format_ == TransformFormat)
			{

				break;
			}
			_result++;
		}

		std::wstring _returnfilename = std::wstring(Pathname) + std::wstring(L"\\") +
			std::wstring(Filename) +
			std::wstring(D2D_DRAW_BITMAP_FORMAT_MATCH::_match_format_table_[_result]._Extension_);

		WCHAR* ReturnFileName = &_returnfilename[0];

		WICStream->InitializeFromFilename(ReturnFileName, GENERIC_WRITE);



		// 5. establish Encoder equipment , Set up Encoder The path and frame that will be written to the file (EncodeFrame)
		WICFactory->CreateEncoder(D2D_DRAW_BITMAP_FORMAT_MATCH::_match_format_table_[_result]._GUID_format_, nullptr, &WICEncoder);
		WICEncoder->Initialize(WICStream.Get(), WICBitmapEncoderNoCache);
		WICEncoder->CreateNewFrame(&WICEncodeFrame, nullptr);



		// 6. establish EncodeFrame equipment , Bind and write a frame bitmap (WICBitmap)
		WICEncodeFrame->Initialize(nullptr);
		WICEncodeFrame->SetSize(_RTw, _RTh);
		WICEncodeFrame->SetPixelFormat(&_WICformat);
		WICEncodeFrame->WriteSource(WICBitmap.Get(), nullptr);



		// 7. End writing , Close file ,Encoder and EncodeFrame Conduct Commit operation
		WICEncodeFrame->Commit();
		WICEncoder->Commit();


	}
	catch (D2DException& Error)
	{

		return false;
	}

	return true;
}

Big God link ：
1.Direct2D Save the current renderer target content as a bitmap
2.Direct2D course V—— Bitmap （Bitmap） And bitmap brushes （BitmapBrush）
