[proteus simulation] Arduino uno key controls the flashing increase / decrease display of nixie tube

2022-06-25 04:04:00 【perseverance52】

【Proteus Simulation 】Arduino UNO Press the key to control the nixie tube to flash / Minus display

  • Proteus Simulation
    Insert picture description here

The simulation shows that

  • export Hex Document method
    Insert picture description here

Derived Hex The file is under the project folder .

  • Load the file
    Insert picture description here

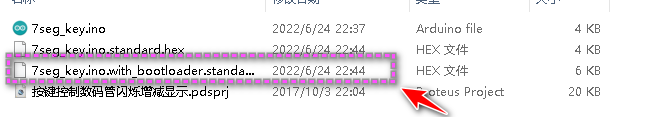

  • Loading belt BootLoader Character Hex file
    Insert picture description here

Sample code

// Press the key to control the nixie tube to flash / Minus display
// explain ： Press the key to add / Subtract the number displayed by the nixie tube , During the adjustment, the nixie tube flashes
