16 application problem solving

Catalog

16.1 ​​​​​​ Cache penetration

16.1.1 Problem description

16.1.2 Solution

16.2 Cache breakdown

16.2.1  Problem description

 16.2.2 Solution

16.3 Cache avalanche

16.3.1  Problem description

 16.3.2 Solution

---

16.1 ​​​​​​ Cache penetration

16.1.1 Problem description

        key The corresponding data does not exist in the data source , Every time for this key The request for could not be fetched from the cache , Requests are pushed to the data source , That could crush the data source . For example, use a non-existent user id Get user information , No matter cache or database , If hackers exploit this vulnerability, they may crush the database .

16.1.2 Solution

         There must be no data that cannot be cached or queried , Because the cache is written passively on Miss , And for the sake of fault tolerance , If no data can be found from the storage tier, it will not be written to the cache , This will cause the non-existent data to be queried by the storage layer every time it is requested , It loses the meaning of caching .

Solution ：

1. Cache null values ： If the data returned by a query is empty （ Whether the data doesn't exist or not ）, We still put this empty result （null） Cache , Setting the expiration time for empty results can be very short , Up to five minutes
2. Set up an accessible list （ White list ）： Use bitmaps Type defines a list of accessible , list id As bitmaps The offset , Every visit and bitmap Inside id Compare , If you visit id be not in bitmaps Inside , To intercept , Access not allowed .
3. Use of Blum filter ：( The bloon filter （Bloom Filter） yes 1970 Proposed by bron in . It's actually a very long binary vector ( Bitmap ) And a series of random mapping functions （ hash function ）. The bloom filter can be used to retrieve whether an element is in a collection . Its advantage is that the space efficiency and query time are far more than the general algorithm , The disadvantage is that it has certain error recognition rate and deletion difficulty .) Hash all possible data to a large enough bitmaps in , A certain nonexistent data will be This bitmaps Intercept , Thus, the query pressure on the underlying storage system is avoided .
4. Real-time monitoring ： If I found Redis It's starting to drop , Need to check access objects and data , Cooperate with operation and maintenance personnel , You can set up a blacklist to restrict services

16.2 Cache breakdown

16.2.1  Problem description

        key The corresponding data exists , But in redis Medium overdue , At this time, if a large number of concurrent requests come , These requests usually find that the cache is expired from the back end DB Load data and reset to cache , At this time, a large number of concurrent requests may instantly put the back end DB Overwhelmed .

 16.2.2 Solution

        key It may be accessed at some point in time with super high concurrency , It's a very “ hotspot ” The data of . This is the time , A question needs to be considered ： The cache is “ breakdown ” The problem of .

solve the problem ：

（1） Preset hot data ： stay redis Before the summit visit , Put some hot data into redis Inside , Increase the hot data key Duration

（2） Real time adjustments ： What data is hot on the spot , Real time adjustments key The expiration time of

（3） Using locks ：

1. When the cache fails （ Judge that the value is empty ）, Not immediately load db.
2. First, use some operations of the cache tool with the return value of the successful operation （ such as Redis Of SETNX） Go to set One mutex key
3. When the operation returns success , Proceed again load db The operation of , And reset the cache , Finally delete mutex key;
4. When the operation returns failure , Prove that there are threads in load db, The current thread sleeps for a period of time and then retries the whole get Caching method .

16.3 Cache avalanche

​​​​​​​16.3.1  Problem description

        key The corresponding data exists , But in redis Medium overdue , At this time, if a large number of concurrent requests come , These requests usually find that the cache is expired from the back end DB Load data and reset to cache , At this time, a large number of concurrent requests may instantly put the back end DB Overwhelmed .

The difference between cache avalanche and cache breakdown is that there are many key cache , The latter is a key

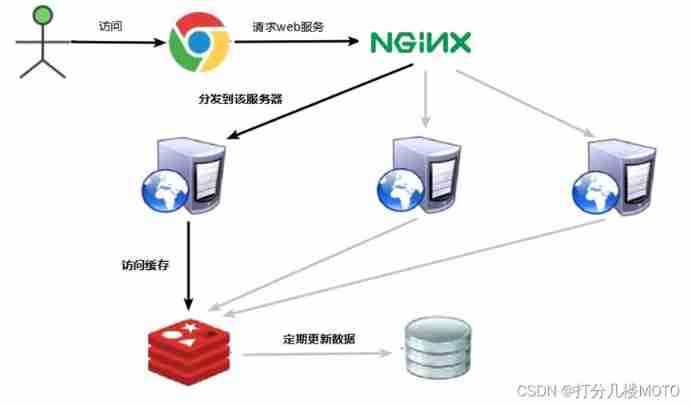

Normal visit

The moment the cache fails



 16.3.2 Solution

         The avalanche effect of cache failure has a terrible impact on the underlying system ！

Solution ：

1. Building a multi-level cache architecture ：nginx cache + redis cache + Other caches （ehcache etc. ）
2. Use locks or queues ： Lock or queue to ensure that there will not be a large number of threads to read and write the database at one time , So as to avoid a large number of concurrent requests falling on the underlying storage system in case of failure . Not for high concurrency
3. Set expiration flag to update cache ： Record whether the cache data is out of date （ Set the lead amount ）, If it expires, it will trigger another thread to update the actual situation in the background key The cache of .
4. Spread the cache expiration time ： For example, we can add a random value to the original failure time , such as 1-5 Minutes at random , In this way, the repetition rate of each cache expiration time will be reduced , It's hard to trigger a collective failure .
