Openresty chapter 01 introduction and installation configuration

This paper mainly focuses on openresty Make an introduction to the installation and configuration of initialization .

1、OpenResty brief introduction

Read about web The server students must be right nginx No stranger ,nginx As the No. 1 market share at present web The server , Itself as static web The server 、 Reverse proxy service and four layers 、 The seven layer load balancer has excellent performance . But for web For servers ,nginx Many of the features of are static web application , That is to say, its dynamic processing capability is somewhat lacking . Let's take the simplest example ,nginx It is not possible to make more than one logical judgment in the configuration , This is inconvenient for some architecture design .OpenResty Was born to solve this problem .

The government is concerned about OpenResty The introduction of ：

OpenResty It's based on Nginx And Lua A high performance Web platform , It has a lot of sophisticated integration inside Lua library 、 Third party modules and most of the dependencies . Easy to construct to handle ultra-high concurrency 、 Highly scalable dynamics Web application 、Web Services and dynamic gateways .

OpenResty By bringing together a variety of well-designed Nginx modular （ Mainly by OpenResty Team independent development ）, So that Nginx Effectively become a powerful gm Web Application platform . such ,Web Developers and systems engineers can use it Lua Scripting language mobilization Nginx Various supported C as well as Lua modular , Build up quickly enough to be competent 10K Even 1000K High performance of the above single-machine concurrent connections Web Application system .

OpenResty The goal is to let you Web The service runs directly in Nginx Services within , make the best of Nginx The non-blocking I/O Model , Not just to HTTP Client request , Even for the remote backend MySQL、PostgreSQL、Memcached as well as Redis And so on for consistent high performance response .

My simple understanding is OpenResty=nginx+lua+ Third party Library , in fact nginx It can also be added by compiling lua Support for , meanwhile nginx You can also add third-party library support through compilation ,OpenResty It is directly packed together . Let's not talk about OpenResty As omnipotent web Whether the server can meet all the business requirements , Its outstanding dynamic processing capability can bring great flexibility and additional diversified processing capability to our system architecture .

2、yum install

2.1 To configure yum Source

openresty The official website provides various mainstream services Linux Distribution Precompiled translation package , If there is no special need , Generally, you can directly use the official installation package for installation .

Now let's centos As an example ：

# add the yum repo:
wget https://openresty.org/package/centos/openresty.repo
sudo mv openresty.repo /etc/yum.repos.d/

# update the yum index:
sudo yum check-update

2.2 rpm Package introduction

openresty Of yum Source except openresty Beyond itself , There are other toolkits and dependent packages , We can view all the available rpm package , For these rpm For detailed explanation of the package, please refer to the official website file .

sudo yum --disablerepo="*" --enablerepo="openresty" list available

The following is a brief introduction to some key rpm package .

2.2.1 openresty

This is for the core OpenResty Production version of the service . That is the whole openresty The core function file that provides the main services in . In the use of rpm Package installation , In the system openresty The instruction will be linked to /usr/bin/openresty, and /usr/bin/openresty It's actually /usr/local/openresty/nginx/sbin/nginx The soft links

actually /usr/local/openresty/nginx/sbin/nginx It's the whole thing openresty Of nginx The body of the executable , We add -V Parameter to view its details including the compiled module . The reason why you want to soft link it to /usr/bin/openresty, The official explanation is to avoid contact with what is already on the machine nginx conflict .

From the above compilation parameters, we can see openresty Using their own maintenance openssl library 、zlib library 、pcre Kuhe LuaJIT library , In this way, it can better control the version, function update and synchronization coordination among various libraries .

2.2.2 openresty-resty

This bag has resty Command line program , This toolkit mainly relies on resty-cli This project , This package relies on Standards Of perl Package and the above mentioned openresty The package can work properly . By default, it points to /usr/bin/resty An environment variable of the directory , And the source file is in /usr/local/openresty/bin/resty

Personally, I think the main function of this toolkit is to facilitate us to debug some simple commands

$ resty -e 'ngx.say("hello")'
hello

2.2.3 openresty-doc

As the name suggests, this rpm The most important function of the package is to provide document query , Generally speaking, attention should be paid to the use of UTF-8 Coded Terminal that will do . and man The command is somewhat similar , If we want to inquire openresty Documents related to a module in , Just use restydoc Command is enough .

#  We can directly enter the corresponding module name to view the corresponding document
restydoc ngx_lua
restydoc ngx_lua_upstream
restydoc ngx_http_v2_module
restydoc luajit
#  You can also join -s Parameter to view the document of an instruction or part
restydoc -s content_by_lua
restydoc -s proxy_pass

2.2.4 openresty-openssl

This is a openresty Officially maintained OpenSSL library . To save money , This version disables multithreading support in the build . Besides , The most important thing about this version is OpenResty Officials have added some of their own patches to support some openssl The latest features of , At the same time, some optimizations have been made to make the older system support the latest version openssl. Empathy , Not only is openssl,openresty Self maintained pcre and zlib Libraries also have this purpose .

and nginx default rpm The version is still older / The stability of the openssl Version comparison ,openresty about openssl The support of version is undoubtedly more radical .

2.2.5 other

For more detailed package introduction, please check the official English document , The introduction is quite comprehensive , Generally speaking, it is the main tool software such as openresty、openssl、pcre、zlib And so on 、debug edition 、asan edition 、valgrind Version, etc , I won't elaborate here .

2.3 rpm Package installation openresty

Although the above introduces many openresty Related to the package , But in fact, you only need to install openresty, Other dependencies are determined by yum Automatic processing . Be careful openresty-doc、openresty-resty And so on are optional packages .

# add the yum repo:
wget https://openresty.org/package/centos/openresty.repo
sudo mv openresty.repo /etc/yum.repos.d/

# update the yum index:
sudo yum check-update

# use yum to install
yum install openresty

After installation, the default directory path will be displayed /usr/local/openresty/nginx The following generates the corresponding configuration file directory , And we will yum Installed nginx And compile and install nginx The comparison shows almost the same .

#  Use yum Installed nginx
[[email protected] nginx]# pwd
/etc/nginx
[[email protected] nginx]# ls
conf.d  fastcgi_params  koi-utf  koi-win  mime.types  modules  nginx.conf  scgi_params  uwsgi_params  win-utf

#  Source code compiler installed nginx
[[email protected] nginx]# pwd
/home/nginx
[[email protected] nginx]# ls
client_body_temp  conf  fastcgi_temp  html  logs  sbin  scgi_temp  uwsgi_temp

#  Use yum Installed openresty In the catalog nginx
[[email protected] nginx]# pwd
/usr/local/openresty/nginx
[[email protected] nginx]# ls
client_body_temp  conf  fastcgi_temp  html  logs  proxy_temp  sbin  scgi_temp  uwsgi_temp

Let's write a simple nginx.conf The configuration file can be used for testing , The file uses the default path /usr/local/openresty/nginx/conf/nginx.conf.

[[email protected] conf]# openresty -T
nginx: the configuration file /usr/local/openresty/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/openresty/nginx/conf/nginx.conf test is successful
# configuration file /usr/local/openresty/nginx/conf/nginx.conf:
user root;
worker_processes  1;

error_log logs/error.log;

pid logs/nginx.pid;

events {

    worker_connections 1024;
}

http {


    log_format main
    '$remote_addr | [$time_local] | $status | $scheme | '
    '$server_name | request= $request | request_uri= $request_uri | http_referer= $http_referer | '
    'UA= $http_user_agent | $request_time | $ssl_protocol | $ssl_cipher | '
    'remote_port= $remote_port | $request_id';

    access_log logs/access.log main;

    server {

        listen 8080;
        location / {

            default_type text/html;
            content_by_lua_block {

                ngx.say("<p>hello, world</p>")
            }
        }
    }
}

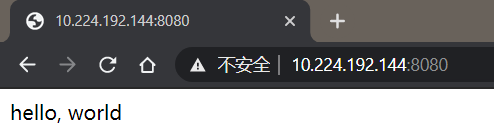

Separate use curl And browser tests are normal

[[email protected] conf]# curl 10.224.192.144:8080
<p>hello, world</p>

Corresponding operations can also be seen in the log

[[email protected] conf]# tail -f ../logs/access.log
10.224.192.144 | [12/Mar/2021:14:42:25 +0800] | 200 | http |  | request= GET / HTTP/1.1 | request_uri= / | http_referer= - | UA= curl/7.29.0 | 0.000 | - | - | remote_port= 34626 | 602882ad9b5cf910bea2f6d13ce4bf5e
10.228.18.249 | [12/Mar/2021:14:42:51 +0800] | 200 | http |  | request= GET / HTTP/1.1 | request_uri= / | http_referer= - | UA= Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36 | 0.000 | - | - | remote_port= 7148 | 5a91256294bf307ed62f48a06905dbc0
10.228.18.249 | [12/Mar/2021:14:42:51 +0800] | 200 | http |  | request= GET /favicon.ico HTTP/1.1 | request_uri= /favicon.ico | http_referer= http://10.224.192.144:8080/ | UA= Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/88.0.4324.190 Safari/537.36 | 0.000 | - | - | remote_port= 7148 | 372e7402db9f396950dae48b66a7e1ce

Check that the port listening and service processes are normal

Then you can basically judge that the installation is successful .

3、 Source code compilation and installation

If customization is required , It is our best choice to compile and install from the source code . Let's go first Official website Download the latest version of openresty Source package and extract .

cd /home
wget https://openresty.org/download/openresty-1.19.3.1.tar.gz
tar -zxvf openresty-1.19.3.1.tar.gz

3.1 Compile environment

[[email protected] home]# lsb_release -a
LSB Version:    :core-4.1-amd64:core-4.1-noarch:cxx-4.1-amd64:cxx-4.1-noarch:desktop-4.1-amd64:desktop-4.1-noarch:languages-4.1-amd64:languages-4.1-noarch:printing-4.1-amd64:printing-4.1-noarch
Distributor ID: CentOS
Description:    CentOS Linux release 7.9.2009 (Core)
Release:        7.9.2009
Codename:       Core

At the same time, we also need to prepare tools for compilation, such as compilers , about CentOS7, We can simply install the entire development kit Development Tools.

yum grouplist
yum groupinstall "Development Tools" -y

3.2 Get ready openssl、pcre and zlib

and nginx equally , We manually download the latest version of openssl、pcre and zlib, Note the three libraries Just download and unzip , There is no need to install in advance .

#  download
wget https://www.openssl.org/source/openssl-1.1.1j.tar.gz
wget https://ftp.pcre.org/pub/pcre/pcre-8.44.tar.gz
wget https://zlib.net/zlib-1.2.11.tar.gz
#  decompression
tar -zxvf openssl-1.1.1j.tar.gz
tar -zxvf pcre-8.44.tar.gz
tar -zxvf zlib-1.2.11.tar.gz

3.3 Compilation and installation

and nginx Compilation and installation of , We can customize the modules that are compiled and installed , Here you can see openresty Modular Official statement .

cd /home/openresty-1.19.3.1/
./configure --prefix=/home/openresty --with-openssl=/home/openssl-1.1.1j --with-pcre=/home/pcre-8.44 --with-zlib=/home/zlib-1.2.11 --with-http_realip_module --with-http_stub_status_module --with-debug --with-http_ssl_module --with-http_v2_module

gmake -j8
gmake install

Finally, when the installation is completed, we can see that the openresty In the catalog /home/openresty/nginx/sbin/nginx Soft links to /home/openresty/bin/openresty, Logic and yum Installed openresty equally

If you want to facilitate global operations , You can create a soft link .

ln -s /home/openresty/bin/openresty /usr/local/bin/openresty

Of course, if you feel that this kind of directory is not easy to operate , We can also add more parameters during compilation , Manually specify all commonly used directories , The operation is similar to nginx There's almost no difference , Here is a simple example ：

./configure \
--prefix=/home/openresty \
--sbin-path=/home/openresty/bin/nginx \
--conf-path=/home/openresty/conf/nginx.conf \
--http-log-path=/home/openresty/logs/access.log \
--error-log-path=/home/openresty/logs/error.log \
--pid-path=/home/openresty/logs/nginx.pid \
--lock-path=/home/openresty/logs/nginx.lock \
--http-client-body-temp-path=/home/openresty/client_body_temp/ \
--http-proxy-temp-path=/home/openresty/proxy_temp/ \
--http-fastcgi-temp-path=/home/openresty/fastcgi_temp/ \
--http-uwsgi-temp-path=/home/openresty/uwsgi_temp/ \
--http-scgi-temp-path=/home/openresty/scgi_temp/ \
--with-openssl=/home/openssl-1.1.1k \
--with-pcre=/home/pcre-8.44 \
--with-zlib=/home/zlib-1.2.11 \
--with-http_realip_module \
--with-http_stub_status_module \
--with-debug \
--with-http_ssl_module \
--with-http_v2_module \
--build=tinychen-build \
--dry-run

4、OpenResty operation

openresty Operation instructions and nginx It's exactly the same . As follows ：

[[email protected] home]# nginx -h
nginx version: nginx/1.19.8
Usage: nginx [-?hvVtTq] [-s signal] [-p prefix]
             [-e filename] [-c filename] [-g directives]

Options:
  -?,-h         : this help
  -v            : show version and exit
  -V            : show version and configure options then exit
  -t            : test configuration and exit
  -T            : test configuration, dump it and exit
  -q            : suppress non-error messages during configuration testing
  -s signal     : send signal to a master process: stop, quit, reopen, reload
  -p prefix     : set prefix path (default: /etc/nginx/)
  -e filename   : set error log file (default: /var/log/nginx/error.log)
  -c filename   : set configuration file (default: /etc/nginx/nginx.conf)
  -g directives : set global directives out of configuration file

[[email protected] home]# openresty -h
nginx version: openresty/1.19.3.1
Usage: nginx [-?hvVtTq] [-s signal] [-c filename] [-p prefix] [-g directives]

Options:
  -?,-h         : this help
  -v            : show version and exit
  -V            : show version and configure options then exit
  -t            : test configuration and exit
  -T            : test configuration, dump it and exit
  -q            : suppress non-error messages during configuration testing
  -s signal     : send signal to a master process: stop, quit, reopen, reload
  -p prefix     : set prefix path (default: /usr/local/openresty/nginx/)
  -c filename   : set configuration file (default: conf/nginx.conf)
  -g directives : set global directives out of configuration file

• -h Print help menu
• -v Lowercase v Yes print version and exit
• -V uppercase V Is to print the compilation parameters and version information and exit
• -t Lowercase t Is to test the configuration file for errors and exit
• -T uppercase T Is to test whether the configuration file is incorrect, print out the effective configuration file and exit , If nginx.conf It uses include Command adds additional configuration files , It will also be spliced and printed together
• -q Do not print non error messages during the test , fit debug Use
• -s Send a signal to control master process , Respectively stop（ The violence stopped ）, quit（ Elegant stop ）, reopen（ Reopen the log file ）, reload（ Elegant restart ）
• -p adopt -p Parameter to specify the actual working directory , For example, we have two different test projects , You can use the openresty -p /path/to/app Specify a different working directory at startup , This allows multiple different OpenResty Applications share the same OpenResty The effect of the service program
• -c adopt -c Parameter to specify a different configuration file instead of just the configuration file under the default path
• -g Set the global instructions outside the configuration file at startup , for example openresty -g "pid /var/run/nginx.pid; worker_processes 8;"
