JUC concurrent programming foundation (9) -- thread pool

Thread pool

Thread pool overview

Thread pool is a method based on Pool thought Tools for managing threads , It often appears on multi-threaded servers , such as MySQL

Pooling , seeing the name of a thing one thinks of its function , To maximize revenue and minimize risk , And the idea of managing resources together .

Because there are many short-term tasks , Therefore, there will be additional costs for the continuous creation and destruction of threads , In addition, too many threads will lead to excessive scheduling problems , And thread pool can Ensure full utilization of the kernel , There are other benefits , for example ：

• ** Reduce resource consumption ：** Reuse created threads through pooling , Reduce the cost of thread creation and destruction .
• ** Improve response time ：** When the task arrives , Skipped the step of creating thread , It can be executed immediately .
• ** Improved thread manageability ：** Threads are scarce resources , If unlimited creation , Not only does it consume system resources , It will also cause resource scheduling imbalance due to the unreasonable distribution of threads , Reduce the stability of the system . Uniform allocation is possible using thread pools 、 Tune and monitor .

• More and more powerful functions ： Thread pool has scalability , Allow developers to add more functionality to it . For example, delay timed thread pool ScheduledThreadPoolExecutor, To allow tasks to be postponed or performed on a regular basis .

In a concurrent environment , The system does not know how many tasks need to be performed （ At any time ）, I don't know how many resources to give , There are many problems ：

• Always need to apply 、 Destroy resources and schedule resources , It may bring huge consumption .
• The system has no way to apply for resources all the time , May cause resource depletion .
• There are many resource applications , You can use this thread , Have some of that , Cannot manage the internal resource distribution , The stability is greatly reduced .

At this time, the thread pool is needed , stay Java The embodiment of ThreadPoolExecutor class .

Thread pool Architecture - overall design

ThreadPoolExecutor The inheritance relationship of class is ：

** Top level interface -Executor：** Decouple task Submission from task execution , Users don't need to focus on how to create threads , How to schedule , Just submit the running logic of the task to Executor Then you can .

** Interface -ExecutorService：** Added some features , It can be summarized as , Generate for asynchronous tasks Future Method , It also provides a method to control the thread pool , Such as stopping .

** abstract class -AbstractExecutorService：** Upper level abstract classes , Concatenate the processes that perform the task , To ensure the implementation of the lower layer, you only need to pay attention to one method of executing tasks .

** Implementation class -ThreadPoolExecutor：** Implement the most complex part of the run ,ThreadPoolExecutor On the one hand, it will maintain its own life cycle , On the other hand, manage threads and tasks at the same time , Make a good combination of the two to perform parallel tasks .

ThreadPoolExecutor Operation process ：

Task submitted , Determine whether Execute now perhaps Reject task , Or let the task go Buffer queue Stay , Just these three states .

If you execute a task, apply for a thread , When Task execution After that , The thread will continue to acquire new tasks , When you can't get a new task , Thread recycling .

Thread pool - Life cycle management

The running state of the thread pool and the number of threads in the pool , There are no two variables , But with a 32 position Integer Stored , Through high 3 Bit to save the running state , low 29 Number of bit save threads , It can reduce the time when there are changes , You need to match the two variables all the time , Prevent lock resources from being occupied . Thread pools provide many ways to get the current running state 、 Number , It's all based on An operation Methods .

private static int runStateOf(int c)     {
     return c & ~CAPACITY; } // Calculate the current running state
private static int workerCountOf(int c)  {
     return c & CAPACITY; }  // Count the current number of threads
private static int ctlOf(int rs, int wc) {
     return rs | wc; }   // Generated by state and number of threads ctl

private final AtomicInteger ctl = new AtomicInteger(ctlOf(RUNNING, 0));

//ctl Is to save the variables of running state and quantity , adopt ctlof obtain , Put in the AtomicInteger Type variable

These are the five running states of the thread pool , The life cycle transformation is shown in the figure ：

Thread pool - Task execution mechanism

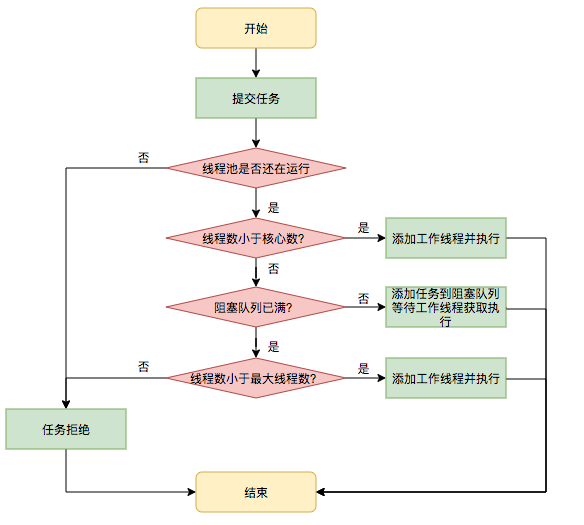

Task scheduling

1. First, check the running state of thread pool , If not RUNNING, Then refuse directly , The thread pool should be guaranteed in RUNNING In the state of .
2. If workerCount < corePoolSize, Then create and start a thread to execute the newly submitted task .
3. If workerCount >= corePoolSize, And the blocking queue in the thread pool is not full , Then add the task to the blocking queue .
4. If workerCount >= corePoolSize && workerCount < maximumPoolSize, And the blocking queue in the thread pool is full , Then create and start a thread to execute the newly submitted task .
5. If workerCount >= maximumPoolSize, And the blocking queue in the thread pool is full , The task is handled according to the rejection strategy , The default way is to throw exceptions directly .

Task buffer

Blocking queues (BlockingQueue) Is a queue that supports two additional operations . These two additional operations are ： When the queue is empty , The thread that gets the element will wait for the queue to become non empty . When the queue is full , The thread storing the element waits for the queue to be available . Blocking queues are often used in producer and consumer scenarios , Producers are threads that add elements to the queue , Consumer is the thread that takes elements from the queue . A blocking queue is a container for producers to store elements , And consumers only take elements from containers .

What are the specific blocking queues , Visible above 《 Blocking queues 》 part .

Mission application

There are two possibilities for task execution ： One is that the task is executed directly by the newly created thread . The other is that the thread gets the task from the task queue and executes it , The first case only occurs when the thread is initially created , The second is in most cases of thread fetching tasks .

The thread needs to constantly fetch the task execution from the task cache module , Help thread get task from blocking queue , Realize the communication between thread management module and task management module . This part of the strategy consists of getTask Method realization , The execution process is shown in the figure below ：

Mission rejection

When the task cache queue of thread pool is full , And the number of threads in the thread pool reaches maximumPoolSize when , You need to reject the task , Take a task rejection strategy , Protect thread pool .

By implementing RejectedExecutionHandler Interface to customize the rejection policy , It can also be used JDK The rejection policy provided .

Thread pool -Worker Thread management

Worker Threads

In order to master the state of threads and maintain the life cycle of threads , Designed the working thread in the thread pool Worker.

private final class Worker extends AbstractQueuedSynchronizer implements Runnable{

    final Thread thread;//Worker Held threads
    Runnable firstTask;// Initialization task , It can be for null
}

Worker This worker thread , Realized Runnable Interface , And hold a thread thread, An initialization task firstTask.thread It is used when calling the constructor ThreadFactory To create a thread , Can be used to perform tasks ;firstTask Use it to save the first incoming task , This task can have or can be null. If this value is not empty , Then the thread will execute this task immediately at the beginning of startup , It also corresponds to the situation when the core thread is created ; If the value is null, Then you need to create a thread to execute the task list （workQueue） The task , That is, the creation of non core threads .

Worker Thread increase

The increase of threads is through addWorker Method , The function of this method is to add a thread , This method does not consider the stage in which the thread pool is added , This strategy of allocating threads was completed in the last step , This step only completes adding threads , And make it run , Finally, it returns whether the result is successful .addWorker Method has two parameters ：firstTask、core.firstTask Parameter is used to specify the first task executed by the new thread , This parameter can be empty ;core Parameter is true Indicates whether the current number of active threads is less than when a new thread is added corePoolSize,false Indicates whether the number of active threads is less than before adding a new thread maximumPoolSize, The execution process is shown in the figure below ：

worker Thread recycling

Destroy dependency of thread in thread pool JVM Automatic recycling , The task of thread pool is to maintain a certain number of thread references according to the current state of thread pool , Prevent this part of the thread from being JVM Recycling , When the thread pool decides which threads need to be recycled , Just eliminate the references .

try {

  while (task != null || (task = getTask()) != null) {

    // Perform tasks
  }
} finally {

  processWorkerExit(w, completedAbruptly);// When the task is not available , Take the initiative to recycle yourself
}

worker Perform tasks

stay Worker Class run Method is called runWorker Method to perform the task ,runWorker The implementation process of the method is as follows ：

1.while The cycle goes on and on getTask() Method fetch task . 2.getTask() Method to get the task from the blocking queue . 3. If the thread pool is stopping , Then make sure that the current thread is in an interrupt state , Otherwise, make sure that the current thread is not in an interrupt state . 4. Perform tasks . 5. If getTask The result is null And then jump out of the loop , perform processWorkerExit() Method , Destruction of the thread .

The execution process is shown in the figure below ：

Reference resources ：https://tech.meituan.com/2020/04/02/java-pooling-pratice-in-meituan.html
