Use streaming media to transfer RSTP to the Web terminal for playback (II) [review]

utilize ffmpeg+nginx-rtmp（ Article address ） The form of is disabled in major browsers falsh Then it seems not so reliable , And in the case of low concurrency , Will put ordinary servers CPU Run full , At present, I have not used professional server testing , An ordinary server is probably too small to push streams , The effect is not ideal .

So the demand solution , well , I really found , And it has passed the test .

Suggest ：

link ：https://pan.baidu.com/s/1ARwaBTgJcMJ_6qQ3fZH6eQ
Extraction code ：zkht

To download , Eat while downloading .

Original address ：https://blog.csdn.net/qq_36801998/article/details/117701370

Click in and at first glance , Limited , Seems to support only GB28181 The flow of the agreement can , But it's not . Let's take our time （ The principle architecture is not posted , Please move to the original blog ）.

First on the renderings ：

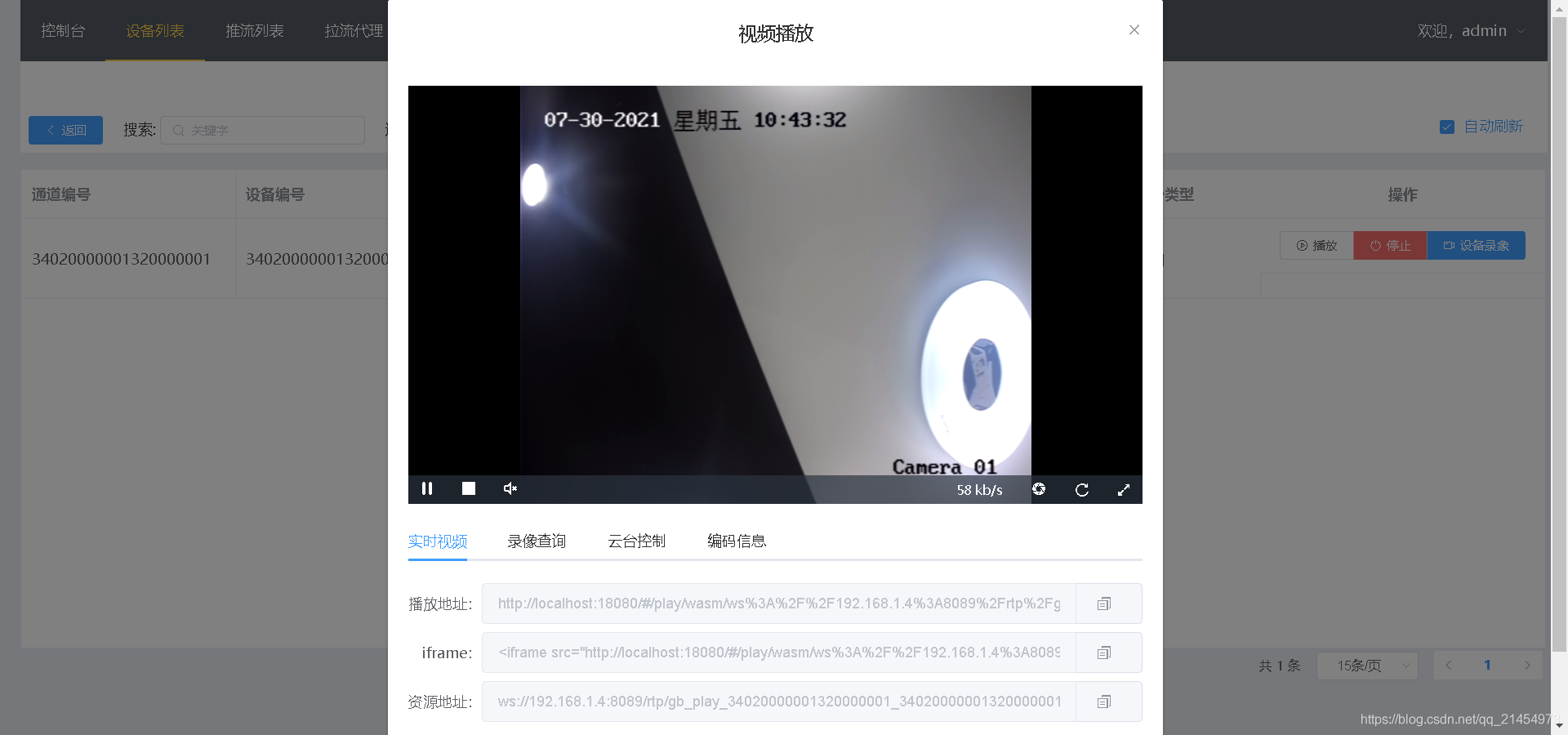

You can see The device is connected , We click on the channel , Watch the live broadcast

  Test streaming （ Screen capture push tool ）:

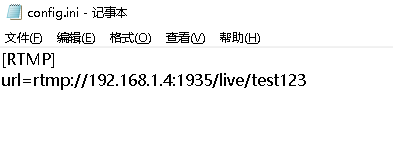

Configure address

Click on the run

View background ：



utilize flv Play ：

  Pull flow test ：

Click play

Cloud video ：





This is recorded record

Generally, it can be used , There are many pits ...

There are few pits cleaned （ I can't say no , I've tried my best to step on it ） Link to ：

link ：https://pan.baidu.com/s/1ARwaBTgJcMJ_6qQ3fZH6eQ
Extraction code ：zkht

And that is , Don't use Google 92 Version login background ！ Don't use Google 92 Version login background ！ Don't use Google 92 Version login background ！

Because the video stream cannot be played

92 Version does not support sharebuffer share

Will report a mistake ：sharedArraybuffer is no defined

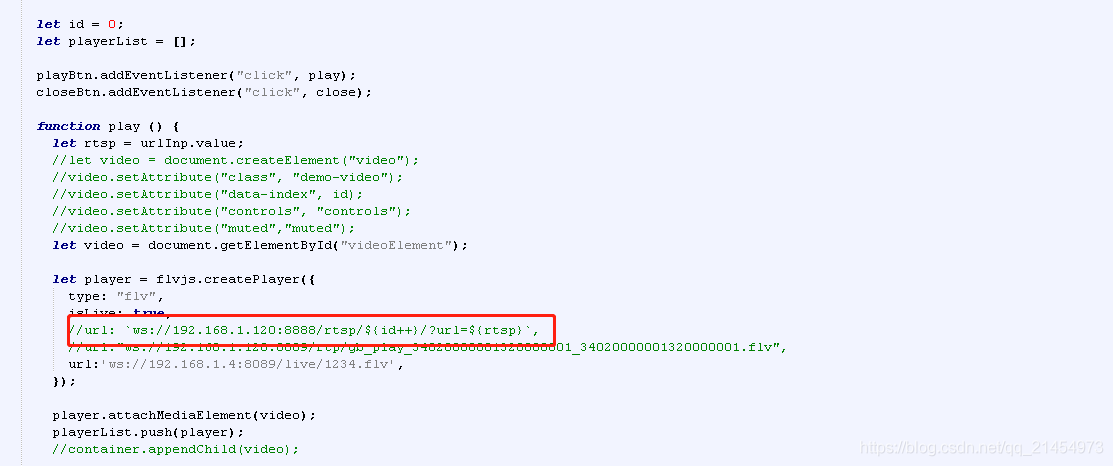

Here we are providing flv Simple test program :

https://gitee.com/Mr-Format/rtsp-to-flv.git

npm install   -》npm start

This project can be played directly rtsp  Pass on the reference   adopt node call ffmpeg Streaming playback

  We use it to test wvp The flow of the project , We have seen the effect before

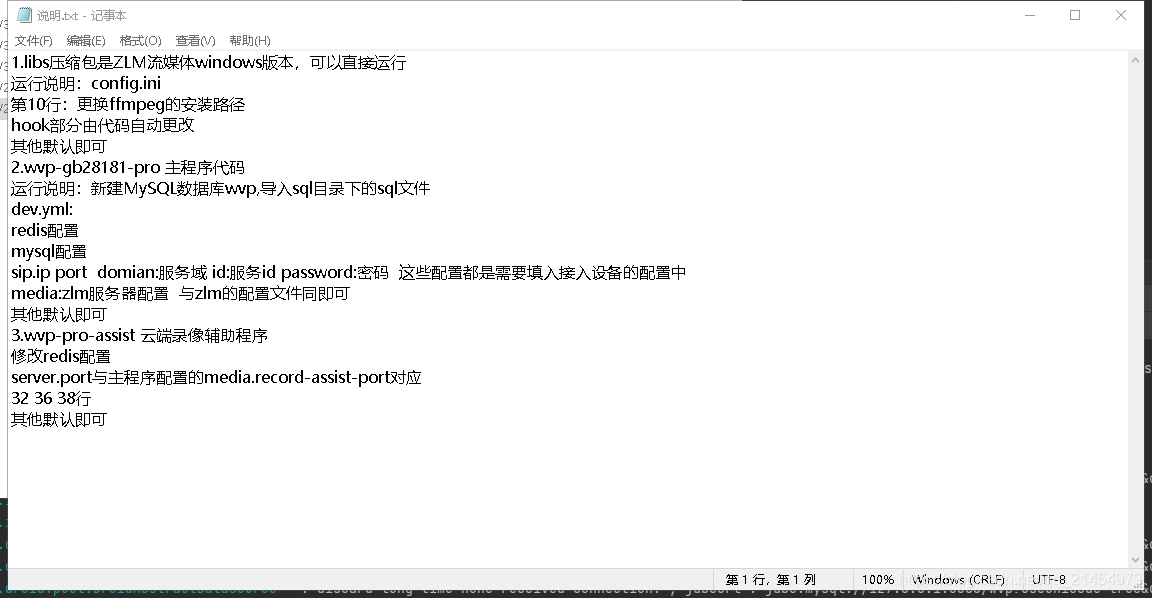

  After the project is downloaded, an explanatory document is attached ：

And that is onvif Put it in this directory



  By this point, we have basically completed the task , After that, it's OK to open the second drive according to the demand

Take leave ！

Source code ：

https://gitee.com/18010473990/wvp-GB28181

ZLMediaKit/ZLMediaKit: A lightweight RTSP/RTMP/HTTP/HLS/HTTP-FLV/WebSocket-FLV/HTTP-TS/HTTP-fMP4/WebSocket-TS/WebSocket-fMP4/GB28181/WebRTC server and client framework based on C++11 (github.com)
