The most complete detailed tutorial on importing ad into lichuanyuan device packaging Library in history (always white and always cool)

The most complete introduction of lizhuangyuan device packaging Library in history AD Detailed tutorial

Lichuang EDA Li Chuang mall

Open the website of Lichuang mall https://www.szlcsc.com/

step

Search for components

Search for example STM32F103C8T6 chip

View search results , Looking for download files

Click the download file link

The following picture appears , Click use now

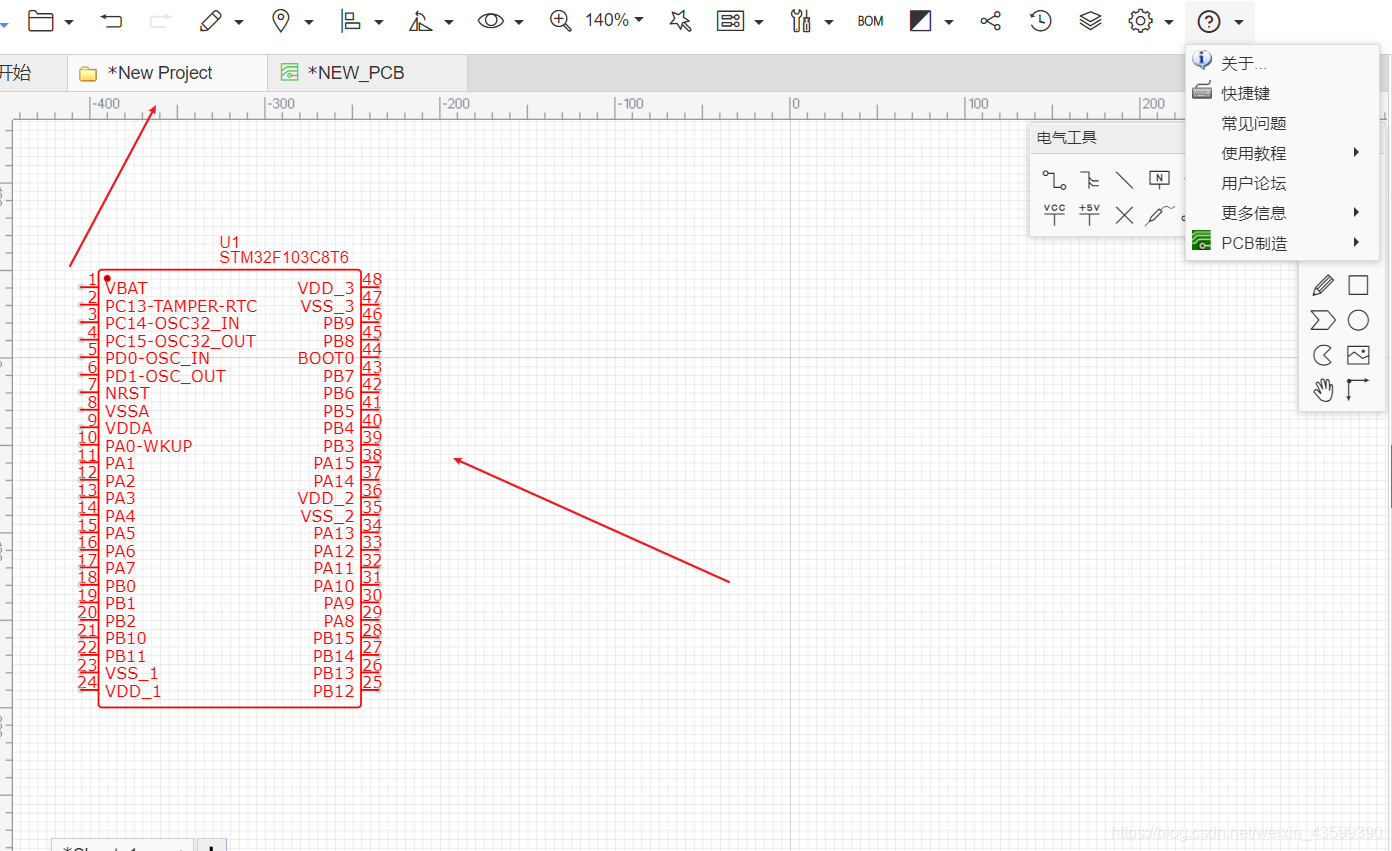

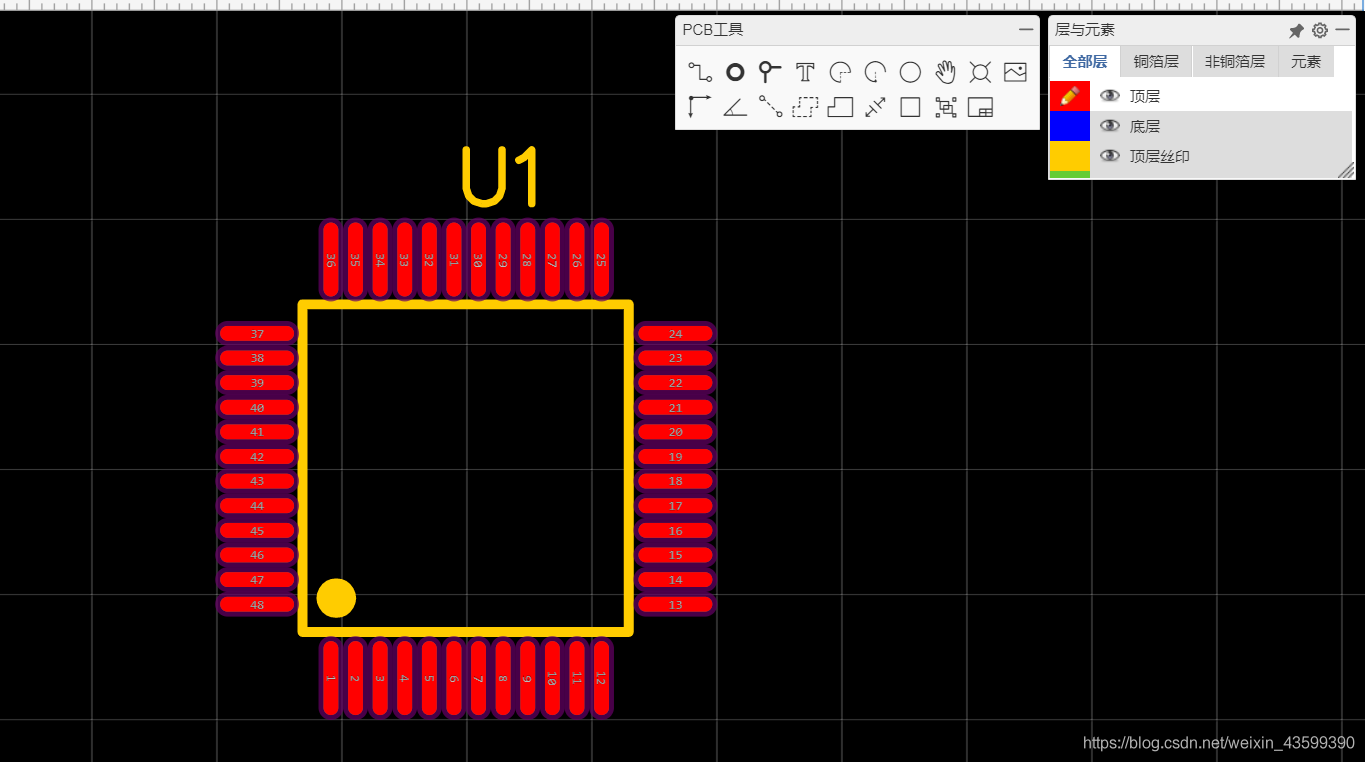

Engineering documents appear , Remember to register an account , Save to your own project

Save them separately as shown in the following figure SCH,PCB File to the local file of the computer

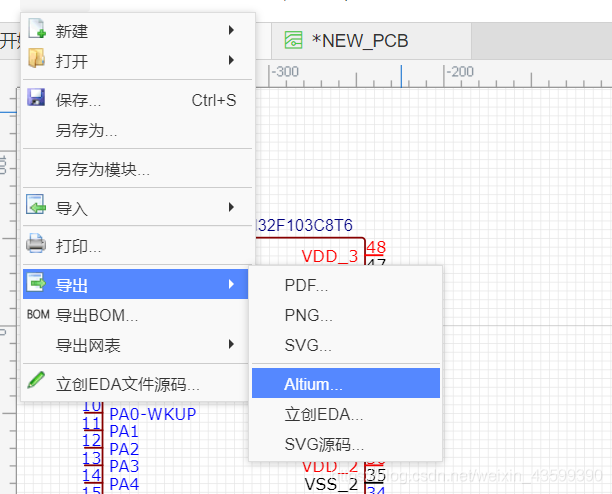

Click on no export Altium, Then agree to download to the local computer

Download to local , rename （ best ）

open AD Software , Open the downloaded file , Generate library files

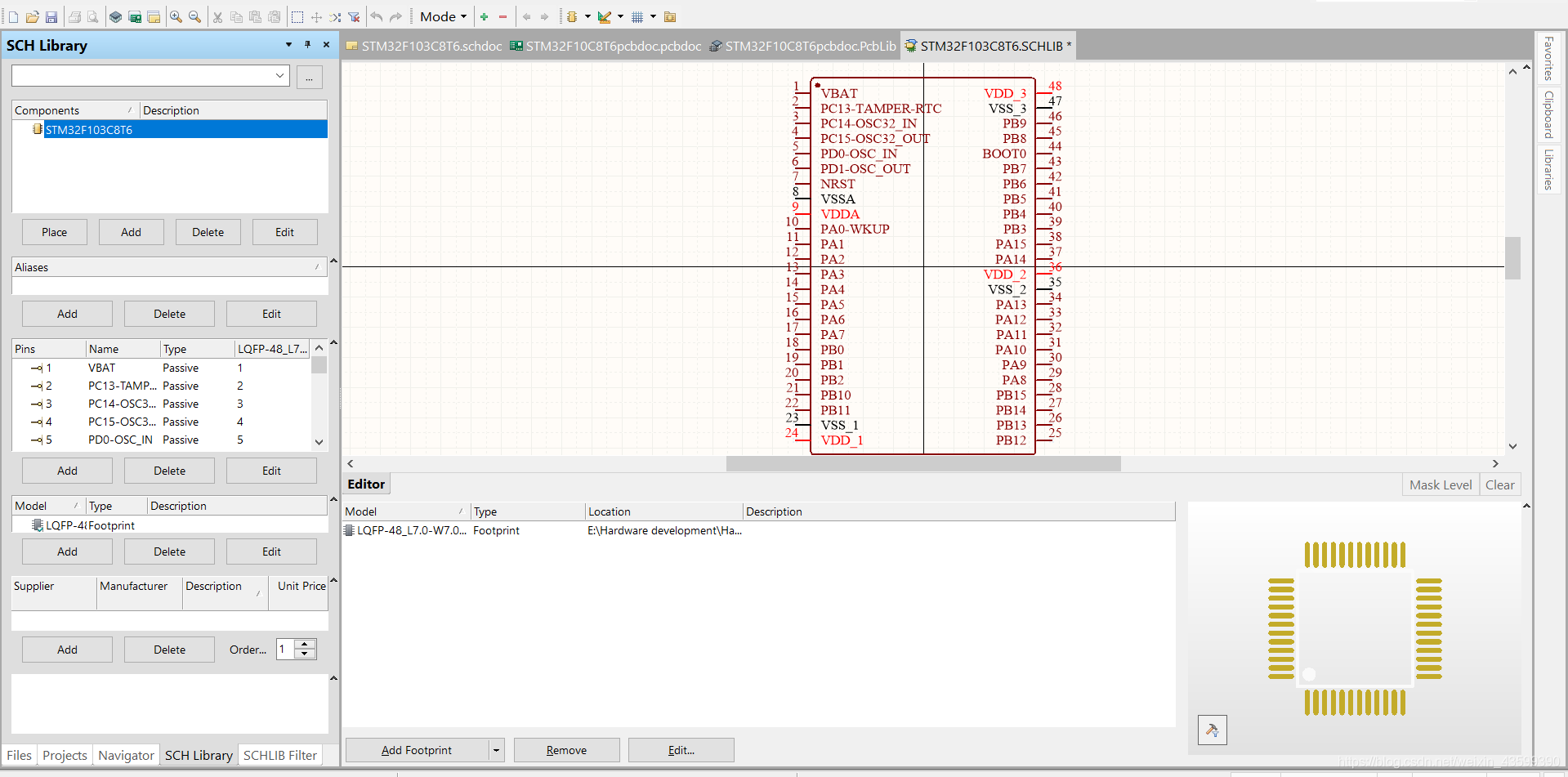

Generate SchLib,PcbLib file

open SchLIb File to add PCB File encapsulation Library （ We don't use this method ）

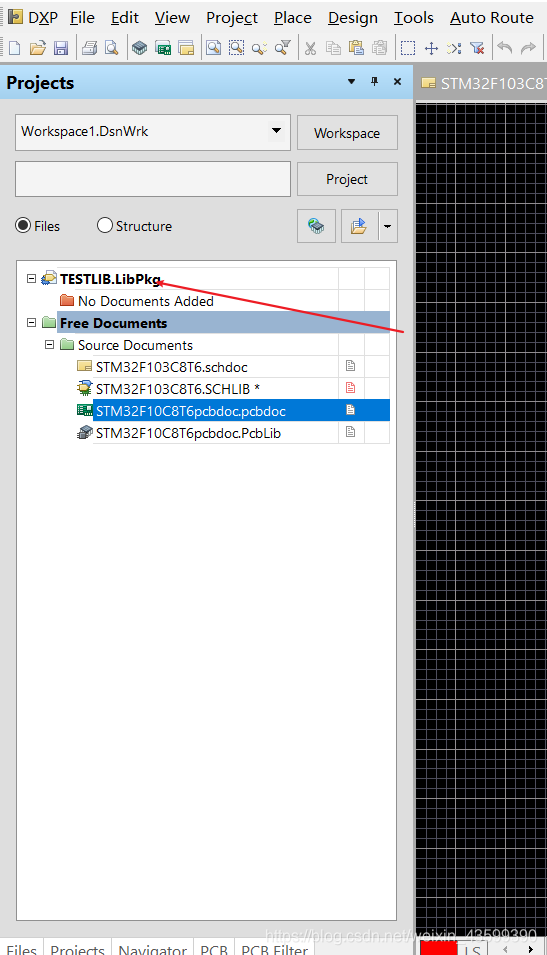

Create a new one Integrated_Library file , Fill in the name and path

Generate the following file Then add the file just exported SchLib,PcbLib

Then generate Integrated_Library file

The file library appears on the right （ Basically ended ）

Create a new PCB The project will see if it can be used successfully

Choose your own library file

Generate PCB file

Only this and nothing more , Get it done （ Basically no problem , If you have questions, you can go to Baidu or Google , It's also my first time to do , Maybe there is something you should pay attention to ）
