Visual studio debugging tips

VAssistX

VAssistX Download address ：http://pan.baidu.com/s/1eQJ9Ud8

Common shortcut key

Find project files ：alt+shift+o

Find all references to a class or variable ：alt+shift+f

Display a list of methods / To find the way ：alt+m

Skip to method implementation / Method statement ：alt+g

Switch to .h file /.cpp file ：alt+o

Batch change / Method / Class name ：alt+shift+r

Breakpoint debugging

Common shortcut key

F10： Process by process

F11： Sentence by sentence

Conditional breakpoint debugging

At run time, if there are many Layout object , But I just want to interrupt _tag by 76888 A method of an object . At this time, you can set the breakpoint condition to achieve .

Right click the breakpoint and select the condition , Add judgment conditions .

Breakpoint setting hits

If a method is called many times , And I just want to interrupt the n Time or >=n perhaps 2n Time operation . This can be achieved by setting the hit times .

Look at the memory

Open the memory window （ Must break a point ）：ctrl+alt+m+1

such as , I'll check one here int Values in the type array , Enter the address , The right choice 4 Byte integer （ because int Occupy 4 Bytes ）, A signed display indicates a sign , Columns you can select the number of columns to display .

monitor

Select an expression or a variable , Right click to add monitoring , You can get the execution result of the expression or monitor the change of variables .

You can directly click on the name column , Enter the expression directly , Press enter to see the execution result . You can change the value of a variable or execute a function at run time .

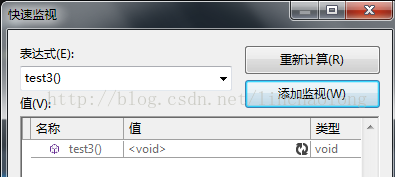

Quick monitoring

Shortcut key ：shift + f9

In the Quick Monitor window , You can execute expressions at run time .

Recalculate ： Re execution

Add monitoring ： Add to monitoring window , Because it is temporary monitoring in the quick monitoring window , When the window is closed, it is gone .

call Stack

Shortcut key ：ctrl + alt +c

In the call stack window, you can see the call hierarchy of the method .

local variable

Shortcut key ：ctrl + alt +l

You can see all the current local variables in the local variables window .

Look at assembly code

Shortcut key ：ctrl + alt + d

In the Disassembly window, you can see the assembly code corresponding to the source code .

register

ctrl + alt + g

macro

$(RemoteMachine)
Set to “ debugging ” On the property page “ Remote computer ” The value of the property . For more information , See change for C/C++ Debug the project settings of the configuration .

$(References)
A semicolon separated list of references is added to the project .

$(ConfigurationName)
The name of the current project configuration （ for example “Debug”）.

$(PlatformName)
The name of the current project platform （ for example “Win32”）.

$(Inherit)
Specify in the command line written by the project generation system , The order in which inherited properties appear . By default , The inherited property appears at the end of the current property .

$(NoInherit)
Make any property that will be inherited not inherited . If you want to avoid calculation at the same level , Please use $(StopEvaluating). Use $(NoInherit) This will result in ignoring any occurrences of... For the same attribute $(Inherit).

$(StopEvaluating)
Immediately stop the calculation of macros in the calculation chain . Appear in the $(StopEvaluating) Any subsequent value will not appear in the calculated value of the macro . If $(StopEvaluating) stay $(Inherit) Before , The inherited value of the current position in the calculation chain will not be connected to the macro value .$(StopEvaluating) yes $(NoInherit) Feature superset .

$(ParentName)
The name of the item that contains this item . The name will be the parent folder name or the project name .

$(RootNameSpace)
Contains the namespace of the application （ If there is ）.

$(IntDir)
The directory path specified for the intermediate file relative to the project directory . It translates into “ Intermediate Directory ” The value of the property .

$(OutDir)
The path to the output file directory , Relative to the project directory . This resolves to “ The output directory ” The value of the property .

$(DevEnvDir)
Visual Studio .NET Installation directory （ Definition form ： Driver + route ）; Including backslashes at the end “\”.

$(InputDir)
Enter the directory of the file （ Definition form ： Driver + route ）; Including backslashes at the end “\”. If the item is input , Then this macro is equivalent to $(ProjectDir).

$(InputPath)
Enter the absolute pathname of the file （ Definition form ： Driver + route + Basic name + File extension ）. If the item is input , Then this macro is equivalent to $(ProjectPath).

$(InputName)
Enter the basic name of the file . If the item is input , Then this macro is equivalent to $(ProjectName).

$(InputFileName)
Enter the file name of the file （ Defined as the base name + File extension ）. If the item is input , Then this macro is equivalent to $(ProjectFileName).

$(InputExt)
Enter the file extension of the file . It includes... Before the file extension “.”. If the item is input , Then this macro is equivalent to $(ProjectExt).

$(ProjectDir)
Project directory （ Definition form ： Driver + route ）; Including backslashes at the end “\”.

$(ProjectPath)
The absolute pathname of the project （ Definition form ： Driver + route + Basic name + File extension ）.

$(ProjectName)
The basic name of the project .

$(ProjectFileName)
The file name of the project （ Defined as the base name + File extension ）.

$(ProjectExt)
The file extension of the project . It includes... Before the file extension “.”.

$(SolutionDir)
Directory of solutions （ Definition form ： Driver + route ）; Including backslashes at the end “\”.

$(SolutionPath)
The absolute pathname of the solution （ Definition form ： Driver + route + Basic name + File extension ）.

$(SolutionName)
The basic name of the solution .

$(SolutionFileName)
File name of the solution （ Defined as the base name + File extension ）.

$(SolutionExt)
File extension of the solution . It includes... Before the file extension “.”.

$(TargetDir)
The directory of the generated main output file （ Definition form ： Driver + route ）; Including backslashes at the end “\”.

$(TargetPath)
Absolute pathname of the generated main output file （ Definition form ： Driver + route + Basic name + File extension ）.

$(TargetName)
The base name of the generated main output file .

$(TargetFileName)
The file name of the generated main output file （ Defined as the base name + File extension ）.

$(TargetExt)
The file extension of the generated main output file . It includes... Before the file extension “.”.

$(VSInstallDir)
install Visual Studio .NET The catalog of .

$(VCInstallDir)
install Visual C++ .NET The catalog of .

$(FrameworkDir)
install .NET Framework The catalog of .

$(FrameworkVersion)
Visual Studio The use of .NET Framework edition . And $(FrameworkDir) Combination , Namely Visual Studio The use of .NET Framework The full path of the version .

$(FrameworkSDKDir)
install .NET Framework SDK The catalog of ..NET Framework SDK Can be used as Visual Studio .NET Part of the installation , It can also be installed separately .

$(WebDeployPath)
from Web The relative path from the deployment root to where the project output belongs . Return and RelativePath The same value .

$(WebDeployRoot)
Point to <localhost> Absolute path of location . for example ,c:\inetpub\wwwroot.

$(SafeParentName)
The name of the immediate parent of a valid name format . for example , Form is .resx The parent of the file .

$(SafeInputName)
The name of the file as a valid class name , But not including the file extension .

$(SafeRootNamespace)
The project wizard will add the namespace name of the code . This namespace name will only be included in valid C++ Characters allowed in identifier .

$(FxCopDir)
fxcop.cmd Path to file .fxcop.cmd The file is not all Visual C++ Version installed with .
