Injectfix principle learning (to realize the heat of repair addition)

---

Preparation

• ILRuntime A blog that is easy to understand
• ILRuntime A blog
• IL Instruction books
• InjectFix Realization It is strongly recommended to read this article
• see DLL Of IL Instructions VS The input terminal ildasm
• Pay attention to more ideas in this article , So I won't introduce too much, such as IL Instructions , Mainly in the way of posting code and commenting , In addition, the virtual machine in this article is InjectFix The virtual machine of is deducted and deleted , The following is the project address , Those who are interested can pull down and run by themselves, and basically know what they are doing by interrupting , If you really don't understand something , You can ask me in private
• git The project is here

---

• According to reading the above article , You can see that ,InjectFix The steps are divided into the following steps
  – Pile insertion ： It is to specify the function to be repaired through the tag , adopt Mono.Cecil plug-in unit , Insert IL Instructions , Through unique key Value to determine whether there is repair code , If there is, the repair function will be executed
  – Repair ： Modify the wrong code , adopt Mono.Cecil plug-in unit , Check the code of the repair function , Production repair function IL Instructions and stored in a file , And with the unique code inserted above key Value correspondence
  – Execute the repair code IL Instructions ： This part is generated by parsing IL Instructions , That's virtual machine , There are a lot of unsafe Code

---

• First, let's take a look at the final rendering , Is to write the addition wrong , Then through repair, the original wrong subtraction is modified into addition

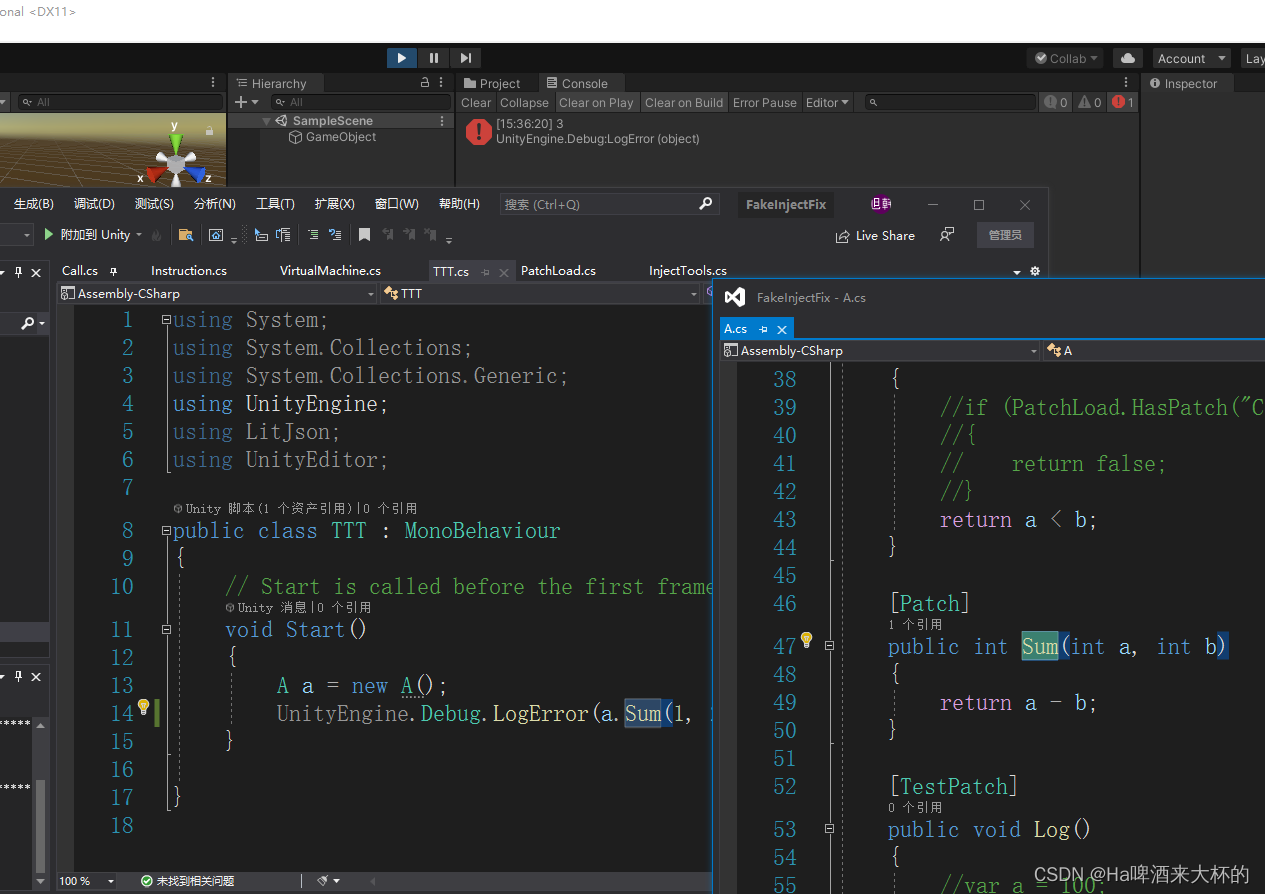

• First, the following picture , The function is called Sum It's for addition , Because it's wrong , The printed result is -1

• The following is through repair , The original code is still wrong , But what is printed out is the correct value 3


---

Pile insertion

• This is the code for inserting piles , After implementation, it will be in Sum function IL Command top , Insert PatchLoad.HasPatch(0), Check function ,0 Because I have only one function here , To repair it, use it directly 0 This hard coding is ok , If repair is needed , Will execute genMethod This generated code
• genMethod Of IL Instruction to generate , Some of them are directly hard coded , Specifically, instantiate one Call object , The parameter Push go in , And use PatchLoad Of virtualMachine perform Execute function

    static void InjectMethod(ModuleDefinition module, MethodDefinition method)
    {

        //TODO  Use InsertBefore Insert

        //  Generation method
        var genMethod = GenPatchMethod(module, method);


        //  Pile insertion
        var ilp = method.Body.GetILProcessor();
        var startNopIns = method.Body.Instructions[0];
        var brFalseJumpIns = startNopIns.Next; //  Instructions to jump when conditions are not met

        var ins_ldstr = ilp.Create(OpCodes.Ldstr, "0"); //  Insert patchKey
        ilp.InsertBefore(startNopIns, ins_ldstr); // insert index = 0 Location

        var incrIndex = 0;
        var method_HasPatch = module.Types.Single(t => t.Name == "PatchLoad").Methods.Single(m => m.Name == "HasPatch");
        var ins_call = ilp.Create(OpCodes.Call, method_HasPatch);
        IncrAddIns(ilp, ins_call, ref incrIndex);
        var ins_brfalse = ilp.Create(OpCodes.Brfalse, brFalseJumpIns);
        IncrAddIns(ilp, ins_brfalse, ref incrIndex);

        //  Used to test direct return 0
        //var ins_ldc_i4_0 = ilp.Create(OpCodes.Ldc_I4_0);
        //IncrAddIns(ilp, ins_ldc_i4_0, ref incrIndex);

        //  Have Patch Time return receipt generation method , And back to
        if(method.Parameters.Count > 0) {

            // If there are parameters   Put parameters on the stack from local
            //for (int i = 0; i < method.Parameters.Count; i++) {

            // IncrAddIns(ilp, Instruction.Create(OpCodes.Ldarg_S, (byte)i), ref incrIndex);
            //}

            //  know Sum Yes 2 Parameters   Just enter directly
            IncrAddIns(ilp, Instruction.Create(OpCodes.Ldarg_1), ref incrIndex);
            IncrAddIns(ilp, Instruction.Create(OpCodes.Ldarg_2), ref incrIndex);

        }

        IncrAddIns(ilp, Instruction.Create(OpCodes.Call, genMethod), ref incrIndex);

        var ins_ret = ilp.Create(OpCodes.Ret);
        IncrAddIns(ilp, ins_ret, ref incrIndex);
    }

    /// <summary>
    ///  Generate patch method
    /// </summary>
    /// <returns></returns>
    static MethodDefinition GenPatchMethod(ModuleDefinition module, MethodDefinition method) {

        // PatchLoad
        var patchLoadType = module.Types.Single(t => t.Name == "PatchLoad");
        var vmField = patchLoadType.Fields.Single(f => f.Name == "virtualMachine");
        // Call
        var callType = module.Types.Single(t => t.Name == "Call");
        var callBegin = callType.Methods.Single(m => m.Name == "Begin");
        var callPushInt32 = callType.Methods.Single(m => m.Name == "PushInt32");
        var callGetInt32 = callType.Methods.Single(m => m.Name == "GetInt32");
        // VirtualMachine
        var vmExecute = module.Types.Single(t => t.Name == "VirtualMachine")
            .Methods.Single(m => m.Name == "Execute" && m.Parameters.Count == 4);
        //  Basic method
        //  Return value
        //  Parameters

        var returnType = method.ReturnType;
        Mono.Cecil.MethodAttributes methodAttributes = Mono.Cecil.MethodAttributes.Public | Mono.Cecil.MethodAttributes.Static;
        MethodDefinition patchMethod = new MethodDefinition(GenPatchMethodPrefix, methodAttributes, returnType);

        //  Add parameter
        foreach (var parameter in method.Parameters) {

            patchMethod.Parameters.Add(new ParameterDefinition(parameter.ParameterType));
        }

        // var call
        VariableDefinition callVar = new VariableDefinition(callType);
        patchMethod.Body.Variables.Add(callVar);

        var ilp  = patchMethod.Body.GetILProcessor();

        ilp.Append(Instruction.Create(OpCodes.Nop));
        ilp.Append(Instruction.Create(OpCodes.Call, callBegin));
        ilp.Append(Instruction.Create(OpCodes.Stloc_0));
        //  Loads the address of a local variable at a specific index onto the evaluation stack
        ilp.Append(Instruction.Create(OpCodes.Ldloca_S, callVar));
        //  Index is  0  Parameters of are loaded on the evaluation stack .
        ilp.Append(Instruction.Create(OpCodes.Ldarg_0));
        ilp.Append(Instruction.Create(OpCodes.Call, callPushInt32));
        ilp.Append(Instruction.Create(OpCodes.Nop));
        ilp.Append(Instruction.Create(OpCodes.Ldloca_S, callVar));
        ilp.Append(Instruction.Create(OpCodes.Ldarg_1));
        ilp.Append(Instruction.Create(OpCodes.Call, callPushInt32));
        ilp.Append(Instruction.Create(OpCodes.Nop));
        //  Push the value of the static field onto the stack
        ilp.Append(Instruction.Create(OpCodes.Ldsfld, vmField));
        ilp.Append(Instruction.Create(OpCodes.Ldc_I4_0));
        ilp.Append(Instruction.Create(OpCodes.Ldloca_S, callVar));
        ilp.Append(Instruction.Create(OpCodes.Ldc_I4_2));
        ilp.Append(Instruction.Create(OpCodes.Ldc_I4_0));
        ilp.Append(Instruction.Create(OpCodes.Call, vmExecute));
        ilp.Append(Instruction.Create(OpCodes.Nop));

        ilp.Append(Instruction.Create(OpCodes.Ldloca_S, callVar));
        ilp.Append(Instruction.Create(OpCodes.Ldc_I4_0));
        ilp.Append(Instruction.Create(OpCodes.Call, callGetInt32));
        //  The stack will be evaluated 1  Stored in the local variable list
        //ilp.Append(Instruction.Create(OpCodes.Stloc_1));
        //  Put the local variable 1  Load into the evaluation stack
        //ilp.Append(Instruction.Create(OpCodes.Ldloc_1));
        ilp.Append(Instruction.Create(OpCodes.Ret));


        //  The test method
        //ilp.Append(Instruction.Create(OpCodes.Ldstr, " I am the method of generation "));
        //var log_method = module.ImportReference(typeof(Debug).GetMethod("Log", new Type[] { typeof(object) }));
        //ilp.Append(Instruction.Create(OpCodes.Call, log_method));

        //  Test use   Go straight back to 0
        //ilp.Append(Instruction.Create(OpCodes.Ldc_I4_0));
        //ilp.Append(Instruction.Create(OpCodes.Ret));

        patchLoadType.Methods.Add(patchMethod);

        return patchMethod;
    }

• Finish executing this part of the code , have access to ildasm have a look ,Sum Functional IL Changes in instructions , The blue circle is inserted IL Instructions , The red circle is the original Sum Instructions


---

Repair

• Repair is through traversal Body.Instructions All in IL Instructions , Parse and convert to VMInstruction Format instructions , My picture is convenient , Direct serialization Json adopt EditorPrefs.SetString Stored in Unity Editor down ,InjectFix It's very complicated. It's finally stored in a file , If you are interested, you can read InjectFix Source code

    static void Fix(ModuleDefinition module, MethodDefinition method) {

        //{

        // .custom instance void PatchAttribute::.ctor() = (01 00 00 00 )
        // //  Code size  9 (0x9)
        // .maxstack 2
        // .locals init(int32 V_0)
        // IL_0000: nop
        // IL_0001: ldarg.1
        // IL_0002: ldarg.2
        // IL_0003: add
        // IL_0004: stloc.0
        // IL_0005: br.s IL_0007
        // IL_0007: ldloc.0
        // IL_0008: ret
        //}
        var ils = method.Body.Instructions;
        var parseIls = new List<VMInstruction>();
        for (int i = 0; i < ils.Count; i++) {

            var il = ils[i];
            var ilStr = ils[i].OpCode.Code.ToString();
            switch (il.OpCode.Code) {

                case Mono.Cecil.Cil.Code.Nop:
                    parseIls.Add(new VMInstruction {

                        Code = Code.StackSpace,
                        Operand = (method.Body.Variables.Count << 16) | method.Body.MaxStackSize
                    }); // local | maxstack
                    break;
                case Mono.Cecil.Cil.Code.Ldarg_0:
                case Mono.Cecil.Cil.Code.Ldarg_1:
                case Mono.Cecil.Cil.Code.Ldarg_2:
                case Mono.Cecil.Cil.Code.Ldarg_3:
                    parseIls.Add(new VMInstruction() {

                        Code = Code.Ldarg,
                        Operand = int.Parse(ilStr.Substring(ilStr.Length - 1)) - 1
                    });
                    break;
                case Mono.Cecil.Cil.Code.Add:
                    parseIls.Add(new VMInstruction {

                        Code = (Code)Enum.Parse(typeof(Code), ilStr),
                        Operand = 0
                    });
                    break;
                case Mono.Cecil.Cil.Code.Stloc_0:
                case Mono.Cecil.Cil.Code.Stloc_1:
                case Mono.Cecil.Cil.Code.Stloc_2:
                case Mono.Cecil.Cil.Code.Stloc_3:
                    parseIls.Add(new VMInstruction {

                        Code = Code.Stloc,
                        Operand = int.Parse(ilStr.Substring(ilStr.Length - 1)),
                    });
                    break;
                case Mono.Cecil.Cil.Code.Ret:
                    parseIls.Add(new VMInstruction {

                        Code = Code.Ret,
                        Operand = method.ReturnType.ToString() == "System.Void" ? 0 : 1,
                    });
                    break;
            }
        }

        foreach (var vmil in parseIls) {

            Debug.LogError(vmil);
        }

        var json = JsonMapper.ToJson(parseIls);
        // Debug.LogError(json);
        EditorPrefs.SetString(FixJson, json);
    }

---

virtual machine

• This is basically InjectFix Virtual machine implementation , I'm a little sleepy today , Write it another day

---
