Apk slimming compression experience

Unity of resources

Try to use the same set of resources for a project , For the great logarithm APP Come on , Just one set of design drawings is enough . Given the current trend in resolution , It is suggested that 720p Resources for , Put it in xhdpi Catalog .
Compared to multiple sets of resources , Use only 720P A set of resources for , There's not much visual difference , The same is true of the products of many large companies , But it can significantly reduce the size of resource consumption , By the way, it can also reduce the workload of the designer . No xhdpi Delete all the directories of , Instead, it emphasizes that it is enough to keep a set of design resources .
Compress the resource image before importing it , Don't use the original （ Don't use... Directly UI Cut the original picture ）

Use jpg Format picture

If it's not transparent for a large image ,jpg Will compare png There is a significant advantage in the size of , Although not absolutely , But it's usually reduced to more than half . On the startup page , Activity pages and other large picture display areas use jpg It would be a very wise choice .

Use webp Format picture

1. WebP It is a picture file format that supports lossy compression and lossless compression , according to Google Test of , After lossless compression WebP Than PNG There are fewer documents 26％ Volume , Lossy compressed WebP The picture compares to the equivalent quality index of JPEG There are fewer pictures 25％~34% Volume .
2. webp Support transparency , Compression ratio jpg Higher, but the display effect is not inferior to jpg, Official evaluation quality The parameter is equal to 75 The best balance .
   be relative to jpg、png,webp As a new image format , Be limited to android It's not widely used in mobile phones yet . from Android 4.0+ Start native support , But transparency is not supported , until Android 4.2.1+ To support the display of transparent webp, Pay special attention when using .
3. according to Google Test of , at present WebP And JPG Comparison , Coding is slow 10 times , Slow decoding speed 1.5 times , The problem lies in 1.5 Whether the decoding speed of 10 times will affect the user experience . At the same time, due to the reduction of file size , Shorten the loading time , Page rendering speeds up . meanwhile , As the number of pictures increases ,WebP Page loading speed is relatively JPG The page is growing faster . therefore , Use WebP There are basically no technical barriers .


Use shape Background and selector Coloring scheme

For some simple graphics or background images , Instead of introducing the image itself, you can customize the drawing method .
For some pictures with the same shape but different colors , have access to selector File to implement .

Online material library

If there are many or a group of graphics that need to be introduced , For example, facial expression bag , Consider using the online introduction method , Save local space . But it also increases code complexity and APP Flow consumption .

lint Check

Code scanning tools , Can help you find and correct the quality of the code structure , for example , If XML The resource file contains unused namespace , It's not just taking up space , And it will cause unnecessary treatment .
Official website address
Terminal execution command

gradlew lint

Or you can select Analyze > Inspect Code, Manually run the configured lint And others IDE Check . The results will be displayed in Inspection Results Window , If there are unused resources that can be deleted .

Delete unnecessary so library

Basically armable Of so It's also compatible armable-v7 Of ,armable-v7a The library will greatly improve the graphics rendering , If there is no such requirement , Can be streamlined . There are very few devices that can Crash, Test passed, reuse .x86 Under bag so stay x86 The model of mobile phone is needed , If the product doesn't work, the requirements in this respect can also be simplified . The actual working configuration is that you can choose to keep only armable、armable-x86 Under the so file .

Get rid of useless language resources

Only Chinese and English language resources are reserved , For some support multilingual SDK.

android {
    defaultConfig {
        resConfigs "zh-rCN", "en-rUS"
    }
}

Turn on confusion

android {
    defaultConfig {
      minifyEnabled true
    }
}

Turn on shrinkResources Remove useless resources

The unused resource files will be removed when they are packaged , But the source code won't change , However, the actual measurement of this scheme is correct for apk The optimization of weight loss will not necessarily have a positive effect , You can use . But you should use it at the same time as the previous step , It is invalid to use it alone .

android {
    buildTypes {
        release {
            shrinkResources true
        }
    }
}

Use zipAlign

Tools for resource alignment （ Align to a four byte boundary and access it in units ）, Make resources more efficient when they are accessed Be able to optimize packaged applications , Yes, the system and APP The interaction between them is more efficient , But yes apk The effect of slimming is not significant .

android {
    buildTypes {
        release {
           zipAlignEnabled true
        }
    }
}

Use AndResGuard Compress resource files

The above ways , It mainly deals with the resource itself and compresses the code , however apk The resources in are not operating too much . AndResGuard Wechat exit is a way to help you shrink APK Tools of size , But only for resources （ Mainly res） There is no compilation involved . He will shorten the originally lengthy resource path , For example res/drawable/wechat Turn into r/d/a

Official website and introduction method

Add a white list of confusion ： Specify resource path rules that do not need to be obfuscated , Mainly some third parties SDK, Because there are some SDK Reference to the corresponding resource file , If you confuse it , The corresponding resource file cannot be found , appear crash, So we can't confuse the resource files . The white list links to ;

White list

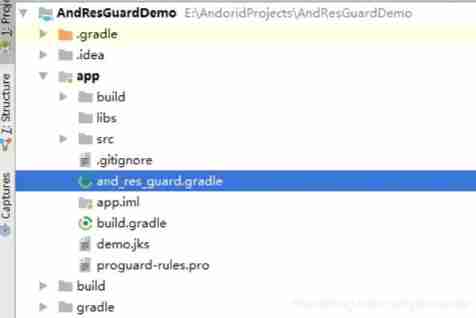

When importing, you can also choose to customize gradle The way

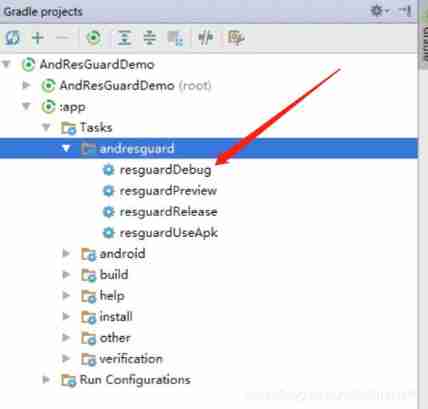

After the configuration is completed, use the following method to print the required apk

The effect is similar to that of wechat apk The effect of compression . hold res The document was changed as follows r The form of the folder , And the compression effect is good .

compile webp decoder

Mobile phone manufacturers bring their own webp The decoder is basically for Android 4.3 The above models ,4.3 Here are some questions , So we can webp Compile the source code of , Pack it up so library , Use your own decoder .

download webp The source code is placed in the created jni Under the folder

libwebp Source code download address

introduce jar package

take libwebp.jar Introduced into Engineering

Android.mk To configure

1. Configuration allows compilation of the current source directory

ENABLE_SHARED:=1

2. because libwebp.jar Need to use wig/libwebp_java_wrap.c In the document jni Method , So we need to import this file into Android.mk File to configure

# libwebp

include $(CLEAR_VARS)

LOCAL_SRC_FILES := \
    $(dsp_enc_srcs) \
    $(enc_srcs) \
    $(utils_enc_srcs) \
	swig/libwebp_java_wrap.c \

establish Application.mk

APP_ABI := armeabi-v7a
APP_PLATFORM := android-14

Design of compiler and decoder so library

stay libwebp Open in the source directory cmd, Use ndk To compile the files in the directory , Generate so library

C:\SDK\ndk\21.3.6528147\ndk-build.cmd  NDK_PROJECT_PATH=. NDK_APPLICATION_MK=Application.mk APP_BUILD_SCRIPT=Android.mk

After compiling, import so The library files

contrast png,jpeg,webp The speed of encoding and decoding

The relevant code is as follows

    defaultConfig {
        applicationId "com.bliss.yang.webpapp"
        minSdkVersion 19
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
        ndk {
            abiFilters "armeabi-v7a"//, add to ndk Support for
        }
    }

companion object{
        init {
            System.loadLibrary("webp")
        }
    }
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        //        webp    Decoding speed     Encoding speed
        var l = System.currentTimeMillis()
        BitmapFactory.decodeResource(resources, R.drawable.splash_bg_webp)
        Log.e(TAG, " decode webp Image time consuming :" + (System.currentTimeMillis() - l))

        l = System.currentTimeMillis()
        BitmapFactory.decodeResource(resources, R.drawable.splash_bg_jpeg)
        Log.e(TAG, " decode jpeg Image time consuming :" + (System.currentTimeMillis() - l))

        l = System.currentTimeMillis()
        var bitmap = BitmapFactory.decodeResource(resources, R.drawable.splash_bg_png)
        Log.e(TAG, " decode png Image time consuming :" + (System.currentTimeMillis() - l))


        // code   png
        var bitmap1 = BitmapFactory.decodeResource(resources, R.drawable.splash_bg_png)
        l  = System.currentTimeMillis()
        compressBitmap(bitmap1, CompressFormat.PNG, Environment
                .getExternalStorageDirectory().toString() + "/test.png")
        Log.e(TAG, "-------> code png Image time consuming :" + (System.currentTimeMillis() - l))

        // code   jpeg
        bitmap1 = BitmapFactory.decodeResource(resources, R.drawable.splash_bg_jpeg)
        l = System.currentTimeMillis()
        compressBitmap(bitmap1, CompressFormat.JPEG, Environment
                .getExternalStorageDirectory().toString() + "/test.jpeg")
        Log.e(TAG, "-------> code jpeg Image time consuming :" + (System.currentTimeMillis() - l))

        // code   webp
        bitmap1 = BitmapFactory.decodeResource(resources, R.drawable.splash_bg_webp)
        l = System.currentTimeMillis()
        compressBitmap(bitmap1, CompressFormat.WEBP, Environment
                .getExternalStorageDirectory().toString() + "/test.webp")
        Log.e(TAG, "-------> code webp Image time consuming :" + (System.currentTimeMillis() - l))

//         Compiled decoder
        l = System.currentTimeMillis()
        decodeWebp()
        Log.e(TAG, "libwebp Decoding a picture takes time :" + (System.currentTimeMillis() - l))
        l = System.currentTimeMillis()
        encodeWebp(bitmap)
        Log.e(TAG, "libwebp It takes time to encode pictures :" + (System.currentTimeMillis() - l))
    }

    private fun encodeWebp(bitmap: Bitmap) {
        // obtain bitmap  Wide and high
        val width = bitmap.width
        val height = bitmap.height
        // get bitmap Medium  ARGB  data  nio
        val buffer: ByteBuffer = ByteBuffer.allocate(bitmap.byteCount)
        bitmap.copyPixelsToBuffer(buffer)
        // code   get  webp Format file data   4 *width
        val bytes: ByteArray = libwebp.WebPEncodeRGBA(buffer.array(), width, height, width * 4, 75F)
        var fos: FileOutputStream? = null
        try {
            fos = FileOutputStream(Environment
                    .getExternalStorageDirectory().toString() + "/libwebp.webp")
            fos.write(bytes)
        } catch (e: Exception) {
            e.printStackTrace()
        } finally {
            if (null != fos) {
                try {
                    fos.close()
                } catch (e: IOException) {
                    e.printStackTrace()
                }
            }
        }
    }

    private fun decodeWebp(): Bitmap? {
        @SuppressLint("ResourceType") val `is`: InputStream = resources.openRawResource(R.drawable.splash_bg_webp)
        val bytes = stream2Bytes(`is`)
        // take webp Format data into  argb
        val width = IntArray(1)
        val height = IntArray(1)
        try {
            `is`.close()
        } catch (e: IOException) {
            e.printStackTrace()
        }
        val argb: ByteArray = libwebp.WebPDecodeARGB(bytes, bytes.size.toLong(), width, height)
        // take argb byte The array is converted to  int Array
        val pixels = IntArray(argb.size / 4)
        ByteBuffer.wrap(argb).asIntBuffer().get(pixels)
        // get bitmap
        return Bitmap.createBitmap(pixels, width[0], height[0], Bitmap.Config.ARGB_8888)
    }

    fun stream2Bytes(`is`: InputStream): ByteArray {
        val bos = ByteArrayOutputStream()
        val buffer = ByteArray(2048)
        var len: Int
        try {
            while (`is`.read(buffer).also { len = it } != -1) {
                bos.write(buffer, 0, len)
            }
        } catch (e: IOException) {
            e.printStackTrace()
        }
        return bos.toByteArray()
    }

    private fun compressBitmap(bitmap: Bitmap, format: CompressFormat, file: String) {
        var fos: FileOutputStream? = null
        try {
            fos = FileOutputStream(file)
        } catch (e: FileNotFoundException) {
            e.printStackTrace()
        }
        bitmap.compress(format, 75, fos)
        if (null != fos) {
            try {
                fos.close()
            } catch (e: IOException) {
                e.printStackTrace()
            }
        }
    }

Source code address
