Double position relay rxmd2-1mrk001984 dc220v

brand ： Shanghai Joseph

name : Two position relay

model :RXMD2 1MRK 001 984

Rated voltage :110,125,220VDC

Power consumption :≤12W

Contact capacity :250V1A

Action time :≤15mS

Series models ：

RXMD2 1MRK 001 984 Two position relay ;

RXMD2 1MRK 001 985 Two position relay ;

RXMD2 1MRK 001 986 Two position relay ;

1 purpose

The relay is mainly used for switching and locking as a large capacity bistable element in DC operated relay protection and automation circuits .

2 characteristic

The relay adopts imported magnetic holding relay , It has a step-down valve inside , Show , Outlet three circuits , No setting , Convenient and intuitive . And there are various export modes .

The relay is composed of imported magnetic holding relay , Using the magnetic holding characteristic of the relay itself, the relay can realize the choice of two action positions

Switch between , The interlocking relationship between the electric shock of the relay is used to realize the restriction and protection of the reset circuit and the action circuit . Imported magnetic protector

Hold relay .

5 Usage method

RXMDl Use two digits to represent ,RXMD2 Use three digits to represent

stay 212 (11) and 211 (21) After the terminal is connected to the DC power supply, it is marked on the panel to indicate the power supply 212 (11) -211 (21) Of

Light emitting diodes give off light . Outlet relay operates , The status of the rear terminal is opposite to that of the panel . Otherwise, it indicates that the DC circuit of the relay has

fault .

stay 122 (12) and 211 (21) After the terminal is connected to the DC power supply, it is marked on the panel to indicate the power supply 122 (12) -211 (21) Of

Light emitting diodes give off light . Outlet relay operates , The status of the rear terminal is the same as that of the panel . Otherwise, it indicates that the DC circuit of the relay has

fault .

6 Main technical parameters

6.1 Rated voltage

DC voltage rating ：I10V,125V,220V.

6.2 Fluctuation range of auxiliary DC voltage

80% - 110% Rating .

6.3 Action voltage

The action voltage of the action circuit and the reset circuit shall not be greater than 70% Rated voltage .

6.4 Action time

The action time of the action circuit and the reset circuit shall not be greater than 15ms.

6.5 Power consumption

At rated DC voltage , The power consumption of the relay shall not be greater than 12W.

6.6 Working environment conditions

The product shall be able to work reliably under the following conditions

a) ambient temperature ：-10℃+50℃;

b) Atmospheric pressure ：86kPa One 106kPa;

c) Relative humidity ： The average high relative humidity in wet months is 90%, At the same time, the average low temperature of the month is 25℃, And there is no condensation on the surface

dew , The high temperature is 40 0C when , The average large relative temperature does not exceed 50%;

d) No conductive dust and corrosive gas damaging metal and insulation and environmental electricity

e) In the medium without explosion hazard and full of dust （ Such as coal ash 、 Abrasive materials 、 Sawdust, etc ）;

D Working position ： The inclination in either direction shall not exceed 5. And no violent vibration and impact ;

g) The place of use is rainproof 、 snow 、 Wind sand device and environment not full of moisture ;

h) There is no place where more serious mold exists

i) Strong external magnetic induction is not allowed in the place of use .

6.7 Medium strength

Between each conductive circuit of the relay and exposed non live metal parts ; Between input circuit and contact circuit , Shall be able to withstand 2kV（ Yes

Effective value ）、50Hz AC test voltage , after 1min Test of , Without insulation breakdown or flashover , Between adjacent contact groups of relay ,

Shall be able to withstand lkV（ Valid values ）,50Hz AC test voltage , after Imin Test of , Without insulation breakdown or flashover .

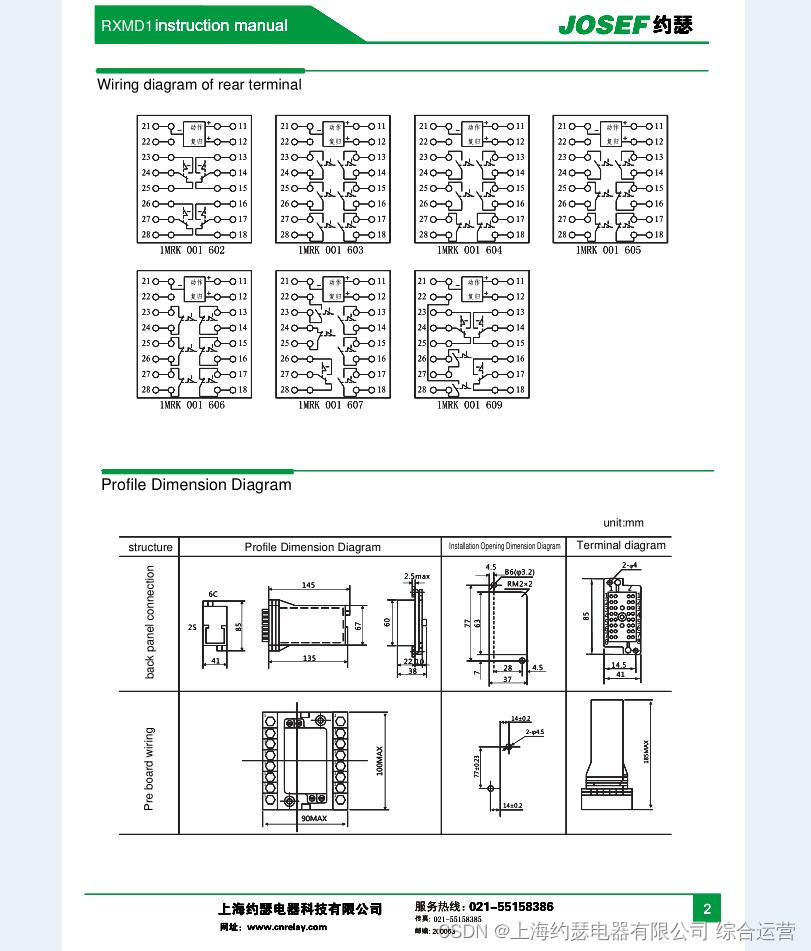

The relay model and specification must be indicated when ordering Structural form code Wiring mode before or after the board .

Two position relay RXMD2-1MRK001984 DC220V

Electromagnetic two position relay has voltage reset and red 、 The green sign indicates , The closed magnetic circuit is composed of two electromagnets and a common armature , One end of the armature is limited by a spring piece .

When the closing coil is energized , The armature overcomes the reaction force of the shrapnel , At this time, the signal board is red . When the closing coil is powered off , Due to the effect of shrapnel , Keep the armature in the closing position . Only when the trip coil is energized , The armature overcomes the reaction force of the spring piece and is attracted to the tripping position , At this time, the signal board is green . When the trip coil is de energized , Due to the restriction of shrapnel , The armature is still in the trip position . Therefore, the purpose of locking is realized .
