Understanding and learning of parental delegation mechanism

Reference article

• Reference article 1

• Reference article 2

Preface

The parental delegation mechanism is learning jvm Very important knowledge in the process ！！

Java Virtual machines are right class The document uses Load on demand The way , That is to say, the class will be used only when it is needed class File loading into memory generation class object , and , Load the of a class class When you file ,Java The virtual machine uses Parent delegate mechanism , namely Leave the request to the parent class , It's a task delegation model

In introducing the parental delegation mechanism , Have to mention ClassLoader（ Class loader ）,JVM Three layers are provided in ClassLoader：

• Bootstrap classLoader: Mainly responsible for loading the core class library (java.lang.* etc. ), structure ExtClassLoader and APPClassLoader.
• ExtClassLoader： Mainly responsible for loading jre/lib/ext Some of the extended jar.
• AppClassLoader： It is mainly responsible for loading the main function class of the application

principle

1. If a class loader receives a class load request , It doesn't load itself first , Instead, the request is delegated to the loader of the parent class
2. If the parent loader still has its parent loader , Then further entrust , Recursion in turn , The request will eventually reach the top-level boot class loader ;
3. If the parent loader can complete the class loading task , You're back , If the parent loader cannot complete the loading task , Sub loader will try to load by itself , This is the parent delegation mechanism
4. The parent loader allocates tasks one layer at a time , If the subclass loader can load , Then load this class , If the load task is assigned to the system class, the loader cannot load this class , Throw an exception

Icon 1：

Icon 2：

Code example

give an example 1

I built one myself java.lang.String class , write static Code block

package java.lang;

public class String {

    static{

        System.out.println(" Self defined String Static code block of class ");
    }
}

Load... In another program String class , Look at the loaded String Class is JDK Self contained String class , We wrote it ourselves String class

public class Test1 {


    public static void main(String[] args) {

        java.lang.String str = new java.lang.String();
        System.out.println("hello World");

        Test1 test = new Test1();
        System.out.println(test.getClass().getClassLoader());
    }
}

The program doesn't output the contents of our static code block , So what's still loaded is JDK Self contained String class

Why? ?
Because we define String Class loader of this application system , But it doesn't load itself first , Instead, the request is delegated to the loader of the parent class , To the extension class loader discovery String Class is not under your own control , Then delegate to the parent class loader （ Boot class loader ), It turns out that java.lang package , This belongs to the boot loader , So what's loaded is JDK Self contained String class

give an example 2

In our own String Entire in class main() Method

package java.lang;

public class String {

    static{

        System.out.println(" Self defined String Static code block of class ");
    }

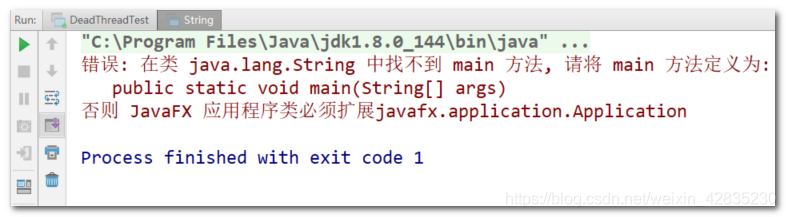

    // error :  In the class  java.lang.String  I can't find it in China.  main  Method
    public static void main(String[] args) {

        System.out.println("hello String");
    }
}

Because the parent delegation mechanism finds JDK Self contained String class , But in the core class library of the boot class loader API Inside String There is no main() Method

give an example 3

stay java.lang Wrap the whole ShkStart class ( Custom class name )

package java.lang;

public class ShkStart {
    public static void main(String[] args) {
        System.out.println("hello!");
    }
}

Out of the protection mechanism ,java.lang We are not allowed to customize classes under the package

The advantages of parental appointment mechanism

1. Avoid duplicate loading of classes .

   Once a class is loaded by the parent loader , It will no longer be delegated to subclasses to load

2. Protect program security , Prevention core API Be tampered with at will , Prevent the implantation of dangerous codes

   When a class needs to be loaded , The first To try to load is BootstrapClassLoader, So other classloaders have no chance to load again System level classes , To a certain extent, it prevents the implantation of dangerous code .

   • Custom class ：java.lang.String ( Will not cover jdk Of String class , useless )

   • Custom class ：java.lang.ShkStart（ Report errors ： Block creation java.lang Initial class ）

summary

In short , The parent delegation mechanism first delegates the parent class to load from the bottom up , After encountering the top level or failing to load the parent class of this class , Start loading from itself , If it doesn't load , Throw an exception
