DNS resolution experiment

DNS Forward analysis

Install first bind（ A process is running and cannot be installed , First kill Kill process ）

vim Get into /etc/named.conf

vim /etc/named.conf

options {
  listen-on-v6 poet 53 { 192.168.158.11; };              # monitor 53 port ,IP Address uses the local where the service is provided IP, Also available any On behalf of all
#   listen-on-v6 port 53 { : :1; };                      #ipv6 Lines can be commented out or deleted if they are not used
  directory       "/var/named";                          # The default location of the area data file Set up
  dump- file      "/var/ named/data/cache_ dump . db";   # Location of domain name cache database file
  statistics-file "/var/named/data/named stats.txt";     # The location of the status statistics file
  memstatistics-file "/var/named/data/named_ mem_ stats. txt";    # Location of memory statistics file
  allow-query
  { any; };                                                # Allow to use this DNS The network segment of the resolution service , Also available any On behalf of all

zone "." IN {                                            # Forward analysis “. " Root area
        type hint;                                       # The type is the root region
        file "named.ca";                                 # The area data file is named.ca, Recorded 13 The domain name of the root domain server and IP Address and other information
};


 vim Get into /etc/named.rfc1912.zones

vim /etc/named.rfc1912.zones

zone "lxx. com" IN {                                     # Forward analysis "lxx.com" Area
type master;                                               # Type is the main area
 file "lxx. com. zone";                                  # The specified area data file is lxx. com. zone
allow-update { none; };
};

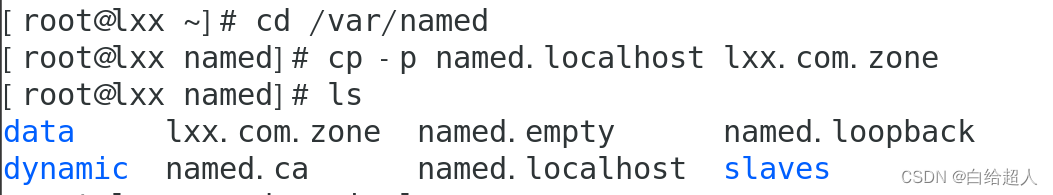

cd /var/named then cp -p named.localhost lxx.com.zone

 vim Get into lxx,com.zone

$TTL 1D                                                  # Set the effective time of cache resolution results
@       IN SOA lxx.com. admin.lxx.com. (
                                           0; serial .
                                           1D; refresh
                                           1H; retry
                                           1W; expire
                                           3H ) ; minimum
         NS    lxx.com.                      # Record the current area of DNS Name of the server
         A     192.168.158.111                  # Recording host IP Address
IN   MX  10    mail.lxx.com.                 #MX Record for mail exchange , The higher the number, the lower the priority
www  IN  A     192.168.158.111                  # Record forward resolution www.benet.com Corresponding IP
mail IN  A     192.168.158.100
ftp  IN CNAME  www                              #CNAME Use the alias ,ftp yes www Another name for
*    IN   A    192.168.158.200                  # Pan domain name resolution ,“*" Represents any host name


Turn off firewall , start-up named service

Add... In the domain name resolution configuration file of the client DNS Server address

vim /etc/resolv.conf Entering and writing is effective immediately , No need to restart the network card , use echo I need to restart the network card

Configuration complete , Finally, test it
