AC automata

AC Problems solved by automata

Play on the prefix tree KMP,

Suppose a string array contains several sensitive words , Given a big article ,AC Automata is to find out which sensitive words are included in a big article

AC Automata is one of the most basic things in many similar matching algorithms

step

First, build some sensitive words into a prefix tree ,（ Prefix tree ,,）

The organization between sensitive words is a prefix tree , But we need to upgrade the prefix tree

need Add a line on each node fail The pointer （fail The pointer is indicated by a dotted line ）, The first node fail The pointer points to null , And the subordinate direct nodes of the head node are artificially specified fail The pointers all point to the header node ,

Then the bottom fail How to set the pointer ？

First, finish building the prefix tree , Set up fail The pointer , Set the... Of each node according to the order of width priority fail The pointer ,

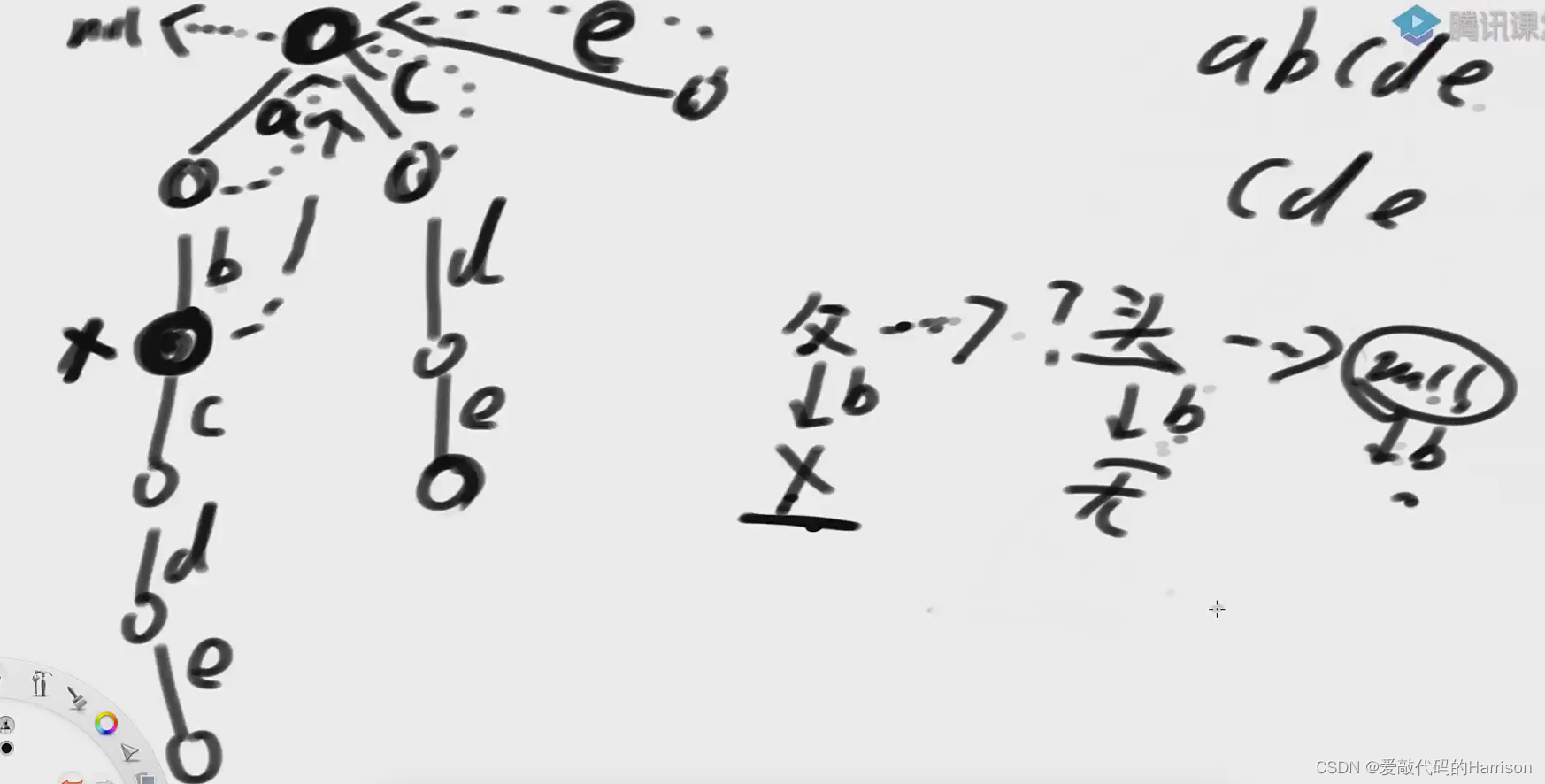

The following figure ,X The parent node of a node has a path to its own b, however X Of the parent node of fail Pointer refers to the head node , The head node has a trend a node 、b node 、c Path of node , That is to say, the head node does not go b Direction of the road ; So the head node follows fail The pointer goes down , Came to null,null Of course, the node does not go b Direction of the road , therefore x Of fail The pointer points directly to the header node

Then set the following figure X Nodal fail The pointer , Same as above , The path from the parent node to its own direction is d, But from the parent node fail The pointer cannot find the direction d Direction of the road , therefore X Nodal fail The pointer points directly to the header node

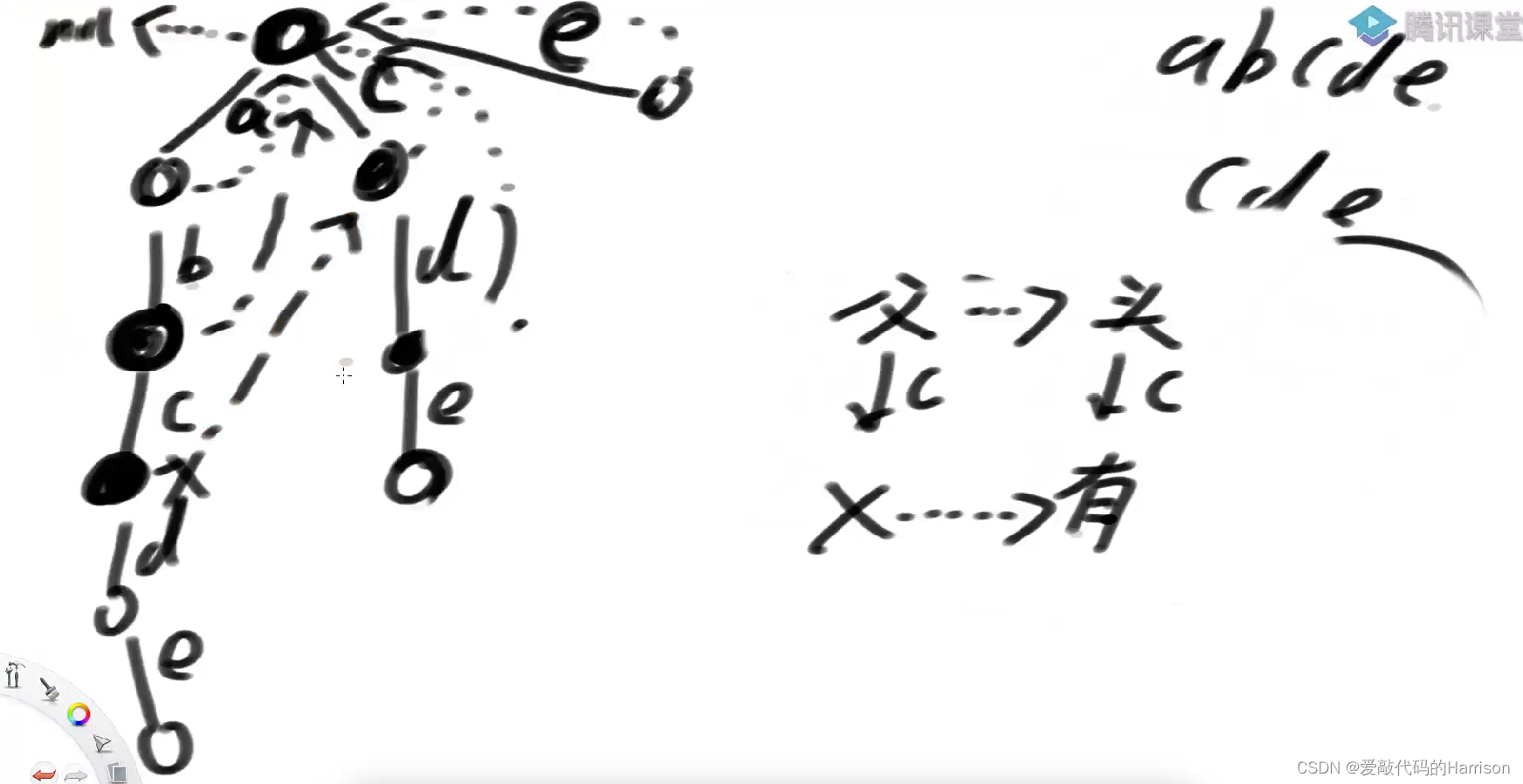

Then set the following figure X Nodal fail The pointer （ Set in width first order ）,X My father goes to his own way c, Paternal fail Pointer to head node , But the head node has a trend c Direction of the road , therefore X Of fail The pointer points to this point and goes to c Node of direction

fail Pointer setting rules

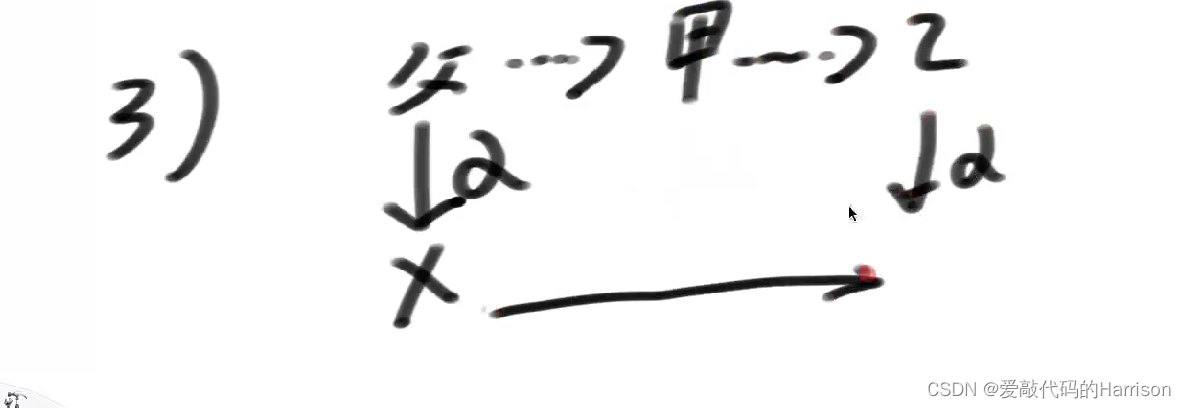

The first 3） This situation is more complicated ,

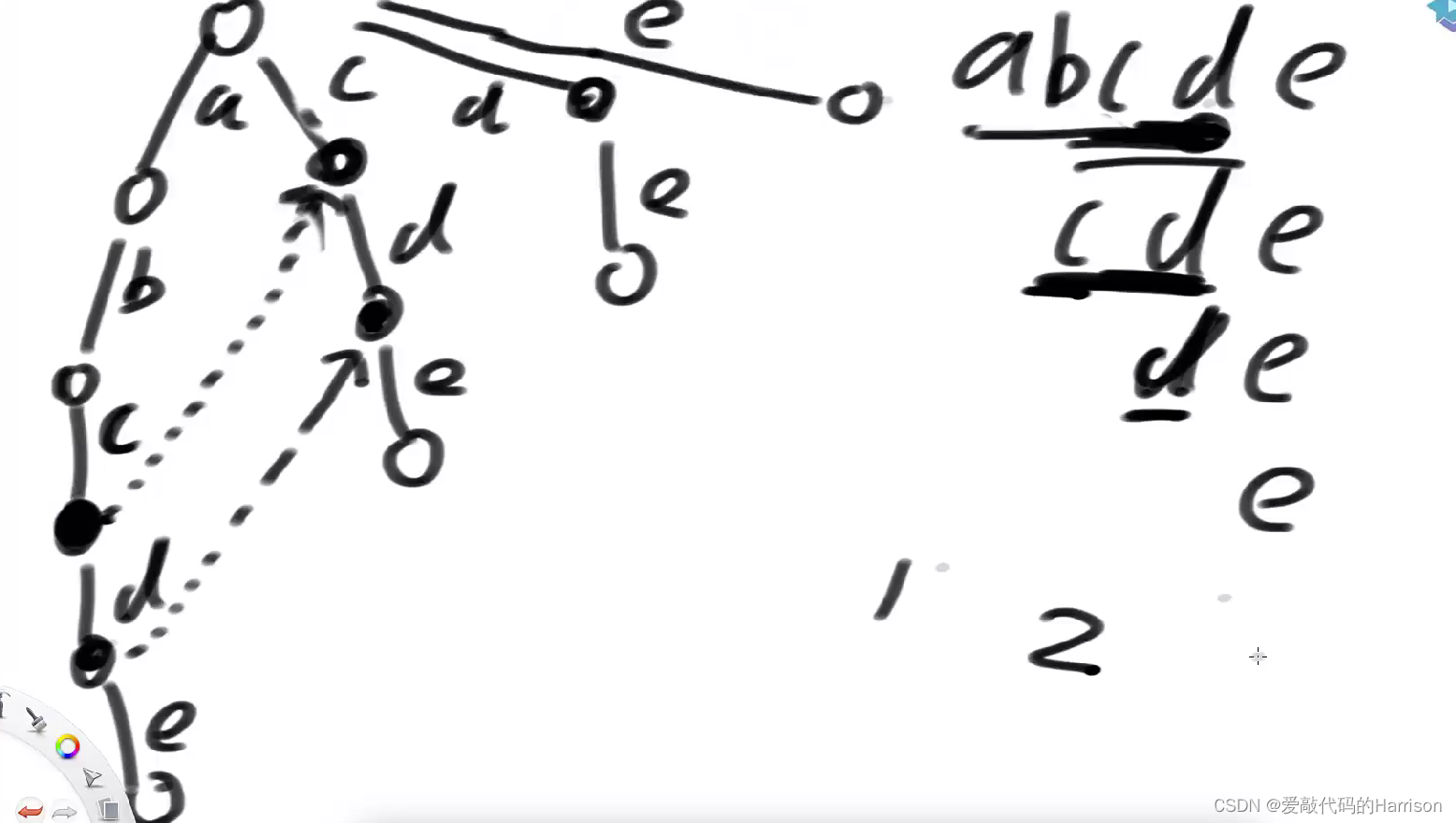

AC automata fail The essence of pointer

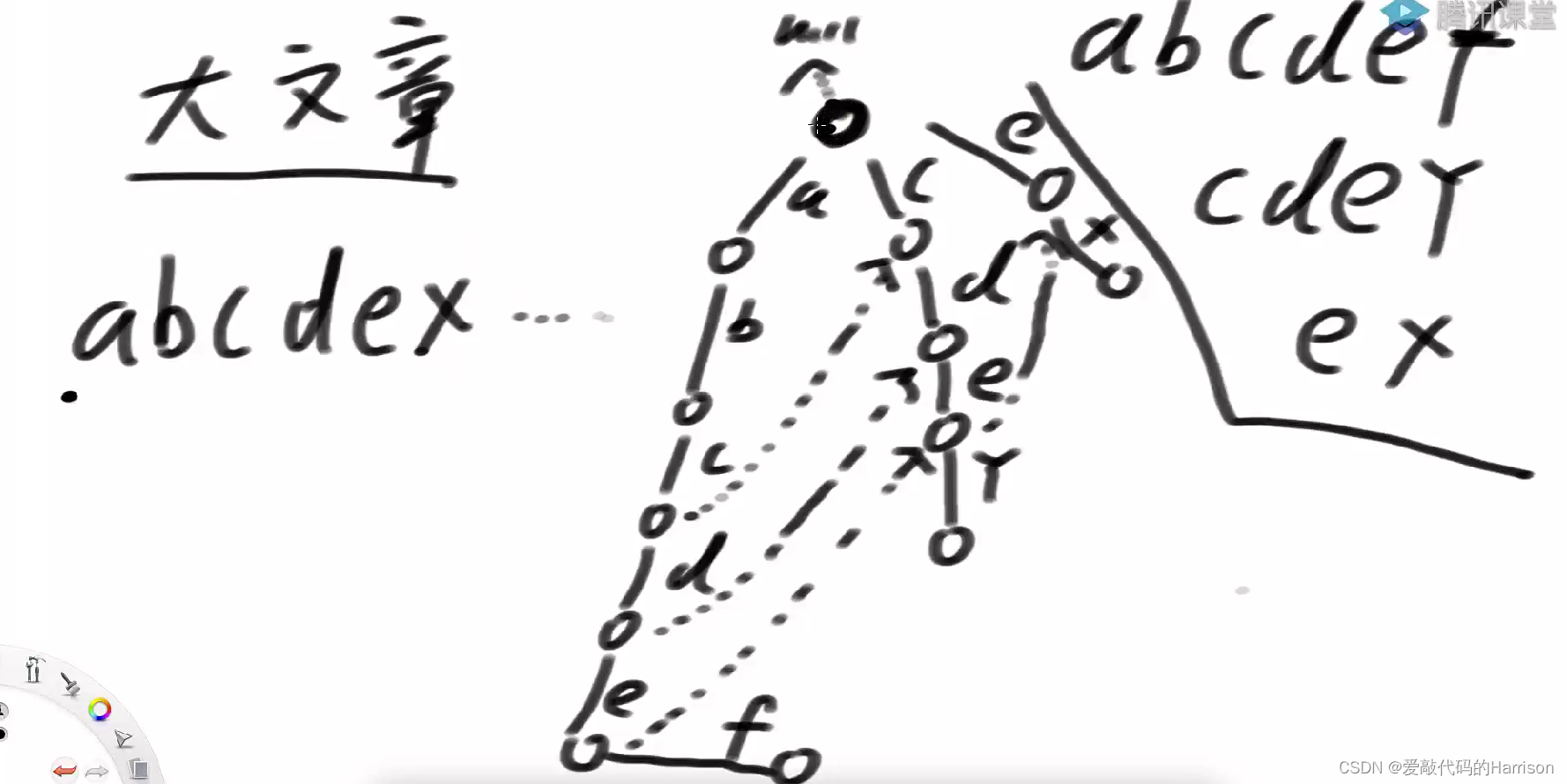

If the match fails , In the remaining string , Which string prefix matches the longest suffix that must contain the current character ,

package com.harrison.class22;

import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
import java.util.Queue;

/** * @author Harrison * @create 2022-04-02-10:21 * @motto  looking for him for thousand times in the crowd , Suddenly look back , The man was in the dim light . */
public class Code03_ACAutomaton {

    //  The node of the prefix tree
    public static class Node{

        //  If one Node,end It's empty , Description is not the end
        //  If end Not empty , Indicates that this point is the end of a string ,end The value of is this string
        public String end;
        //  Only on the top end When the variable is not empty ,endUse It makes sense
        //  Express , This string has no answer before , Prevent repeated collection of answers
        public boolean endUse;
        public Node fail;
        //  The path below the prefix tree , Hypothetical article , All sensitive words are lowercase , You can fix it 26 length
        public Node[] nexts;

        public Node(){

            endUse=false;
            end=null;
            fail=null;
            nexts=new Node[26];
        }
    }

    public static class ACAutomaton{

        private Node root;

        //  about AC For automata, characters must be on the road , Not on the node , Just like prefix tree
        public ACAutomaton(){

            root=new Node();
        }

        //  The process of building prefix tree , Call as many sensitive words as you have insert Method
        //  After the prefix tree is built , Call again build Method to set all fail The pointer
        public void insert(String s){

            char[] str=s.toCharArray();
            Node cur=root;
            int index=0;
            for(int i=0; i<str.length; i++){

                index=str[i]-'a';
                if(cur.nexts[index]==null){

                    cur.nexts[index]=new Node();
                }
                cur=cur.nexts[index];
            }
            cur.end=s;
        }

        //  Be careful ： Not set the pop-up node itself fail The pointer
        //  Instead, pop up the node and set all its children fail The pointer
        public void build(){

            Queue<Node> queue=new LinkedList<>();
            queue.add(root);
            Node cur=null;
            Node cfail=null;
            while(!queue.isEmpty()){

                //  The current node pops up , All descendants of the current node join the queue , The current node gives its children settings fail The pointer
                //  Some father  cur
                cur=queue.poll();
                for(int i=0; i<26; i++){
    //  All the way
                    // cur-> father  i No. 1 son , Must take i Son No fail The pointer is set
                    if(cur.nexts[i]!=null){
    //  If there is i No. 1 son
                        cur.nexts[i].fail=root;//  Set it to root, If found, set it to someone else
                        cfail=cur.fail;
                        while (cfail!=null){

                            if(cfail.nexts[i]!=null){

                                cur.nexts[i].fail=cfail.nexts[i];
                                break;
                            }
                            cfail=cfail.fail;
                        }
                        queue.add(cur.nexts[i]);
                    }
                }
            }
        }

        //  Big article
        public List<String> containWords(String content){

            char[] str=content.toCharArray();
            Node cur=root;
            Node follow=null;
            int index=0;
            List<String> ans=new ArrayList<>();
            for(int i=0; i<str.length; i++){

                index=str[i]-'a';//  road
                //  If the current character is not matched on this road , Just follow fail Direction to the next path
                while(cur.nexts[index]==null && cur!=root){

                    cur=cur.fail;
                }
                // 1)  Now come to the path , Can continue to match
                // 2)  Now come to the node , Is the root node of the prefix tree
                cur=cur.nexts[index]!=null?cur.nexts[index]:root;
                follow=cur;
                while(follow!=root){

                    if(follow.endUse){

                        break;
                    }
                    //  Different needs , Revise between this paragraph
                    if(follow.end!=null){

                        ans.add(follow.end);
                        follow.endUse=true;
                    }
                    //  Different needs , Revise between this paragraph
                    follow=follow.fail;
                }
            }
            return ans;
        }
    }

    public static void main(String[] args) {

        ACAutomaton ac = new ACAutomaton();
        ac.insert("dhe");
        ac.insert("he");
        ac.insert("abcdheks");
        //  Set up fail The pointer
        ac.build();

        List<String> contains = ac.containWords("abcdhekskdjfafhasldkflskdjhwqaeruv");
        for (String word : contains) {

            System.out.println(word);
        }
    }
}
