6-10 vulnerability exploitation SMTP experimental environment construction

Mail sending and receiving model

Send mail using smtp agreement , Simple mail transfer protocol , Occupy 25 Port no. , Send the corresponding message . And mail is being used pop3 and imap agreement , Respectively take up 110 and 143 port

The basic model of mail receiving and sending

Add host name and domain name

Directly transmit mail locally , Yes, we need to set the host name and domain name locally , And analyze

In order to build a mail server locally , Therefore, the corresponding content needs to be modified . Make it possible to resolve domain names locally . Equivalent to the local computer doing a loopback domain name resolution , It and windows,etc Under the hosts File similar

stay linux Next , We use it directly

sudo gedit /etc/hosts
127.0.0.1 mail.test.lab test

sudo gedit /etc/hostname
test
 Use after modification reboot To restart , Make changes effective .

 Use hostname or hostname -f Check whether the modification is successful

sudo gedit /etc/hosts
127.0.0.1 mail.test.lab test

We set up a IP Mapping of address and domain name , And this domain name is test

sudo gedit /etc/hostsname
test

reboot

We wait for the restart to complete

hostname
hostname -f

Modification successful , Check the current domain name and hostname

ubuntu install postfix

smtp Protocol Software , because postfix It's very popular smtp Software , therefore ubuntu Is integrated into the main library of postfix, You can directly use the following command to install ：

sudo apt-get install postfix
 choice internet site

mail.test.lab >  determine

These configurations are based on our previous design , Dependencies like... Are being installed here , Installation successful , We can't use... Directly , We need to do some configuration , Can be used

 Modify the configuration file ：

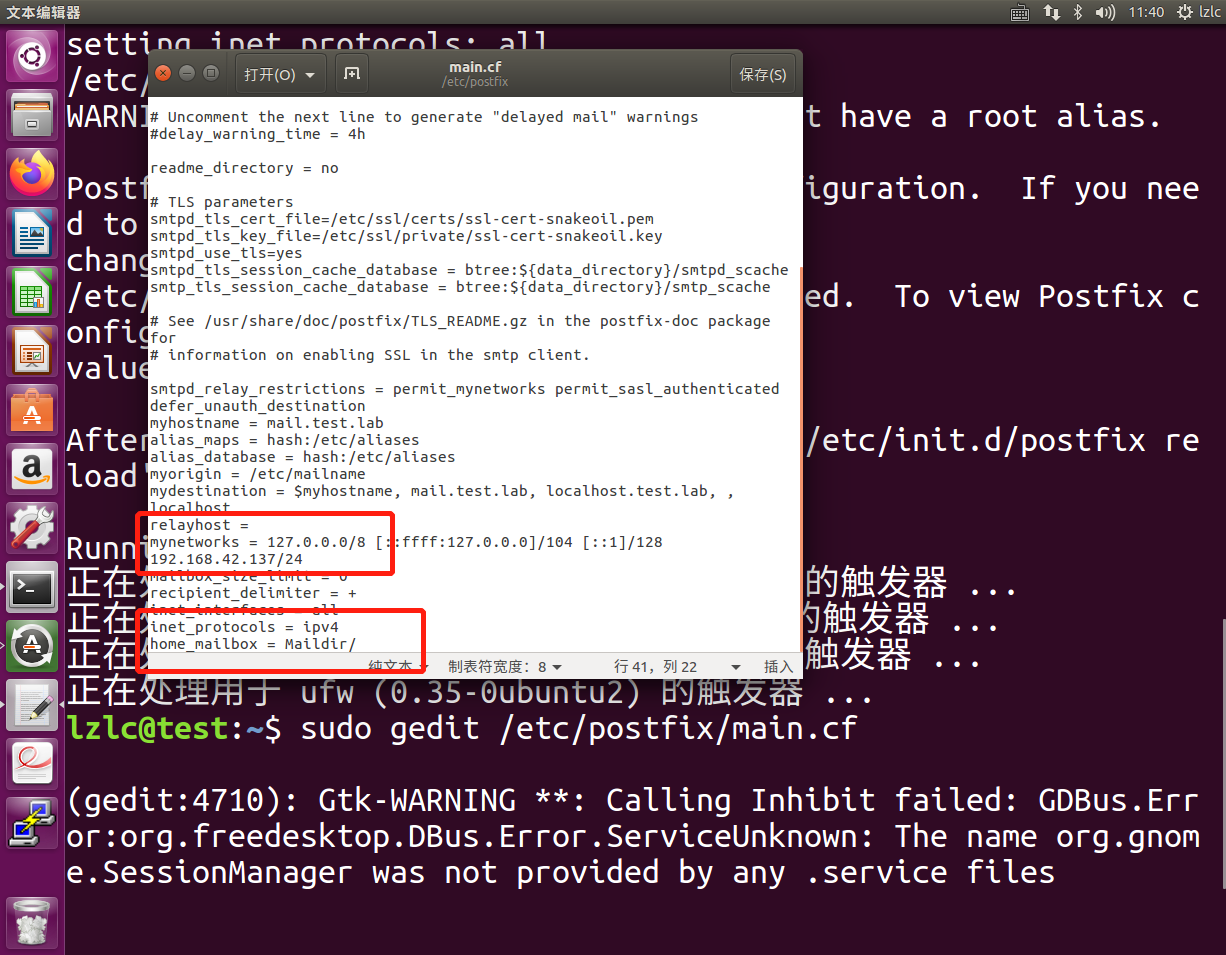

sudo gedit /etc/postfix/main.cf

 Add subnet information
inet_protocols = ipv4
home_mailbox = Maildir/
 Restart the service after the modification  postfix
sudo service postfix restart, And then use netstat -nlv  To see the corresponding 25 Whether the port is open .

sudo gedit /etc/postfix/main.cf
192.168.1.10/24
ipv4
home_mailbox = Maildir/

sudo service postfix restart
netstat -nlv

We can see it 25 Port no. , It is in the monitoring state here , It also shows our smtp Service started successfully , And completed the corresponding simple configuration , Of course, there are some options , We can according to the actual needs , To configure , Here we only make a simple configuration , So that our later experiments can be carried out smoothly

ubuntu install dovecot

We want to receive the corresponding software , We need to configure dovecot Software

sudo apt-get install dovecot-imapd dovecot-pop3d

After installation , As long as the corresponding configuration

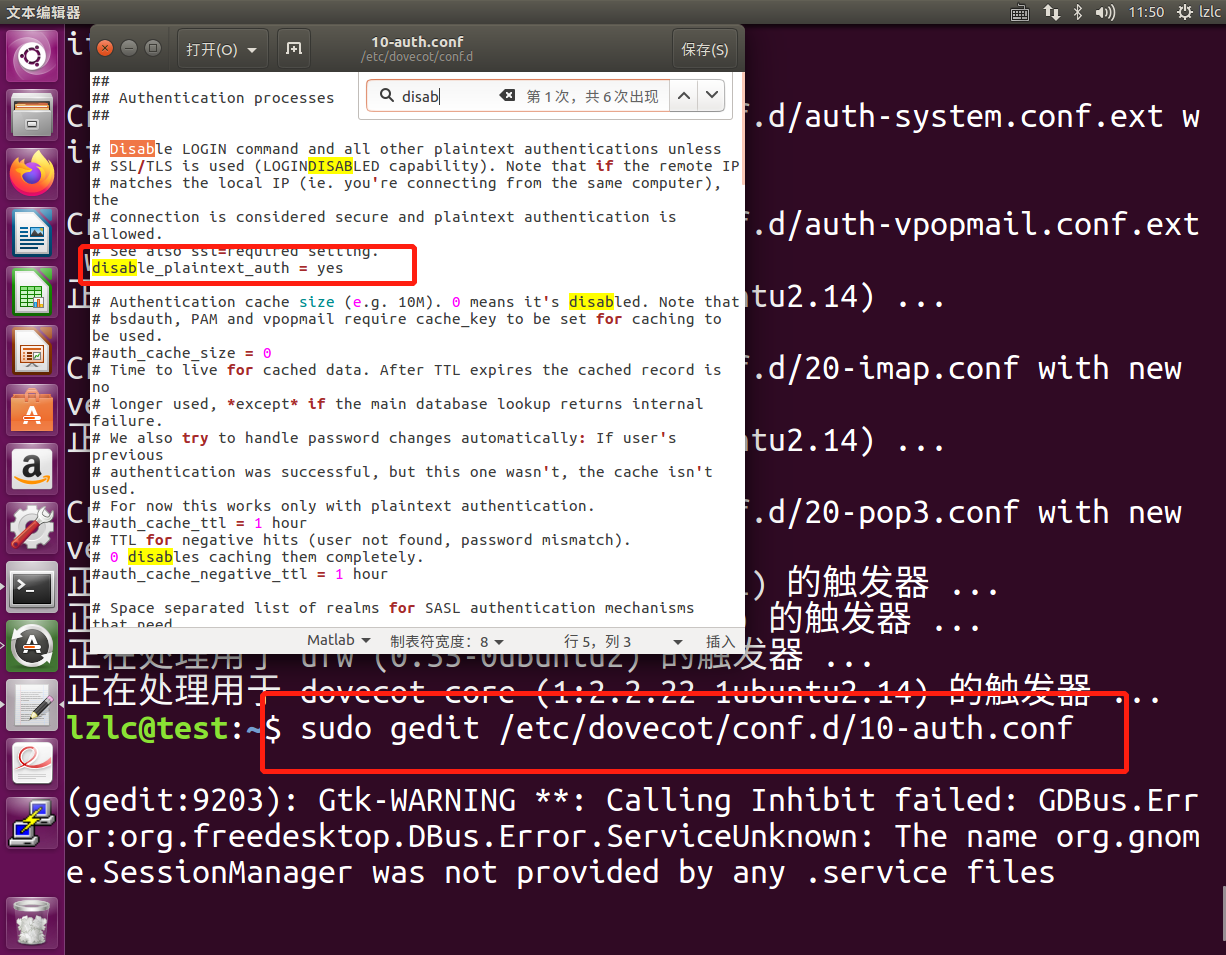

sudo gedit /etc/dovecot/conf.d/10-auth.conf
disable_plaintest_auth = yes
auth_mechanisms = plain login
// So that we can use dovecot Log in

sudo gedit /etc/dovecot/conf.d/10-mail.conf
mail_location= maildir:/home/%u/Maildir

Configure directory , Next, configure its port

sudo gedit /etc/dovecot/conf.d/10-master.conf
 Set up  port =143 port 110

netstat -pantu

Check whether the current port is enabled 110 and 143, And we are in the configuration just now , So our configuration port is 110 and 143, After we've installed it , It will turn on 110 and 143, During monitoring , We really need to configure accordingly

 Modify the permissions
unix_listerner auth-usrdb{
		mode = 0666
		user = postfix
		group = postfix
}
 Restart dovecot service   sudo service dovecot restart  Use  netstat -nlv  Check the service port  110 143 Open or not

Only after we restart these services , We can take effect , Before restarting these services , We need to change these permissions

sudo gedit /etc/dovecot/conf.d/10-master.conf

sudo service dovecot restart
netstat -nlv

We can see 25、110 and 143 In a listening state , Indicates that our service is on

We are finished now smtp Protocol Software postfix,pop Protocol Software dovecot Installation and configuration , This is the time , We can use it
