Install the custom module into the system and use find in the independent project_ Package found

2022-06-24 19:35:00 【Potato, watermelon and sesame】

Because the current program and library construction method adopted by the project is to install all libraries and executable programs into /opt/xxx/1.0.1/bin perhaps /opt/xxx/1.0.1/lib as well as /opt/xxx/1.0.1/include Under the table of contents . But this way of writing death is certainly not appropriate , Therefore, it is necessary to master other commonly used installation methods , For example, we installed OpenCV And so on , Where will they be installed , How to use them .

be based on Cmake Compilation of C++ A common way to use a third-party library file in a project is find_package() function , It is very convenient to use . But how to build your own modules and install them into the system , Use in separate projects find_packag（） To use this package , There are few relevant introductions （ Most of the Internet is built in the same package test Program , Not used in independent projects find_package() To reference the package ）. for example , Use some libraries written by others from the Internet , The general procedure is to download it first , Use the following command in the source folder of the library to install ：

cd <libABC_path>
mkdir build
cd build
cmake ..
make
sudo make install

Install the library into the system through the above series of commands . If we're writing something else C The library is called in the program , Then we need to compile the program CMakeLists Chinese characters such as ：

find_package(libABC REQUIRED)

1.find_package()

If an external library is used in the program , You don't know the location of its header file and link library in advance , It is necessary to give the search methods for header files and link libraries , And link them to the program .

find_package(<name> [major.minor] [QUIET] [NO_MODULE]
[[REQUIRED|COMPONENTS] [componets...]])

find_package() The search path for

find_package() The command first looks in the module path for A pre compiled FindXXX.cmake file , And the general official gives a lot , You don't need to write it yourself. This is a typical way to find a library . The specific search paths are CMake：

Module mode

${CMAKE_MODULE_PATH} All directories in .
Module directory /share/cmake-x.y/Modules/ .

Configuration mode

~/.cmake/packages/ or /usr/local/share/ Find in each package directory in , seek < Capitalize the library name >Config.cmake perhaps < Lowercase of library name >-config.cmake ( Like the library Opencv, It will look for /usr/local/share/OpenCV Medium OpenCVConfig.cmake or opencv-config.cmake).

The first is to find the root directory of the path . I summarize several important default lookup root directories as follows ：

<package>_DIR
CMAKE_PREFIX_PATH
CMAKE_FRAMEWORK_PATH
CMAKE_APPBUNDLE_PATH
PATH

among ,PATH If the path in bin or sbin ending , Then it will automatically fall back to the upper level directory . Find the root directory （ The root directory is used as the following <prefix>）,cmake Will check the contents of these directories

<prefix>/(lib/<arch>|lib|share)/cmake/<name>*/          (U)
<prefix>/(lib/<arch>|lib|share)/<name>*/                (U)
<prefix>/(lib/<arch>|lib|share)/<name>*/(cmake|CMake)/  (U)

cmake After finding these directories , Will start looking for <package>Config.cmake or Find<package>.cmake file . Once found, you can execute the file and generate relevant link information .

Now look back at the root directory of the search path . I think the most important one is PATH. because /usr/bin/ stay PATH in ,cmake Will go automatically. /usr/(lib/<arch>|lib|share)/cmake/<name>*/ Find module ( because /usr/bin With bin ending , So automatically back to /usr/ As the root directory ), This allows most of us to go directly through apt-get The installed library can be found .

Another more important thing is <package>_DIR. We can call cmake Send this directory to cmake. Because of its highest priority , therefore cmake Will give priority to finding from this directory , In this way, we can configure as we like cmake Make it find the bag we want it to find . And in addition to the path specified above ,cmake And directly into <package>_DIR Look for . As I am 3rd_parties Compiled a OpenCV（ Use find_package The package name to be looked up at is OpenCV）, Then perform cmake You can use

OpenCV_DIR=../../3rd-party/opencv-3.3.4/build/ cmake ..

After doing so ,cmake Will give priority to looking from this directory OpenCV.

*.cmake File definition variables

No matter which mode you use , Just find .cmake,.cmake The following variables will be defined inside ：

<NAME>_FOUND
<NAME>_INCLUDE_DIRS or <NAME>_INCLUDES
<NAME>_LIBRARIES or <NAME>_LIBRARIES or <NAME>_LIBS
<NAME>_DEFINITIONS

Note that the package names in these variables of most packages are all uppercase , Such as LIBFOO_FOUND , Some packages use the actual case of the package , Such as LibFoo_FOUND

Add header file and link library file

If you find this bag , In the top-level directory of the project CMakeLists.txt File to add include_directories(XXX_INCLUDE_DIRS) To include the header file of the library , add to target_link_libraries( Source file _LIBRARIES) The command links the source file to the library file .

link OpenCV Example

establish t4 Catalog add cmake Directory and main.cpp And CMakeList.txt file

establish cmake Catalog add FindOpenCV.cmake file .

CMakeList.txt

cmake_minimum_required(VERSION 2.8)
PROJECT (HELLO)
SET(SRC_LIST main.cpp)

INCLUDE_DIRECTORIES(cmake)

SET(CMAKE_MODULE_PATH ${PROJECT_SOURCE_DIR}/cmake)
# stay ${CMAKE_MODULE_PATH} Add to include FindOpenCV.cmake Catalog

FIND_PACKAGE(OpenCV)
# obtain OPENCV_FOUND OPENCV_INCLUDE_DIR OPENCV_LIBRARIES

INCLUDE_DIRECTORIES(${OPENCV_INCLUDE_DIR})

ADD_EXECUTABLE(hello ${SRC_LIST})
TARGET_LINK_LIBRARIES(hello ${OPENCV_LIBRARIES})

The above describes find_package Usage of , as well as find_package Find paths and examples . But how can I write a module by myself , And then like OpenCV That way, it can be installed in the system for others to use ？

2. Custom module

Build and install custom modules

First create a folder cmake_tutorial1, Create four folders in it src include cmake_modules build, Create a file CMakeLists.txt.src Used to put program source files ,include Used to put header files ,cmake_modules Used to put the configuration files related to the installation that describe the module , I'll explain it later .

stay include Create a file called test_install.h, The contents of the source file are simple .

#include <iostream>
class Print{
public:
    void PrintHelloWorld();
};

Defines a class , To have a print HelloWorld Function of . natural , stay src We implement that function in , stay src Create a file in test_install.cpp, The contents are as follows

#include <test_install.h>

void Print::PrintHelloWorld(){
   std::cout<<"hello world "<<std::endl;
}

stay cmake_modules The files in are called FindPackage.cmake, cmake_uninstall.cmake.in, install_package.cmake, PackageConfig.cmake.in, PackageConfigVersion.cmake.in, PkgConfig.pc.in. These documents are all gross ？ In fact, I didn't care about their specific content , But you can use them directly to install our libraries , There is no need to change the library , They're like CMake Your own library .

FindPackage.cmake


SET( @[email protected]_LIBRARIES  @[email protected] CACHE INTERNAL "@[email protected] libraries" FORCE )
SET( @[email protected]_INCLUDE_DIRS  @[email protected] CACHE INTERNAL "@[email protected] include directories" FORCE )
SET( @[email protected]_LIBRARY_DIRS @[email protected] CACHE INTERNAL "@[email protected] library directories" FORCE )

mark_as_advanced( @[email protected]_LIBRARIES )
mark_as_advanced( @[email protected]_LIBRARY_DIRS )
mark_as_advanced( @[email protected]_INCLUDE_DIRS )

PackageConfig.cmake.in

SET( @[email protected]_LIBRARIES  "@[email protected]" CACHE INTERNAL "@[email protected] libraries" FORCE )
SET( @[email protected]_INCLUDE_DIRS  @[email protected] CACHE INTERNAL "@[email protected] include directories" FORCE )
SET( @[email protected]_LIBRARY_DIRS @[email protected] CACHE INTERNAL "@[email protected] library directories" FORCE )

mark_as_advanced( @[email protected]_LIBRARIES )
mark_as_advanced( @[email protected]_LIBRARY_DIRS )
mark_as_advanced( @[email protected]_INCLUDE_DIRS )



# Compute paths
get_filename_component( PACKAGE_CMAKE_DIR "${CMAKE_CURRENT_LIST_FILE}" PATH )

# This file, when used for INSTALLED code, does not use Targets... sigh.
## Library dependencies (contains definitions for IMPORTED targets)
#if(NOT TARGET "@[email protected]_LIBRARIES" AND NOT "@[email protected]_BINARY_DIR")
#    include( "${PACKAGE_CMAKE_DIR}/@[email protected]" )
#    include( "${PACKAGE_CMAKE_DIR}/@[email protected]" )
#endif()

#SET(@[email protected]_LIBRARIES @[email protected])
#SET(@[email protected]_LIBRARY @[email protected])
#SET(@[email protected]_INCLUDE_DIRS @[email protected])
#SET(@[email protected]_LINK_DIRS @[email protected])

and FindPackage.cmake Is essentially the same , Just one more word get_filename_component(). It is mainly used to set package related paths and variables . this 2 The two files represent the above two modes respectively .

PackageConfigVersion.cmake.in

set(PACKAGE_VERSION "@[email protected]")

# Check build type is valid
if( "System:${CMAKE_SYSTEM_NAME},Android:${ANDROID},iOS:${IOS}" STREQUAL
    "System:@[email protected],Android:@[email protected],iOS:@[email protected]" )
    # Check whether the requested PACKAGE_FIND_VERSION is compatible
    if("${PACKAGE_VERSION}" VERSION_LESS "${PACKAGE_FIND_VERSION}")
      set(PACKAGE_VERSION_COMPATIBLE FALSE)
    else()
      set(PACKAGE_VERSION_COMPATIBLE TRUE)
      if ("${PACKAGE_VERSION}" VERSION_EQUAL "${PACKAGE_FIND_VERSION}")
        set(PACKAGE_VERSION_EXACT TRUE)
      endif()
    endif()
else()
    set(PACKAGE_VERSION_COMPATIBLE FALSE)
endif()

Set the package version , Handling when the actually found version is inconsistent with the declared version . This is the same as the one in front PackageConfig.cmake.in Same for configuration mode .

PkgConfig.pc.in

[email protected][email protected]
exec_prefix=${prefix}
libdir=${exec_prefix}/lib
includedir=${prefix}/include

Name: @[email protected]
Description: @[email protected]
Version: @[email protected]
Cflags: @[email protected]
Libs: -L${libdir} @[email protected] @[email protected]

Set up cmake The root path to find is the installation path of the Library , Set up lib Contents and include Catalog , Set package name 、 describe 、 edition 、 Signs and other information . This is also used in the configuration mode .

install_package.cmake

################################################################################
# install_package.cmake - This function will install and "export" your library
#   or files in such a way that they can be found using either CMake's
#   "FindXXX.cmake" mechanism or with pkg-config.  This makes your code boradly
#   compatible with traditional unix best practices, and also easy to use from
#   other CMake projets.
#
# This function will create and install a ${PACKAGE}.pc pkg-config file.
# Will also create a Find${PACKAGE}.cmake, which will in turn call.

#
# install_package - Takes a package name and the following optional named arguments:
#  PKG_NAME <name of the package for pkg-config>, usually the same as ${PROJECT_NAME}
#  LIB_NAME <name of a library to build, if any>
#  VERSION <version>
#  INSTALL_HEADERS <header files to install, if any>
#  DESTINATION <directory to install headers>
#  INCLUDE_DIRS <list of required include directories, if any>
#  LINK_LIBS <list of required link libraries, if any >
#  LINK_DIRS <list of required link directories, if any>
#  CFLAGS <optional list of REQUIRED c flags>
#  CXXFLAGS <optional list of REQUIRED c++ flags>
#
################################################################################
include(CMakeParseArguments)

get_filename_component(modules_dir ${CMAKE_CURRENT_LIST_FILE} PATH)

function(install_package)
  set(PACKAGE_OPTIONS "")
  set(PACKAGE_SINGLE_ARGS "")
  set( PACKAGE_MULTI_ARGS
      PKG_NAME
      LIB_NAME
      VERSION
      DESCRIPTION
      INSTALL_HEADERS
      INSTALL_GENERATED_HEADERS
      INSTALL_HEADER_DIRS
      INSTALL_INCLUDE_DIR
      DESTINATION
      INCLUDE_DIRS
      LINK_LIBS
      LINK_DIRS
      CFLAGS
      CXXFLAGS
     )
  cmake_parse_arguments( PACKAGE
    "${PACKAGE_OPTIONS}"
    "${PACKAGE_SINGLE_ARGS}"
    "${PACKAGE_MULTI_ARGS}"
    "${ARGN}"
    )

  # Add package to CMake package registery for use from the build tree. RISKY.
  option( EXPORT_${PROJECT_NAME}
      "Should the ${PROJECT_NAME} package be exported for use by other software" OFF )

  mark_as_advanced( EXPORT_${PROJECT_NAME} )


  # clean things up
  if( PACKAGE_LINK_DIRS )
    list( REMOVE_DUPLICATES PACKAGE_LINK_DIRS )
  endif()
  if(PACKAGE_LINK_LIBS)
    list( REMOVE_DUPLICATES PACKAGE_LINK_LIBS )
  endif()
  if( PACKAGE_INCLUDE_DIRS)
    list( REMOVE_DUPLICATES PACKAGE_INCLUDE_DIRS )
  endif()

  # construct Cflags arguments for pkg-config file
  set( PACKAGE_CFLAGS "${PACKAGE_CFLAGS} ${CMAKE_C_FLAGS}" )
  foreach(var IN LISTS PACKAGE_INCLUDE_DIRS )
    set( PACKAGE_CFLAGS "${PACKAGE_CFLAGS} -I${var}" )
  endforeach()

  # now construct Libs.private arguments
  foreach(var IN LISTS PACKAGE_LINK_DIRS )
    set( PACKAGE_LIBS "${PACKAGE_LIBS} -L${var}" )
  endforeach()
  foreach(var IN LISTS PACKAGE_LINK_LIBS )
    if( EXISTS ${var} OR  ${var} MATCHES "-framework*" )
      set( PACKAGE_LIBS "${PACKAGE_LIBS} ${var}" )
    else() # assume it's just a -l call??
      set( PACKAGE_LIBS "${PACKAGE_LIBS} -l${var}" )
    endif()
  endforeach()

  # add any CXX flags user has passed in
  if( PACKAGE_CXXFLAGS )
    set( PACKAGE_CFLAGS ${PACKAGE_CXXFLAGS} )
  endif()

  # In case we want to install.
  if( NOT EXPORT_${PROJECT_NAME} )
        # add "installed" library to list of required libraries to link against
        if( PACKAGE_LIB_NAME )
            if(POLICY CMP0026)
              cmake_policy( SET CMP0026 OLD )
            endif()
            get_target_property( _target_library ${PACKAGE_LIB_NAME} LOCATION )
            get_filename_component( _lib ${_target_library} NAME )
            list( APPEND PACKAGE_LINK_LIBS ${PACKAGE_LIB_NAME} )
        endif()

        if( PACKAGE_INSTALL_HEADER_DIRS )
            foreach(dir IN LISTS PACKAGE_INSTALL_HEADER_DIRS )
            install( DIRECTORY ${dir}
                DESTINATION ${PACKAGE_DESTINATION}/include
                FILES_MATCHING PATTERN "*.h|*.hxx|*.hpp"
                )
            endforeach()
        endif()

        # install header files
        if( PACKAGE_INSTALL_HEADERS )
          foreach(hdr IN LISTS PACKAGE_INSTALL_HEADERS )
              get_filename_component( _fp ${hdr} ABSOLUTE )
              file( RELATIVE_PATH _rpath ${CMAKE_SOURCE_DIR} ${_fp} )
              get_filename_component( _dir ${_rpath} DIRECTORY )
              install( FILES ${_fp}
                DESTINATION ${PACKAGE_DESTINATION}/${_dir} )
         endforeach()
        endif()
        if( PACKAGE_INSTALL_GENERATED_HEADERS )
          foreach(hdr IN LISTS PACKAGE_INSTALL_GENERATED_HEADERS )
             get_filename_component( _fp ${hdr} ABSOLUTE )
             file( RELATIVE_PATH _rpath ${CMAKE_BINARY_DIR} ${_fp} )
             get_filename_component( _dir ${_rpath} DIRECTORY )
             install( FILES ${_fp}
                 DESTINATION ${PACKAGE_DESTINATION}/${_dir} )
         endforeach()
        endif()

        if( PACKAGE_INSTALL_INCLUDE_DIR )
            install(DIRECTORY ${CMAKE_SOURCE_DIR}/include DESTINATION ${PACKAGE_DESTINATION} )
        endif()

        # install library itself
        if( PACKAGE_LIB_NAME )
            install( FILES ${_target_library} DESTINATION ${CMAKE_INSTALL_PREFIX}/lib )
            set( PACKAGE_LIB_LINK "-l${PACKAGE_LIB_NAME}" )
        endif()

        # build pkg-config file
        if( PACKAGE_PKG_NAME )
            configure_file( ${modules_dir}/PkgConfig.pc.in ${PACKAGE_PKG_NAME}.pc @ONLY )

        # install pkg-config file for external projects to discover this library
            install( FILES ${CMAKE_CURRENT_BINARY_DIR}/${PACKAGE_PKG_NAME}.pc
                DESTINATION ${CMAKE_INSTALL_PREFIX}/lib/pkgconfig/ )

        #######################################################
        # Export library for easy inclusion from other cmake projects. APPEND allows
        # call to function even as subdirectory of larger project.
        FILE(REMOVE "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Targets.cmake")
        export( TARGETS ${LIBRARY_NAME}
        APPEND FILE "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Targets.cmake" )

        # Version information.  So find_package( XXX version ) will work.
        configure_file( ${CMAKE_SOURCE_DIR}/cmake_modules/PackageConfigVersion.cmake.in
        "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}ConfigVersion.cmake" @ONLY )

        # Build tree config.  So some folks can use the built package (e.g., any of our
        # own examples or applcations in this project.
        configure_file( ${CMAKE_SOURCE_DIR}/cmake_modules/PackageConfig.cmake.in
            ${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Config.cmake @ONLY )
        install(FILES
            ${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Config.cmake
            ${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Targets.cmake
            ${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}ConfigVersion.cmake
            DESTINATION
            lib/cmake/${PROJECT_NAME})

        install( FILES ${CMAKE_CURRENT_BINARY_DIR}/Find${PACKAGE_PKG_NAME}.cmake
            DESTINATION ${CMAKE_INSTALL_PREFIX}/share/${PACKAGE_PKG_NAME}/ )


  #  # Install tree config.  NB we DO NOT use this.  We install using brew or
  #  pkg-config.
  #  set( EXPORT_LIB_INC_DIR ${LIB_INC_DIR} )
  #  set( EXPORT_LIB_INC_DIR "\${PROJECT_CMAKE_DIR}/${REL_INCLUDE_DIR}" )
  #  configure_file( ${CMAKE_CURRENT_SOURCE_DIR}/${PROJECT_NAME}Config.cmake.in
  #      ${CMAKE_CURRENT_BINARY_DIR}${CMAKE_FILES_DIRECTORY}/${PROJECT_NAME}Config.cmake @ONLY )
        endif()

  # In case we want to export.
  elseif( EXPORT_${PROJECT_NAME} )

      if( PACKAGE_LIB_NAME )
            if(POLICY CMP0026)
              cmake_policy( SET CMP0026 OLD )
            endif()
            get_target_property( _target_library ${PACKAGE_LIB_NAME} LOCATION )
            list( APPEND PACKAGE_LINK_LIBS ${_target_library} )
        endif()

        if( PACKAGE_INSTALL_HEADER_DIRS )
            foreach(dir IN LISTS PACKAGE_INSTALL_HEADER_DIRS )
                list( APPEND PACKAGE_INCLUDE_DIRS ${dir} )
            endforeach()
        endif()

        #if( PACKAGE_INSTALL_HEADER_DIRS )
        #   foreach(dir IN LISTS PACKAGE_INSTALL_HEADER_DIRS )
        #        FILE( GLOB ${dir} "*.h" "*.hpp" )
        #        list( APPEND PACKAGE_INCLUDE_DIRS ${dir} )
        #    endforeach()
        #endif()

        list( APPEND PACKAGE_INCLUDE_DIRS ${CMAKE_SOURCE_DIR}
            ${CMAKE_BINARY_DIR} )

        # install library itself
        #if( PACKAGE_LIB_NAME )
        #    set( PACKAGE_LIB_LINK "-l${PACKAGE_LIB_NAME}" )
        #endif()
   #######################################################
  # Export library for easy inclusion from other cmake projects. APPEND allows
  # call to function even as subdirectory of larger project.
  FILE(REMOVE "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Targets.cmake")
  export( TARGETS ${LIBRARY_NAME}
      APPEND FILE "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Targets.cmake" )

  export( PACKAGE ${PROJECT_NAME} )
#  install( EXPORT ${PROJECT_NAME}Targets DESTINATION ${CMAKECONFIG_INSTALL_DIR} )
#  install(TARGETS ${LIBRARY_NAME}
#      EXPORT ${PROJECT_NAME}Targets DESTINATION ${CMAKE_INSTALL_PREFIX}/lib
#      )

  # Version information.  So find_package( XXX version ) will work.
  configure_file( ${CMAKE_SOURCE_DIR}/cmake_modules/PackageConfigVersion.cmake.in
      "${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}ConfigVersion.cmake" @ONLY )

  # Build tree config.  So some folks can use the built package (e.g., any of our
  # own examples or applcations in this project.
  configure_file( ${CMAKE_SOURCE_DIR}/cmake_modules/PackageConfig.cmake.in
      ${CMAKE_CURRENT_BINARY_DIR}/${PROJECT_NAME}Config.cmake @ONLY )

  #  # Install tree config.  NB we DO NOT use this.  We install using brew or
  #  pkg-config.
  #  set( EXPORT_LIB_INC_DIR ${LIB_INC_DIR} )
  #  set( EXPORT_LIB_INC_DIR "\${PROJECT_CMAKE_DIR}/${REL_INCLUDE_DIR}" )
  #  configure_file( ${CMAKE_CURRENT_SOURCE_DIR}/${PROJECT_NAME}Config.cmake.in
  #      ${CMAKE_CURRENT_BINARY_DIR}${CMAKE_FILES_DIRECTORY}/${PROJECT_NAME}Config.cmake @ONLY )
    #export( PACKAGE ${PROJECT_NAME} )
  endif()


  # write and install a cmake "find package" for cmake projects to use.
  # NB: this .cmake file CANNOT refer to any source directory, only to
  # _installed_ files.
  configure_file( ${modules_dir}/FindPackage.cmake.in Find${PACKAGE_PKG_NAME}.cmake @ONLY )

endfunction()

Defined a cmake Function of , Used to install packages and export related configuration files （.cmake etc. ）.

cmake_uninstall.cmake.in

## A simple uninstall script.
## Alternatively UNIX users can run/sudo `xargs rm < install_manifest.txt` in the build directory.

set(unfile ${CMAKE_CURRENT_BINARY_DIR}/cmake_uninstall.cmake)
file(WRITE ${unfile} "IF(NOT EXISTS \"install_manifest.txt\")\n")
file(APPEND ${unfile} "MESSAGE(\"FATAL_ERROR Cannot find \\\"install manifest\\\": install_manifest.txt\")\n")
file(APPEND ${unfile} "ENDIF(NOT EXISTS \"install_manifest.txt\")\n")
file(APPEND ${unfile} "FILE(READ \"install_manifest.txt\" files)\n")
file(APPEND ${unfile} "STRING(REGEX REPLACE \"\\n\" \";\" files \"\${files}\")\n")
file(APPEND ${unfile} "FOREACH(file \${files})\n")
file(APPEND ${unfile} "  MESSAGE(STATUS \"Uninstalling \\\"\${file}\\\"\")\n")
file(APPEND ${unfile} "  IF(EXISTS \"\${file}\")\n")
file(APPEND ${unfile} "    EXEC_PROGRAM(\n")
file(APPEND ${unfile} "      \"\${CMAKE_COMMAND}\" ARGS \"-E remove \\\"\${file}\\\"\"\n")
file(APPEND ${unfile} "    OUTPUT_VARIABLE rm_out\n")
file(APPEND ${unfile} "      RETURN_VALUE rm_retval\n")
file(APPEND ${unfile} "      )\n")
file(APPEND ${unfile} "    IF(\"\${rm_retval}\" STREQUAL 0\)\n")
file(APPEND ${unfile} "    ELSE(\"\${rm_retval}\" STREQUAL 0\)\n")
file(APPEND ${unfile} "    MESSAGE(FATAL_ERROR \"Problem when removing \\\"\${file}\\\"\")\n")
file(APPEND ${unfile} "    ENDIF(\"\${rm_retval}\" STREQUAL 0)\n")
file(APPEND ${unfile} "  ELSE(EXISTS \"\${file}\")\n")
file(APPEND ${unfile} "    MESSAGE(STATUS \"File \\\"\${file}\\\" does not exist.  \")\n")
file(APPEND ${unfile} "  ENDIF(EXISTS \"\${file}\")\n")
file(APPEND ${unfile} "ENDFOREACH(file)\n")

Generate the program required to support package uninstallation . Be careful , The package installation must be performed （make install） Uninstall from the same path .

CMakeLists.txt

cmake_minimum_required(VERSION 2.6.0)

project(TestInstall)

# Add to module path, so we can find our cmake modules
list( APPEND CMAKE_MODULE_PATH ${CMAKE_CURRENT_SOURCE_DIR}/cmake_modules)

include_directories( ${PROJECT_SOURCE_DIR}/include)

add_library(test_install STATIC src/test_install.cpp) # Change to shared It becomes a dynamic library

#The following will do install
include(install_package)
install_package(# The functions defined in the previous file are used install_package Set the related variables
  PKG_NAME TestInstall
  LIB_NAME test_install
  VERSION 0.2
  DESCRIPTION "installation test"
  INSTALL_INCLUDE_DIR true
  DESTINATION ${CMAKE_INSTALL_PREFIX}
  #INCLUDE_DIRS ${REQUIRED_INCLUDE_DIRS}
  #LINK_LIBS ${REQUIRED_LIBRARIES}
  )

#The following can make `sudo make uninstall` work
include(${CMAKE_MODULE_PATH}/cmake_uninstall.cmake.in)

add_custom_target(uninstall
    COMMAND ${CMAKE_COMMAND} -P ${CMAKE_CURRENT_BINARY_DIR}/cmake_uninstall.cmake)

The first two lines of the document need not be explained , The third line

list( APPEND CMAKE_MODULE_PATH ${CMAKE_CURRENT_SOURCE_DIR}/cmake_modules)

It's for telling CMake In path ${CMAKE_CURRENT_SOURCE_DIR}/cmake_modules We found a pile of unknown documents just now . among ${CMAKE_CURRENT_SOURCE_DIR} Refer to your current CMakeLists The path of .

In the fourth row

include_directories( ${PROJECT_SOURCE_DIR}/include)

Is used to specify the location of the header file . We wrote in the source file #include <test_install.h>, At compile time, the program could not find the file , With the line above , It knows to be in ${PROJECT_SOURCE_DIR}/include Go down the path to find the header file . among ${PROJECT_SOURCE_DIR} Refers to the path of the current project , Here and ${CMAKE_CURRENT_SOURCE_DIR} Point to the same path , But you should have seen that some large libraries have multiple CMakeLists In different folders , We call them the underlying folders , The latter can refer to the location of the underlying folder ( So called CMAKE_CURRENT...). The former always points to the top floor .CMake There are many built-in variables that point to a particular location , You can view it in the following website , No more tables .
Useful Variables · Wiki · CMake / Community · GitLab

The fifth row

add_library(test_install STATIC src/test_install.cpp)

Make the source file we wrote earlier into a file named test_install Library file . Here is a man named STATIC The logo of , This indicates that the library file we created is a static library . If we want to build a dynamic library , It is necessary to use SHARED Instead of STATIC.

The sixth line of command

include(install_package)

Let us CMake Find and use us before cmake_modules Folder install_package.cmake file . So that we can use what we call install_package The order of （ function ）.

install_package(
  PKG_NAME TestInstall
  LIB_NAME test_install
  VERSION 0.2
  DESCRIPTION "installation test"
  INSTALL_INCLUDE_DIR true
  DESTINATION ${CMAKE_INSTALL_PREFIX}
  #INCLUDE_DIRS ${REQUIRED_INCLUDE_DIRS}
  #LINK_LIBS ${REQUIRED_LIBRARIES}
  )

install The first line of the command PKG_NAME TestInstall Specify the name of the library we want to install when calling , In the future, we will use this library in other programs find_package(TestInstall REQUIRED) command .install The second line LIB_NAME test_install. Is the name of the static library we want to output , With this line, we'll be running cmake After installing the program, you get a file called test_install.a The file of .install The third line refers to the version of the current library , I wrote a random one . The fourth line describes the contents of the library .install The fifth row INSTALL_INCLUDE_DIR true It means that we should include All files in the folder are installed in the system folder .install Sixth elements DESTINATION ${CMAKE_INSTALL_PREFIX} Indicates that the location of the library to be installed is ${CMAKE_INSTALL_PREFIX}, So is it CMake Built in path variables , Refer to /usr/local.Install Line 67 is a temporary note , We will use in the second example .

Line 78 names

include(${CMAKE_MODULE_PATH}/cmake_uninstall.cmake.in)
add_custom_target(uninstall
    COMMAND ${CMAKE_COMMAND} -P ${CMAKE_CURRENT_BINARY_DIR}/cmake_uninstall.cmake)

The seventh line indicates that it contains and can be used in cmake_modules Placed cmake_uninstall.cmake.in file , Line 8 no matter what you mean . Maybe everyone is using sudo make install After installing a series of files, you may want to delete them , But you will find that some immature libraries do not have the function of one click deletion , You often need to use it manually in the system folder sudo rm And so on , The above two lines are matched install_package Use , When you want to delete a library, you only need to delete it in build Enter... In the folder sudo make uninstall You can put the install All the files have been deleted . Note here that you must use install_package Installed files uninstall Command to find and delete , If you use your own or other methods to install library files and the like to other locations , This command cannot delete the installed files .

We have said so many times before System folder , What is and where is this system folder ？ Our personal installed Libraries , General header files are in /usr/local/inlcude in , The static library or dynamic library file is in /usr/local/lib in , In short, the system folder here generally refers to /usr/local Under the folder . Now let's take a look at where the above naming will install the program .
cd To build Go to the folder . Use

cmake ..

There is something similar to the following

It probably means that we instal_package.cmake There is a command that may be eliminated in a later version , So there are warnings , There is no problem now , If you have any problems in the future, you can correct them by yourself , I don't care (Em....).
Then use

make
sudo make install

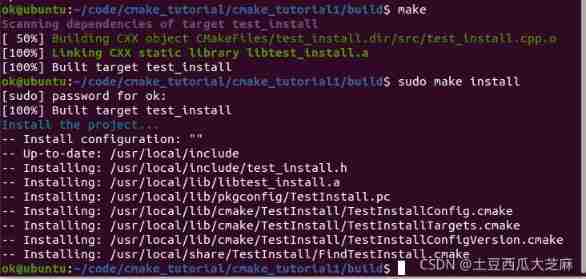

You can see something similar to the following

After performing the installation , Files that are critical to finding the library FindTestInstall.cmake The file is installed in /usr/local/share/TestInstall Folder , With this document , Use find_package Command to find the library . Others cmake File you can go online to see their role . The header file is installed in /usr/local/include below , If there is a domain name , The corresponding directory will be created . Library files and module configuration files are installed in /usr/local/lib/ In the relevant directory .

The result of the above installation , It allows us to use two modes: module mode and configuration mode to find TestInstall This package .

Let's try to uninstall this package , Remember to also be in build Under the directory , Otherwise there is no uninstall Orders .

Used in separate projects find_package() Find installed custom modules

Set up a folder anywhere check_install, Set up one called check_install_1.cpp file ,CMakeLists.txt Document and build Folder , Enter the following to check whether the library is installed .

#include "test_install.h" // The header file in the module was generated earlier

int main(){
    Print check_print;
    check_print.PrintHelloWorld();
}

Create the file in the same location CMakeLists.txt, Input

cmake_minimum_required(VERSION 2.6.0)

project(CheckInstall)

# Add to module path, so we can find our cmake modules
#list( APPEND CMAKE_MODULE_PATH ${CMAKE_CURRENT_SOURCE_DIR}/cmake_modules)

find_package(TestInstall REQUIRED)
#find_package(TestInstall2 REQUIRED)

add_executable(check_install_1 check_install_1.cpp)
target_link_libraries(check_install_1 ${TestInstall_LIBRARIES})

#add_executable(check_install_2 check_install_2.cpp)
#target_link_libraries(check_install_2 ${TestInstall2_LIBRARIES} ${TestInstall_LIBRARIES})

The comments section is what we will use later , Other contents are common library searching TestInstall And link our program to a few lines of code on the library , I believe everyone is familiar with .cd To build Folder usage

cmake ..
make
./check_install_1

You can see the output on the screen hello world 了 . Prove that our library is installed and used normally .

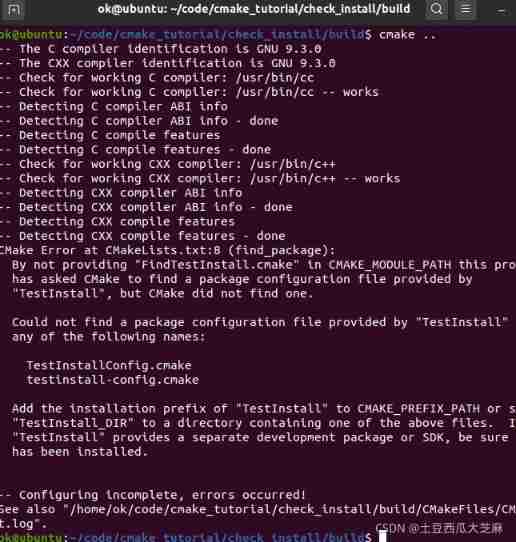

We uninstalled before TestInstall After this bag , We compile as check_install_1,

Found not found TestInstall This package .

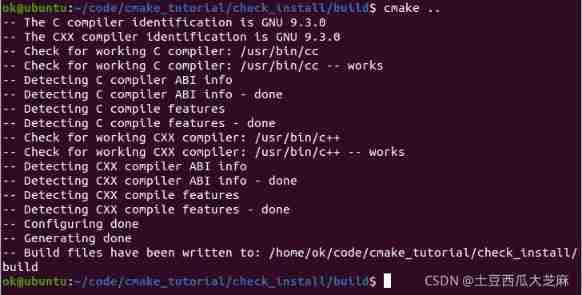

Let's reinstall the custom module TestInstall, Then compile check_install

Here we find that we can find TestInstall This package uses the functions in it .

Custom package links to another custom package

More time , The library we want to install is linked to other libraries . Now CMakeLists The content in is slightly different , Now let's set up a system called cmake_tutorial_2 Folder , There are several C The file uses the library created in our first example and installs . stay cmake_tutorial_2 Created in include, src, cmake_modules, build Folders and CMakeLists.txt.
include Created in test_install_2.h, The contents are as follows

#pragma once
#include <test_install.h>

class Print2{
public:
    Print print;
    void PrintHelloWorldAgain();
};

Indicates that the class of the first library Print Object as a member and added an object called void PrintHelloWorldAgain() Function of . The contents of this function are defined in src Of test_install_2.cpp in , It's just a simple use print Object to call... In the first library PrintHelloWorld function .test_install_2.cpp The contents in are as follows ：

#include <test_install_2.h>

void Print2::PrintHelloWorldAgain(){
   print.PrintHelloWorld();
}

CMakeLists.txt The contents in are as follows

cmake_minimum_required(VERSION 2.6.0)

project(TestInstall2)

# Add to module path, so we can find our cmake modules
list( APPEND CMAKE_MODULE_PATH ${CMAKE_CURRENT_SOURCE_DIR}/cmake_modules)

find_package(TestInstall REQUIRED)

include_directories( ${PROJECT_SOURCE_DIR}/include)
include_directories( ${TestInstall_INCLUDE_DIRS})

add_library(test_install_2 STATIC src/test_install_2.cpp)

set(REQUIRED_INCLUDE_DIRS ${TestInstall_INCLUDE_DIRS})
set(REQUIRED_LIBRARIES ${TestInstall_LIBRARIES})

#The following will do install
include(install_package)
set(ICPCUDA_LIBRARIES icpcuda)
install_package(
  PKG_NAME TestInstall2
  LIB_NAME test_install_2
  VERSION 0.2
  DESCRIPTION "installation test 2"
  INSTALL_INCLUDE_DIR true
  DESTINATION ${CMAKE_INSTALL_PREFIX}
  INCLUDE_DIRS ${REQUIRED_INCLUDE_DIRS}
  LINK_LIBS ${REQUIRED_LIBRARIES}
  )

#The following can make `sudo make uninstall` work
include(${CMAKE_MODULE_PATH}/cmake_uninstall.cmake.in)

add_custom_target(uninstall
    COMMAND ${CMAKE_COMMAND} -P ${CMAKE_CURRENT_BINARY_DIR}/cmake_uninstall.cmake)

Roughly the same as the first library CMakeLists equally , The following differences

find_package(TestInstall REQUIRED)

Find the first library .

include_directories( ${TestInstall_INCLUDE_DIRS})

Find the header file of the first library . next

set(REQUIRED_INCLUDE_DIRS ${TestInstall_INCLUDE_DIRS})
set(REQUIRED_LIBRARIES ${TestInstall_LIBRARIES})

Rename the path of the library header file that library 2 needs to connect to as REQUIRED_INCLUDE_DIRS and REQUIRED_LIBRARIES. This step is not necessary here . But if our library 2 is connected to many libraries A,B,C, We can use

set(REQUIRED_INCLUDE_DIRS ${A_DIRS} ${B_DIRS} ${C_DIRS})
set(REQUIRED_LIBRARIES ${A_LIBRARIES} ${B_LIBRARIES} ${C_LIBRARIES})

Name the header file of the library and the library itself into the same variable . So we are install_package Can be used in

INCLUDE_DIRS ${REQUIRED_INCLUDE_DIRS}
LINK_LIBS ${REQUIRED_LIBRARIES}

We have really connected our new library to the third-party library it uses . At this time we enter build Folder usage cmake .. make sudo make install A series of commands to install this library .

After installation, go back to our previous check_install Folder put it in CMakeLists.txt Notes in

#find_package(TestInstall2 REQUIRED)
...
#add_executable(check_install_2 check_install_2.cpp)
#target_link_libraries(check_install_2 ${TestInstall2_LIBRARIES} ${TestInstall_LIBRARIES})

uncomment , Get into build Folder re make once , Build and run check_install_2 You can see hello_world On the screen again , Prove that we installed and connected successfully . Pay attention here target_link_libraries Not only connected TestInstall2_LIBRARIES, Still connected TestInstall_LIBRARIES Of , Otherwise, there will be errors in compilation .
