HCIP第五次作业

一、配置IP

二、配置R3 R5/R6/R7间的MGRE环境
1、先配置缺省路由
[r3]ip route-static 0.0.0.0 0 14.1.1.1
其他同理
2、配置MGRE
[r3]int Tunnel 0/0/0
[r3-Tunnel0/0/0]ip add 10.1.1.1 24
[r3-Tunnel0/0/0]source g0/0/1
Jul 12 2021 20:18:14-08:00 r3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface Tunnel0/0/0 has entered the UP state.
[r3-Tunnel0/0/0]nhrp entry multicast dynamic
[r3-Tunnel0/0/0]nhrp network-id 100

[r5]int Tunnel 0/0/0
[r5-Tunnel0/0/0]ip add 10.1.1.2 24
[r5-Tunnel0/0/0]tunnel-protocol gre p2mp
[r5-Tunnel0/0/0]source g0/0/0
Jul 12 2021 20:19:46-08:00 r5 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface Tunnel0/0/0 has entered the UP state.
[r5-Tunnel0/0/0]nhrp network-id 100
[r5-Tunnel0/0/0]nhrp entry 10.1.1.1 14.1.1.2 register
其他同理

3、修改所有tunnel口的工作方式为broadcast
[r3-Tunnel0/0/0]ospf network-type broadcast

三、配置OSPF RIP
1、ospf

[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 1
[r1-ospf-1-area-0.0.0.1]network 172.16.1.1 0.0.0.0
[r1-ospf-1-area-0.0.0.1]network 172.16.1.65 0.0.0.0
其他同理
2、rip
[r12]rip 1
[r12-rip-1]v 2
[r12-rip-1]network 172.16.0.0
[r12]ospf 1
[r12-ospf-1]import-route rip
四、使用多进程双向重发布处理不规则区域4
1、 在R9上建立第二个OSPF进程
[r9]ospf 2 router-id 9.9.9.9
[r9-ospf-2]a 4
[r9-ospf-2-area-0.0.0.4]network 172.16.4.65 0.0.0.0
[r9-ospf-2-area-0.0.0.4]net 172.16.4.1 0.0.0.0

[R9]ospf 1
[R9-ospf-1]import-route ospf 2
[R9]ospf 2
[R9-ospf-2]import-route ospf 1

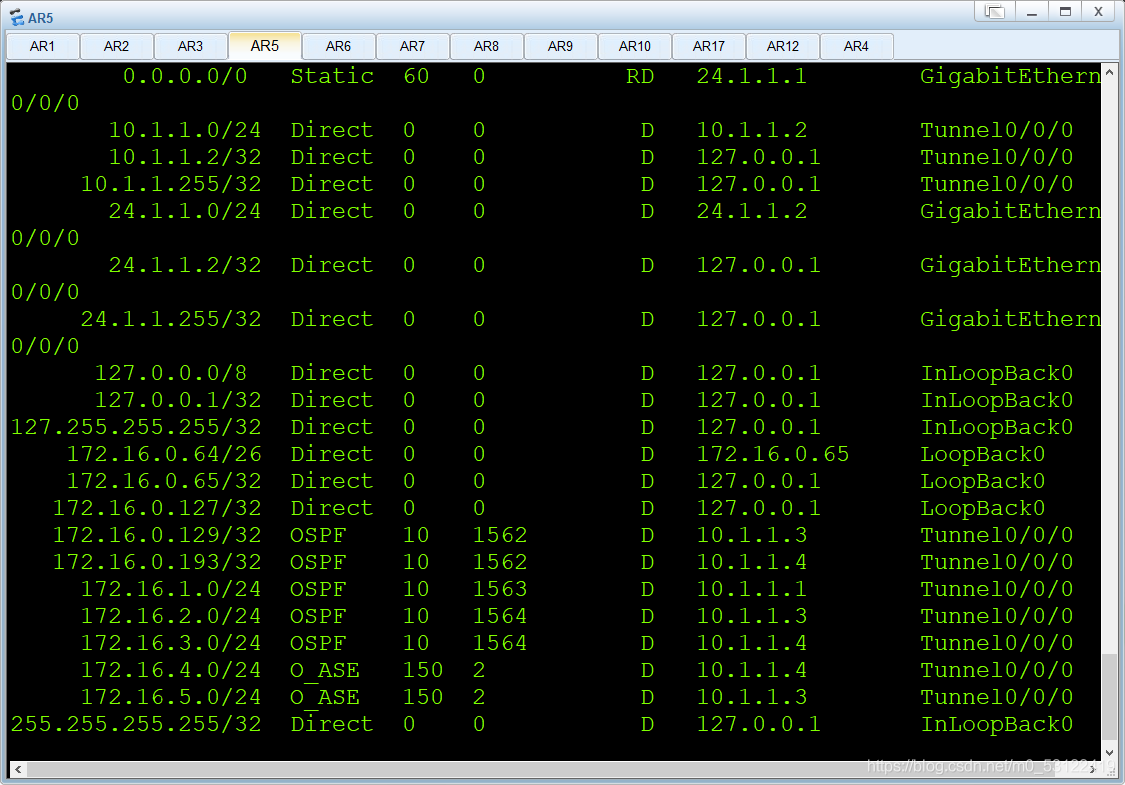

此时的路由表

四、减少LSA更新量
1、汇总
[r3-ospf-1-area-0.0.0.1]abr-summary 172.16.1.0 255.255.255.0
[r6-ospf-1-area-0.0.0.2]abr-summary 172.16.2.0 255.255.255.0
[r7-ospf-1-area-0.0.0.3]abr-summary 172.16.3.0 255.255.255.0
[r9-ospf-1]asbr-summary 172.16.4.0 255.255.255.0
[r12-ospf-1]asbr-summary 172.16.5.0 255.255.255.0

2、特殊区域末梢化
[r1-ospf-1-area-0.0.0.1]stub
[r3-ospf-1-area-0.0.0.1]stub no-summary
[r7-ospf-1-area-0.0.0.3]nssa no-summary

五，给R3,R6,R7做NAT
[r3]acl 2000
[r3-acl-basic-2000]rule permit source 172.16.0.0 0.0.255.255
[r3-acl-basic-2000]int g0/0/1
[r3-GigabitEthernet0/0/1]nat outbound 2000
其他同理
