The king scheme in distributed locks - redisson

2022-06-25 07:10:00 【Wukong chat architecture】

The first part explains how to use Redis There are five ways to implement distributed lock , But we still have a better King's plan , Just use Redisson.

Cache series ：

Cache practice （ One ）：20 chart ｜6 Thousand characters ｜ Cache practice （ Part 1 ）

Cache practice （ Two ）：Redis Distributed lock ｜ Five evolution schemes from bronze to diamond

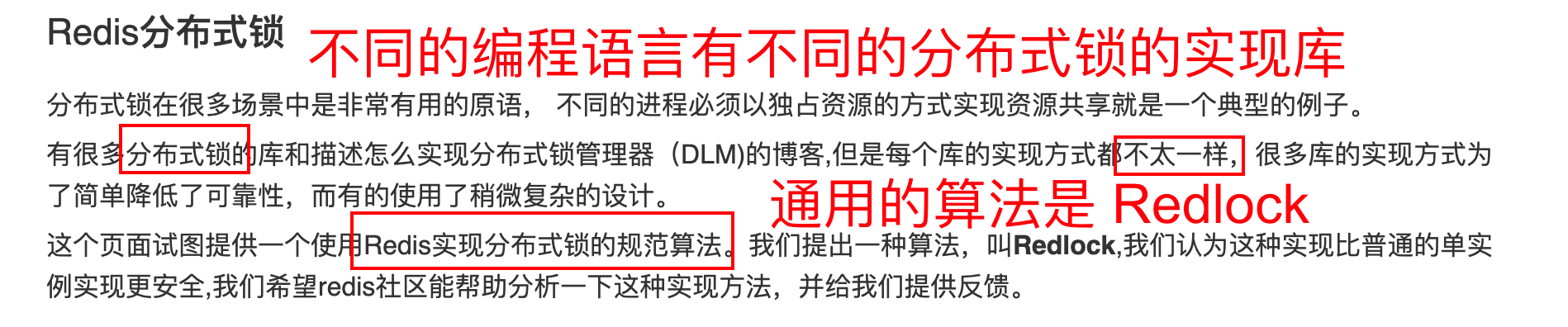

So let's see Redis What does the official website say ,

and Java Version of The framework of distributed locking is Redisson. This article will be based on my open source project PassJava To integrate Redisson.

I put Back end 、 front end 、 Applet All uploaded to the same warehouse , You can go through Github or Code cloud visit . The address is as follows ：

Github: https://github.com/Jackson0714/PassJava-Platform
Code cloud ：https://gitee.com/jayh2018/PassJava-Platform
Tutorial ：www.passjava.cn

Before the actual battle , Let's first look at the use of Redisson Principle .

One 、Redisson What is it? ？

If you were using it before Redis Words , That use Redisson It'll get twice the result with half the effort ,Redisson Provides the use of Redis The simplest and most convenient way .

Redisson The aim is to promote the user's understanding of Redis Separation of concerns （Separation of Concern）, This allows users to focus more on processing business logic .

Redisson It's a Redis On the basis of implementation Java In memory data grid （In-Memory Data Grid）.

Netty frame ：Redisson Based on NIO Of Netty frame , Not only as Redis The underlying driver client , Have the ability to provide for Redis Various configuration forms of Connection function , Yes Redis Commands can be sent synchronously 、 Send asynchronously 、 Send as an asynchronous stream or Send in pipeline form The function of ,LUA Script execution Handle , as well as Processing return results The function of
Infrastructure ： Will be native Redis Hash,List,Set,String,Geo,HyperLogLog The data structure is encapsulated as Java You are most familiar with mapping （Map）, list （List）, Set （Set）, Universal object bucket （Object Bucket）, Geospatial objects bucket （Geospatial Bucket）, Cardinality estimation algorithm （HyperLogLog） Isostructure ,
Distributed data structure ： On this basis, distributed Multivalued mapping （Multimap）, Local cache mapping （LocalCachedMap）, Ordered set （SortedSet）, Scoring sort set （ScoredSortedSet）, Dictionary sort set （LexSortedSet）, Line up （Queue）, Blocking queues （Blocking Queue）, Bounded blocking formation （Bounded Blocking Queue）, deque （Deque）, Blocking two terminal formation （Blocking Deque）, I'm in line （Blocking Fair Queue）, Delayed formation （Delayed Queue）, The bloon filter （Bloom Filter）, The whole length of an atom （AtomicLong）, Atomic double precision floating point number （AtomicDouble）,BitSet etc. Redis A distributed data structure that didn't exist .
Distributed lock ：Redisson It's also achieved Redis It is mentioned in the document that Like distributed locks Lock Such higher-level application scenarios . in fact Redisson It doesn't stop there , On the basis of distributed lock, it also provides interlocking （MultiLock）, Read-write lock （ReadWriteLock）, Fair lock （Fair Lock）, Red lock （RedLock）, Semaphore （Semaphore）, Expiring semaphore （PermitExpirableSemaphore） and atresia （CountDownLatch） These basic components are very important for multithreading and high concurrency applications . It is through the implementation of Redis High order application scheme of , send Redisson Become an important tool for building distributed systems .
node ：Redisson As an independent node, it can be used to independently perform other node publishing to Distributed execution services and Distributed scheduling service The remote mission in .

Two 、 Integrate Redisson

Spring Boot Integrate Redisson There are two options ：

Program configuration .
File mode configuration .

This article describes how to integrate... In a procedural way Redisson.

2.1 introduce Maven rely on

stay passjava-question Micro service pom.xml introduce redisson Of maven rely on .

<!-- https://mvnrepository.com/artifact/org.redisson/redisson --><dependency>    <groupId>org.redisson</groupId>    <artifactId>redisson</artifactId>    <version>3.15.5</version></dependency>

2.2 Custom configuration class

The following code is single node Redis Configuration of .

@Configurationpublic class MyRedissonConfig {    /**     *  Yes  Redisson  It's all used through  RedissonClient  object      * @return     * @throws IOException     */    @Bean(destroyMethod="shutdown") //  After the service is stopped, it is called  shutdown  Method .    public RedissonClient redisson() throws IOException {        // 1. Create a configuration         Config config = new Config();        //  Cluster pattern         // config.useClusterServers().addNodeAddress("127.0.0.1:7004", "127.0.0.1:7001");        // 2. according to  Config  Create  RedissonClient  Example .        config.useSingleServer().setAddress("redis://127.0.0.1:6379");        return Redisson.create(config);    }}

2.3 Test configuration class

Create a new unit test method .

@AutowiredRedissonClient redissonClient;@Testpublic void TestRedisson() {    System.out.println(redissonClient);}

We run this test method , Print out redissonClient

[email protected]77f66138

3、 ... and 、 Distributed reentrant locking

3.1 Re entry lock test

be based on Redis Of Redisson Distributed reentrant locking RLockJava Object implementation java.util.concurrent.locks.Lock Interface . It also provides asynchronous （Async）、 Reflex （Reactive） and RxJava2 standard The interface of .

RLock lock = redisson.getLock("anyLock");//  The most common use method lock.lock();

We use it passjava This open source project tests two points of reentrant locks ：

（1） Multiple threads preempt locks , Does the back lock need to wait ？
（2） If the service of the thread seizing the lock stops , Will the lock be released ？

3.1.1 Verification one ： Is the reentrant lock blocked ？

To verify the above two points , I wrote a demo Program ： The flow of the code is to set up WuKong-lock lock , Then lock it , Print thread ID, wait for 10 Release the lock in seconds , Finally, the response is returned ：“test lock ok”.

@ResponseBody@GetMapping("test-lock")public String TestLock() {    // 1. Get the lock , As long as the name of the lock is the same , The acquired lock is the same lock .    RLock lock = redisson.getLock("WuKong-lock");    // 2. Lock     lock.lock();    try {        System.out.println(" Locking success , Execute subsequent code . Threads  ID：" + Thread.currentThread().getId());        Thread.sleep(10000);    } catch (Exception e) {        //TODO    } finally {        lock.unlock();        // 3. Unlock         System.out.println("Finally, Lock release successful . Threads  ID：" + Thread.currentThread().getId());    }    return "test lock ok";}

Verify the first point first , With two http Request to test the preemptive lock .

Requested URL：

http://localhost:11000/question/v1/redisson/test/test-lock

The thread corresponding to the first thread ID by 86,10 Seconds later , Release the lock . in the meantime , The second thread needs to wait for the lock to be released .

After the first thread releases the lock , The second thread gets the lock ,10 Seconds later , Release the lock .

Draw a flow chart , Help you understand . As shown in the figure below ：

First step ： Threads A stay 0 seconds , Grab the lock ,0.1 Seconds later , Start executing wait 10 s.
The second step ： Threads B stay 0.1 Second attempt to preempt lock , Failed to get lock （ By A Take over ）.
The third step ： Threads A stay 10.1 Seconds later , Release the lock .
Step four ： Threads B stay 10.1 The lock is seized in seconds , And then wait 10 Release the lock in seconds .

So we can draw a conclusion ,Redisson Re entrant lock for （lock） It blocks other threads , Need to wait for other threads to release .

3.1.2 Verification II ： The service stopped , Will the lock be released ？

If the thread A In the process of waiting , The service suddenly stopped , So will the lock be released ？ If not released , It becomes a deadlock , Blocking other threads to acquire locks .

Let's look at threads first A After getting the lock ,Redis The result of the client query , As shown in the figure below ：

WuKong-lock Valuable , And you can see TTL It's getting smaller and smaller , explain WuKong-lock It comes with an expiration date .

Through observation , after 30 Seconds later ,WuKong-lock It's gone . explain Redisson After shutdown , The occupied lock will be released automatically .

So what's the principle ？ Here is a concept , watchdog .

3.2 The watchdog principle

If it's responsible for storing this distributed lock Redisson After the node goes down , And when the lock is in the locked state , This lock will be locked . To avoid this happening ,Redisson There is a monitoring lock inside watchdog , Its function is to Redisson Before the instance is closed , Keep extending the validity of lock .

By default , The timeout for the watchdog to check the lock is 30 Second , You can also modify Config.lockWatchdogTimeout To specify otherwise .

If we don't make it lock Timeout for , Just use 30 Seconds as the default time for the watchdog . As long as the lock is successful , Will start a Timing task ： every other 10 Seconds to reset the expiration time of the lock , The expiration date is 30 second .

As shown in the figure below ：

When the server goes down , Because the lock is valid for 30 second , So in the 30 Automatically unlock in seconds .（30 Seconds is equal to the lock occupancy time before the outage + Time taken by subsequent locks ）.

As shown in the figure below ：

3.3 Set lock expiration time

We can also set the expiration time for the lock , Let it unlock automatically .

As shown below , Set lock 8 Automatically expired in seconds .

lock.lock(8, TimeUnit.SECONDS);

If the business execution time exceeds 8 second , Releasing the lock manually will report an error , As shown in the figure below ：

image-20210521102640573

So if we set the automatic expiration time of the lock , Then the execution time of the business must be less than the automatic expiration time of the lock , Otherwise you will report an error .

Four 、 The king plan

In the last article, I explained five solutions to distributed locking ：《 The evolution from bronze to diamond 》, This article is mainly about how to use Redisson stay Spring Boot Project implementation of distributed lock scheme .

because Redisson Very powerful , The implementation of distributed lock is very simple , So called The king plan .

Schematic diagram is as follows ：

The code is as follows ：

// 1. Set distributed locks RLock lock = redisson.getLock("lock");// 2. Occupancy lock lock.lock();// 3. Executive business ...// 4. Release the lock lock.unlock();

And before Redis Compared with , Concise and many .

5、 ... and 、 Distributed read and write locks

be based on Redis Of Redisson Distributed reentrant read-write locks RReadWriteLock Java Object implementation java.util.concurrent.locks.ReadWriteLock Interface . Read lock and write lock are inherited RLock Interface .

Write lock is a pat lock （ The mutex ）, Read lock is a shared lock .

Read the lock + Read the lock ： It's not locked , Can read concurrently .
Read the lock + Write lock ： The write lock needs to wait for the read lock to release the lock .
Write lock + Write lock ： Mutually exclusive , Need to wait for the other party's lock to release .
Write lock + Read the lock ： The read lock needs to wait for the write lock to release .

The sample code is as follows ：

RReadWriteLock rwlock = redisson.getReadWriteLock("anyRWLock");//  The most common use method rwlock.readLock().lock();//  or rwlock.writeLock().lock();

in addition Redisson It is also provided by means of locking leaseTime To specify the lock time . After this time, the lock is automatically unlocked .

// 10 Automatically unlock after seconds //  Don't need to call unlock Method to manually unlock rwlock.readLock().lock(10, TimeUnit.SECONDS);//  or rwlock.writeLock().lock(10, TimeUnit.SECONDS);//  Try to lock , Waiting for the most 100 second , After the lock 10 Seconds auto unlock boolean res = rwlock.readLock().tryLock(100, 10, TimeUnit.SECONDS);//  or boolean res = rwlock.writeLock().tryLock(100, 10, TimeUnit.SECONDS);...lock.unlock();

6、 ... and 、 Distributed semaphores

be based on Redis Of Redisson Of distributed semaphores （Semaphore）Java object RSemaphore Adopted with java.util.concurrent.Semaphore Similar interface and usage . It also provides asynchronous （Async）、 Reflex （Reactive） and RxJava2 standard The interface of .

About the use of semaphores, you can imagine this scene , There are three parking spaces , When three parking spaces are full , The other cars don't stop . You can compare parking spaces to signals , Now there are three signals , Stop once , Using a signal , When the car leaves, it releases a signal .

We use it Redisson To demonstrate the above parking space scene .

First, define a way to occupy a parking space ：

/***  Parking , Take up parking space *  in total  3  A parking space */@ResponseBody@RequestMapping("park")public String park() throws InterruptedException {  //  Acquisition semaphore （ The parking lot ）  RSemaphore park = redisson.getSemaphore("park");  //  Get a signal （ Parking space ）  park.acquire();  return "OK";}

Another way to get out of a parking space ：

/** *  Release the parking space  *  in total  3  A parking space  */@ResponseBody@RequestMapping("leave")public String leave() throws InterruptedException {    //  Acquisition semaphore （ The parking lot ）    RSemaphore park = redisson.getSemaphore("park");    //  Release a signal （ Parking space ）    park.release();    return "OK";}

For simplicity , I use Redis The client added a key：“park”, The value is equal to 3, The representative semaphore is park, There are three values .

And then use postman send out park Request a parking space .

And then in redis Client view park Value , It was found that it had been changed to 2 了 . Continue to call twice , Find out park Is equal to 0, When called the fourth time , You will find that the request is always in Waiting for the , It means there are not enough parking spaces . If you want to be unobstructed , It can be used tryAcquire or tryAcquireAsync.

Let's call the method of leaving the parking space again ,park The value of becomes 1, Represents the remaining parking space 1 individual .

Be careful ： Release semaphore operation multiple times , The remaining semaphore will continue to increase , Not to 3 Then it was capped .

Other distributed locks ：
