Visual thematic map of American airport go style: ArcGIS Pro version

I did it yesterday ArcMap Version of the American airport go style thematic map , As a result, countless people in the company diss 了 …… Shrimp God ,9012 It's all coming to an end , You're still using ArcMap ah ！ Are you an antique ？ You let the masses use ArcGIS Pro What do your classmates think ？

Shrimp God said ：





So I think it's still necessary to rectify the evil , Write a ArcGIS Pro Version of , Don't talk nonsense , Look at the effect ：

A two-dimensional ：

ArcGIS Pro Strong place , It's that he can make three-dimensional , as follows ：

Then two-dimensional and three-dimensional integration , It's also his strong point ：

So today, let's take a look at , How to be in ArcGIS Pro Make this kind of picture inside , It will actually use ArcMap Classmate , Basically, you can link seamlessly .



First, deal with the data ：

After opening the data , First make a fishing net ：

Parameters of fishing nets , And ArcMap The same as in China , The template selects the Native American region , Choose both width and height 10 Thousands of meters

After the net is finished , choice clip, Cut off the surplus



Select the intersection tool , Generate the intersection of the chessboard ：

Then select the proximity analysis tool , Calculate the real airport location and the nearest intersection ：



After coming out , Use the connection tool , Generate layer connections ：

With intersection ID, With the airport NEAR_FID Make connections ：

When the connection is complete , Select Properties —— Define query tab , Set the display conditions ：

FID is not null

Then you can hide the extra points ：

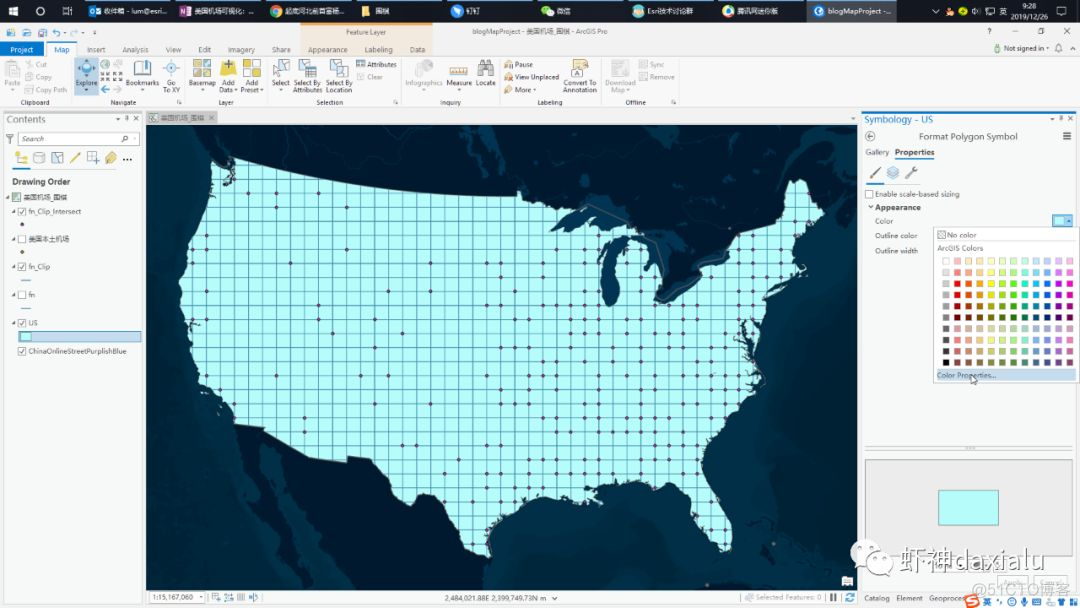

The next step is to set the color of the chessboard and chess pieces ：



In the color setting of chess pieces , First choose a unique value to render ：

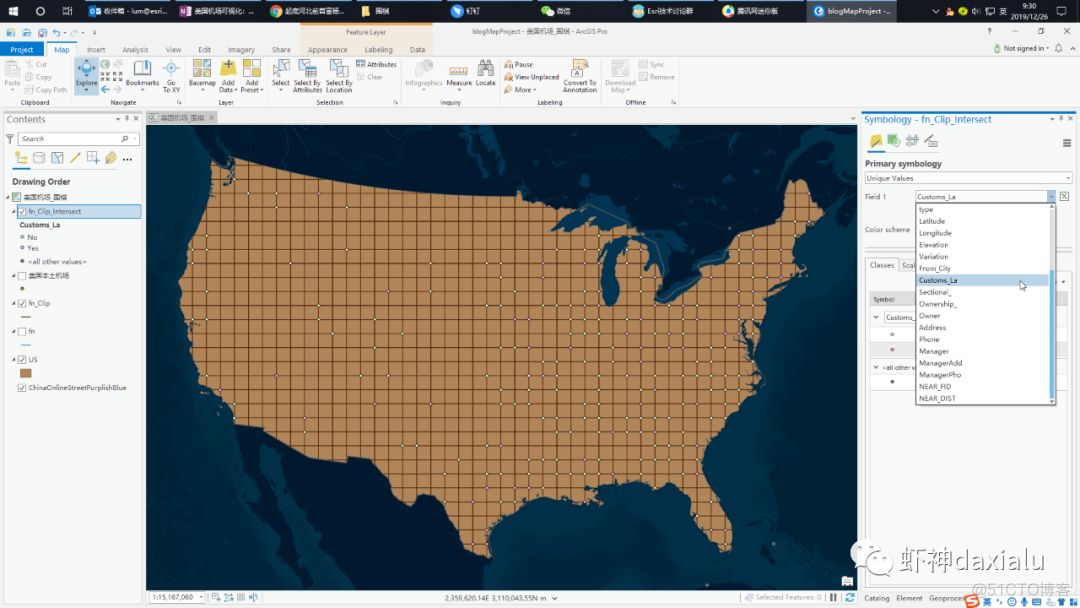

And then choose customs_la Field （ Whether there is a customs entry Office ）：

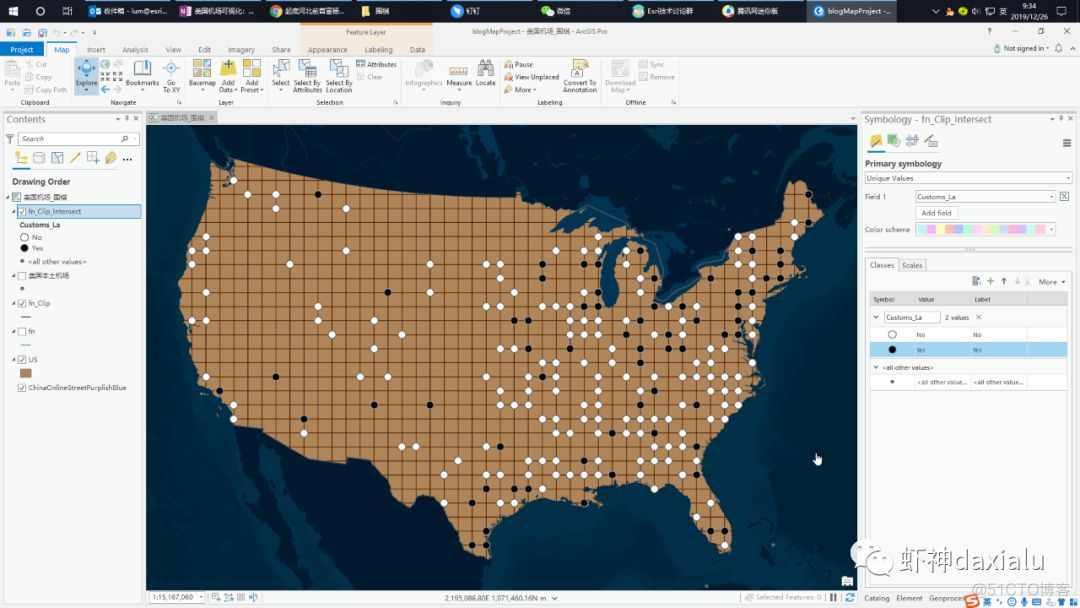

Set the size and color of the pieces ：





Complete set

The two-dimensional part is finished ——



Here is the three-dimensional part ：



First , stay ArcGIS Pro Create a new Global Scene Map This is a three-dimensional map used to show the global view ：



A better habit is to change the name after construction , Otherwise, I won't find it next time ：



For example, I'll call you away “ American airports _ go ”



Then go to the original two-dimensional map , Select the data we process , Copy —— Paste the Scene Go inside the map ：





When pasting , It will automatically put these layers into 2d Layers Inside , From the view , Can see , Our chessboard line is deformed ：



Why does this happen ？ Because of the map projection , Produced deformation （ Students majoring in geography are invited to review the fundamentals of Geodesy ）…… Now let's do a treatment , Deal with this deformation , The plan is to merge the chessboard line and the map of the United States , The processing tool is Elements turn to face ：





After opening the feature face tool , Load the map of the United States and the checkerboard line , Click on the run , Get a divided map of the United States ： This method can also be used to cut face elements ——

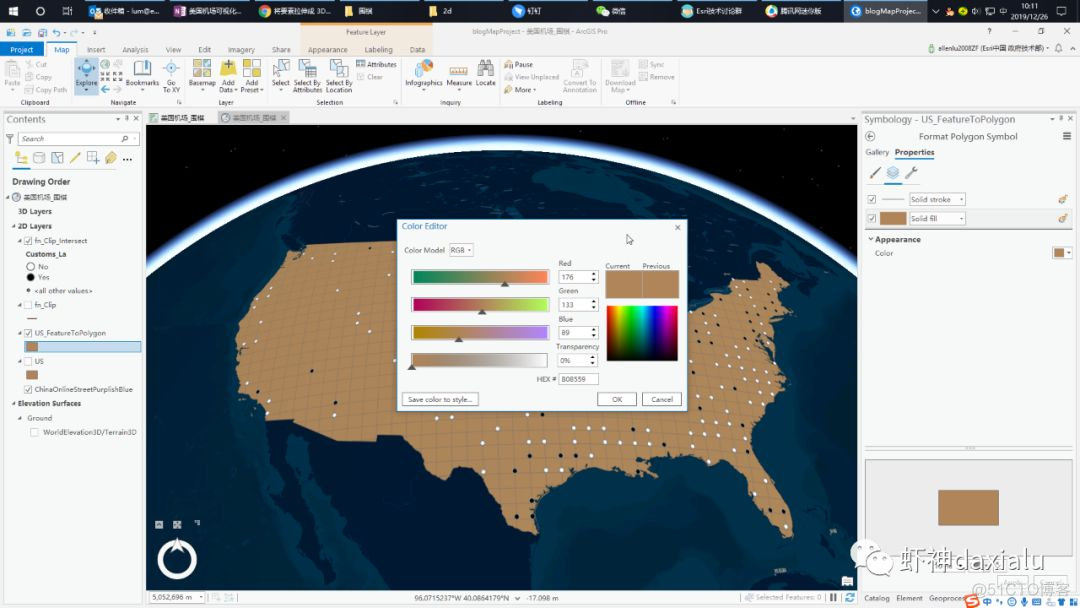

It's the same after that , Configure the color of the chessboard , Be careful , There is only one layer left , So the fill color is the color of the chessboard , The sideline is the color of the route ：





After setting up , We begin to set up chess pieces ： Here, set the chess pieces as three-dimensional , What you need to do is put the layer of the chess pieces , from 2d layers Drag it directly to 3d layers Inside , That's all right. ：





I found that after dragging here , It becomes a ball ：

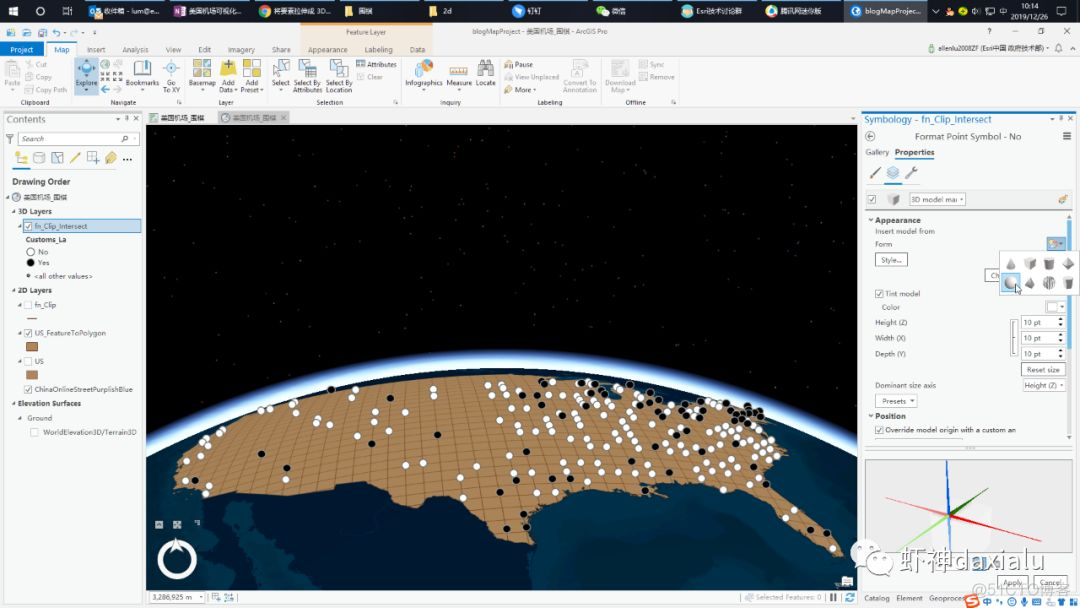

Next, set the effect of chess pieces , Click on the white chess piece , Then in the attribute , choice 3d model masker



Then choose ball ：



stay tint model Inside , Set the shape of the chess piece ： First of all, put xyz The connection line of is cancelled , Otherwise, linkage will be carried out ：

After adjustment xyz Value , Because go pieces are usually flat , So choose xy by 12pt,z by 6pt

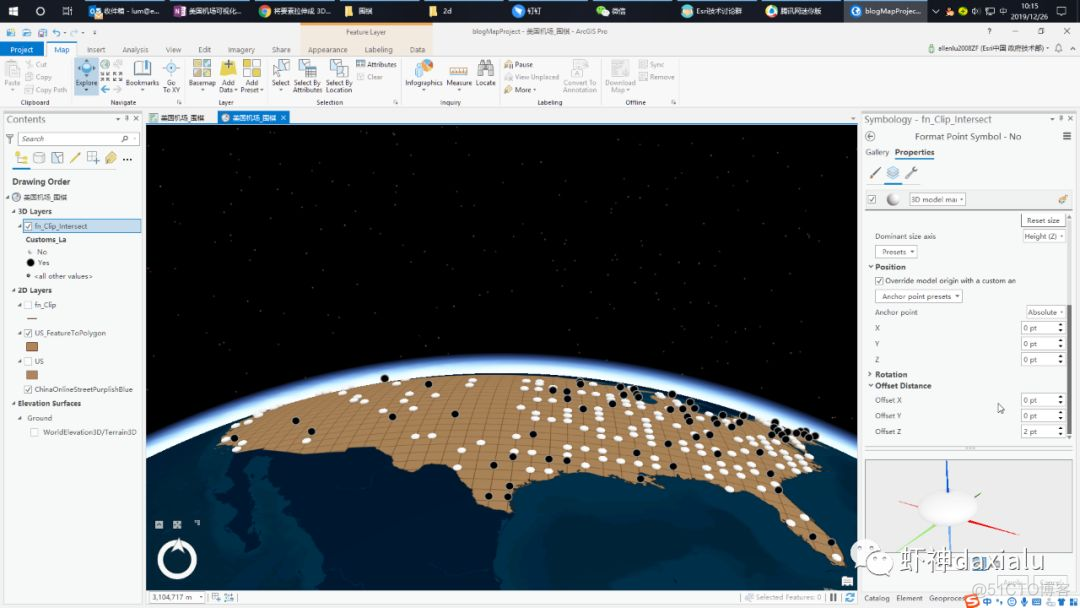

Set the pieces to stick to the chessboard , So set offset distance Medium z by -6 pt



Click application , Baizi is set .



Next, use the same method to set sunspots ：





After all settings are completed , Finish the 3D effect ：



Then you can pose, take photos and send a circle of friends ：



Last words ：ArcGIS Pro It's still very easy to use , You can go through Esri Apply for 21 Days of free trial , If you are a student or teacher in school , You can contact your local Esri The education sales manager of applied for a one-year probation .

Of course , You can also buy ArcGIS Pro Personal version of —— Only a few hundred yuan a year , Relevant sales methods , Please also contact the local Esri Industry sales manager .
