SSM framework learning

spring Two core technologies IoC AOP

Spring It can integrate most of the frameworks on the market

MyBatis

MyBatis-plus

Struts

Struts2

Hibernate

Spring The official website shows Spring Technology included , To this day ,Spring A development ecosystem has been formed ,Spring Several items provided , Each project is used to complete a specific function .

Project learning sequence ：

Spring Framework： As the underlying architecture , Foundation of operation

Spring Boot： Simplify the development , Speed up development

Spring Cloud： Distributed development tools

Spring The history of ：Spring1.0 to Spring5.0

Spring4.0 Architecture diagram

 IoC(Inversion of Control： Inversion of control )

In current code writing , The coupling between the business layer and the data layer is on the high side

Data layer definition class （BookDaoImpl） Inherited from interface （BookDao）, Class defines the method of implementation （save）,  An object of the instantiation class of the business layer （bookdao）, Object call method .

But if the implementation method in the class changes （BookDaoImpl）, At this time, the business layer code needs to be changed , Redeployment is required at this time , compile .

IoC The idea is ： When using objects , By initiative new The generated object is converted to an externally provided object , In this process, the control of the object is transferred from the program to the outside , This idea is called control reversal

Spring Technical right IoC Implemented

IoC,IoC Containers ,Bean,DI(Dependency Injection: Dependency injection )

IoC The goal is to fully decouple

IoC Container and DI Is the means of realization

IoC The effect is ： When using objects, you can not only directly from IoC Get... In the container , And get bean All dependencies have been bound

IoC Introductory cases

1. Import Spring Coordinates of Spring-context, Corresponding version ,pom.xml Import in file dependency



2. establish Spring The configuration file , stay resource Folder

3. obtain IoC Containers , obtain Bean

DI Introductory cases

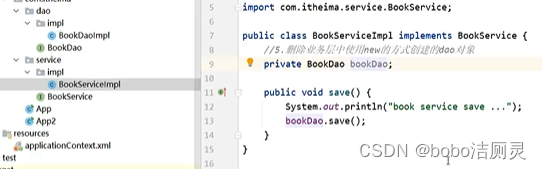

5. Delete the implementation class to use new Method generated object

6. Then there is no object , Use setter Method to create an object

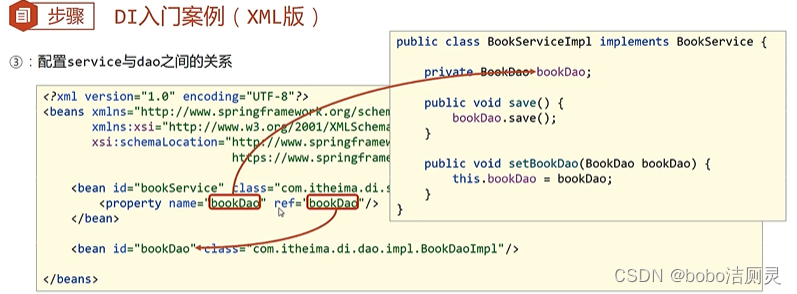

7. Configure in profile Bean The relationship between

name and ref Although the same , But the meaning of the two is different ,name Represents the name of the attribute of the current implementation class , The function is to find bookDao Properties of , And call setter Method for object injection ,ref Represents Bean Of id, The function is to make Spring stay IoC Found in the container id yes bookDao Of bean object , to bookService Inject bookDao object

 Bean Basic configuration

bean Of id Must be unique

bean Of name attribute ： You can use multiple aliases

obtain bean Can pass id,name To get

bean The scope of action of

IoC The default object in the container is singleton , The same bean The created object is the same address , It's the same .

If you want to create a non singleton object , It needs to be modified bean Of scope attribute

scope Property defaults to singleton( Single case )

Set the property to prototype after , One bean The two objects created are two objects .

bean This singleton property of is suitable for objects that need to be reused

bean The instantiation process ( How do containers create objects )

1. Use construction methods to create objects

Spring Reflection is enabled at the bottom , Even if the constructor in the class is private Attribute , You can also access . Note that the constructor must be parameterless , otherwise Spring There will be errors when accessing methods . This method is very common

2. Use static factory instantiation

Factory ： Use factories to create objects , Create a factory class , And define a static method

// Static factory creates objects
public class OrderDaoFactory {
    public static OrderDao getOrderDao(){
        return new OrderDaoImpl();
    }
}

Create an object using a static factory

public class AppForInstanceOrder {
    public static void main(String[] args) {
    // Creating objects through static factories
    OrderDao orderDao = OrderDaoFactory.getOrderDao();
    orderDao.save();
    }
}

stay Spring How to use static factory in

stay Spring Add the following content to the configuration file , If you don't join factory-method, Then only one factory object , Can't produce what we want orderDao object

class: Full name of factory class factory-mehod: The method name of the object created in the concrete factory class

  This method can add other business operations in the factory , These operation methods are more convenient , If it's just ourselves new A new object comes out , Can only new An object , Unable to perform business operations . The static factory method is mainly common in the previous old system operation , At present, you can

Example factory and Spring Manage example factories

Similar to static factory , Create a factory class , But provide a Example method ,

public class UserDaoFactory {
    public UserDao getUserDao(){
    return new UserDaoImpl();
    }
}

Create a running class , Create an instance factory object in the class , Then create an object through the instance factory object

public class AppForInstanceUser {
    public static void main(String[] args) {
    // Create an instance factory object
    UserDaoFactory userDaoFactory = new UserDaoFactory();
    // Create objects from instance factory objects
    UserDao userDao = userDaoFactory.getUserDao();
    userDao.save();
}

How to create classes through the instance factory Spring To implement?

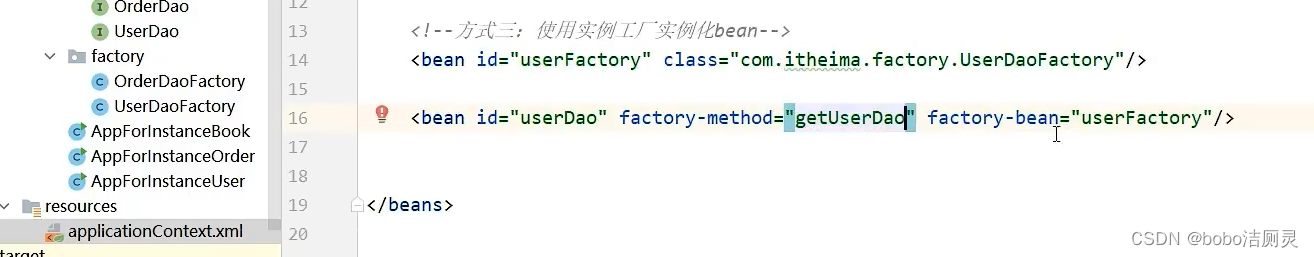

stay Spring Add the following code to the configuration file



  In the run class , Run the following code , From IoC Take out the corresponding bean

public class AppForInstanceUser {
    public static void main(String[] args) {
    ApplicationContext ctx = new
    ClassPathXmlApplicationContext("applicationContext.xml");
    UserDao userDao = (UserDao) ctx.getBean("userDao");    // stay IoC Find id by userDao Of bean, next Spring The management example chemical plant is running
    userDao.save();
    }
}

Spring The management of chemical plants is still troublesome

therefore Spring In order to simplify this configuration, a method called FactoryBean To simplify development

FactoryBean

// Create a class implementation FactoryBean Interface
public class UserDaoFactoryBean implements FactoryBean<UserDao> {
    // Instead of creating objects in the original instance factory
    public UserDao getObject() throws Exception {
    return new UserDaoImpl();
    }
    // Returns the name of the created class Class object
    public Class<?> getObjectType() {
    return UserDao.class;
    }
}

It looks similar to the method of the example factory , But in Spring The difference between the two can be seen in the configuration file , Use FactoryBean The configuration code of the mode is much simpler

FactoryBean There are three methods in the interface

T getObject() throws Exception;    //:getObject(), After being rewritten , Create the object in the method and return
Class<?> getObjectType();    //getObjectType(), After being rewritten , The main return is the... Of the created class Class object

default boolean isSingleton() {
return true;
}
// Not rewritten , Because it has been given the default value , It can be seen from the method name that its function is to set whether the object is a singleton , Default true This is a single example





This method is widely used . Very practical

bean Life cycle of

establish bean after , by bean The control method of adding life cycle is as follows

bean After creating , Want to add content , For example, resources needed for initialization

bean Before destruction , Want to add content , For example, it is used to release the resources used

public class BookDaoImpl implements BookDao {
    public void save() {
        System.out.println("book dao save ...");
    }
    // Express bean Initialize the corresponding operation
    public void init(){
        System.out.println("init...");
    }
    // Express bean Corresponding operations before destruction
    public void destory(){
        System.out.println("destory...");
   }
}

Add a lifecycle to the configuration file

<bean id="bookDao" class="com.itheima.dao.impl.BookDaoImpl" init-method="init"
destroy-method="destory"/>

After running the run file , give the result as follows

  As can be seen from the results ,init Method executed , however destroy Method is not executed , Why is that ?

Spring Of IOC The container is running on JVM in function main After the method ,JVM start-up ,Spring Load the configuration file to generate IOC Containers , Get from the container bean object , Then adjust the method to execute base note. ,main After method execution ,JVM sign out , This is the time IOC In container bean It was over before it could be destroyed So the corresponding... Is not called destroy Method

How can I call destory() Methods?

Provide the following methods

close Closed container

ApplicationContext There is no close Method

Need to put ApplicationContext Replace it with ClassPathXmlApplicationContext

ClassPathXmlApplicationContext ctx = new
ClassPathXmlApplicationContext("applicationContext.xml");

  Call again ctx Of close() Method

ctx.close()

Then run the file ,destory Content in can be run

  Register the hook to close the container

Before the container is closed , Set the callback function in advance , Give Way JVM Call this function back before exiting to close the container

call ctx Of registerShutdownHook() Method



  The two methods have the same effect , Can close the container

Difference ：close() Is to close when calling ,registerShutdownHook() Is in JVM Top note is closed before exiting. .

But add initialization and destruction code to the class , And then Spring Add configuration in , More trouble , therefore Spring Two interfaces are provided in to realize the above operations , You do not need to configure init and destory To configure



stay BookServiceImpl Add two interfaces to the class

public class BookServiceImpl implements BookService,InitializingBean,
        DisposableBean

    // Implementation method of two interfaces
    @Override
    public void destroy() throws Exception {
        System.out.println("Service destory");
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        System.out.println("Service init");
    }

After running ,
