One 、 Abstract factory

Used to generate the specified product family , A product family includes multiple products . for example ：
We are all familiar with computer manufacturing related industries , Yes HP, Logitech , lenovo , Dell , In recent years, Huawei , Xiaomi also came in , Each manufacturer's computer also includes a mouse , keyboard , Screen and other accessories . At this point, we need to use the factory pattern to manage different product families , Use a simple factory （ There is also a method called the factory method ） It has been unable to meet the requirements , You can use an abstract factory at this point .

Class diagram ：

Specific code ：

PcFactory( etc. )

public abstract class PcFactory {

    // Production methods
    public abstract Mouse makeMouse();
    public abstract Keyboard makeKeyboard();

    // For the method of getting specific factory
    private static HpFactory hpFactory = new HpFactory();
    private static LogicFactory logicFactory = new LogicFactory();
    // For the method of getting specific factory
    public final static int PC_TYPE_HP = 1;
    public final static int PC_TYPE_LG = 2;

    /**
     *  The way to get a specific factory
     * @param pcType Pass in a constant that represents the computer type
     * @return  return PcFactory abstract class ： Abstract oriented programming replaces concrete oriented programming
     */
    public static PcFactory getPcFactory(int pcType) {
        switch (pcType){
            case 1:
                return hpFactory;
            case 2 :
                return logicFactory;
            default:
                return null;
        }
    }
}

HPFactory( HP ) factory

public class HpFactory extends PcFactory {

    // Return abstract class ： Abstract oriented programming replaces concrete oriented programming

    @Override
    public Mouse makeMouse() {
        return new HpMouse();
    }

    @Override
    public Keyboard makeKeyboard() {
        return new HpKeyboard();
    }

}

LogicFactory( Logitech ) Sub factory （ Inherited abstract class PcFactory）

public class LogicFactory extends PcFactory {

    @Override
    public Mouse makeMouse() {
        return new LogicMouse();
    }

    @Override
    public Keyboard makeKeyboard() {
        return new LogicKeyboard();
    }
}

  Mouse Abstract Factory Keyboard

public abstract class Keyboard {
    abstract String getInfo();
}

Hpkeyboard(HP Keyboard manufacturing factory )

public class HpKeyboard extends Keyboard {
    @Override
    String getInfo() {
        return "HP keyboard";
    }
}

LogicKeyboard(Logic Keyboard manufacturing factory )

public class LogicKeyboard extends Keyboard {
    @Override
    String getInfo() {
        return "logic keyboard";
    }
}

  Keyboard Abstract Factory Mouse

public abstract class Mouse {
    abstract String getInfo();
}

 HpMouse(HP Mouse manufacturing factory )

public class HpMouse extends Mouse {
    @Override
    String getInfo() {
        return "HP mouse";
    }
}

LogicMouse (Logic Mouse manufacturing factory )

public class LogicMouse extends Mouse {
    @Override
    String getInfo() {
        return "logic mouse";
    }
}

test

public class Main {

    public static void main(String[] args) {
        // By abstraction PcFactory Parent class gets HP Computer manufacturing factory
        PcFactory HpFactory = PcFactory.getPcFactory(PcFactory.PC_TYPE_HP);
        // obtain HP How to make a keyboard
        Keyboard keyboard = HpFactory.makeKeyboard();
        // obtain HP How to make a mouse
        Mouse mouse = HpFactory.makeMouse();
        System.out.println(keyboard.getInfo());
        System.out.println(mouse.getInfo());
    }

}

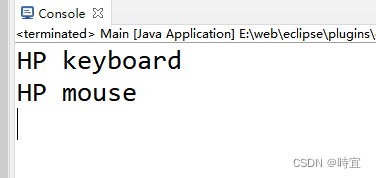

The effect is as follows ：



Two 、 The chain of responsibility model

2.1 Concept

The responsibility chain pattern is the behavior pattern of an object , Many objects form a chain , Processing requests are passed along this chain , Until an object in the chain of responsibility decides to process the request （ It can also be extended to handle several objects ）, This process is transparent to users , That is, the user does not need to know which object in the responsibility chain handles the request , It is up to the objects in the chain to decide whether to process the request .

In order to make it easy to understand, we can imagine the game of beating drums and passing flowers .

2.2 Use scenarios

web The filter in the container is a classic scenario of the responsibility chain pattern . Another example ： When submitting content on the Forum , The forum system needs to process some keywords , See if there are any sensitive words , We can use the responsibility chain model to deal with these sensitive words .

2.3 Class diagram

Filter Interface

/**
 * Filter Interface , It's actually an abstraction of change
 *  This method will run one by one Filter, But not
 *  Specify whether to continue with the following Filter.
 *  such as ： When a special symbol is found to be illegal Filter when
 *  There is no need to execute the following filter chain
 */
public interface Filter {

    void doFilter(Message message);

}

CheckSyntaxFiler（ Check the grammatical structure ）

Checking the grammar cannot result in ”<>” If there is a “#” Replace

public class ChackSyntaxFilter implements Filter {

    @Override
    public void doFilter(Message message) {
        String content = message.getContent();
        content = content.replace("<", "#");
        content = content.replace(">", "#");
        message.setContent(content);
    }

}

WordFilter（ Filter sensitive words ）

If sensitive words appear, use ”***” Replace

public class WordFilter implements Filter {

    @Override
    public void doFilter(Message message) {
        String content = message.getContent();
        content = content.replace(" Hee hee ", "***");
        content = content.replace("hha", "***");
        message.setContent(content);
    }

}
​

FilterChain（ Filter chain ）

/**
 *  take Filter Organized into a chain
 */
public class FilterChain {

    private FilterChain(){}

    private static List<Filter> filters = new ArrayList<>();

    private static FilterChain instance = new FilterChain();

    public static FilterChain getInstance(){
        return instance;
    }

    public FilterChain add(Filter filter) {
        filters.add(filter);
        return this;
    }

    public Message dofilters(final Message message) {
        for (Filter f : filters) {
            f.doFilter(message);
        }
        return message;
    }

}

Message（demo）

package com.zking.patterndemo;

public class Message {

    private String content;

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    @Override
    public String toString() {
        return "Message{" +
                "content='" + content + '\'' +
                '}';
    }
}

test

public class Main {

    public static void main(String[] args) {
        Message msg = new Message();
        msg.setContent("hello, <abc>, hhaxx Hee hee ,  Ha ha ha ");

        FilterChain fc = FilterChain.getInstance();
        fc.add(new ChackSyntaxFilter())
                .add(new WordFilter())
                .dofilters(msg);

        System.out.println(msg.getContent());
    }

}

The effect is as follows ：

3、 ... and 、 Observer mode （Obsever）

3.1 Concept

The observer pattern is the behavior pattern of an object , Sometimes it's also called “ Release / A subscription model ” perhaps “ Monitor mode ”.

The observer pattern defines a little more than a relationship between the observer and the observed , Let multiple observer objects respond to one observed object .

3.2 Use scenarios

Classic usage scenarios , such as ：java Medium swing Handling of events in the package . Browser to mouse , Handling of keyboard and other events , spring The event publishing mechanism in also uses this pattern .

3.3 Class diagram

Specific code ：

Observer（ Observer interface ）

public interface Observer {
    void bell(BellEvent event);
}

Nurse（ The nurse ）

public class Nurse implements Observer {
    @Override
    public void bell(BellEvent event) {
        System.out.println("I am nurse, Can I help you?");
    }
}

Docter（ Doctor ）

public class Docter implements Observer {
    @Override
    public void bell(BellEvent event) {
        System.out.println("I am docter, Can I help you?");
    }
}

Wife（ Wife ）

public class Wife implements Observer {
    @Override
    public void bell(BellEvent event) {
        System.out.println("baby, I am here, Don't worry !");
    }
}

Event（ Total events ）

public abstract class Event {

    protected Object source;

    public Object getSource() {
        return this.source;
    }

}

BellEvent（ Event implementation class ）

public class BellEvent extends Event {

    long timestamp;

    public BellEvent(Object source) {
        this.timestamp = System.currentTimeMillis();
        this.source = source;
    }

}

Patient（ In patients with ）

public class Patient {

    private List<Observer> observers = new ArrayList<>();

    public void addObserver(Observer observer) {
        observers.add(observer);
    }

    public void ringBell() {
        BellEvent event = new BellEvent(this);
        for (Observer observer: observers) {
            observer.bell(event);
        }
    }

}

test

public class Main {

    public static void main(String[] args) {

        Patient patient = new Patient();

        patient.addObserver(new Docter());
        patient.addObserver(new Nurse());
        patient.addObserver(new Wife());

        patient.ringBell();

    }
}

The effect is as follows ：

  Summary

The observer model is widely used , such as ：Listener,Hook,Callback wait , In fact, it is an application of the observer , The names are different , The ideas are basically the same .
