Production environment tidb cluster capacity reduction tikv operation steps

---

Preface

Recently, I made a cluster TiKV Node shrink operation , I was full of confidence before I started , After all, I just came into contact with TiDB When , This volume reduction operation can be done many times , I thought it was an easy job , But in practice , I still met many points that I didn't notice when I was a beginner .

for instance tikv Of Tombstone state 、 modify PD Parameters 、 stay PD Delete in Tombstone State of TiKV node etc. , When writing operation documents, I encountered all kinds of stumbling , Please consult the elder 、 Check the official website step by step . Fortunately, everything went well in the actual operation . The volume will be reduced here TiKV Share the operation steps of , For beginners like me and students who have not done similar operations . I also hope that if I am lucky enough to be seen by any big guy , Work hard to help me find out and fill in the vacancy ！

---

Architecture and background

Cluster architecture ：

Cluster architecture before shrink ：9TiDB server + 3PD server + 14TiKV server

Expected cluster architecture after capacity reduction ： 9TiDB server + 3PD server + 10TiKV server

Demand background ：

Due to the shortage of production environment and resources , After evaluation, the amount of data in the cluster is not very large , You can shrink a few TiKV Nodes are temporarily misappropriated , The amount of data to be clustered increases to a certain extent , And then TiKV Expand the capacity .

It took about... To complete the whole volume reduction step 6 Hour or so , Before learning TiDB When , Make a reduction TiKV The operation of , Maybe less than an hour . The reason why it took so long , Mainly waiting for the cluster balance.

balance This step , Mainly TiKV After the node shrink command is executed , The data in these nodes will be dispatched to other nodes , If there's a lot of data , Just wait a little longer （ When I was doing it , The amount of data in the cluster is 7T about ,balance The phase takes about five hours ）.

Next, let me talk about the specific process of volume reduction , There are a few caveats , Or a point that you won't pay attention to when doing experiments , I put it at the end of the article .

---

The specific process of volume reduction

1、 View existing cluster nodes and their status ：

su - tidb

tiup cluster display tidb-test

2、 Confirm the node instance to be reduced ：

Confirm that the node to be reduced is 10.3.65.141:20161

3、 Check key indicators

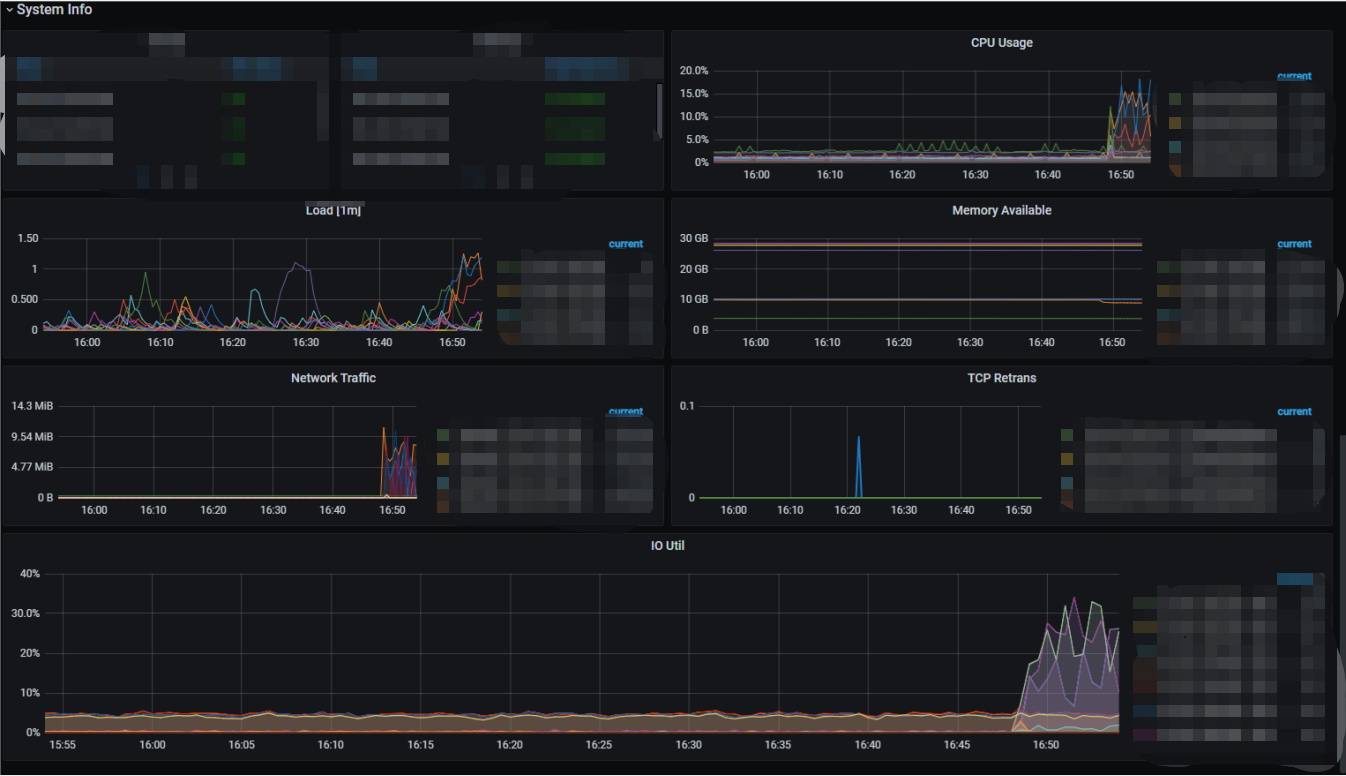

Before volume reduction , Sign in grafana Monitoring interface , Check check cluster region health、region leader Distribution situation , disk io、 Memory 、cpu And whether the cluster load and other key indicators are normal .

（ Because the nodes that need to be shrunk are the ones I just tested for cluster expansion , So the monitoring curve is slightly higher , No effect on shrinkage , Let's ignore . If you are operating in a production environment , It is necessary to find out the reasons for the increase of various indicators , Confirm that the treatment is completed and restored to normal or has no impact on the volume reduction before operation ）

4、 modify PD Parameters , To speed up the balance speed of progress

/tidb-data1/pd/tidb-deploy/pd-2379/bin/pd-ctl -i -u http://127.0.0.1:2379

· View parameters

» config show » store limit（ Keep a copy of the original cluster parameter settings , Modify if there is a problem, you can quickly modify the original parameters ）

· Modify the parameters

» config set max-pending-peer-count 256（ Control individual store Of pending peer ceiling , Prevent a large number of backward logs on some nodes Region. Need to speed up making up copies or balance The speed can be increased appropriately , Set to 0 It means no limit .）

» config set replica-schedule-limit 512 （ It can be controlled to perform at the same time replica Number of tasks scheduled . This configuration mainly controls the speed of scheduling when a node hangs up or goes offline , The higher the value, the faster the schedule , Set to 0 Turn off scheduling .Replica The cost of scheduling is high , It is generally not recommended to set this value too large , But this is a test cluster , Set the value higher to speed up .）

» store limit all 800 add-peer（ Set all store add to peer The upper speed limit of is per minute 800 individual ）

» store limit all 20000 remove-peer（ Set all store Delete peer The upper speed limit of is per minute 20000 individual ）

· If there is a problem , Rollback the original parameter

5、 Start to shrink ：

Use screen Tool execution , Because the shrink volume process command may be executed for a long time , Prevent accidental link disconnection , Command execution failed ：

screen -S test

tiup cluster scale-in tidb-test -N 10.3.65.141:20161

During command execution , Pay attention to cluster monitoring , Check leader And region Whether to smoothly migrate out of the reduced volume tkv example ,region health、leader region Distribution state , disk io Using a state , Memory usage .

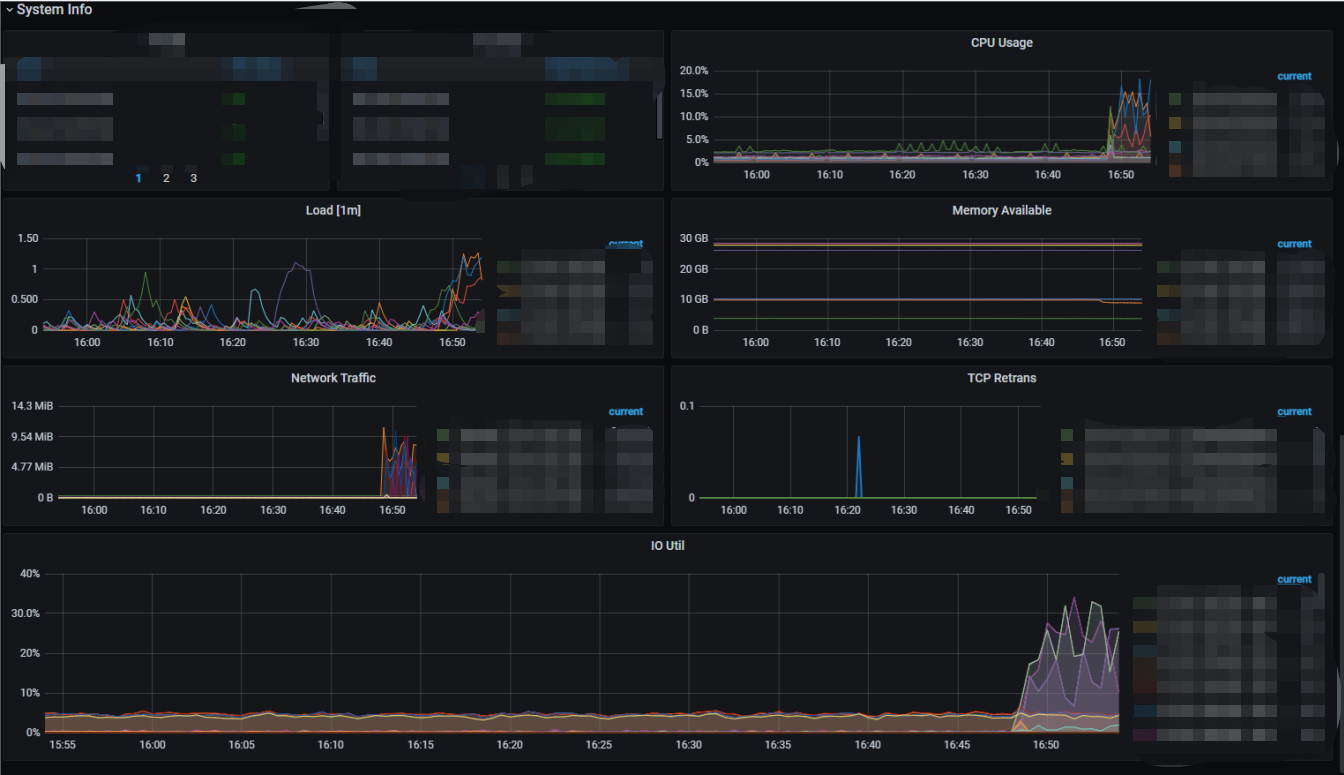

Various monitoring indicators of the cluster before capacity reduction ：

All monitoring indicators of the cluster after the shrink command is executed ：

As can be seen from the monitoring chart , The cluster has started to migrate replicas , More data , The longer it takes to migrate copies . During copy migration , We need to pay attention to the key indicators of the cluster , Handle problems in time .

6、 After node capacity reduction , Check cluster status ：

tiup cluster display tidb-test

Confirm that the status of the reduced node is Tombstone, Log in at the same time grafana Monitoring interface , Get into overview–>TiKV panel , see leader And region Distribution situation , Confirm that the migration replica scheduling is complete .

confirm balance complete , Start executing the cleanup command

tiup cluster prune tidb-test

tiup cluster display tidb-test

So far, the cluster has been shrunk , The shrunk cluster meets the expectation , But it still needs to enter pd Delete tombstone Components , otherwise grafana Monitoring also records tombstone kv.

Check if there is tombstone Components ：

./pd-ctl store --state Tombstone

./pd-ctl store remove-tombstone

./pd-ctl store --state Tombstone

Clean up complete ：

Sign in grafana Monitor dashboard , Check whether the health indicators of the cluster are normal , Whether the number of nodes meets the expectation .

The cluster component status is normal , The number of nodes meets the expectation .

The final will be PD Adjust the parameters back to the original cluster parameters .

# take PD Adjust the parameters back to the original parameters

/tidb-data/pd/tidb-deploy/pd-2379/bin/pd-ctl -i -u http://127.0.0.1::2379

» config set max-pending-peer-count 16

» config set replica-schedule-limit 64

» store limit all 15 add-peer

» store limit all 15 remove-peer

# Inspection parameters

» config show » store limit

Confirm that the cluster parameters have been modified to the status before resizing . thus ,TiKV The node has been shrunk .

---

matters needing attention

At the end of my summary , It is important to find some operating steps , Or when a beginner like me is doing experiments , A few points that are easy to miss ：

1、 About parameters

Before volume reduction begins , If the data volume of the cluster is large , You can adjust some PD Parameters , To speed up the progress of migrating replicas . The specific parameters vary from person to person , You can go Official documents Look for . The parameters I adjusted , It can also be used for reference , But before adjusting the parameters , You must keep a copy of the original parameter value , In case of any problem in parameter adjustment , Back in time .

2、 About clustering

You need to wait for the cluster to migrate the replica , This step is easy to miss , Because the cluster we use to do experiments , There may not be much data , This step takes a very short time , Don't wait deliberately , Or while doing it , Would not have thought of this step .

3、 About the State

After volume reduction , Need to be in PD The deletion status is Tombstone The node of , otherwise grafana Monitoring also records tombstone kv, In this step, when we are doing the experiment , And I will not pay special attention to it .

thus , I have finished this volume reduction operation , In the middle, I added some understanding when I did it , If you have anything to add , Or I found that I had written something wrong , Welcome to add ~
