SSM integration
2022-07-24 05:21:00 【x0757】
Catalog
1 ssm The principle of integration
2 Create a MAVEN-web engineering
4. To write spring The configuration file
6. generator The generated code

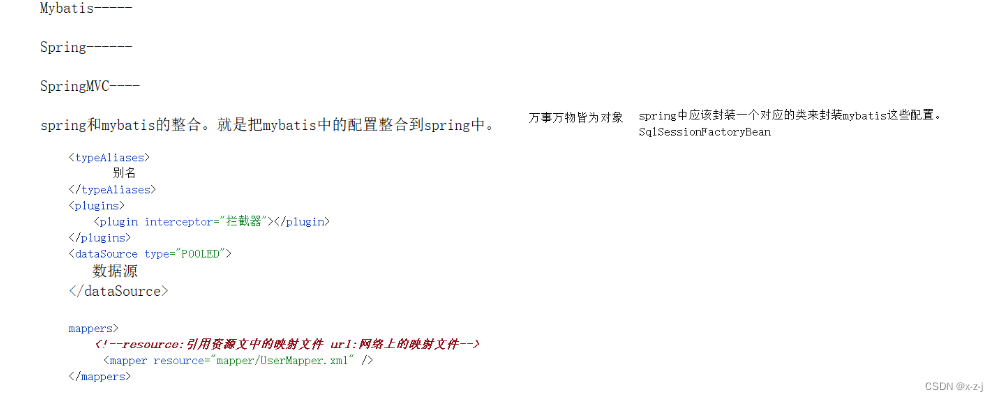

1 ssm The principle of integration
2 Create a MAVEN-web engineering
And replace web.xml file
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
</web-app>
3. Add dependency
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.xzj</groupId>
<artifactId>mySSM01</artifactId>
<version>1.0-SNAPSHOT</version>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>6</source>
<target>6</target>
</configuration>
</plugin>
</plugins>
</build>
<packaging>war</packaging>
<dependencies>
<!--spring-webmvc-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.2.15.RELEASE</version>
</dependency>
<!--mybatis rely on -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.6</version>
</dependency>
<!--mybatis and spring Integration dependency -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
<!--mysql drive -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.28</version>
</dependency>
<!--druid Connection pool dependency -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.2.1</version>
</dependency>
<!--lombok rely on -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.24</version>
</dependency>
<!--jackson java Object to json object @ResponseBody-->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.13.2.2</version>
</dependency>
<!--servlet-api rely on -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>4.0.1</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.2.15.RELEASE</version>
</dependency>
<!--generator-->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.4.0</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>1.7.30</version>
</dependency>
</dependencies>
</project>
4. To write spring The configuration file
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!-- Package scanning -->
<context:component-scan base-package="com.xzj"/>
<!-- Opening of special notes -->
<mvc:annotation-driven/>
<!-- Static resource release -->
<mvc:default-servlet-handler/>
<!-- Interceptor -->
<mvc:interceptors>
<mvc:interceptor>
<mvc:mapping path="/**"/>
<mvc:exclude-mapping path="/login"/>
<mvc:exclude-mapping path="/login/findAll"/>
<mvc:exclude-mapping path="/js/**"/>
<mvc:exclude-mapping path="/css/**"/>
<mvc:exclude-mapping path="/imgs/**"/>
<bean class="com.xzj.interceptor.MyInterceptor"/>
</mvc:interceptor>
</mvc:interceptors>
<!-- Data source configuration -->
<bean id="ds" class="com.alibaba.druid.pool.DruidDataSource">
<!-- Driver name -->
<property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis?serverTimezone=Asia/Shanghai"/>
<property name="username" value="root"/>
<property name="password" value="pAssW0rd"/>
<!-- Number of initialized connection pools -->
<property name="initialSize" value="5"/>
<!-- At least the number -->
<property name="minIdle" value="5"/>
<!-- Maximum number -->
<property name="maxActive" value="10"/>
<!-- The maximum waiting time unit is milliseconds -->
<property name="maxWait" value="3000"/>
</bean>
<!--sqlSessionFactory Integrate mybaits-->
<bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="ds"/>
<!-- Set up mybatis Path to map file -->
<property name="mapperLocations" value="classpath:mapper/*.xml"/>
</bean>
<!-- by dao Interface to generate proxy implementation classes -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- by com.xzj.dao The interface under the package generates a proxy implementation class -->
<property name="basePackage" value="com.xzj.dao"/>
</bean>
</beans>Interceptors use
package com.xzj.interceptor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.xzj.util.CommonResult;
import org.springframework.web.servlet.HandlerInterceptor;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.io.PrintWriter;
public class MyInterceptor implements HandlerInterceptor {
public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
response.setContentType("session/json;charset=utf-8");
HttpSession session = request.getSession();
Object user = session.getAttribute("user");
if(user!=null){
return true;
}
PrintWriter writer = response.getWriter();
CommonResult result = new CommonResult(5001," Please log in first ",null);
ObjectMapper objectMapper = new ObjectMapper();
String json = objectMapper.writeValueAsString(result);
writer.print(json);
writer.flush();
writer.close();
return false;
}
}
5. To configure web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- load springmvc To configure -->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
To configure tomcat And start the
The lack of : <dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.2.15.RELEASE</version>
</dependency>
If you start tomcat Problems occur when , So it could be spring Error in configuration file .
6. generator The generated code
(1) rely on
<!--generator-->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.4.0</version>
</dependency>
(2) The configuration file
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!-- Find you. mysql drive jar The location of -->
<classPathEntry location="E:\Maven\repMaven\mysql\mysql-connector-java\8.0.28\mysql-connector-java-8.0.28.jar"/>
<context id="DB2Tables" targetRuntime="MyBatis3">
<!-- Eliminate comments -->
<commentGenerator>
<property name="suppressAllComments" value="true"/>
</commentGenerator>
<!-- Configuration information of data source -->
<jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
connectionURL="jdbc:mysql://localhost:3306/mybatis?serverTimezone=Asia/Shanghai"
userId="root"
password="pAssW0rd">
</jdbcConnection>
<javaTypeResolver>
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!--java Configuration of entity class -->
<javaModelGenerator targetPackage="com.xzj.entity" targetProject=".\src\main\java">
<property name="enableSubPackages" value="true"/>
<property name="trimStrings" value="true"/>
</javaModelGenerator>
<!-- Mapping file configuration -->
<sqlMapGenerator targetPackage="mapper" targetProject=".\src\main\resources">
<property name="enableSubPackages" value="true"/>
</sqlMapGenerator>
<!--dao Configuration of data access layer -->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.xzj.dao" targetProject=".\src\main\java">
<property name="enableSubPackages" value="true"/>
</javaClientGenerator>
<!-- Mapping relationship between database tables and entities
schema: Database name
tableName: Table name
domainObjectName: Entity class name
enableUpdateByExample: Whether to generate complex modification operations
-->
<table schema="mybatis" tableName="tb_user01" domainObjectName="User" enableCountByExample="false"
enableDeleteByExample="false" enableSelectByExample="false" enableUpdateByExample="false">
</table>
<table schema="mybatis" tableName="student01" domainObjectName="Student" enableCountByExample="false"
enableDeleteByExample="false" enableSelectByExample="false" enableUpdateByExample="false">
</table>
</context>
</generatorConfiguration>(3) test
public class TestGeneratory {
public static void main(String[] args) throws Exception {
List<String> warnings = new ArrayList<String>();
boolean overwrite = true;
File configFile = new File("generator.xml");
ConfigurationParser cp = new ConfigurationParser(warnings);
Configuration config = cp.parseConfiguration(configFile);
DefaultShellCallback callback = new DefaultShellCallback(overwrite);
MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
myBatisGenerator.generate(null);
}
}
7. add to sql journal
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
log4j.properties
log4j.rootLogger=DEBUG, Console
#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG边栏推荐
- 线程
- Ren Xudong, chief open source liaison officer of Huawei: deeply cultivate basic software open source and jointly build the root technology of the digital world
- Read the summary of "machine learning - Zhou Zhihua"
- Heavy! The 2022 China open source development blue book was officially released
- NFS shared services
- [Basic 6] - encapsulation and inheritance of classes, objects and classes
- PPPoE gateway simulation environment setup
- Scikit learn -- steps of machine learning application development
- Basic knowledge of MySQL database
- ZY: modify host name
猜你喜欢
The world's first large aerospace model came out. Wenxin's second supplement "Fuchun Mountain Residence map" is Baidu Pratt Whitney AI's perseverance
Context encoders: feature learning by painting paper notes
Mrs +apache Zeppelin makes data analysis more convenient
Image painting for irregular holes using partial revolutions paper notes
Ia notes 2
Use of fiddler packet capturing tool
frp内网穿透服务使用
1、基于增量式生成遮挡与对抗抑制的行人再识别
JSP+Dao整合
手写orm框架
随机推荐
Support complex T4 file systems such as model group monitoring and real-time alarm. e
What are the core strengths of a knowledge base that supports customers quickly?
MySQL深入了解
Pointer learning diary (V) classic abstract data types and standard function libraries
jdbc的增删改查
C＃表格数据去重
)的低字节来反馈给应用层或者成多种格式文档：
线程
求网络的flops
JMeter upload and download files
finally和return的执行顺序
SSM整合
C primer plus learning notes - 6. Arrays and pointers
[deep learning] (III) image classification
Relational database 10 minutes to understand MySQL
Crazy God redis notes 09
Globally and locally consistent image completion paper notes
【sklearn】tree.DecisionTreeClassifier
Learning pyramid context encoder network for high quality image painting paper notes
Token of space renewable energy
