Arrived Verilog The vector part of grammar , This part is still relatively simple , So just give the title 、 Code and simulation results , I won't repeat anything else .

Vectors

Vector0

Build one with one 3 Bit input circuit , Then output the same vector , And split it into three separate 1 An output . Connect the output to the position of the input vector 0、 Location 1 etc. . In the chart , A scale line with a number next to it indicates a vector （ or “ Bus ”） Width , Instead of drawing a separate line for each bit in the vector .

module top_module (
    input wire [2:0] vec,
    output wire [2:0] outv,
    output wire o2,
    output wire o1,
    output wire o0  ); // Module body starts after module declaration

assign outv = vec;
assign o2 = vec[2];
assign o1 = vec[1];
assign o0 = vec[0];

endmodule

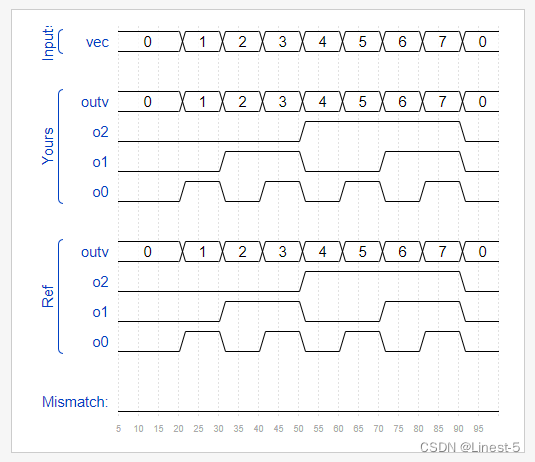

Simulation waveform

Vector1

Vectorial Byte order （ Or informally called “ Direction ”） The index that is the least significant bit is lower （ Small end of the sequence , for example [3：0]） Or a higher index （ big-endian , for example [0：3]）. stay Verilog in , Once a vector is declared in a specific byte order , You must always use it in the same way . for example , It is illegal to write in a statement . It is a good practice to be consistent with the byte order , Because if vectors with different byte order are allocated or used together , Strange mistakes will occur .

Build a combinational circuit , Half a word will be entered （16 position ,[15：0]） Split into lower [7：0] And higher [15：8] byte

module top_module(
    input wire [15:0] in,
    output wire [7:0] out_hi,
    output wire [7:0] out_lo );

assign out_hi = in[15:8];
assign out_lo = in[7:0];

endmodule

Simulation waveform

Vector2

32 Bit vectors can be considered to contain 4 Bytes （ position [31：24]、[23：16] etc. ）. Construct a circuit , The The circuit will reverse 4 Byte order of a byte word .

AaaaaaaaBbbbbbbbCcccccccDddddddd => DdddddddCcccccccBbbbbbbbAaaaaaaa

When the byte order of a piece of data needs to be exchanged , For example, at the small end x86 Systems and many Internet Between the big end formats used in the protocol , This operation is usually used .

module top_module(
    input wire [15:0] in,
    output wire [7:0] out_hi,
    output wire [7:0] out_lo );

    assign out[31:24] = in[7:0];
    assign out[23:16] = in[15:8];
    assign out[15:8] = in[23:16];
    assign out[7:0] = in[31:24];

endmodule

Simulation waveform

Vectorgates

Build one with two 3 Bit input circuit , This input calculates the bitwise of two vectors OR、 The logic of two vectors OR And the inverse of two vectors （NOT）. take The inverse function of is placed in The top half of （ Ascend the throne [5：3]）, take The inverse function of is placed in the lower part .

module top_module(
    input [2:0] a,
    input [2:0] b,
    output [2:0] out_or_bitwise,
    output out_or_logical,
    output [5:0] out_not
);

assign out_or_bitwise = a | b;
assign out_or_logical = a || b;
assign out_not[5:3] = ~b;
assign out_not[2:0] = ~a;

endmodule

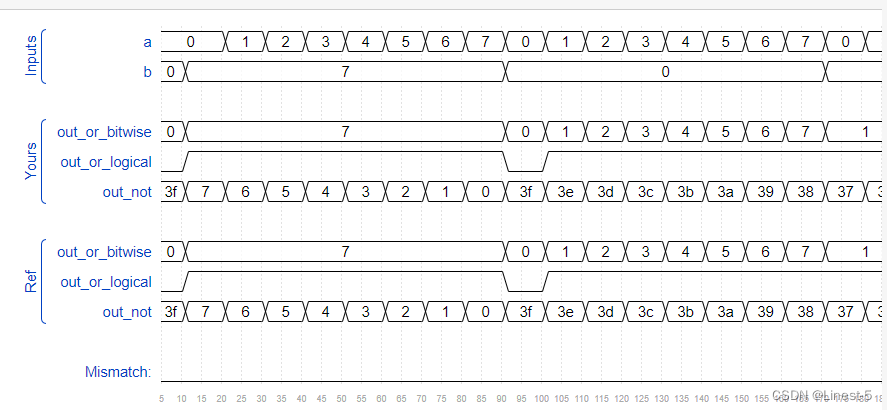

Simulation waveform

Gates4

Build a combinational circuit with four inputs , stay [3：0] in .
Yes 3 Outputs ：

• .out_and： Output 4 Channel input AND door .
• .out_or：4 Input OR Gate output .
• .out_xor： Output 4 Path input XOR gate .

module top_module(
    input [3:0] in,
    output out_and,
    output out_or,
    output out_xor
);
assign out_and = ∈
assign out_or = |in;
assign out_xor = ^in;

endmodule

Waveform simulation

Vector3

Bit mosaics
Given several input vectors , Connect them together , Then split them into multiple output vectors .
There are six 5 Bit input vector ：a、b、c、d、e and f, in total 30 An input . There are four 8 Bit output vector ：w、x、y and z, be used for 32 An output . The output should be a series of input vectors , Two heels 1 .

module top_module (
    input [4:0] a, b, c, d, e, f,
    output [7:0] w, x, y, z );

    wire [31:0]   combine;
    assign combine = {a,b,c,d,e,f,{2'b11}};
    assign w = combine[31:24];
    assign x = combine[23:16];
    assign y = combine[15:8];
    assign z = combine[7:0];

endmodule

  Waveform simulation

Vectorr

Given a 8 Bit input vector [7：0], Reverse its bit order .

module top_module(
    input [7:0] in,
    output [7:0] out
);

assign out = {in[0],in[1],in[2],in[3],in[4],in[5],in[6],in[7]};

endmodule

Simulation waveform

 Vector4

Build a pair 8 Digital signature is extended to 32 Bit circuit .
This requires the symbol bit to be 24 Copies （ Copy bit [7]24 Time ） Connect , And then there was 8 Digit number itself .

module top_module (
    input [7:0] in,
    output [31:0] out );

    assign out = {
   {24{in[7]}},in};

endmodule

No simulated waveform



Vector5

Given five 1 Bit signal （a、b、c、d and e）, Calculation 25 All in the bit output vector  25 Pairs 1 A bit more . If the two bits to be compared are equal , Then the output should be 1.
out[24] = ~a ^ a;   // a == a, so out[24] is always 1.
out[23] = ~a ^ b;
out[22] = ~a ^ c;
 ...
out[ 1] = ~e ^ d;
out[ 0] = ~e ^ e;

• The top vector is for each input 5 Repeated series
• The bottom vector is 5 Input in series 5 A repetition

module top_module (
    input a, b, c, d, e,
    output [24:0] out );

assign out = {
   {~{5{a}}^{a,b,c,d,e}},{~{5{b}}^{a,b,c,d,e}},
{~{5{c}}^{a,b,c,d,e}},{~{5{d}}^{a,b,c,d,e}},{~{5{e}}^{a,b,c,d,e}}};

endmodule

No simulated waveform
