Raspberry pie environment settings

2022-06-22 20:27:00 【Love Mai forever】

One . Linux System raspberry pie environment configuration

1. download

Raspbian Stretch with desktop and recommended software： With graphical desktop and recommended software
Raspbian Stretch with desktop： Desktop with graphics
Raspbian Stretch Lite： The minimalist version

Formatting tool SDCardFormatterv5

Burning tools Raspberry Pi

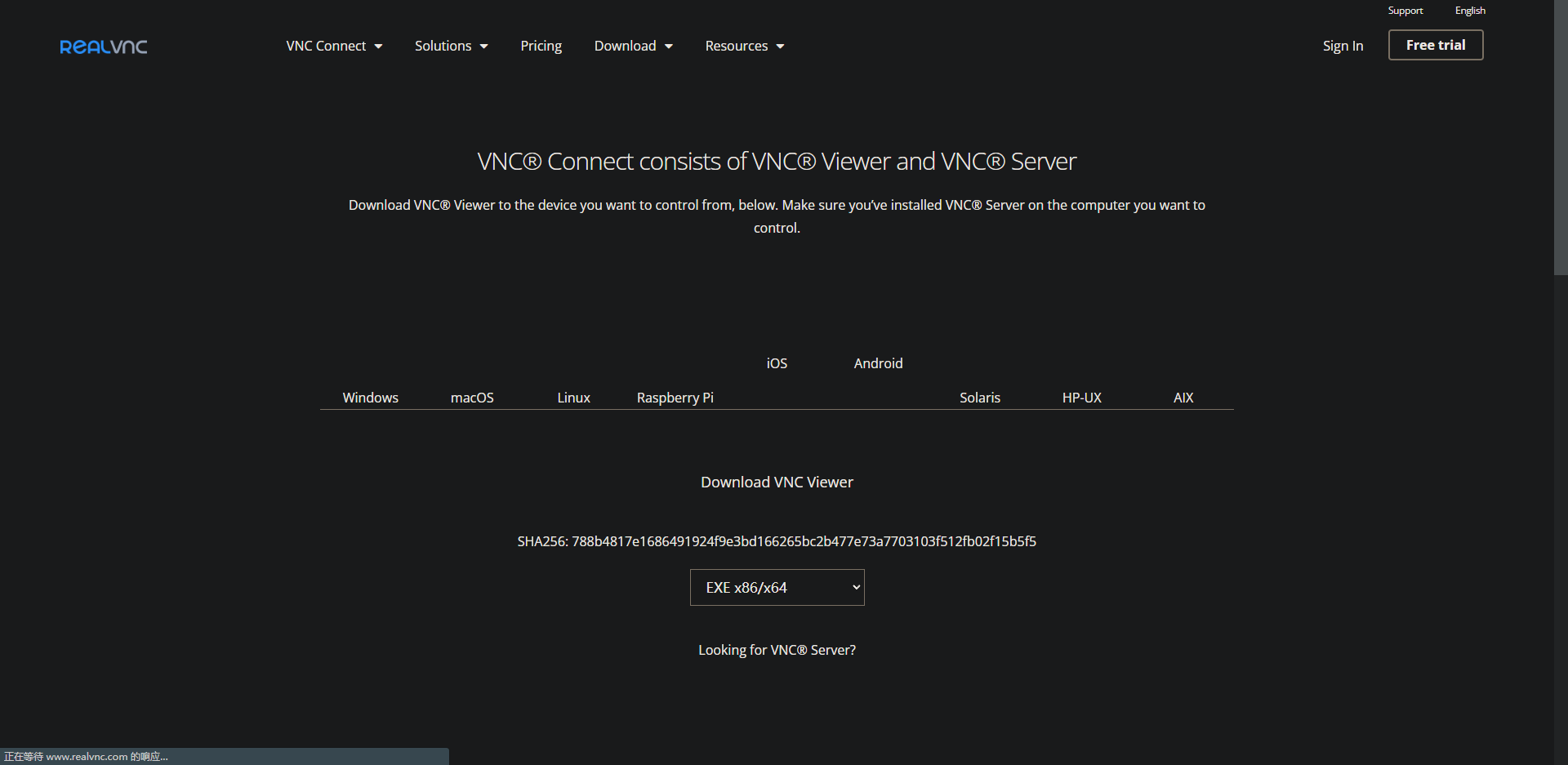

VNC Viewer

2.SD Card format

3. Burn image raspberry pi choice CHOOSE OS

4. configure network

Plug in the cable
I will explain this method , There are many related articles on the Internet , You can check it yourself .
Use mobile hotspot
① On the computer , Open the burning image just now SD card
② stay boot Under the table of contents , Build a ssh Empty file
③ stay boot Under the table of contents , Create a text file first
④ open the text file , Copy the following into the text
country=CN
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1
network={
ssid=“ Your wireless network name ”
psk=“ Your wireless password ”
key_mgmt=WPA-PSK
priority=1
}
among , take ssid Change the content of to the name of the mobile hotspot ,psk Change the content of to the password of the mobile phone hotspot .
⑤ Save the text just now , And change the name to wpa_supplicant.conf
⑥ Take out SD card , take SD Insert the card into the raspberry pie , Turn on the phone hotspot and connect the raspberry pie at the same time
⑦ You can check the raspberry pie on your mobile phone ip Address

Ubuntu The network configuration
① take Ubuntu The network connection mode is changed to bridge mode
② open Ubuntu Terminal , Use ifconfig
sudo apt install net-tools
ifconfig
③ see Ubuntu Network card name of , It's usually ens33
④ modify Ubuntu Network profile
sudo nano /etc/network/interfaces Add the following information
auto lo
iface lo inet loopback
auto ens33
iface ens33 inet static
address 192.168.43.109
// The first three and windows Under the system IP The first three digits of the address are consistent , The latter one sets it by himself
netmask 255.255.255.0
// And windows The subnet masks under the system are consistent
gateway 192.168.43.1
// And windows The gateways under the system are consistent
sudo nano /etc/resolv.conf Add the following information
nameserver 192.168.43.1
⑤ Restart the client
Create new users
sudo useradd -m user name -s /bin/bash
sudo passwd user name
sudo adduser user name sudo
sudo nano /etc/sudoers
Add a user name ALL=（ALL：ALL） ALL（ Realize that newly added users can use sudo）
install ssh
sudo apt install ssh
ps -e | grep ssh
Remote login （ Use another host under the same subnet ）
① open Putty
② Enter url
③ Enter your username and password
