HCIP实验（01）

1.拓扑设计和地址规划

2.配置IP地址和环回

[r1]int lo0
[r1-LoopBack0]ip add 192.168.0.65 28
[r1]int lo1
[r1-LoopBack1]ip add 192.168.0.81 28
[r1]int lo2
[r1-LoopBack2]ip add 192.168.0.97 28
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.0.1 30
[r1]int g0/0/1
[r1-GigabitEthernet0/0/1]ip add 192.168.0.5 30
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.0.2 30
[r2]int g0/0/1
[r2-GigabitEthernet0/0/1]ip add 192.168.0.9 30
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip add 192.168.0.6 30
[r3]int g0/0/1
[r3-GigabitEthernet0/0/1]ip add 192.168.0.13 30
[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip add 192.168.0.10 30
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]ip add 192.168.0.14 30
[r4]int g0/0/2
[r4-GigabitEthernet0/0/2]ip add 192.168.0.21 30
[r4]int g4/0/0
[r4-GigabitEthernet4/0/0]ip add 192.168.0.17 30
[r5]int g0/0/0
[r5-GigabitEthernet0/0/0]ip add 192.168.0.22 30
[r5]int g0/0/1
[r5-GigabitEthernet0/0/1]ip add  192.168.0.18 30
[r5]int g0/0/2
[r5-GigabitEthernet0/0/2]ip add 100.1.1.1 24
[isp]int g0/0/0
[isp-GigabitEthernet0/0/0]ip add 100.1.1.2 24

（测试）



3.配置交换机，划分虚拟子网

[sw1]vlan batch 2 to 3
[sw1]interface Ethernet0/0/2
[sw1-Ethernet0/0/2]port link-type access
[sw1-Ethernet0/0/2]port default vlan 2
[sw1-Ethernet0/0/2]q
[sw1]interface Ethernet0/0/3
[sw1-Ethernet0/0/3]port link-type access
[sw1-Ethernet0/0/3]port default
[sw1-Ethernet0/0/3]port default vlan 3
[sw1-Ethernet0/0/3]q
[sw1]interface  Ethernet0/0/1
[sw1-Ethernet0/0/1]port link-type trunk
[sw1-Ethernet0/0/1]port trunk allow-pass vlan all
[sw1-Ethernet0/0/1]q
[sw1]interface Ethernet0/0/4
[sw1-Ethernet0/0/4]port link-type trunk
[sw1-Ethernet0/0/4]port trunk allow-pass vlan all
[sw2]vlan batch 2 to 3
[sw2]interface Eth0/0/1
[sw2-Ethernet0/0/1]port link-type trunk
[sw2-Ethernet0/0/1]port trunk allow-pass vlan all
[sw2-Ethernet0/0/1]q
[sw2]interface  Ethernet0/0/2
[sw2-Ethernet0/0/2]port link-type access
[sw2-Ethernet0/0/2]port default  vlan 2
[sw2-Ethernet0/0/2]q
[sw2]
[sw2]interface Ethernet0/0/3
[sw2-Ethernet0/0/3]port link-type access
[sw2-Ethernet0/0/3]port default vlan 3

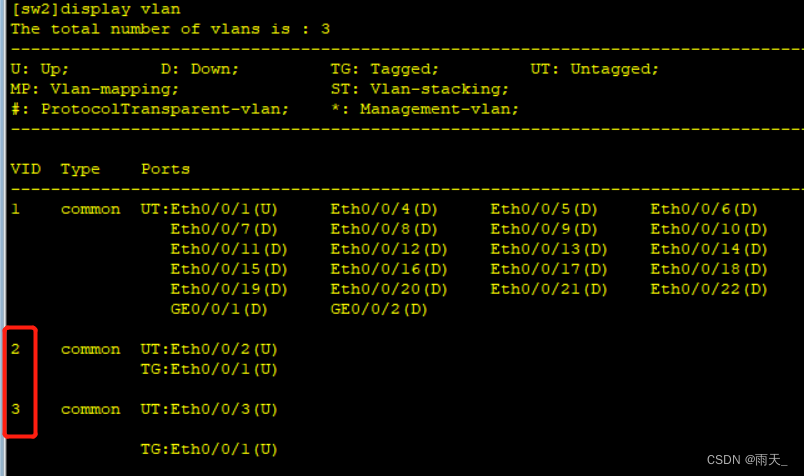

4.配置路由器R3的子接口和DHCP服务

[r3]dhcp enable
[r3]int g0/0/2.1
[r3-GigabitEthernet0/0/2.1]dot1q termination vid 2
[r3-GigabitEthernet0/0/2.1]arp broadcast enable
[r3-GigabitEthernet0/0/2.1]ip add 192.168.0.129 27
[r3]int g0/0/2.2
[r3-GigabitEthernet0/0/2.2]dot1q termination vid 3
[r3-GigabitEthernet0/0/2.2]arp broadcast enable
[r3-GigabitEthernet0/0/2.2]ip add 192.168.0.161 27

[r3]ip pool v2
[r3-ip-pool-v2]network 192.168.0.128 mask 27
[r3-ip-pool-v2]gateway-list 192.168.0.129
[r3-ip-pool-v2]dns-list 114.114.114.114
[r3]ip pool v3
[r3-ip-pool-v3]network 192.168.0.160 mask 27
[r3-ip-pool-v3]gateway-list 192.168.0.161
[r3-ip-pool-v3]dns-list 114.114.114.114
[r3]int g0/0/2.1
[r3-GigabitEthernet0/0/2.1]dhcp select global
[r3]int g0/0/2.2
[r3-GigabitEthernet0/0/2.2]dhcp select global

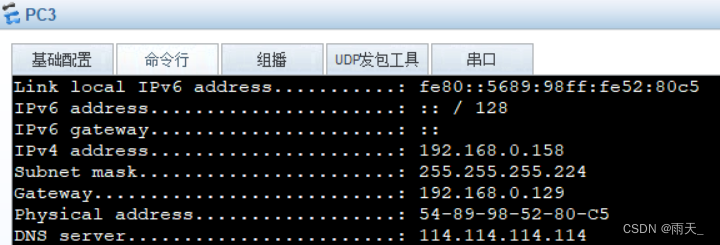

（测试）

（ping）



5.配置静态路由

[r1]ip route-static 192.168.0.8 30 192.168.0.2
[r1]ip route-static 192.168.0.16 30 192.168.0.2
[r1]ip route-static 192.168.0.20 30 192.168.0.2
[r1]ip route-static 192.168.0.128 26 192.168.0.6
[r1]ip route-static 192.168.0.12 30 192.168.0.6
[r1]ip route-static 192.168.0.20 30 192.168.0.6
[r1]ip route-static 192.168.0.16 30 192.168.0.6
[r1]ip route-static 192.168.0.0 27 192.168.0.2
[r1]ip route-static 192.168.0.0 24 192.168.0.6

[r2]ip route-static 192.168.0.64 26 192.168.0.1
[r2]ip route-static 192.168.0.4 30 192.168.0.1
[r2]ip route-static 192.168.0.12 30 192.168.0.10
[r2]ip route-static 192.168.0.16 30 192.168.0.10
[r2]ip route-static 192.168.0.20 30 192.168.0.10
[r2]ip route-static 192.168.0.128 26 192.168.0.10
[r2]ip route-static 192.168.0.128 26 192.168.0.1
[r2]ip route-static 192.168.0.0 24 192.168.0.1
[r2]ip route-static 192.168.0.0 24 192.168.0.10

[r3]ip route-static 192.168.0.0 30 192.168.0.5
[r3]ip route-static 192.168.0.64 26 192.168.0.5
[r3]ip route-static 192.168.0.8 30 192.168.0.14
[r3]ip route-static 192.168.0.16 30 192.168.0.14
[r3]ip route-static 192.168.0.20 30 192.168.0.14
[r3]ip route-static 192.168.0.0 25 192.168.0.5
[r3]ip route-static 192.168.0.0 27 192.168.0.14

[r4]ip route-static 192.168.0.0 30 192.168.0.9
[r4]ip route-static 192.168.0.64 26 192.168.0.9
[r4]ip route-static 192.168.0.64 26 192.168.0.13
[r4]ip route-static 192.168.0.4 30 192.168.0.13
[r4]ip route-static 192.168.0.0 25 192.168.0.13
[r4]ip route-static 192.168.0.0 25 192.168.0.9

（为保证通路，修改R5优先级，G4/0/0为备用骨干）

[r5]ip route-static 192.168.0.64 26 192.168.0.21
[r5]ip route-static 192.168.0.8 30 192.168.0.21
[r5]ip route-static 192.168.0.0 30 192.168.0.21
[r5]ip route-static 192.168.0.12 30 192.168.0.21
[r5]ip route-static 192.168.0.4 30 192.168.0.21
[r5]ip route-static 192.168.0.0 25 192.168.0.21
[r5]ip route-static 192.168.0.12 30 192.168.0.17 preference 100
[r5]ip route-static 192.168.0.0 25 192.168.0.17 preference  100
[r5]ip route-static 192.168.0.64 26 192.168.0.17 preference 100
[r5]ip route-static 192.168.0.0 30 192.168.0.17 preference 100
[r5]ip route-static 192.168.0.8 30 192.168.0.17 preference 100
[r5]ip route-static 192.168.0.4 30 192.168.0.17 preference 100
[r5]ip route-static 192.168.0.128 26 192.168.0.21
[r5]ip route-static 192.168.0.128 26 192.168.0.17 preference  100

6.配置缺省路由

（缺省路由是整个内网每个设备都要写）

[r1]ip route-static 0.0.0.0 0 192.168.0.2
[r1]ip route-static 0.0.0.0 0 192.168.0.6
[r2]ip route-static 0.0.0.0 0 192.168.0.10
[r3]ip route-static 0.0.0.0 0 192.168.0.14
[r4]ip route-static 0.0.0.0 0 192.168.0.18 preference 100 （修改优先级）
[r4]ip route-static 0.0.0.0 0 192.168.0.22

7.为R1进行汇总，防止环路

[r1]ip route-static 192.168.0.64 26 null 0

8.进行ACL

[r5]acl 2000
[r5-acl-basic-2000]rule permit source 192.168.0.0 0.0.0.255
[r5]int g0/0/2
[r5-GigabitEthernet0/0/2]nat outbound 2000
