Analyze the implementation process of oauth2 distributed authentication and authorization based on the source code

Preface

I was responsible for logging in 、 register 、 Authentication related tasks , Because it is a distributed project, it is a little complicated to code , Some difficulties have been encountered , own debug A related source code , This is to record your feelings and experiences .

Oauth2 Introduction to password Mode authentication

Oauth2 Two commonly used authorization modes , firstly ： Password mode , second ： Authorization code mode . Maybe many people are not familiar with these two models , The following is a brief introduction to .

• Authorization code mode ： Wechat scanning code login is a good example , Third party applications want to develop a set of login system efficiently and quickly , But I don't want to spend too much time to develop my own Certification Center , Wechat is used by many users app, The users in it are all real users , So wechat is used Oauth2 Provide an access point for these third-party applications , Any user who can scan the wechat code to log in is a real user , After the user successfully logs in and authorizes （ On wechat app Scan the internal code to request the wechat authentication center ）, Wechat knows that this third-party website is a website trusted by the user , Then the third-party application is given certain operation permission to access and obtain some user data . For details, please refer to Login analysis through wechat scanning code oauth2 Certification and authorization Technology （ In short The authentication center and the client are not developed by the same company to use the authorization code mode ）

• Password mode ： The wechat client uses the wechat account and is authorized by the wechat authentication center , Can log in normally . The client of the third-party application uses the third-party account and is authorized by the wechat authentication center , Will not be able to log in .（ In short The authentication center and the client are developed by the same company using the password mode ）

Oauth2 Basic configuration overview

Let's start with a brief statement oauth2 So let's configure this , Are some configuration code , If readers are in a hurry to integrate , direct copy Just add it to your own project , These configurations will be analyzed and introduced in detail below . Of course, it is better to read this article in combination with the comments in the code .

@Configuration
@EnableAuthorizationServer
public class Oauth2ServerConfig extends AuthorizationServerConfigurerAdapter {

    @Autowired
    private PasswordEncoder passwordEncoder;
    @Autowired
    private UserDetailsServiceImpl userDetailsService;
    @Autowired
    private AuthenticationManager authenticationManager;
    @Autowired
    private JwtTokenEnhancer jwtTokenEnhancer;
    @Autowired
    private StringRedisTemplate stringRedisTemplate;
    private TokenGranter tokenGranter;

    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {

        clients.inMemory().withClient("client-zzh")
                .secret(passwordEncoder.encode("123456"))
                .scopes("all")
                // Configure supported authentication modes
                .authorizedGrantTypes("password", "captcha", "refresh_token")
                // To configure token Failure time
                .accessTokenValiditySeconds(60 * 2).refreshTokenValiditySeconds(3600 * 4);
    }



    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {

        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
        List<TokenEnhancer> delegates = new ArrayList<>();
        delegates.add(jwtTokenEnhancer);
        delegates.add(accessTokenConverter());
        enhancerChain.setTokenEnhancers(delegates); // To configure JWT Content enhancer for
        endpoints.authenticationManager(authenticationManager).userDetailsService(userDetailsService) // Configure the service that loads user information
                .accessTokenConverter(accessTokenConverter()).tokenEnhancer(enhancerChain).tokenGranter(tokenGranter(endpoints)).reuseRefreshTokens(false);
    }

    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {

        security.allowFormAuthenticationForClients();
        // Turn on check_token Access to the interface
        security.checkTokenAccess("permitAll()");
    }

    /** *  To configure jwt converter  */
    @Bean
    public JwtAccessTokenConverter accessTokenConverter() {

        JwtAccessTokenConverter jwtAccessTokenConverter = new JwtAccessTokenConverter();
        jwtAccessTokenConverter.setKeyPair(keyPair());
        return jwtAccessTokenConverter;
    }

    @Bean
    public KeyPair keyPair() {

        // from classpath Get the secret key pair from the certificate under
        KeyStoreKeyFactory keyStoreKeyFactory = new KeyStoreKeyFactory(new ClassPathResource("jwt.jks"), "123456".toCharArray());
        return keyStoreKeyFactory.getKeyPair("jwt", "123456".toCharArray());
    }

    /** *  Customize provider Realization  */
    @Bean
    public AuthenticationProvider customAuthenticationProvider() {

        CustomAuthenticationProvider customAuthenticationProvider = new CustomAuthenticationProvider();
        customAuthenticationProvider.setUserDetailsService(userDetailsService);
        customAuthenticationProvider.setHideUserNotFoundExceptions(false);
        customAuthenticationProvider.setPasswordEncoder(passwordEncoder);
        return customAuthenticationProvider;
    }

    public TokenGranter tokenGranter(AuthorizationServerEndpointsConfigurer endpoints) {

        if (tokenGranter == null) {

            tokenGranter = new TokenGranter() {

                private CompositeTokenGranter delegate;

                /** *  utilize delegate（ Delegate pattern ） Override authentication methods  * @param grantType * @param tokenRequest * @return */
                @Override
                public OAuth2AccessToken grant(String grantType, TokenRequest tokenRequest) {

                    if (delegate == null) {

                        delegate = new CompositeTokenGranter(getDefaultTokenGranters(endpoints));
                    }
                    return delegate.grant(grantType, tokenRequest);
                }
            };
        }
        return tokenGranter;
    }


    private List<TokenGranter> getDefaultTokenGranters(AuthorizationServerEndpointsConfigurer endpoints) {

        AuthorizationServerTokenServices tokenServices = endpoints.getTokenServices();
        AuthorizationCodeServices authorizationCodeServices = endpoints.getAuthorizationCodeServices();
        OAuth2RequestFactory requestFactory = endpoints.getOAuth2RequestFactory();
        ClientDetailsService clientDetailsService = endpoints.getClientDetailsService();
        List<TokenGranter> tokenGranters = new ArrayList();
        /** *  add to oauth2 The four authorization modes come with it . And our custom authorization mode , You can extend it by injecting different arguments based on the requirements , Here I inject a RedisTemplate */
        tokenGranters.add(new AuthorizationCodeTokenGranter(tokenServices, authorizationCodeServices, clientDetailsService, requestFactory));
        tokenGranters.add(new RefreshTokenGranter(tokenServices, clientDetailsService, requestFactory));
        tokenGranters.add(new ImplicitTokenGranter(tokenServices, clientDetailsService, requestFactory));
        tokenGranters.add(new ClientCredentialsTokenGranter(tokenServices, clientDetailsService, requestFactory));
        /** *  Add our custom authorization mode , You can extend it by injecting different arguments based on the requirements , Here I inject a RedisTemplate */
        tokenGranters.add(new CaptchaTokenGranter(tokenServices, clientDetailsService, requestFactory, authenticationManager, stringRedisTemplate));
        if (authenticationManager != null) {

            //  Add password mode
            tokenGranters.add(new ResourceOwnerPasswordTokenGranter(authenticationManager, tokenServices, clientDetailsService, requestFactory));
        }
        return tokenGranters;
    }
}

Spring Security To configure

This is mainly for some static resources 、Http Request a white list release configuration , Readers can make corresponding configurations according to their own needs .

/** * SpringSecurity To configure  */
@Configuration
@EnableWebSecurity
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {

        super.configure(auth);
    }

    /** *  Configure some web White list visit Lu Jin  */
    @Override
    public void configure(WebSecurity web) throws Exception {

        web.ignoring().antMatchers(
                "/v2/api-docs",
                "/swagger-resources/configuration/ui",
                "/swagger-resources",
                "/swagger-resources/configuration/security",
                "/swagger-ui.html",
                "/css/**",
                "/js/**",
                "/images/**",
                "/webjars/**",
                "**/favicon.ico",
                "/index"
        );
    }

    /** *  To configure http White list of requests  */
    @Override
    protected void configure(HttpSecurity http) throws Exception {

        http.authorizeRequests()
                .requestMatchers(EndpointRequest.toAnyEndpoint()).permitAll()
                .antMatchers("/user/getUserInfo").permitAll()
                .antMatchers("/oauth/token").permitAll()
                .antMatchers("/rsa/publicKey").permitAll()
                .antMatchers("/oauth/login").permitAll()
                .antMatchers("/oauth/verifyCharge").permitAll()
                .antMatchers("/oauth/logout").permitAll()
                .antMatchers("/oauth/isOnLine").permitAll()
                .antMatchers("/oauth/loginConfirm").permitAll()
                .antMatchers("/user/rsa/pubKey").permitAll()
                .antMatchers("/login_url").permitAll()
                .anyRequest().authenticated()
                .and().csrf().disable();
    }


    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {

        return super.authenticationManagerBean();
    }
}

JWT Introduction to intensifier

In the configuration Oauth2 Medium AuthorizationServerEndpointsConfigurer When , We can JwtTokenEnhancer Configuration in ,JwtTokenEnhancer Its function is to provide us with an extension point , For those that have already been generated Jwt in , Add some additional customized parameters .

/** * JWT Content enhancer ： Custom add additional parameters to plug in JWT in  */
@Component
public class JwtTokenEnhancer implements TokenEnhancer {

    @Override
    public OAuth2AccessToken enhance(OAuth2AccessToken accessToken, OAuth2Authentication authentication) {

        SecurityUser securityUser = (SecurityUser) authentication.getPrincipal();
        Map<String, Object> info = new HashMap<>();
        // Put the user userName Set to JWT in
        info.put("userName", securityUser.getUsername());
        info.put("roles", securityUser.getAuthorities());
        System.err.println(info);
        ((DefaultOAuth2AccessToken) accessToken).setAdditionalInformation(info);
        return accessToken;
    }
}

Rewriting acquisition Token The interface of

Write a simple Controller, The writing path is /oauth/token An interface of , The purpose is to cover the one that the framework helped me write /oauth/token Interface .

@Api(tags = " authentication center ")
@Slf4j
@RequestMapping("/oauth")
@RestController
@RefreshScope
public class AuthController {


    @Autowired
    private TokenEndpoint tokenEndpoint;

    @Autowired
    private RedisTemplate redisTemplate;


    @ApiOperation(value = "  obtain token", notes = "")
    @PostMapping("/token")
    public Result getToken(@RequestParam Map<String, String> parameters, Principal principal) throws Exception {

        String username = parameters.get("username");
        parameters.put("password", ""); //require
        OAuth2AccessToken oAuth2AccessToken = tokenEndpoint.postAccessToken(principal, parameters).getBody();
        Oauth2TokenDto oauth2TokenDto = Oauth2TokenDto.builder()
                .token(oAuth2AccessToken.getValue())
                .refreshToken(oAuth2AccessToken.getRefreshToken().getValue())
                .expiresIn(oAuth2AccessToken.getExpiresIn())
                .tokenHead("Bearer ").build();
        JWSObject jwsObject = JWSObject.parse(oAuth2AccessToken.getValue());
        String payload = jwsObject.getPayload().toString();
        JSONObject jsonObject = JSONUtil.parseObj(payload);
        String jti = jsonObject.getStr(AuthConstants.JWT_JTI);
        redisTemplate.opsForValue().set(RedisConstants.USER_LOGIN_JTI + jti, username);
        log.info("Response-> url =/token,Parameters:{" + parameters + "},Result:{" + oauth2TokenDto + "}");
        return Result.success(oauth2TokenDto);
    }
}

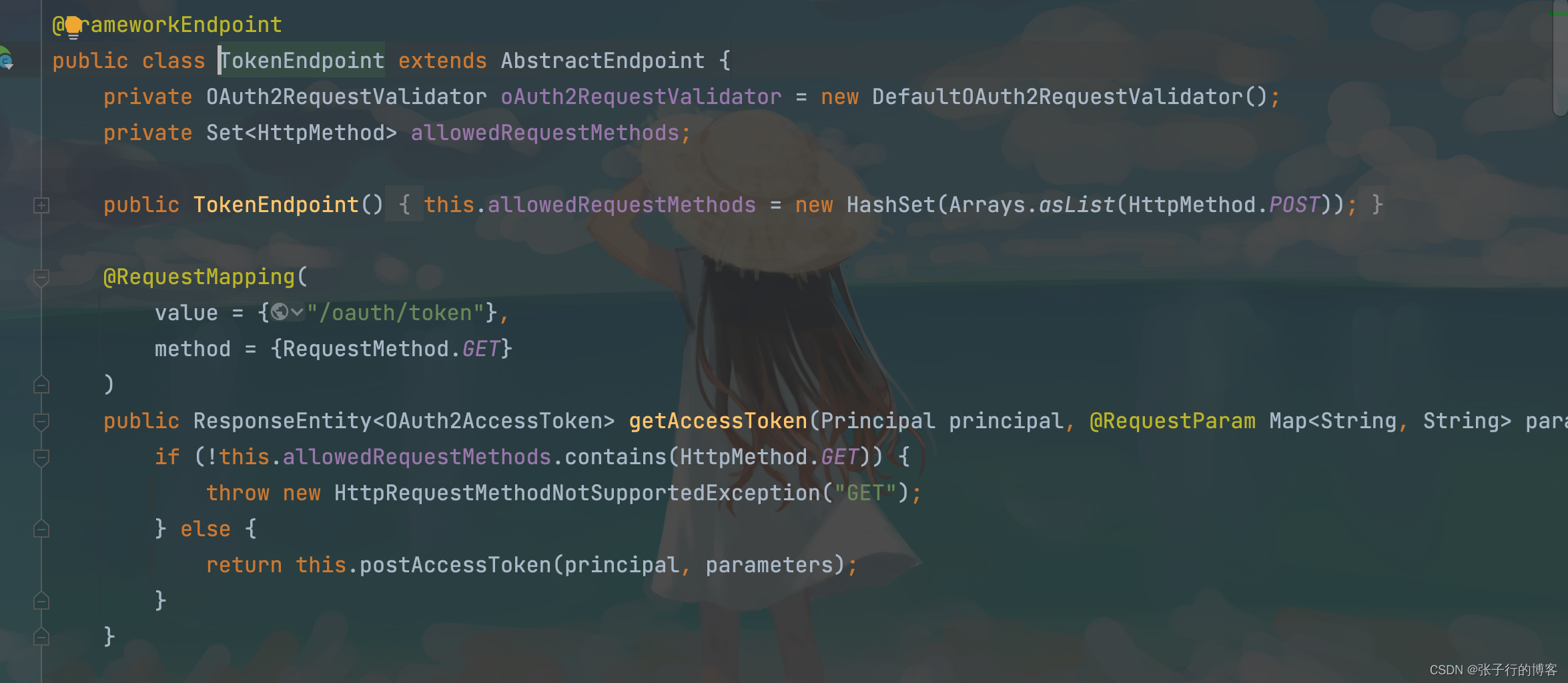

If you do not override /oauth/token Interface , By default, follow the code in the figure below , Directly in this.postAccessToken(principal, parameters) Issue generation at token. Similarly, we rewrite this method , Its award token No changes have been made to the core code of , Also through injection TokenEndpoint , Call the postAccessToken Method generation token , We just made some business logic extensions before and after . Readers expand according to their own needs

Well, the general preparations are almost done , Now let's start to customize some functions in depth .

In depth analysis postAccessToken

You can see the issue token That is, the code verifies the parameters of the request ,


Then down debug We will find that we have come to the following figure , Parameter verification passed , Then start the authorization operation . Don't worry. Let's go on .

Take a closer look at this this.getTokenGranter() Method , Does it look familiar , Yes, this TokenGranter Above Oauth2 Basic configuration overview It has been configured in the section . At the beginning, some small partners may think the configuration inside is too abstruse , It's not , Reading the following text carefully will make you more enlightened .

Oauth2 Authorization part of the source code analysis

As the article has been configured at the beginning TokenGranter This Bean And rewritten grant（） Method , as follows . It is found that there is a nested one called CompositeTokenGranter Things that are , Authorization is all about leaving CompositeTokenGranter Medium grant（） Method , Then we began to study CompositeTokenGranter .

CompositeTokenGranter（ Delegate pattern , The essence of source code design ！！）

When I first saw this class , I feel that this code writes something , There's a... In it list
Collection is used to temporarily store all of our TokenGrant , Traverse the corresponding grant Method .

By now we have known Oauth2 It's time to delegate , Can we also expand by ourselves TokenGrant , Implement an authorization mode by yourself ？ Observe Oauth2 The code in the basic configuration overview section , Can not help but sigh , It turns out that the thing we were equipped with came into effect here .

Custom authentication code authorization mode （ The extension point ）

By analyzing the source code , We directly copy a copy of the source code in the password mode , Slight improvement , Add the business logic of your own verification code , And then Cranter Weave into AuthorizationServerEndpointsConfigurer And it will take effect . Don't ask me why I weave into AuthorizationServerEndpointsConfigurer in , Instead of weaving into other places , because AuthorizationServerEndpointsConfigurer.tokenGranter(tokenGranter(endpoints)) You know what I mean . Interested readers can study the source code inside . After reading the following code , combination Oauth2 Basic configuration overview Section Know why CaptchaTokenGranter Will take effect and when it will take effect Just go .

public class CaptchaTokenGranter extends AbstractTokenGranter {


/** *  Custom authentication code authorization mode  */
    private static final String GRANT_TYPE = "captcha";
    private final AuthenticationManager authenticationManager;
    private StringRedisTemplate redisTemplate;

    public CaptchaTokenGranter(AuthorizationServerTokenServices tokenServices, ClientDetailsService clientDetailsService, OAuth2RequestFactory requestFactory, AuthenticationManager authenticationManager, StringRedisTemplate redisTemplate
    ) {

        super(tokenServices, clientDetailsService, requestFactory, GRANT_TYPE);
        this.authenticationManager = authenticationManager;
        this.redisTemplate = redisTemplate;
    }

    @Override
    protected OAuth2Authentication getOAuth2Authentication(ClientDetails client, TokenRequest tokenRequest) {


        Map<String, String> parameters = new LinkedHashMap(tokenRequest.getRequestParameters());
        String captcha = parameters.get("captcha");
        // Verification code is not 1, Prompt verification code failed
        if (!"1".equals(captcha) || StringUtils.isEmpty(captcha)) throw new InvalidGrantException(" Verification code error ");
        String username = parameters.get("username");
        String password = parameters.get("password");


        //  The same logic as password mode
        Authentication userAuth = new UsernamePasswordAuthenticationToken(username, password);
        ((AbstractAuthenticationToken) userAuth).setDetails(parameters);

        try {

            userAuth = this.authenticationManager.authenticate(userAuth);
        } catch (AccountStatusException var8) {

            throw new InvalidGrantException(var8.getMessage());
        } catch (BadCredentialsException var9) {

            throw new InvalidGrantException(var9.getMessage());
        }

        if (userAuth != null && userAuth.isAuthenticated()) {

            OAuth2Request storedOAuth2Request = this.getRequestFactory().createOAuth2Request(client, tokenRequest);
            return new OAuth2Authentication(storedOAuth2Request, userAuth);
        } else {

            throw new InvalidGrantException("Could not authenticate user: " + username);
        }
    }
}

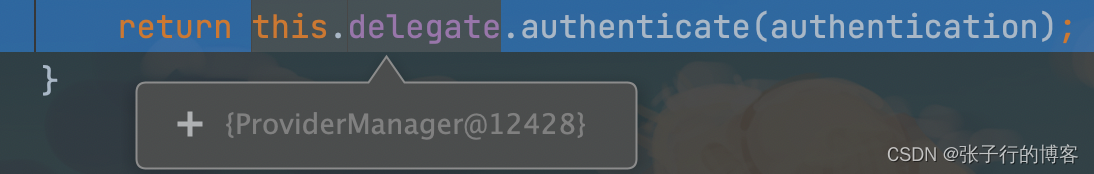

to grant authorization -> authentication （ProviderManager）

After our custom Grant（） After the process , Will follow the trend ProviderManager Medium authenticate（） Method , Start certification

The authentication process （ There are extension points ）

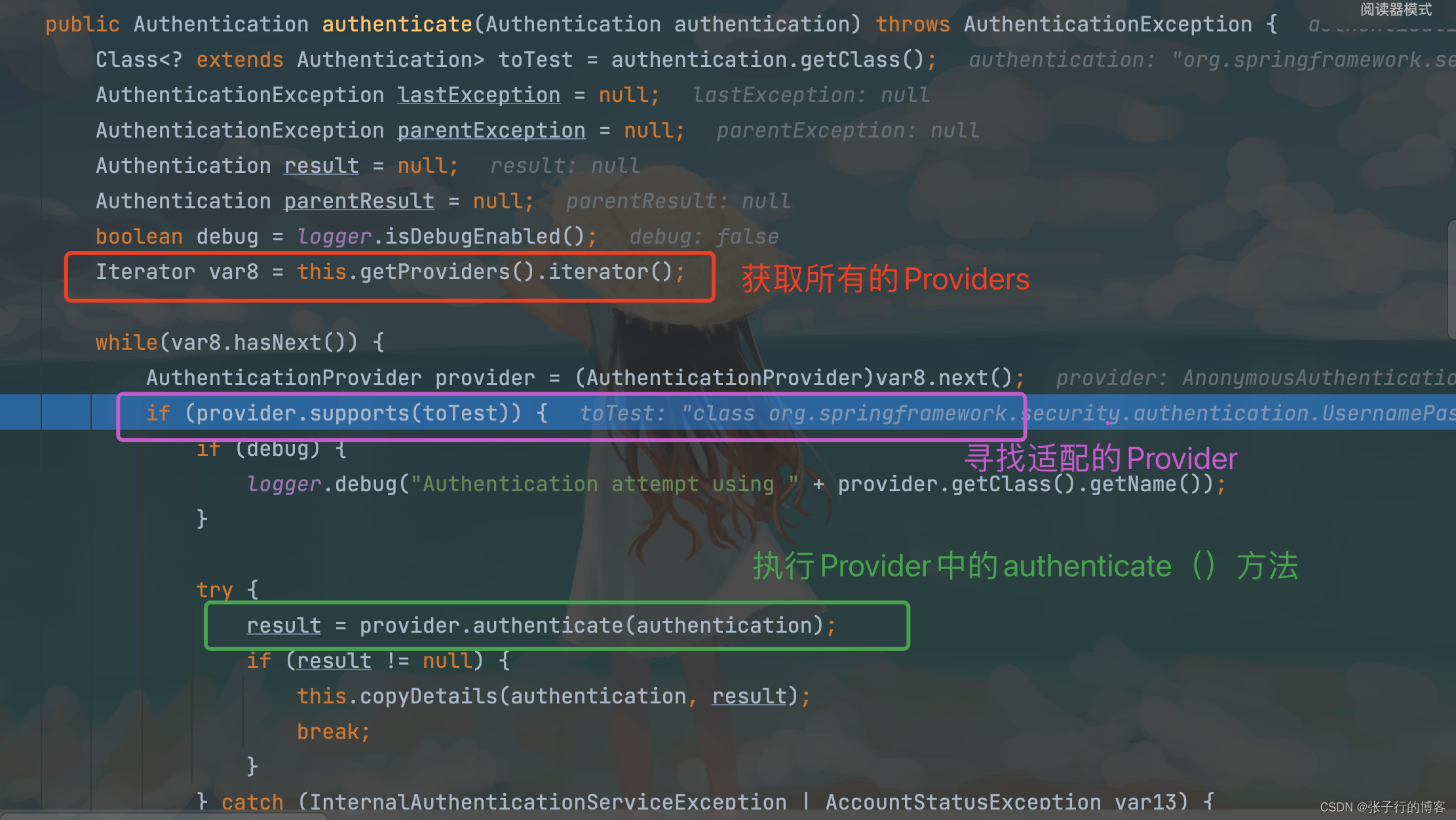

Traverse all Providers, Let's see if there is a suitable one Provider You can use , without , Again from praent Trying to get Privider Perform subsequent authentication operations . Little book remember , This praent Is an extensible point .

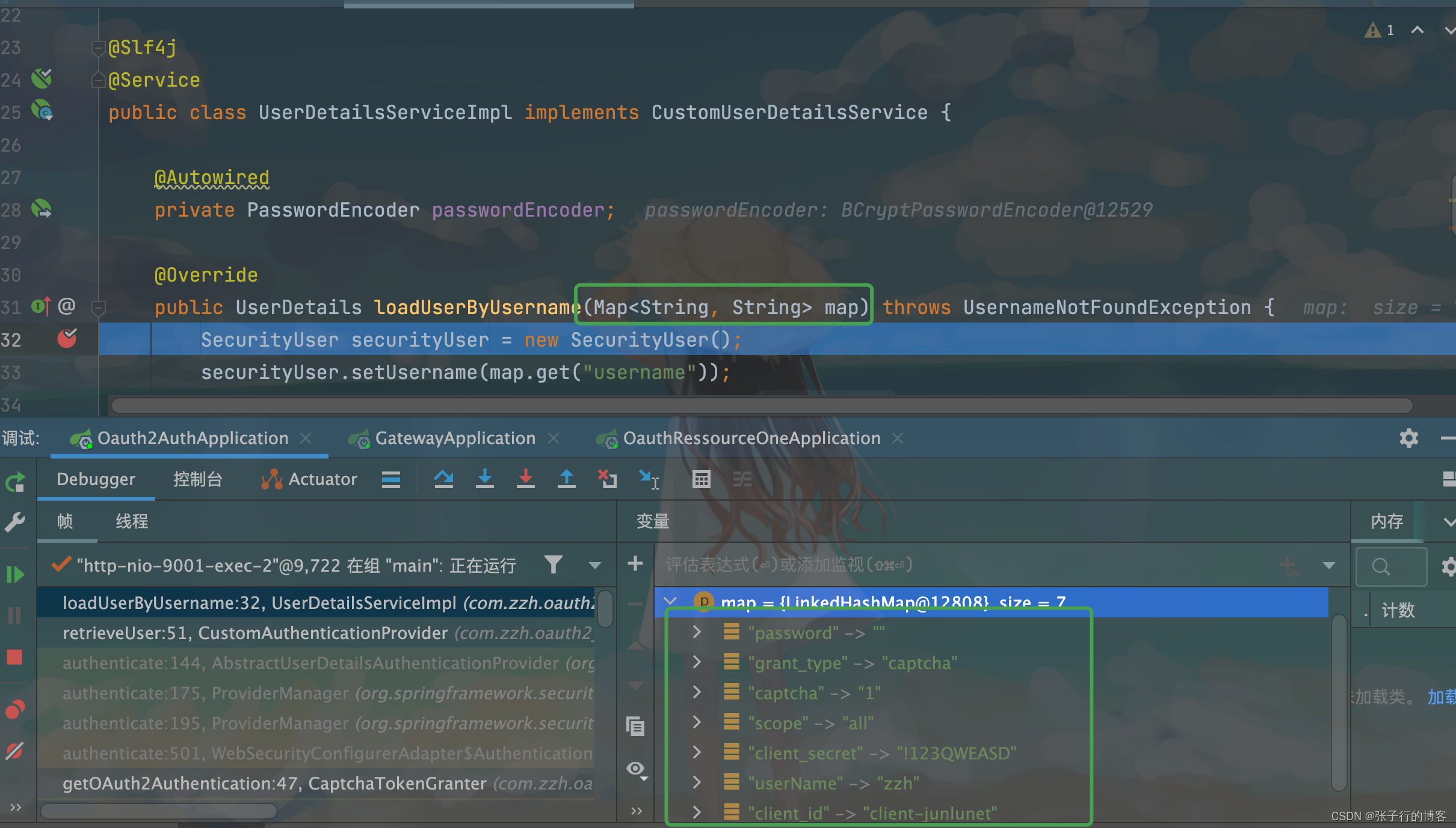

Since I have extended the authentication logic myself, it will eventually be implemented to CustomAuthenticationProvider Medium retrieveUser（） In the method .

Expand retrieveUser Method （）

I don't know if my friends in front of the screen , By UserDetails Of loadUserByUsername Methods can only be passed username I have been puzzled by my troubles , I tm Our company wants to do multi-user login , One username Not enough , Ha ha ha ha ha ha ha , Don't worry , We have now expanded , You pass 100 Parameters are our loadUserByUsername The method is acceptable .

public class CustomAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {

    private static final String USER_NOT_FOUND_PASSWORD = "userNotFoundPassword";
    private PasswordEncoder passwordEncoder;
    private volatile String userNotFoundEncodedPassword;
    private CustomUserDetailsService userDetailsService;
    private UserDetailsPasswordService userDetailsPasswordService;

    public CustomAuthenticationProvider() {

        this.setPasswordEncoder(PasswordEncoderFactories.createDelegatingPasswordEncoder());
    }

    protected void additionalAuthenticationChecks(UserDetails userDetails, UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {

        if (authentication.getCredentials() == null) {

            this.logger.debug("Authentication failed: no credentials provided");
            throw new BadCredentialsException(this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
        } else {

            String presentedPassword = authentication.getCredentials().toString();
            if (!this.passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {

                this.logger.debug("Authentication failed: password does not match stored value");
                throw new BadCredentialsException(this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
            }
        }
    }

    protected void doAfterPropertiesSet() {

        Assert.notNull(this.userDetailsService, "A UserDetailsService must be set");
    }

    protected final UserDetails retrieveUser(String username, UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {

        this.prepareTimingAttackProtection();
        Map<String,String> map = (Map<String, String>) authentication.getDetails(); //  Custom add
        try {

            UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(map);
            if (loadedUser == null) {

                throw new InternalAuthenticationServiceException("UserDetailsService returned null, which is an interface contract violation");
            } else {

                return loadedUser;
            }
        } catch (UsernameNotFoundException var4) {

            this.mitigateAgainstTimingAttack(authentication);
            throw var4;
        } catch (InternalAuthenticationServiceException var5) {

            throw var5;
        } catch (Exception var6) {

            throw new InternalAuthenticationServiceException(var6.getMessage(), var6);
        }
    }

    protected Authentication createSuccessAuthentication(Object principal, Authentication authentication, UserDetails user) {

        boolean upgradeEncoding = this.userDetailsPasswordService != null && this.passwordEncoder.upgradeEncoding(user.getPassword());
        if (upgradeEncoding) {

            String presentedPassword = authentication.getCredentials().toString();
            String newPassword = this.passwordEncoder.encode(presentedPassword);
            user = this.userDetailsPasswordService.updatePassword(user, newPassword);
        }

        return super.createSuccessAuthentication(principal, authentication, user);
    }

    private void prepareTimingAttackProtection() {

        if (this.userNotFoundEncodedPassword == null) {

            this.userNotFoundEncodedPassword = this.passwordEncoder.encode("userNotFoundPassword");
        }

    }

    private void mitigateAgainstTimingAttack(UsernamePasswordAuthenticationToken authentication) {

        if (authentication.getCredentials() != null) {

            String presentedPassword = authentication.getCredentials().toString();
            this.passwordEncoder.matches(presentedPassword, this.userNotFoundEncodedPassword);
        }

    }

    public void setPasswordEncoder(PasswordEncoder passwordEncoder) {

        Assert.notNull(passwordEncoder, "passwordEncoder cannot be null");
        this.passwordEncoder = passwordEncoder;
        this.userNotFoundEncodedPassword = null;
    }

    protected PasswordEncoder getPasswordEncoder() {

        return this.passwordEncoder;
    }

    public void setUserDetailsService(CustomUserDetailsService customUserDetailsService) {

        this.userDetailsService = customUserDetailsService;
    }

    protected CustomUserDetailsService getUserDetailsService() {

        return this.userDetailsService;
    }

    public void setUserDetailsPasswordService(UserDetailsPasswordService userDetailsPasswordService) {

        this.userDetailsPasswordService = userDetailsPasswordService;
    }
}

Pass the parameters unchanged to CustomUserDetailsService, This class has been configured at the beginning of the article .

We can see the successful implementation of our loadUserByUsername Method , All parameters are acceptable . This concludes the interpretation of the source code for authentication and authorization .

Attached sheet

CaptchaTokenGranter Source code is as follows

package com.zzh.oauth2_auth.component;

import com.alibaba.druid.util.StringUtils;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.security.authentication.*;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.common.exceptions.InvalidGrantException;
import org.springframework.security.oauth2.provider.*;
import org.springframework.security.oauth2.provider.token.AbstractTokenGranter;
import org.springframework.security.oauth2.provider.token.AuthorizationServerTokenServices;

import java.util.LinkedHashMap;
import java.util.Map;


public class CaptchaTokenGranter extends AbstractTokenGranter {



    private static final String GRANT_TYPE = "captcha";
    private final AuthenticationManager authenticationManager;
    private StringRedisTemplate redisTemplate;

    public CaptchaTokenGranter(AuthorizationServerTokenServices tokenServices, ClientDetailsService clientDetailsService, OAuth2RequestFactory requestFactory, AuthenticationManager authenticationManager, StringRedisTemplate redisTemplate
    ) {

        super(tokenServices, clientDetailsService, requestFactory, GRANT_TYPE);
        this.authenticationManager = authenticationManager;
        this.redisTemplate = redisTemplate;
    }

    @Override
    protected OAuth2Authentication getOAuth2Authentication(ClientDetails client, TokenRequest tokenRequest) {


        Map<String, String> parameters = new LinkedHashMap(tokenRequest.getRequestParameters());
        String captcha = parameters.get("captcha");
        if (!"1".equals(captcha) || StringUtils.isEmpty(captcha)) throw new InvalidGrantException(" Verification code error ");
        String username = parameters.get("username");
        String password = parameters.get("password");


        //  The same logic as password mode
        Authentication userAuth = new UsernamePasswordAuthenticationToken(username, password);
        ((AbstractAuthenticationToken) userAuth).setDetails(parameters);

        try {

            userAuth = this.authenticationManager.authenticate(userAuth);
        } catch (AccountStatusException var8) {

            throw new InvalidGrantException(var8.getMessage());
        } catch (BadCredentialsException var9) {

            throw new InvalidGrantException(var9.getMessage());
        }

        if (userAuth != null && userAuth.isAuthenticated()) {

            OAuth2Request storedOAuth2Request = this.getRequestFactory().createOAuth2Request(client, tokenRequest);
            return new OAuth2Authentication(storedOAuth2Request, userAuth);
        } else {

            throw new InvalidGrantException("Could not authenticate user: " + username);
        }
    }
}

CustomAuthenticationProvider Source code is as follows

package com.zzh.oauth2_auth.component;

import com.zzh.oauth2_auth.service.CustomUserDetailsService;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.InternalAuthenticationServiceException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.authentication.dao.AbstractUserDetailsAuthenticationProvider;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsPasswordService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.util.Assert;

import java.util.Map;

public class CustomAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {

    private static final String USER_NOT_FOUND_PASSWORD = "userNotFoundPassword";
    private PasswordEncoder passwordEncoder;
    private volatile String userNotFoundEncodedPassword;

    private UserDetailsPasswordService userDetailsPasswordService;

    public CustomAuthenticationProvider() {

        this.setPasswordEncoder(PasswordEncoderFactories.createDelegatingPasswordEncoder());
    }

    protected void additionalAuthenticationChecks(UserDetails userDetails, UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {

        if (authentication.getCredentials() == null) {

            this.logger.debug("Authentication failed: no credentials provided");
            throw new BadCredentialsException(this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
        } else {

            String presentedPassword = authentication.getCredentials().toString();
            if (!this.passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {

                this.logger.debug("Authentication failed: password does not match stored value");
                throw new BadCredentialsException(this.messages.getMessage("AbstractUserDetailsAuthenticationProvider.badCredentials", "Bad credentials"));
            }
        }
    }

    protected void doAfterPropertiesSet() {

        Assert.notNull(this.userDetailsService, "A UserDetailsService must be set");
    }

    protected final UserDetails retrieveUser(String username, UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {

        this.prepareTimingAttackProtection();
        Map<String,String> map = (Map<String, String>) authentication.getDetails(); //  Custom add
        try {

            UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(map);
            if (loadedUser == null) {

                throw new InternalAuthenticationServiceException("UserDetailsService returned null, which is an interface contract violation");
            } else {

                return loadedUser;
            }
        } catch (UsernameNotFoundException var4) {

            this.mitigateAgainstTimingAttack(authentication);
            throw var4;
        } catch (InternalAuthenticationServiceException var5) {

            throw var5;
        } catch (Exception var6) {

            throw new InternalAuthenticationServiceException(var6.getMessage(), var6);
        }
    }
    private CustomUserDetailsService userDetailsService;
    protected CustomUserDetailsService getUserDetailsService() {

        return this.userDetailsService;
    }
    public void setUserDetailsService(CustomUserDetailsService customUserDetailsService) {

        this.userDetailsService = customUserDetailsService;
    }

    protected Authentication createSuccessAuthentication(Object principal, Authentication authentication, UserDetails user) {

        boolean upgradeEncoding = this.userDetailsPasswordService != null && this.passwordEncoder.upgradeEncoding(user.getPassword());
        if (upgradeEncoding) {

            String presentedPassword = authentication.getCredentials().toString();
            String newPassword = this.passwordEncoder.encode(presentedPassword);
            user = this.userDetailsPasswordService.updatePassword(user, newPassword);
        }

        return super.createSuccessAuthentication(principal, authentication, user);
    }

    private void prepareTimingAttackProtection() {

        if (this.userNotFoundEncodedPassword == null) {

            this.userNotFoundEncodedPassword = this.passwordEncoder.encode("userNotFoundPassword");
        }

    }

    private void mitigateAgainstTimingAttack(UsernamePasswordAuthenticationToken authentication) {

        if (authentication.getCredentials() != null) {

            String presentedPassword = authentication.getCredentials().toString();
            this.passwordEncoder.matches(presentedPassword, this.userNotFoundEncodedPassword);
        }

    }

    public void setPasswordEncoder(PasswordEncoder passwordEncoder) {

        Assert.notNull(passwordEncoder, "passwordEncoder cannot be null");
        this.passwordEncoder = passwordEncoder;
        this.userNotFoundEncodedPassword = null;
    }

    protected PasswordEncoder getPasswordEncoder() {

        return this.passwordEncoder;
    }




    public void setUserDetailsPasswordService(UserDetailsPasswordService userDetailsPasswordService) {

        this.userDetailsPasswordService = userDetailsPasswordService;
    }
}

obtain token The interface source code is as follows

package com.zzh.oauth2_auth.controller;


import cn.hutool.json.JSONObject;
import cn.hutool.json.JSONUtil;
import com.nimbusds.jose.JWSObject;
import com.zzh.common.constant.AuthConstants;
import com.zzh.common.constant.RedisConstants;
import com.zzh.common.result.Result;
import com.zzh.oauth2_auth.domain.dto.Oauth2TokenDto;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.security.oauth2.common.OAuth2AccessToken;
import org.springframework.security.oauth2.provider.endpoint.TokenEndpoint;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.security.Principal;
import java.util.Map;

/** *  Customize Oauth2 Get token interface  */
@Api(tags = " authentication center ")
@Slf4j
@RequestMapping("/oauth")
@RestController
@RefreshScope
public class AuthController {


    @Autowired
    private TokenEndpoint tokenEndpoint;

    @Autowired
    private RedisTemplate redisTemplate;


    @ApiOperation(value = "  obtain token", notes = "")
    @PostMapping("/token")
    public Result getToken(@RequestParam Map<String, String> parameters, Principal principal) throws Exception {

        String username = parameters.get("username");
        parameters.put("password", ""); //require
        OAuth2AccessToken oAuth2AccessToken = tokenEndpoint.postAccessToken(principal, parameters).getBody();
        Oauth2TokenDto oauth2TokenDto = Oauth2TokenDto.builder()
                .token(oAuth2AccessToken.getValue())
                .refreshToken(oAuth2AccessToken.getRefreshToken().getValue())
                .expiresIn(oAuth2AccessToken.getExpiresIn())
                .tokenHead("Bearer ").build();
        JWSObject jwsObject = JWSObject.parse(oAuth2AccessToken.getValue());
        String payload = jwsObject.getPayload().toString();
        JSONObject jsonObject = JSONUtil.parseObj(payload);
        String jti = jsonObject.getStr(AuthConstants.JWT_JTI);
        redisTemplate.opsForValue().set(RedisConstants.USER_LOGIN_JTI + jti, username);
        log.info("Response-> url =/token,Parameters:{" + parameters + "},Result:{" + oauth2TokenDto + "}");
        return Result.success(oauth2TokenDto);
    }
}

UserDetailsServiceImpl Source code is as follows

```javascript
package com.zzh.oauth2_auth.service.impl;


import com.zzh.oauth2_auth.constant.MessageConstant;
import com.zzh.oauth2_auth.domain.SecurityUser;
import com.zzh.oauth2_auth.service.CustomUserDetailsService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AccountExpiredException;
import org.springframework.security.authentication.CredentialsExpiredException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.LockedException;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.Collection;
import java.util.Map;

@Slf4j
@Service
public class UserDetailsServiceImpl implements CustomUserDetailsService {


    @Autowired
    private PasswordEncoder passwordEncoder;

    @Override
    public UserDetails loadUserByUsername(Map<String, String> map) throws UsernameNotFoundException {

        SecurityUser securityUser = new SecurityUser();
        securityUser.setUsername(map.get("username"));
        securityUser.setPassword(passwordEncoder.encode(""));
        Collection<SimpleGrantedAuthority> authorities = new ArrayList<>();
        authorities.add(new SimpleGrantedAuthority("ADMIN"));
        System.err.println(" The currently logged in role is ：ADMIN");
        securityUser.setAuthorities(authorities);
        if (!securityUser.isEnabled()) {

            throw new DisabledException(MessageConstant.ACCOUNT_DISABLED);
        } else if (!securityUser.isAccountNonLocked()) {

            throw new LockedException(MessageConstant.ACCOUNT_LOCKED);
        } else if (!securityUser.isAccountNonExpired()) {

            throw new AccountExpiredException(MessageConstant.ACCOUNT_EXPIRED);
        } else if (!securityUser.isCredentialsNonExpired()) {

            throw new CredentialsExpiredException(MessageConstant.CREDENTIALS_EXPIRED);
        }
        return securityUser;
    }

    @Override
    public UserDetails loadUserByUsername(String s) throws UsernameNotFoundException {

        return null;
    }
}

package com.zzh.oauth2_auth.service;

import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;

import java.util.Map;

/** *  Inherit the original UserDetailsService New custom method  */
public interface CustomUserDetailsService extends UserDetailsService {


    UserDetails loadUserByUsername(Map<String,String> map) throws UsernameNotFoundException;

}
