Silicon Valley classroom lesson 15 - Tencent cloud deployment

2022-07-25 09:08:00 【Office template library material frog】

Silicon Valley class day 16 - Tencent cloud deployment

List of articles

- Silicon Valley class day 16 - Tencent cloud deployment

One 、 Project deployment plan

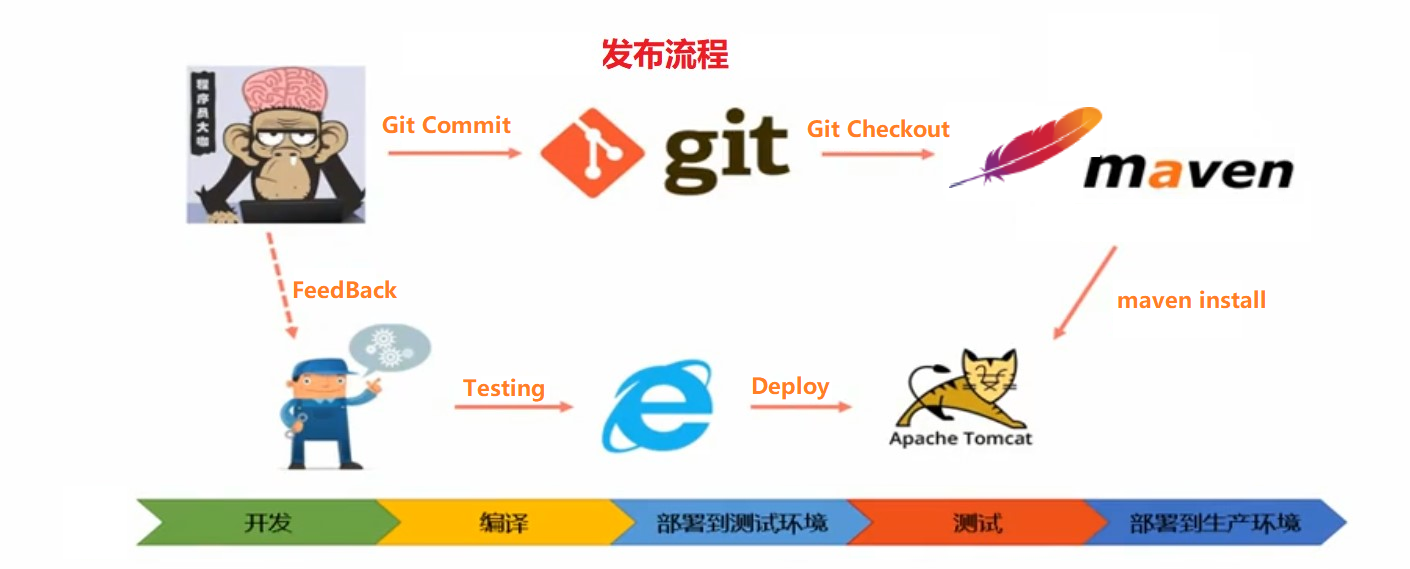

1、 Original deployment method

2、 Integrate Jenkins

complete DevOps Examples are as follows ：

dev-ops

3、 Integrate CODING

Integrate CODING Realization DevOps

https://console.cloud.tencent.com/coding/container-devops

Two 、 Tencent cloud CODING DevOps summary

Tencent cloud uses documents ：

https://help.coding.net/docs/start/new.html

1、 Product Brief

DevOps yes Development and Operations The combination of the words , It stands for valuing 「 Software developer (Dev)」 and 「IT Operation and maintenance technicians (Ops)」 Communication and cooperation between cultures ; It's about automation 「 Software delivery 」 and 「 Architectural change 」 The process of , Make build 、 test 、 The process of publishing software can be faster 、 Frequent and reliable .Gartner The consulting firm believes that DevOps On behalf of IT The changing trend of culture .

1.1、CODING DevOps What is it?

CODING DevOps It is a one-stop R & D collaboration management platform for software R & D teams , Provide from requirements to design 、 Development 、 structure 、 test 、 The whole process collaboration and R & D tool support released to deployment .CODING The solution can help enterprises achieve unified security control of code , And quickly practice agile development and DevOps, Improve the quality and speed of software delivery , Reduce the cost of R & D , Achieve R & D efficiency upgrade .

1.2、CODING DevOps advantage

One stop collaboration platform and R & D tool chain , Improve R & D Efficiency
CODING Combine with the advantages of cloud , Rely on industry agile project management and DevOps Integrate system methods into products , Break through the isolated island of tool chain and cooperation barriers in the process of R & D , Covering the whole life cycle of agile development , Help the team achieve their needs 、 iteration 、 Development 、 test 、 Continuous integration 、 Continuously deploy all-round R & D management , Improve the efficiency of software research and development .
Support the construction of dual state R & D system , Meet diversified business needs
CODING It is suitable for development teams of different sizes and different types of software development models （ Like the waterfall model 、 Agile model ）, Meet the collaboration needs of multiple business scenarios .
Project workflow and measurement data visualization , Project management is easier
CODING Provide visual Kanban , Support for code 、 Project progress 、 Output detailed data reports from different dimensions such as personnel workload , Provide decision-making basis for team managers , Adjust the project plan and reasonably arrange the R & D manpower .
Rich scalability , Seamlessly integrate third-party platforms
CODING Support seamless integration GitHub、GitLab And other third-party code bases, as well as various common operation and maintenance systems and cloud native environments , Let users realize seamless migration across platforms .

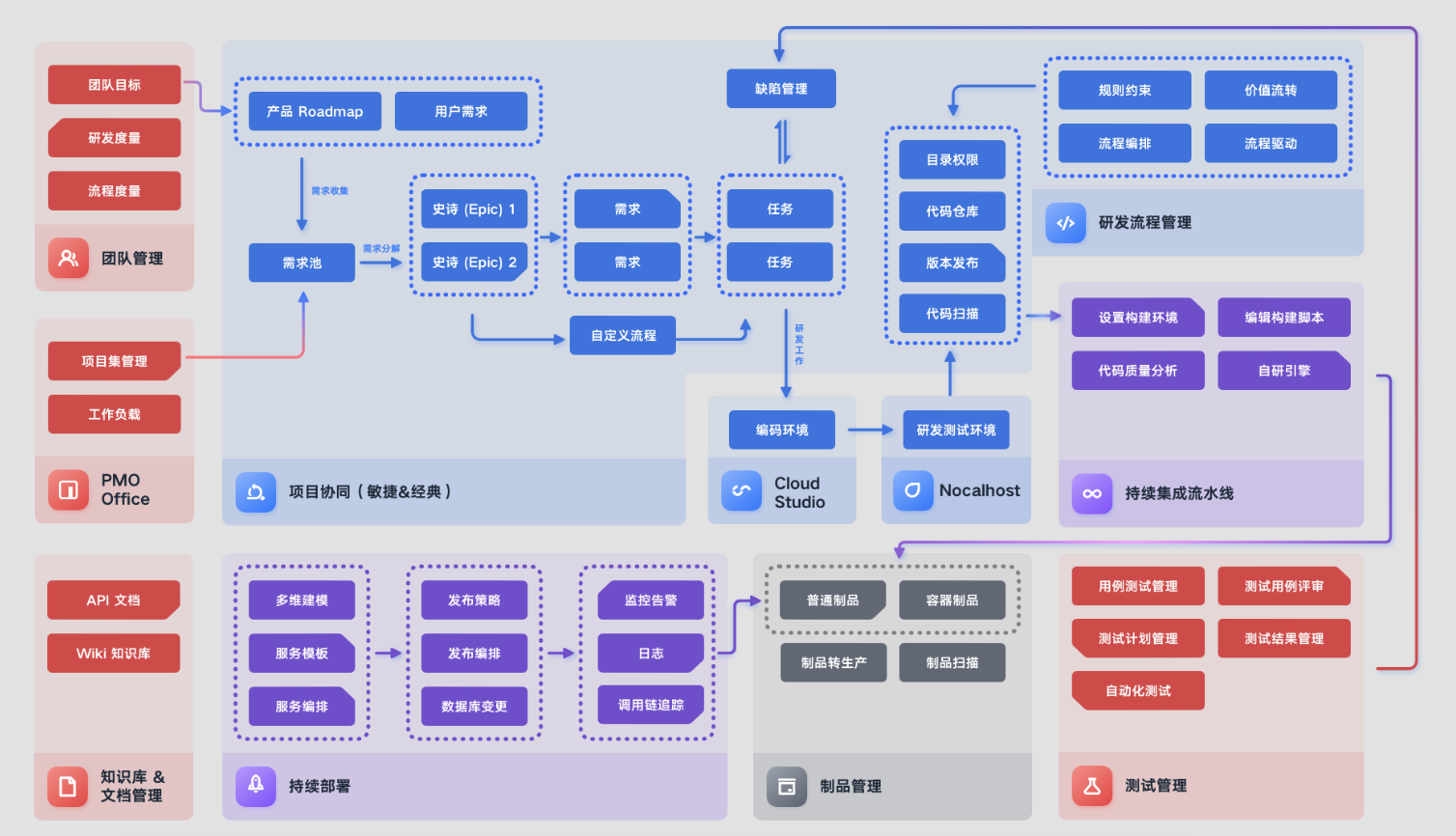

1.3、CODING DevOps features

CODING DevOps The platform mainly provides the following features ：

Team level functions ：

Team management ： Team administrators use visual The dashboard Can quickly grasp the work data of team members 、 Monitor the operation status of the project ; adopt Team goals Help team members focus on organizational goals , Comprehensive collaborative implementation , Gather the fighting power of the team , Let the strategy be firmly implemented ; utilize The workload Check and compare the workload and work arrangement of the members in a unified way ; utilize R & D metrics Count and analyze the distribution of team members' matters over a period of time 、 Overview 、 Code distribution and other data , Measure the workload and work dynamics of team members in the cycle .

Project level functions ：

Project collaboration ： The software development team is free to choose the appropriate R & D management mode , Support multi project management 、 Agile iteration management 、 demand management 、 Defect tracking 、 Multi dimensional report data and other functions .
Code warehouse ： Provide enterprise class Git/SVN Code management services , Support refined permission control 、 Multi branch parallel development 、 Multi version management and other functions .
Code scanning ： Provide code scanning solutions for different programming languages , Support scanning rules 、 Custom configuration of measurement rules . According to the code scanning test results , Developers can find code defects in time and make corrections , Effectively control code quality .
Continuous integration ： Provide cloud based automated code building 、 test 、 Analyze and deploy workflow services , Support the rapid creation and visual arrangement of construction tasks through templates , Greatly improve the construction efficiency of the software development team .
Continuous deployment ： Provide fully automated software deployment , sustainable 、 Controllably publish software products online to service clusters , Support blue-green distribution 、 Grayscale Publishing （ Release of canary ） And other release strategies .
Product management ： Provide cloud build product management services , Support cloud build and local build push , Archive structures can be quickly indexed 、 Version control .
Test management ： Provide a one-stop cloud testing platform for Agile Teams , Support visual test planning and multi-dimensional test reports , Meet the diverse needs of agile teams for the testing process .
Document management ： Provide flexible and easy-to-use document management services , It can be used to record the whole project , Show current project status , It also allows project members to better document and collaborate .

2、 Use process overview

The following flowchart shows CODING DevOps Basic operation process of software development platform , You can read selectively according to your actual needs .

2.1. Create or join a team

To start using CODING DevOps, You need to register to create or accept the invitation before joining a team .

2.2. New projects

After joining the team , You can create projects within the team or be invited to join other projects .“ project ” It is the core unit , Almost most of the work needs to be carried out in the project .

2.3. Start project collaboration

After the project is created , project manager 、 Development 、 Different project roles such as testing can realize simple and efficient project collaboration through project collaboration , Including iteration management 、 demand management 、 Task management, etc .

2.4. Use a code warehouse

After completing the project planning , Code warehouse can be used to manage project code . This function provides enterprise level based Git Cloud code management service , Support refined permission control 、 Multi branch parallel development 、 Multi version management and other functions .

2.5. Start code scanning

For the use of CODING Code warehouse management code , Developers can use the code scanning function to check the code , So that code defects can be found and corrected in time , Effectively control code quality .

2.6. Compiling and constructing

After the project code development is completed , Build tasks can be quickly created through continuous integration , Compile and package the project code into software packages .

2.7. Manage products

After you build the project code , You can use the artifact management function to manage build products .CODING Support multiple product library types , Include Docker、Maven、Helm and npm.

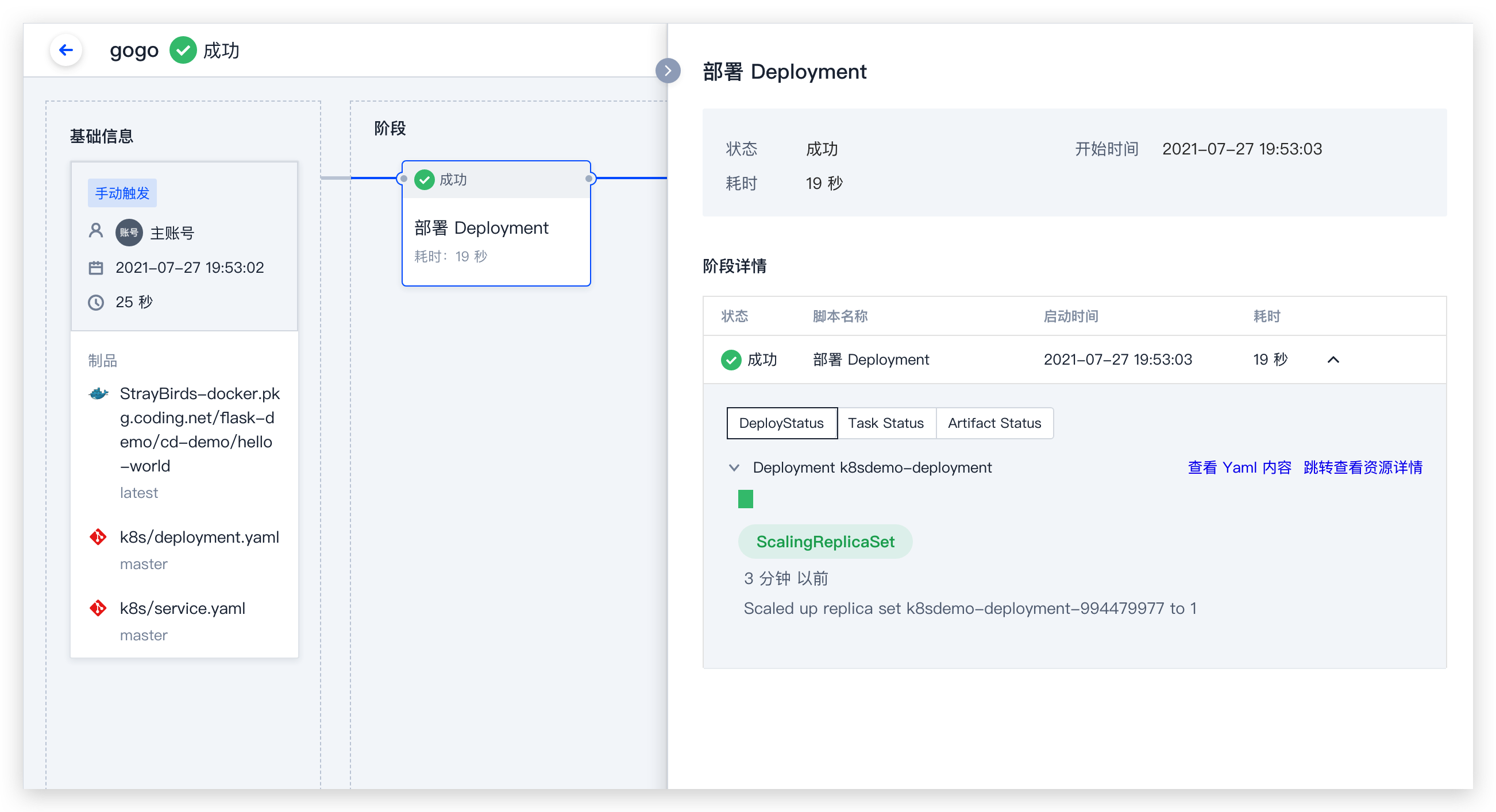

2.8. Implement continuous deployment

When your project code has been built , Continuous deployment can be used to control the release and deployment of the built project to the production environment .

2.9. Manage test cases

When you are in CODING After the platform creates the project , You can use the test management function for agile team to manage the test activities within the project , Ensure the high-quality delivery of products .

2.10. Manage project documentation

In progress , It is bound to produce a lot of information , And these information needs to be recorded 、 Pass on 、 Share . The document management function provides flexible and easy-to-use document management services , It can be used to record the whole project .

3、 ... and 、 Opening CODING DevOps

1、 Search for CODING DevOps

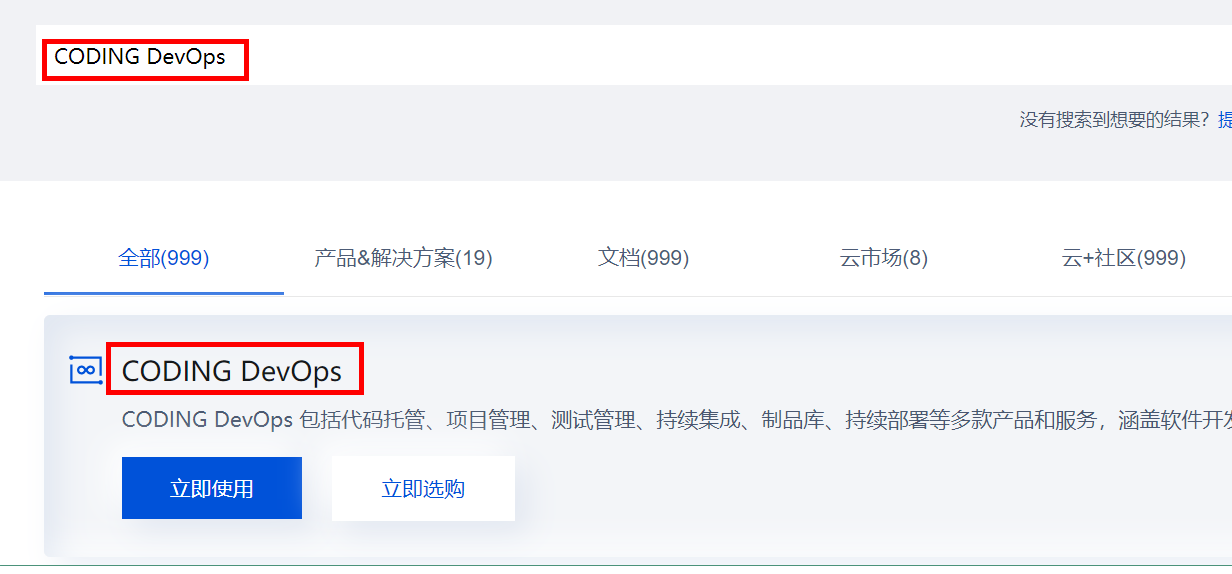

（1） Tencent cloud search CODING-DevOps

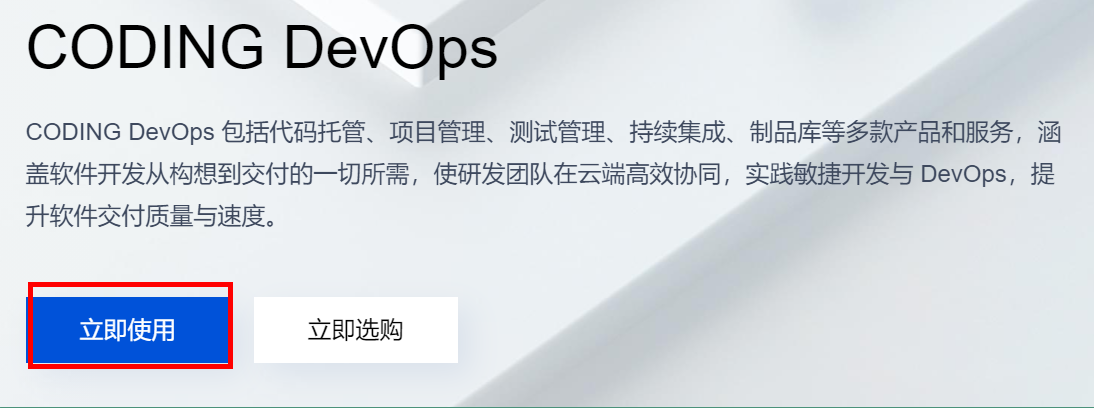

（2） Enter interface

2、 Open account

（1） There is no account for the first time , Go to open

（2） Product Authorization

（3） Input information , Mailbox validation

3、 Create a team

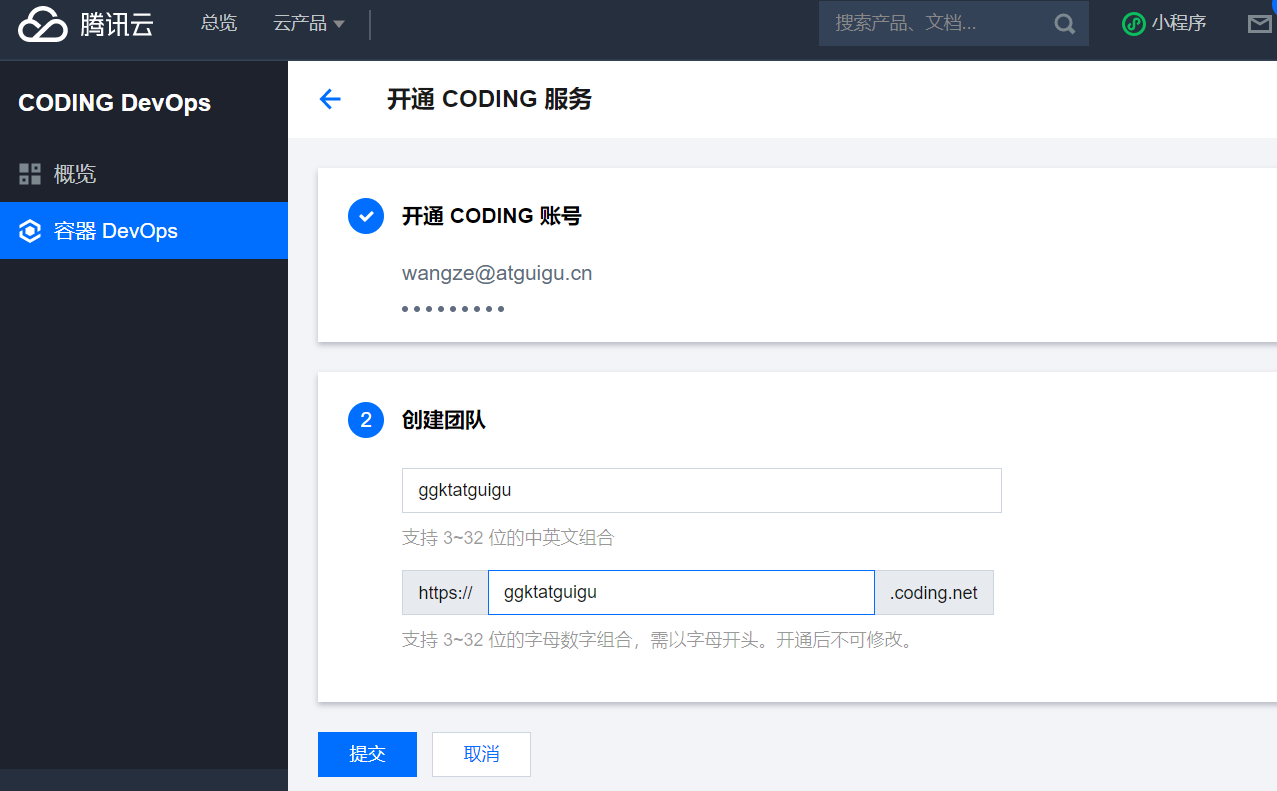

（1） Enter the team name to submit

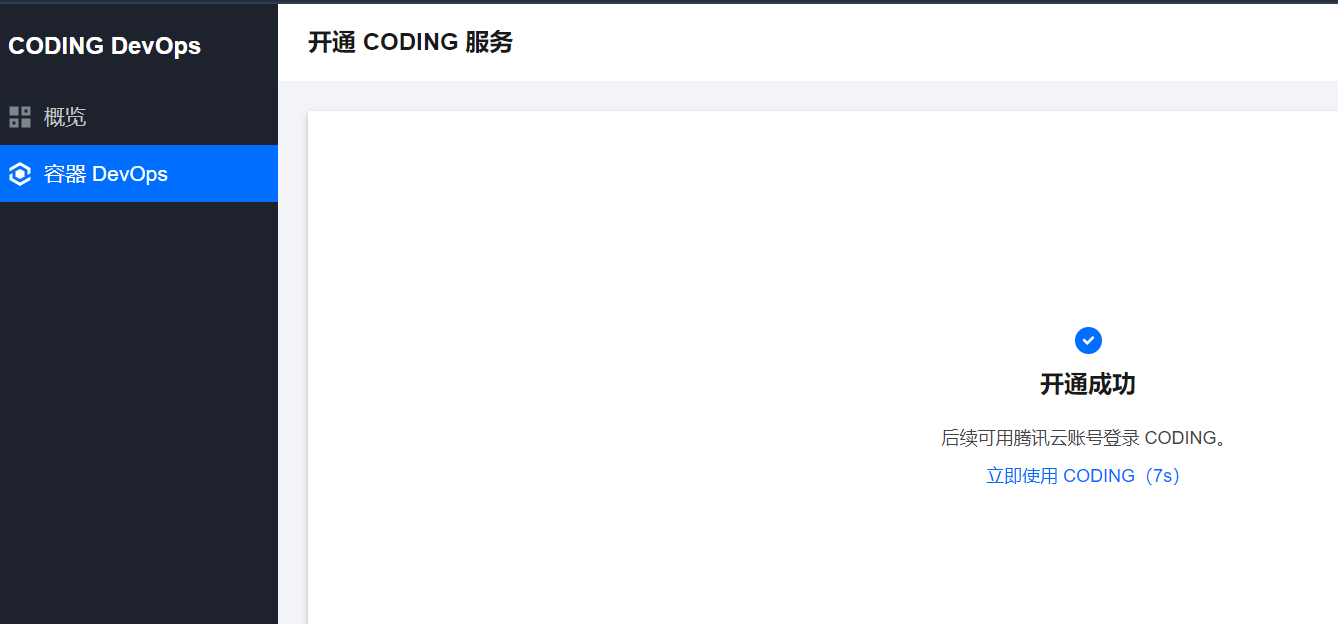

（2） Successful opening

（3） Click use now , Get into

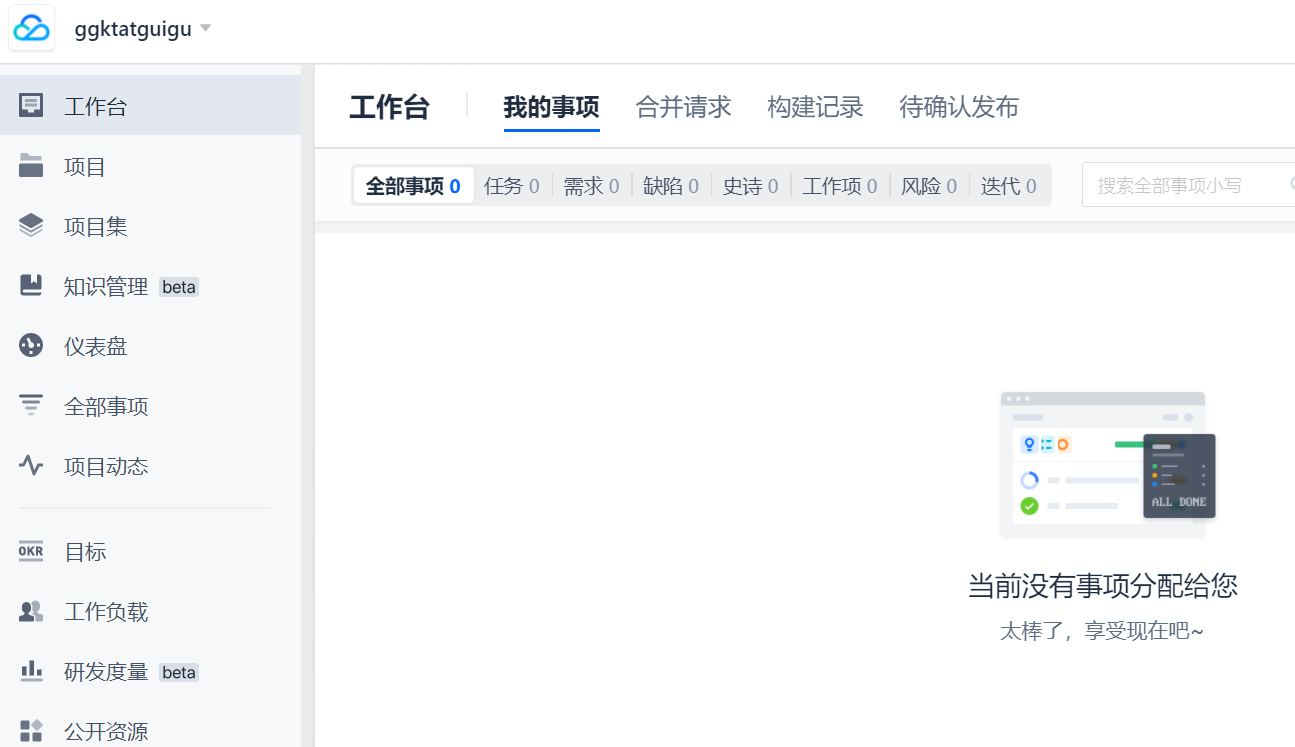

（4） Enter the worktable

Four 、 Use CODING DevOps

1、 Create project

stay CODING DevOps After the establishment of the platform team , Team members can create projects as needed . Only after the project is created , Project members can use Project collaboration 、 Code warehouse 、 Continuous integration 、 Continuous deployment And so on .

1.1、 Click create project

1.2、 Select project template

1.3、 Fill in the basic information of the project

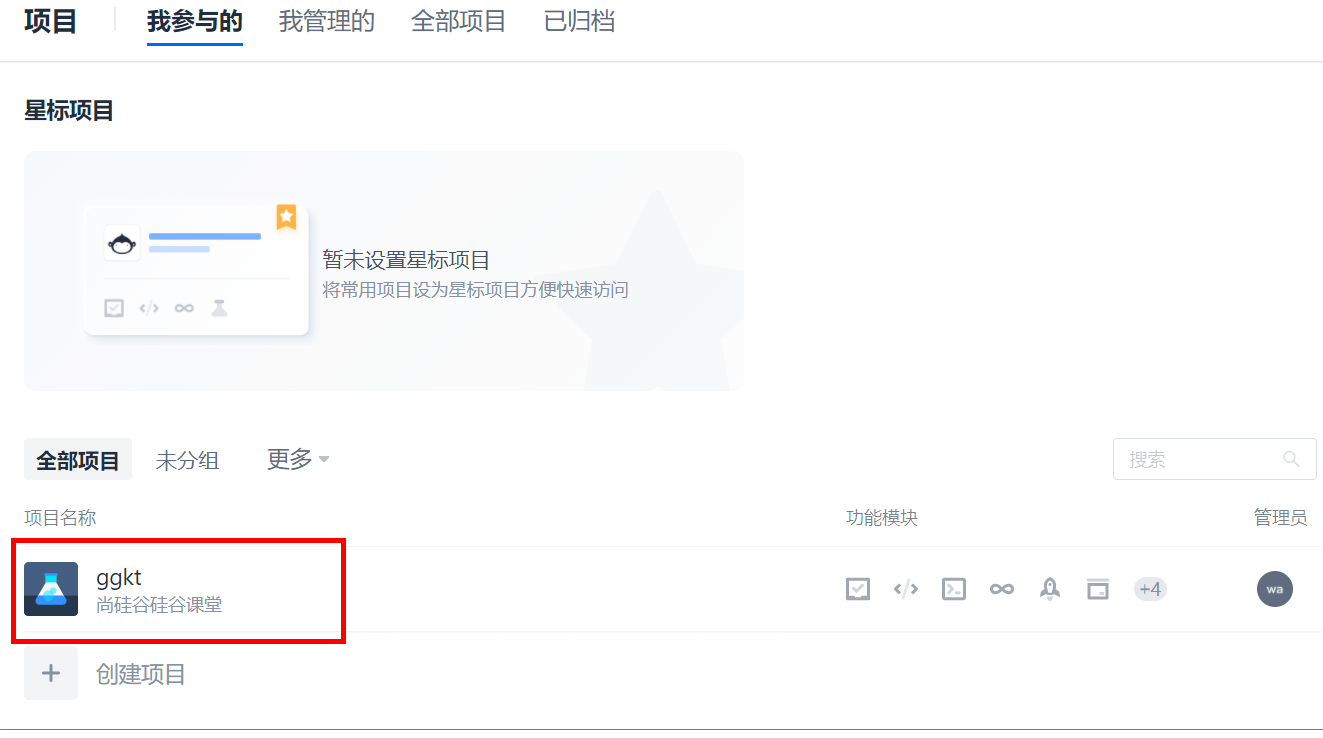

1.4、 Finish creating

2、 Project collaboration

2.1、 Project collaboration initialization

（1） Go to initialization

（2） Configure and enable project collaboration

Choose classic project management

2.2、 Specific implementation of project collaboration

（1） Click on the upper right corner to create an iteration

（2） Fill in the iteration information

（3） Click create and plan , Create requirements

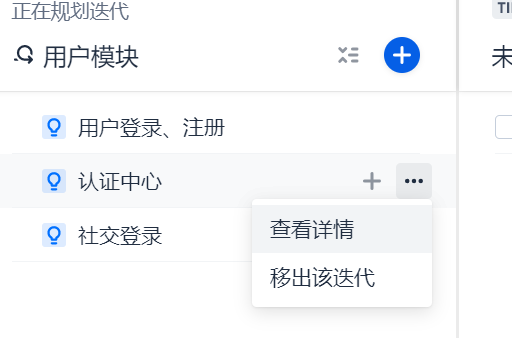

（4） Click for details

（5） Set iteration details

（6） effect

3、 Code warehouse

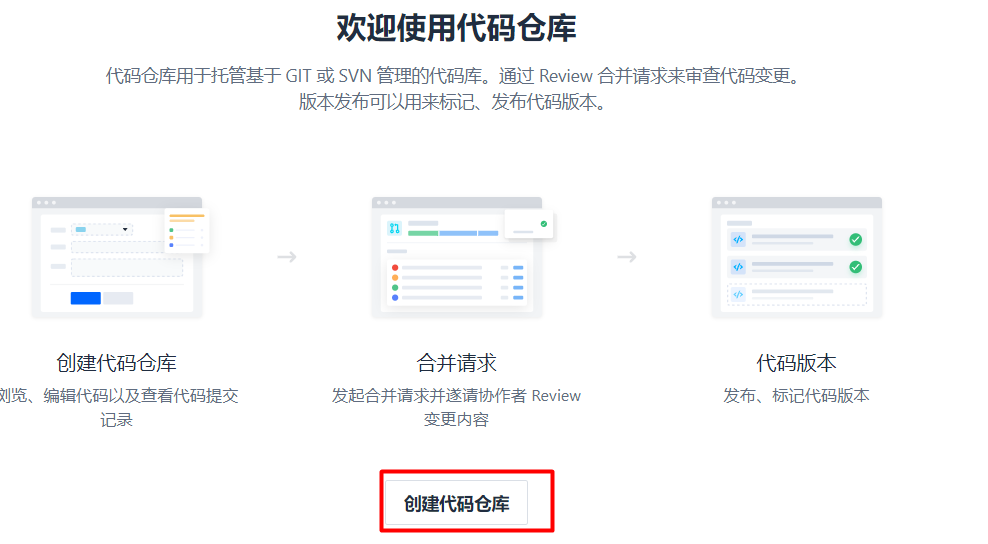

3.1、 Add warehouse

（1） Fill in the warehouse information

（2） Cloning of warehouse

Click clone

3.2、 Clone code repository to local

（1） stay Git Enter the clone command in the client

git clone < The code warehouse address you cloned >

After the first pull, you will be prompted to fill in the credentials , Fill in the registration here CODING The mailbox and password used when

After the command prompt is successful , You can make code changes in the local code warehouse .

3.3、 Push local code to CODING Warehouse

（1） stay Git client , Run the following three commands to push the code to CODING Code warehouse on the platform

git add .
git commit -m "< Your comments on this submission >"
git push git Warehouse address

（2） Create submission

（3） Get into cmd Window execution

（4） Check all submissions

3.4、 Push the project to the code warehouse

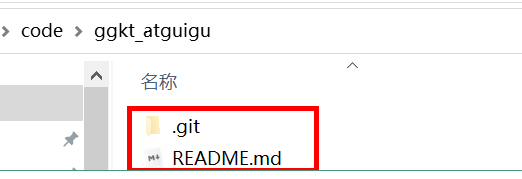

（1） Copy two files to the project directory

（2） Project path cmd Window execution

（3） See the effect

4、 Continuous integration

4.1、 Create a build plan

4.2、 Choose the type

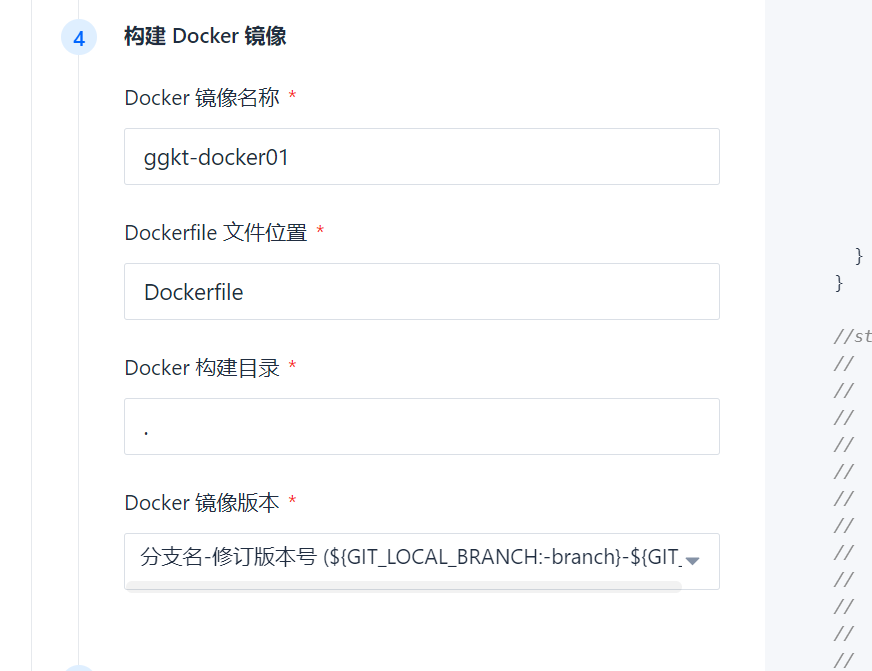

4.3、 Set build information
