Eureka notes

One , Service splitting and remote invocation

         Any distributed architecture is inseparable from the splitting of services , The same goes for microservices .

1. Service splitting principle

Here I have summarized several principles for splitting microservices ：

• Different microservices , Don't develop the same business repeatedly

• Microservice data independence , Do not access databases of other microservices

• Microservices can expose their business as interfaces , For other microservices to call

 2. Service splitting principle

cloud-demo： The parent project , Management dependence

• order-service： Order micro service , Responsible for order related business

• user-service： User microservices , Responsible for user related business

requirement ：

• Both order microservices and user microservices must have their own databases , Are independent of each other

• Both order service and user service are exposed Restful The interface of

• If the order service needs to query user information , Only user services can be called Restful Interface , Cannot query user database

3. Implementation of remote call cases

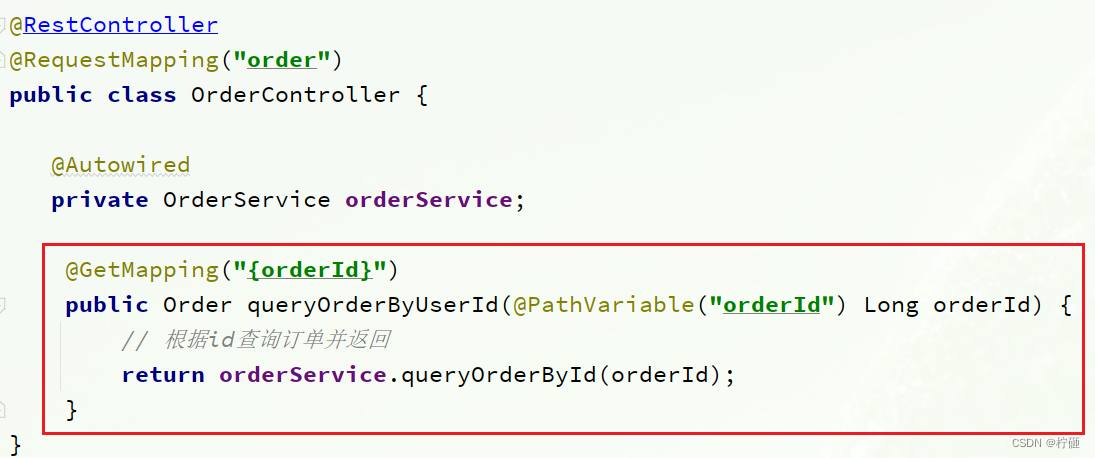

  stay order-service In service , There is a basis id Interface for querying orders ：

according to id Query order , The return value is Order object , Pictured ：



Among them user by null

stay user-service There is a basis in id Query user interface ：

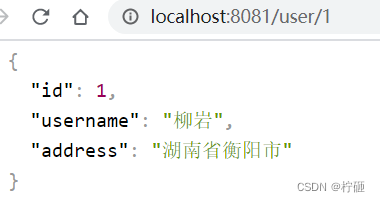

The result of the query is shown in the figure ：



3.1 Case needs ：

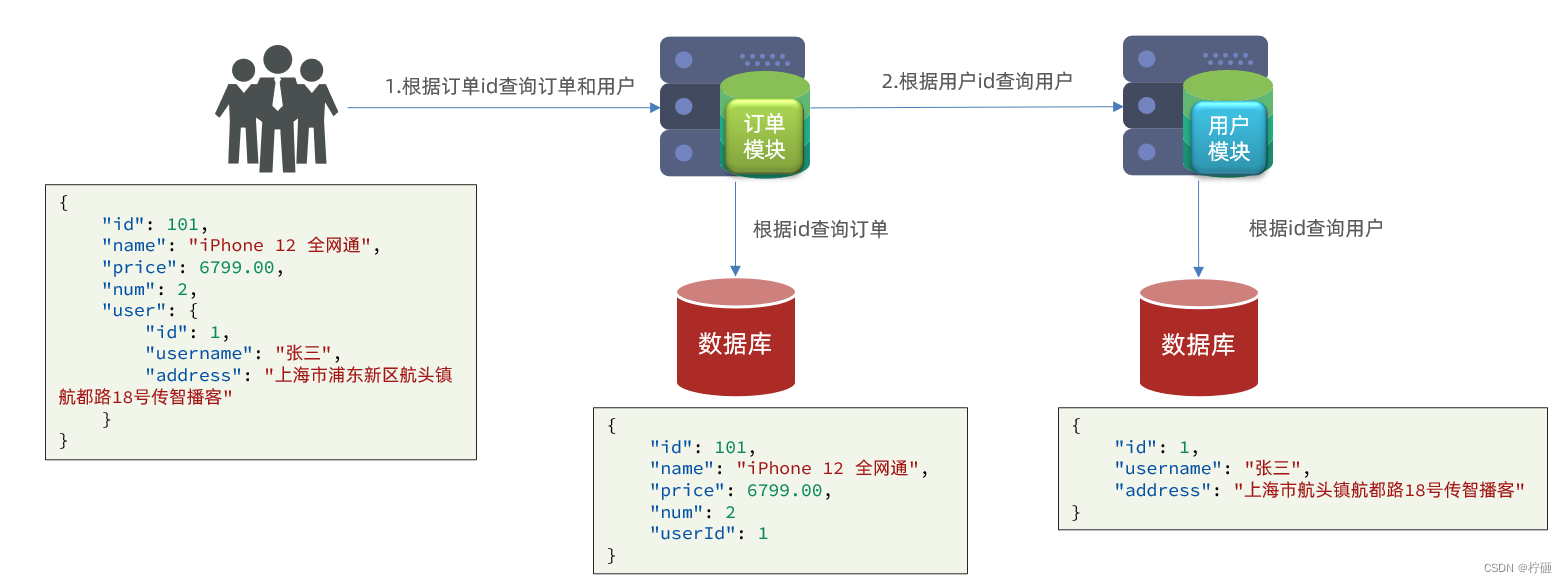

modify order-service According to id Query order business , It is required to query the order at the same time , According to... Included in the order userId Find out the user information , Back together .

therefore , We need to be in order-service in towards user-service To launch a http Request , call http://localhost:8081/user/{userId} This interface .

The general procedure is like this ：

• Sign up for a RestTemplate Instance to Spring Containers

• modify order-service In service OrderService Class queryOrderById Method , according to Order Object userId Inquire about User

• Will search for User Fill in Order object , Back together

3.2. register RestTemplate

First , We are order-service In service OrderApplication Start the class , register RestTemplate example ：

package cn.itcast.order;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@MapperScan("cn.itcast.order.mapper")
@SpringBootApplication
public class OrderApplication {

    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }
}

3.3. Implement remote call

modify order-service In service cn.itcast.order.service Under bag OrderService Class queryOrderById Method ：

4. Providers and consumers

In the service invocation relationship , There will be two different roles ：

Service providers ： In a business , Services invoked by other microservices .（ Provide interfaces to other microservices ）

Serving consumers ： In a business , Call the services of other microservices .（ Call interfaces provided by other microservices ）

however , The roles of service providers and service consumers are not absolute , But relative to the business .

If the service A Service called B, And the service B The service is called again C, service B What's your role ？

• about A call B For your business ：A It's about serving consumers ,B It's the service provider

• about B call C For your business ：B It's about serving consumers ,C It's the service provider

therefore , service B It can be either a service provider , It can also serve consumers .

5. The emergence of problems ：

If our service provider user-service Multiple instances deployed , Pictured ：

Let's think about a few questions ：

• order-service When initiating a remote call , How to know user-service Example of ip Address and port ？

• There are many. user-service Address of the instance ,order-service How to choose when calling ？

• order-service How to learn about a user-service Whether the instance is still healthy , Is it down ？

  Two ,Eureka The structure and function of

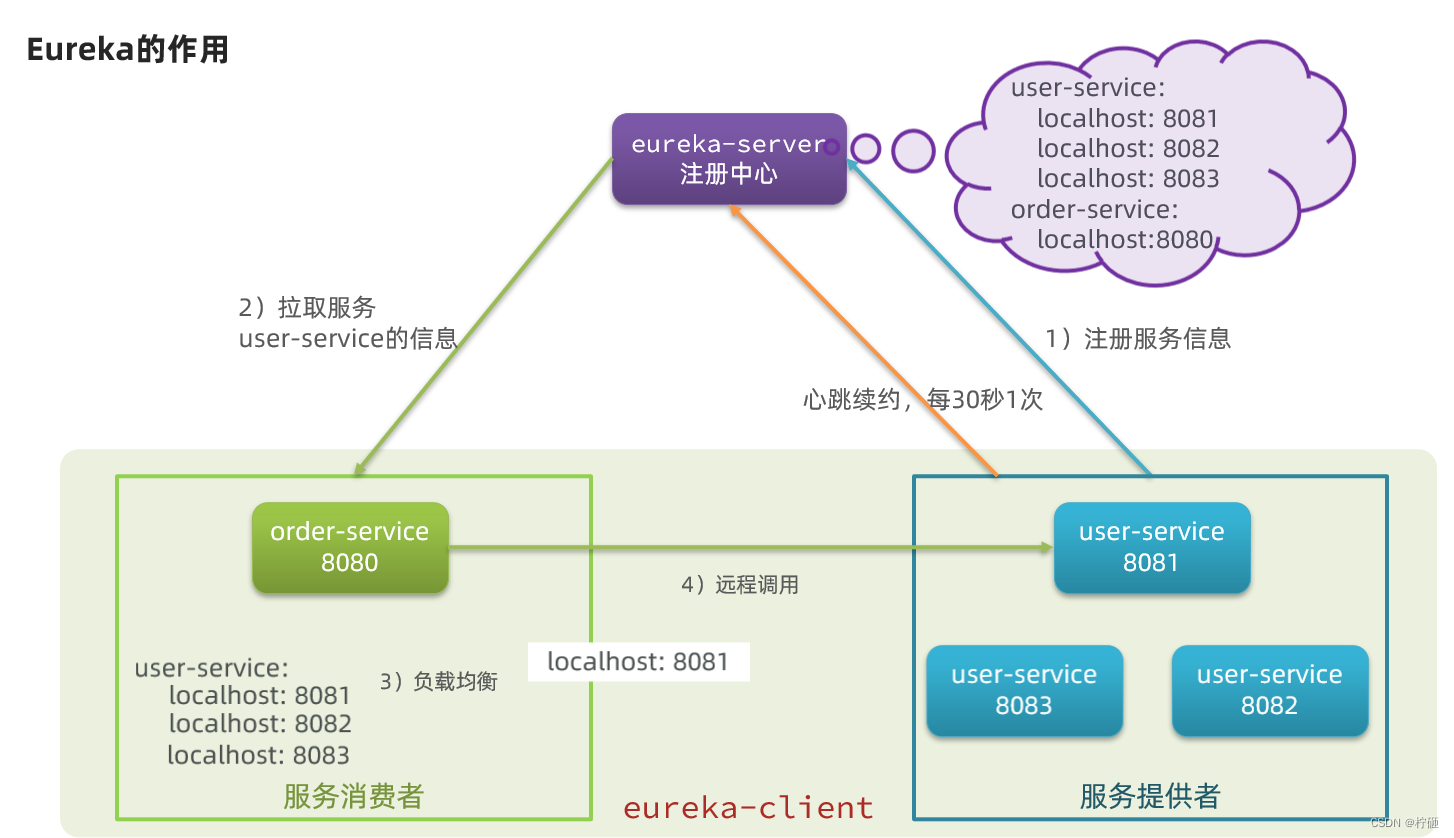

         These problems need to be used SpringCloud To solve the problem of , One of the most well-known registries is Eureka, Its structure is as follows ：



Answer the previous questions .

problem 1：order-service How to know user-service Address of the instance ？

The process of obtaining address information is as follows ：

• user-service After the service instance starts , Register your information with eureka-server（Eureka Server side ）. This is called service registration

• eureka-server Save the mapping relationship between service name and service instance address list

• order-service According to service name , Pull the instance address list . This is called service discovery or service pull

problem 2：order-service How to start from multiple user-service Select a specific instance from the instance ？

• order-service Select an instance address from the instance list using the load balancing algorithm

• Make a remote call to the instance address

problem 3：order-service How to learn about a user-service Whether the instance is still healthy , Is it down ？

• user-service Every once in a while （ Default 30 second ） towards eureka-server Initiate request , Report your status , It's called heartbeat

• When no heartbeat is sent over a certain period of time ,eureka-server It will be considered that the microservice instance has failed , Remove the instance from the service list

• order-service When pulling Services , You can eliminate the fault instance

Be careful ： A microservice , It can be either a service provider , It can also serve consumers , therefore eureka Register the service 、 Service discovery and other functions are uniformly encapsulated in eureka-client End

therefore , The next steps we implement include ：

 1. build eureka-server

First of all, let's register the service side of the center ：eureka-server, This must be an independent microservice

1.1. establish eureka-server service

stay cloud-demo Under the parent project , Create a sub module ：

 1.2. introduce eureka rely on

introduce SpringCloud by eureka Provided starter rely on ：

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>

1.3. Writing configuration files

  Write a application.yml file , The contents are as follows ：

server:
  port: 10086
spring:
  application:
    name: eureka-server
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka

1.4. Start the service

Start microservices , Then visit the ：http://127.0.0.1:10086

See the following results should be successful ：

 2. Service registration

below , We will user-service Sign up to eureka-server In the middle .

1） Introduce dependencies

stay user-service Of pom In file , Introduce the following eureka-client rely on ：

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

2） The configuration file

stay user-service in , modify application.yml file , Add service name 、eureka Address ：

spring:
  application:
    name: userservice
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka

3） Start multiple user-service example （ It's just a demonstration ）

To demonstrate a scenario where a service has multiple instances , Let's add a SpringBoot Start configuration of , Start one more user-service.

First , Copy the original user-service A launch configuration ：



then , In the pop-up window , Fill in information ：



Now? ,SpringBoot Two windows appear user-service A launch configuration ：



however , The first is 8081 port , The second is 8082 port .

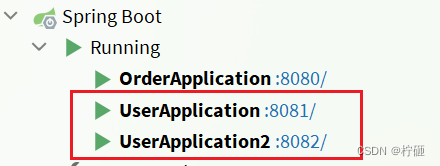

Start two user-service example ：



see eureka-server Manage Pages ：

 3. Service discovery

below , We will order-service Logic modification of ： towards eureka-server Pull user-service Information about , Implementing service discovery .

1） Introduce dependencies

I said before , Service discovery 、 Service registration is uniformly encapsulated in eureka-client rely on , Therefore, this step is consistent with the service registration .

stay order-service Of pom In file , Introduce the following eureka-client rely on ：

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

2） The configuration file

Service discovery also needs to know eureka Address , Therefore, the second step is consistent with the service registration , It's all configuration eureka Information ：

stay order-service in , modify application.yml file , Add service name 、eureka Address ：

spring:
  application:
    name: orderservice
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka

3） Service pull and load balancing

Last , We're going eureka-server Middle pull user-service List of instances of the service , And load balancing .

But we don't have to do these moves , Just add some comments .

stay order-service Of OrderApplication in , to RestTemplate This Bean Add one @LoadBalanced annotation ：

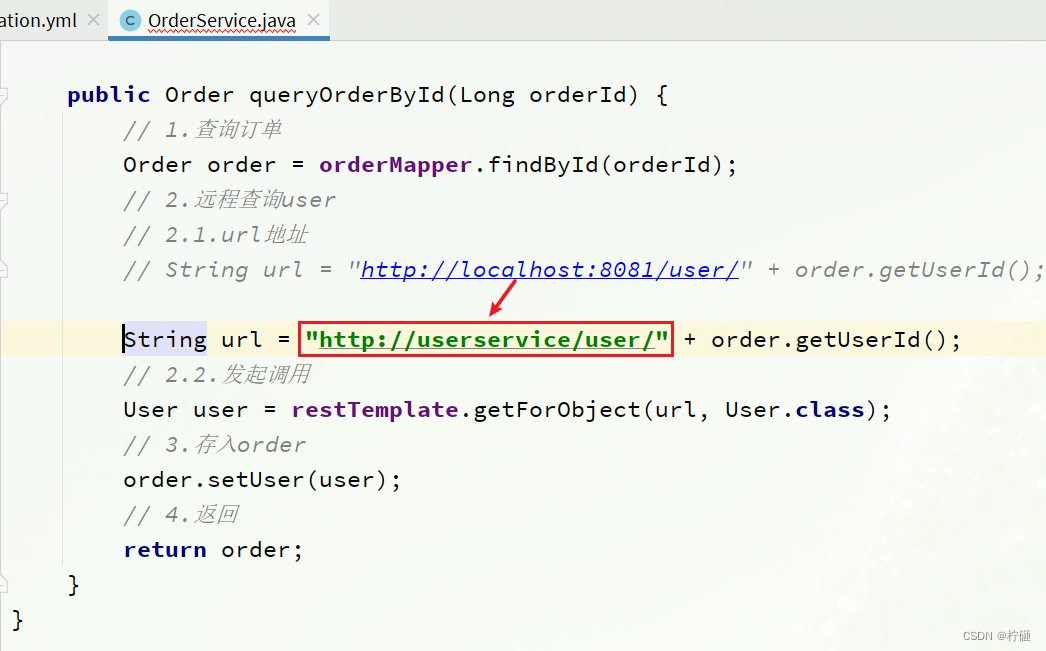

  modify order-service In service cn.itcast.order.service Under bag OrderService Class queryOrderById Method . Modify access url route , Use the service name instead of ip、 port ：

spring Will automatically help us from eureka-server End , according to userservice This service name , Get instance list , Then load balancing is completed .
