Install MariaDB columnstore (version 10.3)

2022-07-24 11:34:00 【Yabingshi】

One ColumnStore framework

MariaDB ColumnStore It is a columnar storage engine using large-scale parallel distributed data architecture , For example, for big data analysis . It is an in-line storage system , By way of InfiniDB 4.6.7 Migration to MariaDB structure .

from MariaDB 10.5.4 Start , It can be used as MariaDB Server's storage engine . Before that , It can only be downloaded separately .

It is designed for big data expansion , Processable number PB The data of 、 Linear scalability and excellent performance , And real-time response to analysis query . It makes use of columnar storage 、 Compress 、 Instant projection and horizontal and vertical zoning I/O advantage , Provides tremendous performance when analyzing large datasets .

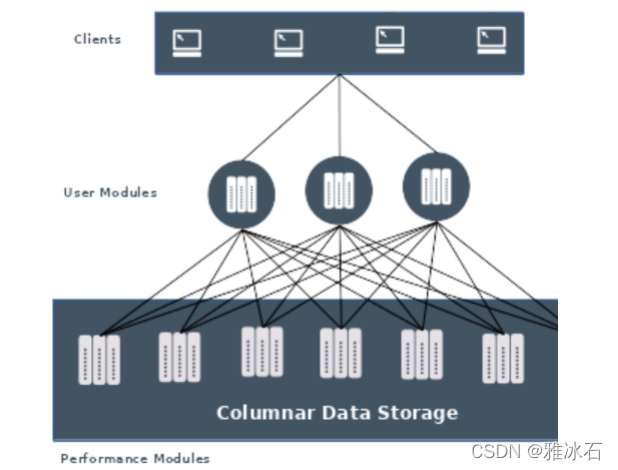

MariaDB ColumnStore Deployment consists of multiple MariaDB Server composition , Run as a module , Work together to provide linear scalability and superior performance , And respond to analysis and query in real time . These modules include User, Performance and Storage

Columnar storage organizes the data of each column .

Comparison between row storage and column storage ：

User module

User module yes MariaDB Server instance , Configured as ColumnStore The front end of the system runs .

The server runs many additional processes to handle concurrent extensions . When the client queries the server , The storage engine passes the query to one of these processes , Then these processes decompose SQL Request and distribute parts to one or more Performance module To process queries and read from storage . The user module then collects the query results and assembles them into the result set to return to the client

Performance module

Performance module Responsible for the storage 、 Retrieve and manage data , Processing block requests for query operations , And pass it back to the user module or module to complete the query request .

The module selects data from the disk and caches it in a non shared buffer , The buffer is part of the server on which it runs . You can configure any number of performance modules as needed . Each add-on increases the cache size of the entire database and the processing power available to you .

process

Manage and monitor processes

Process manager or ProcMgr Is responsible for starting 、 Monitor and restart all on the performance module MariaDB The process of the column storage process .

To achieve this ,ProcMgr Use process monitor or on each performance module ProcMon To keep track of MariaDB ColumnStore process .

Processing queries

Main process or PrimProc Processing queries . User module The query from the application is processed into instructions sent to the performance module .PrimProc Treat these instructions as block oriented I/O Operation execution , Filter by executing predicates 、 Connection processing and initial aggregation of data , after PrimProc Send the data back to the user module .

Perform load and write

The performance module handles the loading and writing of the underlying persistent storage . It uses two processes to deal with this problem ：WriteEngineServer and cpimport.

WriteEngineServer Coordinate... On each performance module DML、DDL And import .DDL The changes remain unchanged in the system directory , This directory tracks all columns and stores metadata .

Both the user and the performance module use cpimport. On the performance module , It updates the database file when bulk data is loaded . This allows ColumnStore Support full parallel loading .

No shared data cache

The performance module uses no shared data cache . When it first accesses data , It will follow the user module Operate on the data according to the instructions of , And cache it based on LRU In the buffer of , For subsequent visits .

When the performance module is running on a dedicated server , You can dedicate most of the available data to this data cache . Because the performance module cache is a shareless design ：

There are no data blocks between participating performance module nodes ping（ Sometimes in other instances / Occurs in a shared disk database system ）.
The more performance module nodes are added to the system , The larger the overall cache size of the database .

Fail over

The use of multiple Performance Module Node deployment MariaDB ColumnStore when , The heartbeat mechanism ensures that all nodes are online , And transparent failover when a specific node fails , No human intervention is required .

When the failed performance module comes back online ,ColumnStore Will automatically re apply it to the configuration and start using it to work .

Storage module

You can use local storage （ namely Performance module ） Or shared storage （ for example SAN） To store data . stay Amazon EC2 Environment , You can use temporary or elastic blocks to store (EBS) volume . When data redundancy is required for non shared deployment , You can compare it with GlusterFS Integrate .

Storage architecture

When you are in MariaDB ColumnStore When creating a table on , The system will create at least one file for each column in the table .

You write ColumnStore The data of the table is stored in DB Roots Medium Performance Modules in , These modules are located in /usr/local/mariadb/columnstore/datax

ColumnStore System libraries

Database	Description
calpontsys	maintain ColumnStore surface Of Metadata Information
infinidb_querystats	Information about query performance
infinidb_vtable	Database used to create temporary tables during query execution . The database exists only in ColumnStore 1.2 And below . In these versions , perform ColumnStore The query user must CREATE TEMPORARY TABLE Have permissions on this database .
columnstore_info	Used to retrieve information about ColumnStore Database of usage information .

Two install 10.3 edition Of mariadb columnStore

Because we use 10.3.18 Version of mariadb, So here is a version of columnStore.

2.1 Install dependency packages

yum -y install epel-release jemalloc boost

2.2 install columnStore

2.2.1 download

Download address ：

ColumnStore - MariaDB.

2.2.2 install

tar -xvf mariadb-columnstore-1.2.5-1-centos7.x86_64.bin.tar.gz -C /usr/local/

/usr/local/mariadb/columnstore/bin/post-install

2.2.3 To configure

/usr/local/mariadb/columnstore/bin/postConfigure

The others I chose to enter .

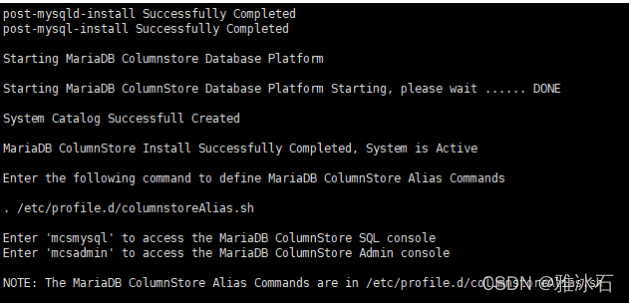

The final output as follows , Indicates successful installation ：

source /usr/local/mariadb/columnstore/bin/columnstoreAlias

# You can see columnStore It takes up a lot of ports ：

2.3 Connect columnstore

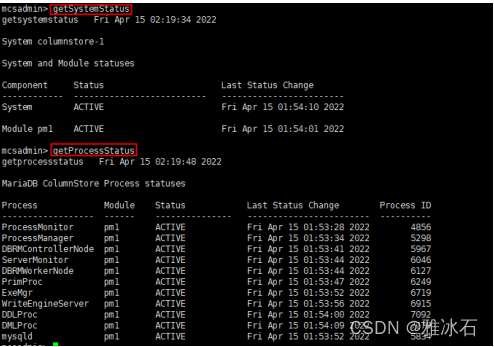

2.3.1 mcsadmin

2.3.2 mcsmysql

create database mcs;

use mcs;

create table idbtest(col1 int, col2 int) engine=columnstore;

show create table idbtest;

insert into idbtest values (1, 2);

insert into idbtest values (3, 4);

select * from idbtest;

3、 ... and Configure password authentication

Because the default password is empty , You can log in without secret , So you need to set the password

update mysql.user set password=password('123456') where user='root';

# Delete anonymous users

delete from mysql.user where user='';

flush privileges;

# Create an administrator account that allows remote connections

grant all privileges on *.* to 'root'@'%' identified by '123456';

After setting up the account , You can use the database connection tool to connect columnStore 了（ Connection mode and common connection mysql equally ）

# Create a normal account

A little

# Authorize... For ordinary accounts

ColumnStore Use the name infinidb_vtable To create a dedicated library for ColumnStore All temporary tables for query processing . By default ,root The user account has been granted permissions to this account , However, all user accounts must be granted permissions to this library ：

GRANT CREATE TEMPORARY TABLES ON infinidb_vtable.* TO user ;
