OSS file upload

1. Disadvantages of uploading files to local servers

        1. When our server restarts , Or when closed , The files we upload to the server will disappear

        2. When our server group is , If I first visited A The server , Upload my files to A The server , When I visited for the second time , I'm not visiting A The server , It is B The server , Then I can't access my files

2. How to solve the shortcomings of local servers

        1. Build a file server by yourself , Put all the documents in it

        2. Use third-party tools

3. Upload ordinary files to OSS

        1. introduce OSS rely on

 <dependencies>
<!--OSS Dependence -->
    <dependency>
      <groupId>repMaven.commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.4</version>
    </dependency>
<!--MVC Dependence -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.13.2.2</version>
    </dependency>
    <dependency>
      <groupId>repMaven.javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>RELEASE</version>
      <scope>compile</scope>
    </dependency>
<dependency>
      <groupId>com.aliyun.oss</groupId>
      <artifactId>aliyun-sdk-oss</artifactId>
      <version>3.10.2</version>
    </dependency>
  </dependencies>

        2. Code writing

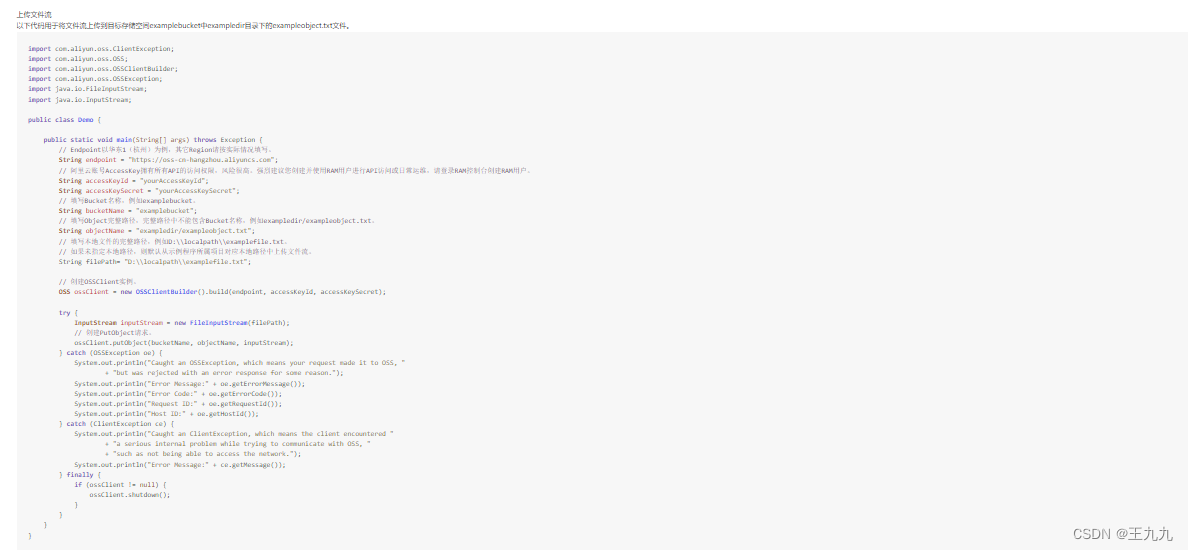

                You can find it in Alibaba cloud's product documentation





Code ：

import com.aliyun.oss.ClientException;
import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.OSSException;
import java.io.FileInputStream;
import java.io.InputStream;

public class Demo {

    public static void main(String[] args) throws Exception {
        // Endpoint East China 1（ Hangzhou ） For example , Other Region Please fill in according to the actual situation .
        //endpoint  Find one's own bucked The catalog of    Click the name of your bag , Then click overview , Yes endpoint Internet address
        String endpoint = "https://oss-cn-hangzhou.aliyuncs.com";
        //  Alicloud account AccessKey Have all the API Access rights of , The risk is high . It is highly recommended that you create and use it RAM The user carries out API Visit or daily operations , Please log in RAM Console creation RAM user .
        // My secret key
        String accessKeyId = "yourAccessKeyId";
        String accessKeySecret = "yourAccessKeySecret";
        //  Fill in Bucket name , for example examplebucket.
        String bucketName = "examplebucket";
        //  Fill in Object The full path , The full path cannot contain Bucket name , for example exampledir/exampleobject.txt.
        String objectName = "exampledir/exampleobject.txt";
        //  Fill in the full path of the local file , for example D:\\localpath\\examplefile.txt.
        //  If no local path is specified , By default, the file stream is uploaded from the local path corresponding to the project to which the sample program belongs .
        String filePath= "D:\\localpath\\examplefile.txt";

        //  establish OSSClient example .
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        try {
            InputStream inputStream = file.getInputStream(filePath);
            //  establish PutObject request .
            ossClient.putObject(bucketName, objectName, inputStream);
        } catch (OSSException oe) {

        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
    }
}

2.elementui Asynchronous upload OSS The server

1. front end

<%--
  Created by IntelliJ IDEA.
  User: ykq
  Date: 2022/6/9
  Time: 15:53
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
    <!-- introduce element have to css style -->
    <link type="text/css" rel="stylesheet" href="css/index.css"/>
    <!-- introduce vue have to js file   This has to be element Introduced before -->
    <script type="text/javascript" src="js/vue.js"></script>
    <script type="text/javascript" src="js/qs.min.js"></script>
    <script type="text/javascript" src="js/axios.min.js"></script>
    <!--element have to js file -->
    <script type="text/javascript" src="js/index.js"></script>
</head>
<body>
    <div id="app">
        <%--action： File upload path --%>
        <el-upload
                class="avatar-uploader"
                action="/login"
                :show-file-list="false"
                :on-success="handleAvatarSuccess"
                :before-upload="beforeAvatarUpload">
            <img v-if="imageUrl" :src="imageUrl" class="avatar">
            <i v-else class="el-icon-plus avatar-uploader-icon"></i>
        </el-upload>
    </div>
</body>
<script>
     var app=new Vue({
           el:"#app",
           data:{
               imageUrl:"",
           },
           methods:{
               // Method triggered after successful upload
               handleAvatarSuccess(res, file) {
                   this.imageUrl=res.data;
               },
               // Method triggered before uploading
               beforeAvatarUpload(file) {
                   const isJPG = file.type === 'image/jpeg';
                   const isPNG = file.type === 'image/png';
                   const isLt2M = file.size / 1024 / 1024 < 2;
                   if (!isJPG) {
                       this.$message.error(' Uploading a picture of your head can only be  JPG  Format !');
                   }
                   if (!isLt2M) {
                       this.$message.error(' The size of the uploaded image cannot exceed  2MB!');
                   }
                   return isJPG && isLt2M;
               }
           }
     })
</script>

<style>
    .avatar-uploader .el-upload {
        border: 1px dashed #d9d9d9;
        border-radius: 6px;
        cursor: pointer;
        position: relative;
        overflow: hidden;
    }
    .avatar-uploader .el-upload:hover {
        border-color: #409EFF;
    }
    .avatar-uploader-icon {
        font-size: 28px;
        color: #8c939d;
        width: 178px;
        height: 178px;
        line-height: 178px;
        text-align: center;
    }
    .avatar {
        width: 178px;
        height: 178px;
        display: block;
    }
</style>
</html>

Back end

package com.ykq.utils;

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import org.springframework.web.multipart.MultipartFile;

import java.io.InputStream;
import java.util.Calendar;
import java.util.UUID;

/**
 * @program: qy151-springmvc-upload
 * @description:
 * @author:  Yan Keqi 2
 * @create: 2022-06-10 16:00
 **/
public class OSSUtils {

    public static String upload(MultipartFile file){
        // Endpoint East China 1（ Hangzhou ） For example , Other Region Please fill in according to the actual situation .
        String endpoint = "oss-cn-hangzhou.aliyuncs.com";

        //LTAI78XQAZq2s5Rv
        //qdyZxR0x4LoUpTVbuyvCGdcrhEyw7H
        //  Alicloud account AccessKey Have all the API Access rights of , The risk is high . It is highly recommended that you create and use it RAM The user carries out API Visit or daily operations , Please log in RAM Console creation RAM user .
        String accessKeyId = "LTAI78XQAZq2s5Rv";
        String accessKeySecret = "qdyZxR0x4LoUpTVbuyvCGdcrhEyw7H";
        //  Fill in Bucket name , for example examplebucket.
        String bucketName = "jiu99";
        // You upload to oss The name after   Will help you create folders according to the date .  Call the following method to get the name of the file after uploading
        String objectName =fileName(file);
        //  establish OSSClient example .
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        try {
            InputStream inputStream =file.getInputStream();
            //  establish PutObject request .
            ossClient.putObject(bucketName, objectName, inputStream);
        } catch (Exception oe) {

        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
        //https://qy151.oss-cn-hangzhou.aliyuncs.com/2022/6/10/20d3d7e6b5bb455cb548675501f7270fgdnj.jpg
        String url="https://"+bucketName+"."+endpoint+"/"+objectName;
        return url;
    }

    // Get uploaded to oss The name after
    private static String fileName(MultipartFile file){
        Calendar calendar=Calendar.getInstance();
        String name=calendar.get(Calendar.YEAR)+"/"+(calendar.get(Calendar.MONTH)+1)+"/"+
                calendar.get(Calendar.DATE)+"/"+ UUID.randomUUID().toString().replace("-","")+
                file.getOriginalFilename();

        return name;
    }
}

Interface

@RequestMapping("/login")
    @ResponseBody
    public Map upload04(MultipartFile file) {
        try {
            String url = OSSUtils.upload(file);
            Map map = new HashMap();
            map.put("code", 2000);
            map.put("msg", " Upload successful ");
            map.put("data", url);
            return map;
        } catch (Exception e) {
            e.printStackTrace();
        }
        HashMap map = new HashMap();
        map.put("code", 5000);
        map.put("msg", " Upload failed ");
        return map;
    }

Save user information -- Head portrait

        1. Create a new project

        2. Introduce the relevant dependencies we need

<dependencies>

    <dependency>
      <groupId>repMaven.commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.4</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.15.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.13.2.2</version>
    </dependency>
    <dependency>
      <groupId>repMaven.javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>RELEASE</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>com.aliyun.oss</groupId>
      <artifactId>aliyun-sdk-oss</artifactId>
      <version>3.10.2</version>
    </dependency>
  </dependencies>

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
  <filter>
    <filter-name>b</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>b</filter-name>
    <url-pattern>/**</url-pattern>
  </filter-mapping>
  <servlet>
    <servlet-name>a</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring.xml</param-value>
    </init-param>
  </servlet>
  <servlet-mapping>
    <servlet-name>a</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

        3. The configuration file

 <context:component-scan base-package="guan"/>
    <mvc:annotation-driven/>
    <mvc:default-servlet-handler/>
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="12485760"/>
    </bean>

4. Front page

<%--
  Created by IntelliJ IDEA.
  User: lenovo
  Date: 2022/6/10
  Time: 21:10
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
    <title>Title</title><script type="text/javascript" src="js/vue.js"></script>
    <script type="text/javascript" src="js/axios.min.js"></script>
    <link type="text/css" rel="stylesheet" href="css/index.css">
    <script type="text/javascript" src="js/index.js"></script>
    <script type="text/javascript" src="js/qs.min.js"></script>
    <style>
        .avatar-uploader .el-upload {
            border: 1px dashed #d9d9d9;
            border-radius: 6px;
            cursor: pointer;
            position: relative;
            overflow: hidden;
        }
        .avatar-uploader .el-upload:hover {
            border-color: #409EFF;
        }
        .avatar-uploader-icon {
            font-size: 28px;
            color: #8c939d;
            width: 178px;
            height: 178px;
            line-height: 178px;
            text-align: center;
        }
        .avatar {
            width: 178px;
            height: 178px;
            display: block;
        }
    </style>
</head>
<body>
    <div id="app">
        <el-form label-width="80px" :model="user">
            <el-form-item label=" Head portrait ">
                <el-upload
                        class="avatar-uploader"
                        action="login"
                        :show-file-list="false"
                        :on-success="handleAvatarSuccess"
                        :before-upload="beforeAvatarUpload">
                    <img v-if="imageUrl" :src="imageUrl" class="avatar">
                    <i v-else class="el-icon-plus avatar-uploader-icon"></i>
                </el-upload>
            </el-form-item>
            <el-form-item label=" full name ">
                <el-input v-model="user.name"></el-input>
            </el-form-item>
            <el-form-item label=" Age ">
                <el-input v-model="user.age"></el-input>
            </el-form-item>
            <el-form-item label=" Gender ">
                <el-input v-model="user.sex"></el-input>
            </el-form-item>
            <el-button type="primary" @click="submitForm"> Upload </el-button>
        </el-form>
    </div>
<script>
    var app=new Vue({
        el:"#app",
        data:{
            imageUrl:"",
            user:{},
        },
        methods: {
            submitForm(){
                // Click on the submit , To return the data to the background
                axios.post("add",this.user).then(function(result){

                })
            }
            ,handleAvatarSuccess(res, file) {
                // Echo to page
                this.imageUrl=res.data;
                // Save the path of the picture to user in
                this.user.image=this.imageUrl
            },
            beforeAvatarUpload(file) {
                const isJPG = file.type === 'image/jpeg';
                const isLt2M = file.size / 1024 / 1024 < 2;

                if (!isJPG) {
                    this.$message.error(' Uploading a picture of your head can only be  JPG  Format !');
                }
                if (!isLt2M) {
                    this.$message.error(' The size of the uploaded image cannot exceed  2MB!');
                }
                return isJPG && isLt2M;

            }
        }
    })
</script>
</body>
</html>

5. Entity class

@Data
@NoArgsConstructor
@AllArgsConstructor
public class USer {
    private String name;
    private String sex;
    private int age;
}

6.commonResult

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult {
    private int code;
    private String msg;
    private Object data;
}

7. Introduce tool classes

package guan.util;

import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import org.springframework.web.multipart.MultipartFile;

import java.io.InputStream;
import java.util.Calendar;
import java.util.UUID;

/**
 * TODO
 *
 * @author lenovo
 * @version 1.0
 * @since 2022-06-10  19:06:48
 */

public class OSSUtil {
    public static String main(MultipartFile file) {
        // Endpoint East China 1（ Hangzhou ） For example , Other Region Please fill in according to the actual situation .
        String endpoint = "oss-cn-hangzhou.aliyuncs.com";
        //  Alicloud account AccessKey Have all the API Access rights of , The risk is high . It is highly recommended that you create and use it RAM The user carries out API Visit or daily operations , Please log in RAM Console creation RAM user .
        //LTAI5t7TZyWEmSktcmMVFcJr
        //OiRHuQYnoyjgqi9nBdrbHmthMWqESp
        String accessKeyId = "LTAI5t7TZyWEmSktcmMVFcJr";
        String accessKeySecret = "OiRHuQYnoyjgqi9nBdrbHmthMWqESp";
        //  Fill in Bucket name , for example examplebucket.
        String bucketName = "jiu99";
        //  Fill in Object The full path , The full path cannot contain Bucket name , for example exampledir/exampleobject.txt.
        // Create date object

        // Time + Random real name of an uploaded file
        String objectName =filename(file);
        //  Fill in the full path of the local file , for example D:\\localpath\\examplefile.txt.
        //  establish OSSClient example .
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        try {
            InputStream inputStream = file.getInputStream();
            //  establish PutObject request .
            ossClient.putObject(bucketName, objectName, inputStream);
        } catch (Exception oe) {
        }  finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }
        // Make the picture echo , Save path to request
        String img="https://"+bucketName+"."+endpoint+"/"+objectName;
        return img;
    }
    private static String filename(MultipartFile file){
        Calendar calendar=Calendar.getInstance();
      String name= calendar.get(calendar.YEAR)+"/"+(calendar.get(calendar.MONTH+1))+"/"
              +calendar.get(calendar.DATE)+"/"+
              UUID.randomUUID().toString().replace("-","")+
              file.getOriginalFilename();
      return name;
    }
}

8. Interface

  @RequestMapping("login")
    @ResponseBody
    public CommonResult login(MultipartFile file){
        try {
            String s = OSSUtil.main(file);
            return new CommonResult(2000," Upload successful ",s);
        }catch (Exception e){
            return new CommonResult(5000," Upload failed ",null);
        }

    }

@RequestMapping("add")
    @ResponseBody
    public CommonResult add(@RequestBody User user){
        System.out.println(user);
        return new CommonResult(5000," Upload failed ",null);
    }
