3. Realize snake and basic game interface

1. The overall framework

---

2. Modify map

---

thought

If two snakes , Go to the same grid at the same time , It will lead to a draw , This situation will be disadvantageous to the advantaged ！
We need to turn the map into even numbers ride Odd number

Modify the code ：

x = rows - 1 - x;

y = cols - 1 - y;

Realization way ：

The following positions need to be modified ：

---

---

Success interface ：

---

3. Realize the head of the snake

---

1. thought

How to draw a snake -> In essence, snakes are a sequence of lattices .

2. Realization

1. newly build Cell.js Store a sequence of grids --> Storage snake .

export class Cell {

    constructor(r, c) {

        this.r = r;
        this.c = c;
        //  Convert to  canvas  Coordinates of
        this.x = c + 0.5;
        this.y = r + 0.5;
    }
}

---

---

2. newly build Snake.js object , It's convenient for us to operate .

import {
     AcGameObject } from "./AcGameObject";
import {
     Cell } from "./Cell";


export class Snake extends AcGameObject {

    constructor(info, gamemap) {

        super();

        //  Take out the basic id
        this.id = info.id;
        this.color = info.color;
        this.gamemap = gamemap; //  Convenient to call functions and parameters

        // Store the snake's body ;
        this.cells = [new Cell(info.r, info.c)];

    }

    start() {


    }

    update() {

        this.render();
    }

    render() {

        //  Draw the basic snake head
        const L = this.gamemap.L;
        const ctx = this.gamemap.ctx;

        ctx.fillStyle = this.color;
        for (const cell of this.cells) {

            ctx.beginPath();
            ctx.arc(cell.x * L, cell.y * L, L / 2, 0, Math.PI * 2);
            ctx.fill();
        }
    }
}

---

---

3. stay GameMap.js Create an object with two snakes in .

this.Snakes = {

    new Snake({
    id : 0, color : "#4876ec", r : this.rows - 2, c : 1}, this),
    new Snake({
    id : 1, color : "#f94848", r : 1, c : this.cols - 2}, this),
}

---

---

4. Success interface

---

---

4. Realize the movement of the snake

thought
The movement should be coherent .

There are many parts of the body , How to keep continuity ？

Keep still in the middle , Head and tail movement , Create a new node in the header , Move towards your destination . The tail moves towards the destination

When can a snake move ？

Simultaneous acquisition Two people / Two machines The operation can move .

4.1 Basic mobile

1. stay Snake.js Add code to , Realize the right movement of snake head .

import {
     AcGameObject } from "./AcGameObject";
import {
     Cell } from "./Cell";

export class Snake extends AcGameObject {

    constructor(info, gamemap) {

        super(); //  Inherit AcGameObject Methods

        this.id = info.id;
        this.color = info.color;
        this.gamemap = gamemap;

        this.cells = [new Cell(info.r, info.c)]; //  Store the snake's body , cell[0]  Store snakeheads
		// new add
        this.speed = 5;
    }


    update_move() {

        //  To the right
        this.cells[0].x += this.speed * this.timedelta / 1000;
        // Move up
        //this.cells[0].y -= this.speed * this.timedelta / 1000;
    }

    update() {

        this.update_move();
        this.render();
    }

---

2. The general effect ：
   The blue ball keeps moving to the right , The red one has moved out of sight .

---

---

4.2 Continuous movement

1. Because there may be some problems , That is, a certain state in the middle , Not completely moved out , There will be problems with the snake's body .
2. Don't move in the middle , Head and tail movement ！ The created virtual node moves towards the destination . There are only two inching .
3. Consider when the snake moves ? Turn-based game , Both people have input time , To move .

1. modify Snake.js

import {
     AcGameObject } from "./AcGameObject";
import {
     Cell } from "./Cell";

export class Snake extends AcGameObject {

    constructor(info, gamemap) {

        super();

        this.id = info.id;
        this.color = info.color;
        this.gamemap = gamemap;

        // Store the snake's body ;
        this.cells = [new Cell(info.r, info.c)];

        this.speed = 5; //  The snake walks every second 5 grid
        // new add
        this.direction = -1; // -1 Indicates that there is no instruction  0 1 2 3
    	this.status = "idle"; //  static , move  Move  die  Death
    }
}

---

---

2. A referee is needed to judge the movement of the two snakes , We put in GameMap.js in

check_ready() {
     //  Judge whether the two snakes are ready for the next round
   for (const snake of this.snakes) {

      if (snake.status !== "idle") return false;
      if (snake.direction === -1) return false;
     }
  return true;
}

---

---

3. stay Snake.js Update the status of snake ：

this.next_cell = null; // The next target location

this.dr = [-1, 0, 1, 0]; //  That's ok
this.dc = [0, 1, 0, -1]; // Column

this.step = 0;

next_step() {

    const d = this.direction;
    this.next_cell = new Cell(this.cells[0].r + this.dr[d], this.cells[0].c + this.dc[d]);
    this.direction = -1;
    this.status = "move";
    this.step ++ ;
}

---

---

4. stay GameMap.js In the update

next_step() {

    for (const snake of this.snake) {

        snake.next_step();
    }
}

update() {

    this.update_size();
    if (this.check_ready()) {

        this.next_step();
    }
    this.render();
}

---

---

4.3 Read the operation of the keyboard ：

Get the operation from the keyboard wasd and ↑↓←→ To control two snakes .

1. stay GameMap.vue Revision in China

<canvas ref="canvas" tabindex="0"></canvas>

---

---

2. The binding event .

stay Snake.js Add an auxiliary function to , Used to get direction .

// Auxiliary function
set_direction(d) {

    this.direction = d;
}

---

---

stay GameMap.js Revision in China , Add event .

add_listening_events() {

        this.ctx.canvas.focus();

        const [snake0, snake1] = this.snakes;
        this.ctx.canvas.addEventListener("keydown", e => {

            if (e.key === 'w') snake0.set_direction(0);
            else if (e.key === 'd') snake0.set_direction(1);
            else if (e.key === 's') snake0.set_direction(2);
            else if (e.key === 'a') snake0.set_direction(3);
            else if (e.key === 'ArrowUp') snake1.set_direction(0);
            else if (e.key === 'ArrowRight') snake1.set_direction(1);
            else if (e.key === 'ArrowDown') snake1.set_direction(2);
            else if (e.key === 'ArrowLeft') snake1.set_direction(3);
        });
    }

---

---

3. stay Snake.js Update status in ：

update() {
     //  Execute once per frame
    if (this.status === 'move') {

        this.uppdate_move()
    }

    this.render();
}

---

---

4.4 Achieve real mobility

stay snake.js Revision in China ：

import {
     AcGameObject } from "./AcGameObject";
import {
     Cell } from "./Cell";

export class Snake extends AcGameObject {

    constructor(info, gamemap) {

        super();

        this.id = info.id;
        this.color = info.color;
        this.gamemap = gamemap;

        this.cells = [new Cell(info.r, info.c)];  //  Store the snake's body ,cells[0] Store snakeheads
        this.next_cell = null;  //  The next target location

        this.speed = 5;  //  The snake walks every second 5 Lattice
        this.direction = -1;  // -1 Indicates that there is no instruction ,0、1、2、3 Indicates top right bottom left
        this.status = "idle";  // idle Stand still ,move Indicates that you are moving ,die It means death

        this.dr = [-1, 0, 1, 0];  // 4 Offset of rows in two directions
        this.dc = [0, 1, 0, -1];  // 4 The offset of the direction column

        this.step = 0;  //  Indicates the number of rounds
        this.eps = 1e-2;  //  Allowable error

    }


    start() {


    }

    set_direction(d) {

        this.direction = d;
    }

    next_step() {
     // The state of the snake changes to the next step
        const d = this.direction;
        this.next_cell = new Cell(this.cells[0].r + this.dr[d], this.cells[0].c + this.dc[d]);
        this.direction = -1;
        this.status = "move";
        this.step ++ ;

        //  Find the length
        const k = this.cells.length;
        for (let i = k; i > 0; i -- ) {
     //  The initial element remains unchanged   Each element moves back one bit
            this.cells[i] = JSON.parse(JSON.stringify(this.cells[i - 1]));
        }

    }

    update_move() {

        const dx = this.next_cell.x - this.cells[0].x;
        const dy = this.next_cell.y - this.cells[0].y;
        const distance = Math.sqrt(dx * dx + dy * dy);



        if (distance < this.eps) {
      //  We have reached the target point
            this.cells[0] = this.next_cell;  //  Add a new snake head
            this.next_cell = null;
            this.status = "idle";  //  It's over , stop

        } else {

            const move_distance = this.speed * this.timedelta / 1000;
            this.cells[0].x += move_distance * dx / distance;
            this.cells[0].y += move_distance * dy / distance;
        }
    }

    update() {
      //  Execute once per frame
        if (this.status === 'move') {

            this.update_move();
        }

        this.render();
    }


    render() {

        const L = this.gamemap.L;
        const ctx = this.gamemap.ctx;

        ctx.fillStyle = this.color;
        for (const cell of this.cells) {

            ctx.beginPath();
            ctx.arc(cell.x * L, cell.y * L, L / 2, 0, Math.PI * 2);
            ctx.fill();
        }
    }
}

---

4.5 Snake tail moves

1. stay Snake.js Add code to , Judge whether the snake tail grows .

check_tail_increasing() {

    if (step <= 10) return true;
    if (step % 3 === 1) return true;
    return false;
}

---

---

2. modify Snake.js , Judge whether the snake tail is growing in the next step

this.next_cell = null; // The next target location

this.dr = [-1, 0, 1, 0]; //  That's ok
this.dc = [0, 1, 0, -1]; // Column

this.step = 0;

this.eps = 1e-2 //  Allowable error

next_step() {

    const d = this.direction;
    this.next_cell = new Cell(this.cells[0].r + this.dr[d], this.cells[0].c + this.dc[d]);
    this.direction = -1;
    this.status = "move";
    this.step ++ ;

        //  Find the length
   	const k = this.cells.length;
    for (let i = k; i > 0; i -- ) {
     //  The initial element remains unchanged   Each element moves back one bit
        this.cells[i] = JSON.parse(JSON.stringify(this.cells[i - 1]));
    }

}

	update_move() {

        const dx = this.next_cell.x - this.cells[0].x;
        const dy = this.next_cell.y - this.cells[0].y;
        const distance = Math.sqrt(dx * dx + dy * dy);

        if (distance < this.eps) {
      //  We have reached the target point
            this.cells[0] = this.next_cell;  //  Add a new snake head
            this.next_cell = null;
            this.status = "idle";  //  It's over , stop

            if (!this.check_tail_increasing()) {
     //  Snakes never grow .
                this.cells.pop();
            }

        } else {

            const move_distance = this.speed * this.timedelta / 1000;
            this.cells[0].x += move_distance * dx / distance;
            this.cells[0].y += move_distance * dy / distance;

            if (!this.check_tail_increasing()) {

                const k = this.cells.length;
                const tail = this.cells[k - 1], tail_target = this.cells[k - 2];
                const tail_dx = tail_target.x - tail.x;
                const tail_dy = tail_target.y - tail.y;
                tail.x += move_distance * tail_dx / distance;
                tail.y += move_distance * tail_dy / distance;
            }
        }
    }

---

---

3. The basic effect

---

---

4.6 Beautify snakes

modify Snake.js , Let the snake become coherent 、 A little smaller . Add the following code ：

render() {

        const L = this.gamemap.L;
        const ctx = this.gamemap.ctx;

        ctx.fillStyle = this.color;
        for (const cell of this.cells) {

            ctx.beginPath();
            ctx.arc(cell.x * L, cell.y * L, L / 2 * 0.8, 0, Math.PI * 2);
            ctx.fill();
        }

        for (let i = 1; i < this.cells.length; i ++ ) {

            const a = this.cells[i - 1], b = this.cells[i];
            if (Math.abs(a.x - b.x) < this.eps && Math.abs(a.y - b.y) < this.eps)
                continue;
            if (Math.abs(a.x - b.x) < this.eps) {

                ctx.fillRect((a.x - 0.4) * L, Math.min(a.y, b.y) * L, L * 0.8, Math.abs(a.y - b.y) * L);
            } else {

                ctx.fillRect(Math.min(a.x, b.x) * L, (a.y - 0.4) * L, Math.abs(a.x - b.x) * L, L * 0.8);
            }
        }
    }

2. The basic effect ：

---

---

4.7 Detect illegal logic

1. stay GameMap.js In the update

check_valid(cell) {
      //  Check whether the target location is legal ： Didn't hit the body and obstacles of the two snakes
        for (const wall of this.walls) {

            if (wall.r === cell.r && wall.c === cell.c)
                return false;
        }

        for (const snake of this.snakes) {

            let k = snake.cells.length;
            if (!snake.check_tail_increasing()) {
      //  When the snake tail will move forward , Don't judge the snake tail
                k -- ;
            }
            for (let i = 0; i < k; i ++ ) {

                if (snake.cells[i].r === cell.r && snake.cells[i].c === cell.c)
                    return false;
            }
        }

        return true;
    }

---

---

2. stay snake.js In the update

next_step() {

        if (!this.gamemap.check_valid(this.next_cell)) {

        this.status = "die";
    }
}


render() {

    if (this.status === "die") {

        ctx.fillStyle = "white";
    }
}

---

---

---

3. Final effect , The red snake hit the wall and died ：

---

---

4.8 Achieve eye

1. modify snake.js

this.eye_direction = 0;
if (this.id === 1) this.eye_direction = 2;

this.eye_dx = [
    [-1, 1];
    [1, 1];
	[1, -1];
	[-1, -1];
];
this.eye_dy = [
    [-1, -1];
    [-1, 1];
	[1, 1];
	[1, -1];
];


next_step() {

    this.eye_direction = d;

}

render() {

    ctx.fillStyle = "black";
        for (let i = 0; i < 2; i ++ ) {

            const eye_x = (this.cells[0].x + this.eye_dx[this.eye_direction][i] * 0.15) * L;
            const eye_y = (this.cells[0].y + this.eye_dy[this.eye_direction][i] * 0.15) * L;

            ctx.beginPath();
            ctx.arc(eye_x, eye_y, L * 0.05, 0, Math.PI * 2);
            ctx.fill();
        }
}

---

---

---

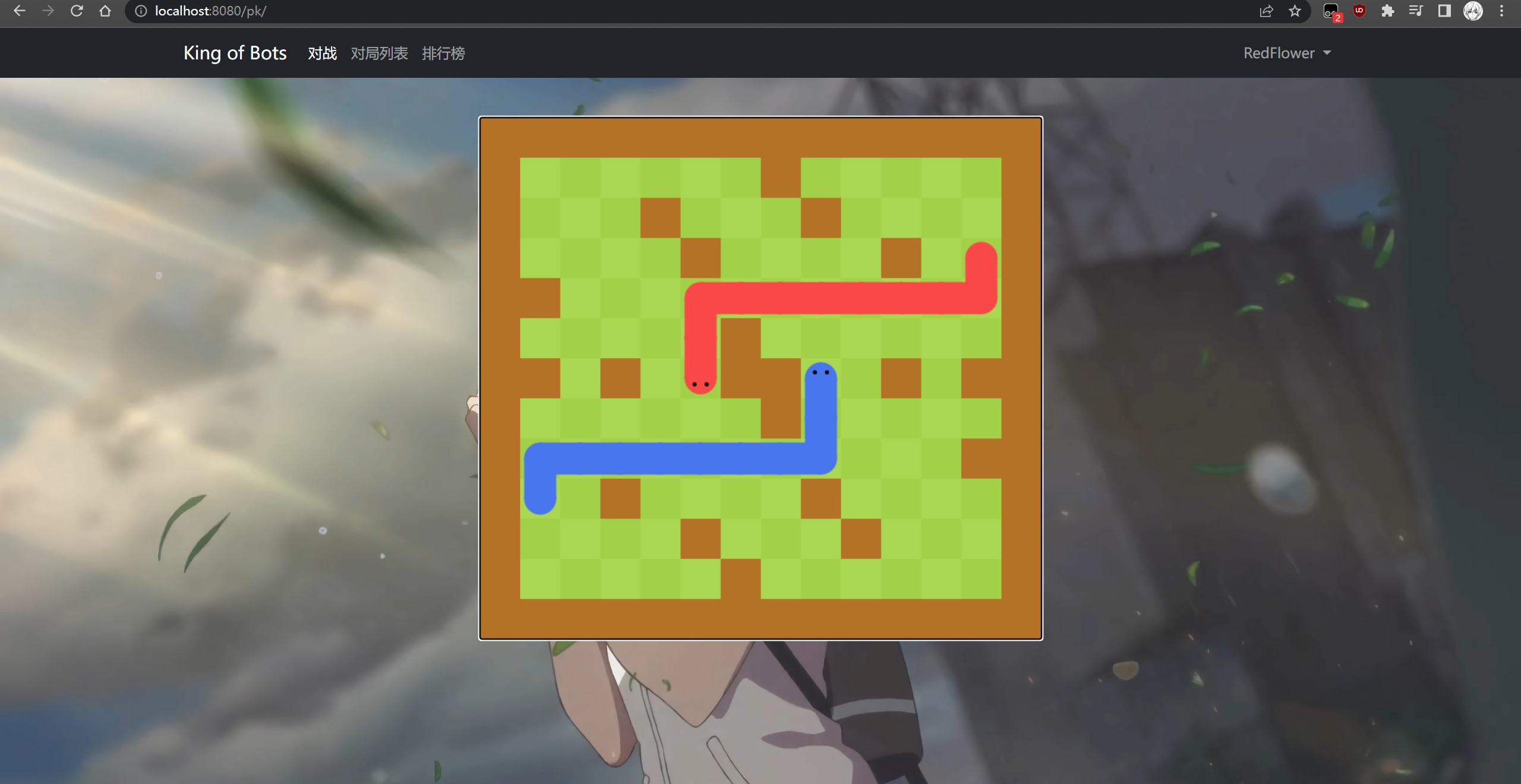

effect ：

---

---

thus , We have achieved the most basic map and the movement of two snakes .

5 Code address

https://git.acwing.com/syy/kob/-/commit/2ee3e35f352dbc104e69491db86856fe5d510ad6
