JVM Foundation

One 、GC Object recovery judgment

1. Recovery judgment

1. Reference counting ： Each object has a reference count property , New reference +1, Release -1, Count as  0  Recycling is allowed when   advantage ： Efficient   shortcoming ： When referring to each other , Even if two objects are not used , But it can't be recycled  2. Accessibility analysis ： from GC ROOT  Start looking down , Objects in the reference chain are not recyclable , That is, an object from GC ROOT  Unreachable  GC ROOT: Virtual machine stack （ Local variables in stack frames ） Object referenced in   Object referenced by a static property in a method area   The object referenced by a constant in the method area   In local method JNI（Native） Referenced object   example ： A method , In the active stack , Then the object created inside , It's just one. GC ROOT  Such as  add(){
    User user = new User()}  In execution user
   Recycling process ：
  ① Object is not reachable , Mark for the first time
  ② Automatically created by virtual machine Finalizer The queue determines whether to execute finalize() Method
    After the object is unreachable ,GC Determine whether it covers finalize Method , If it is not covered, it will be recycled directly ; Otherwise, if the object has not been executed finalize Method , Put it in F-Queue queue , Executed by a low priority thread
    Row of objects in the queue finalize Method , After execution ,GC Again, judge whether the object is reachable , If not, recycle , Otherwise, the object “ resurrection ”
    Each object can only be triggered once finalize() Method ： Generally, do not duplicate this method

2. Garbage collector

GC Algorithm focus and JVM tuning , Is to reduce STW state

STW: Stop-The-World  In the process of recycling , Need to put JVM A state in which memory is frozen . stay STW State, ,JAVA All threads （ except GC） All stop ;native Method can execute , But you can't
      And JVM Interaction

1. Generational algorithm

Serial:  Serial  GC Threads are interleaved between worker threads ,GC During this period, other threads are equivalent to pausing
         Early single CPU Recycling mode under the framework , Only applicable to tens of megabytes of memory space ; many CPU Severe performance degradation under
Parallel:  parallel   Multiple GC Threads are interleaved between worker threads
          PS+PO The combination is Jdk1.8 Default garbage collector , many CPU The performance under the architecture is better than Serial Much higher
CMS: Concurrent Mark Sweep  The core idea ： take STW Upset , Let part GC Threads execute concurrently with user threads
     1. Initial marker ：STW  Only the objects directly referenced by the root object are marked
     2. Concurrent Tags ： Continue marking other objects , And execute concurrently with the worker thread
     3. Re label ：STW  Relabel the objects in the concurrent execution stage
     4. Concurrent elimination ： Parallel with worker threads , Remove the generated garbage . The newly generated garbage in this process is called floating garbage , Next GC Middle clearance

2.G1 GarbageFirst

 His memory model is actually generational , But logically, it is generational
 In the in memory model , Heap memory is no longer divided into young generations 、 Old age , Instead, it is divided into small memory blocks , be called Region, Every Regio It can belong to different ages
GC There are four stages
1. Initial marker : STW  Only the objects directly referenced by the root object are marked
2. Mark Region:  adopt RSet Mark what was marked in the previous stage Region Reference to Old District Region
3. Concurrent Tags :  And CMS similar , The traversal range is no longer the whole Old District , It is marked in the second step of traversal Region
4. Re label :  And CMS Relabel similar
5. rubbish :  And CMS The difference is ,G1 Copy algorithm can be used , Direct the whole Region Copy the object in to another Region  And this stage G1 Choose only those with more garbage Region To clean up , It's not over
            Clean it up

Two 、Java Class loading process

JAVA Class loader （ Inherit ）：AppClassloader,ExtClassloader -> URLClassloader -> SecureClassloader -> Classloader
JAVA Class loader （Parent attribute ）：AppClassloader -> ExtClassloader -> BootstrapClassloader
 Each kind of loader , Each has its own loading directory
AppClassloader:classpath
ExtClassloader:java.ext.dirs
BootstrapClassloader:%JAVA_HOME%/lib

 Each class loader is responsible for the classes it has loaded , There is a cache

 Class loading process ： load 》 Connect 》 initialization
 load ： hold JAVA Byte code loaded into JVM In memory , And map it to JVM Approved data structures
 Connect ： It is divided into three small stages
      ① verification ： Check whether the loaded file conforms to JAVA standard
      ② Get ready ： Create a static variable of a class or interface , And assign initialization value
      ③ analysis ： Turn symbolic references into direct references
 initialization ： User defined logic

Parent delegate mechanism ：

effect ： Protect the underlying classes from being overwritten by user classes （ For example, the user defined java.lang.String, When the class is loaded, the upward delegation will get the underlying String class , Not user-defined ）

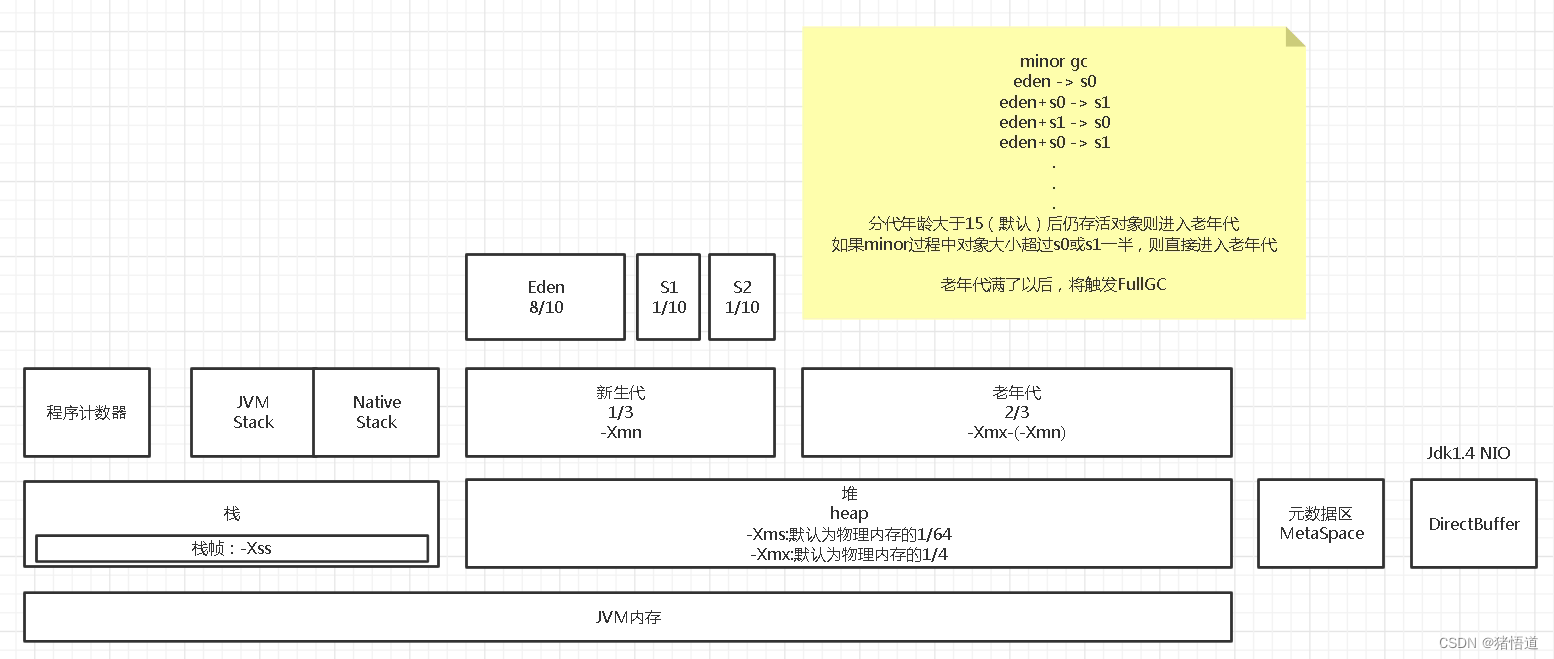

3、 ... and 、JVM Memory model
