Cloud native essay using Hana expression database service on Google kubernetes cluster

We know ,Cluster yes Google Kubernetes Engine ( abbreviation GKE) The basis of , Represents a container application Kubernetes Objects are running on the cluster .

Google Kubernetes Engine (GKE) Provides a managed environment , Developers can use Google Infrastructure on GKE Deployment in China 、 Management and expansion of containerized applications .GKE The environment includes multiple Compute Engine example , These instances are combined to form Google Kubernetes Cluster.

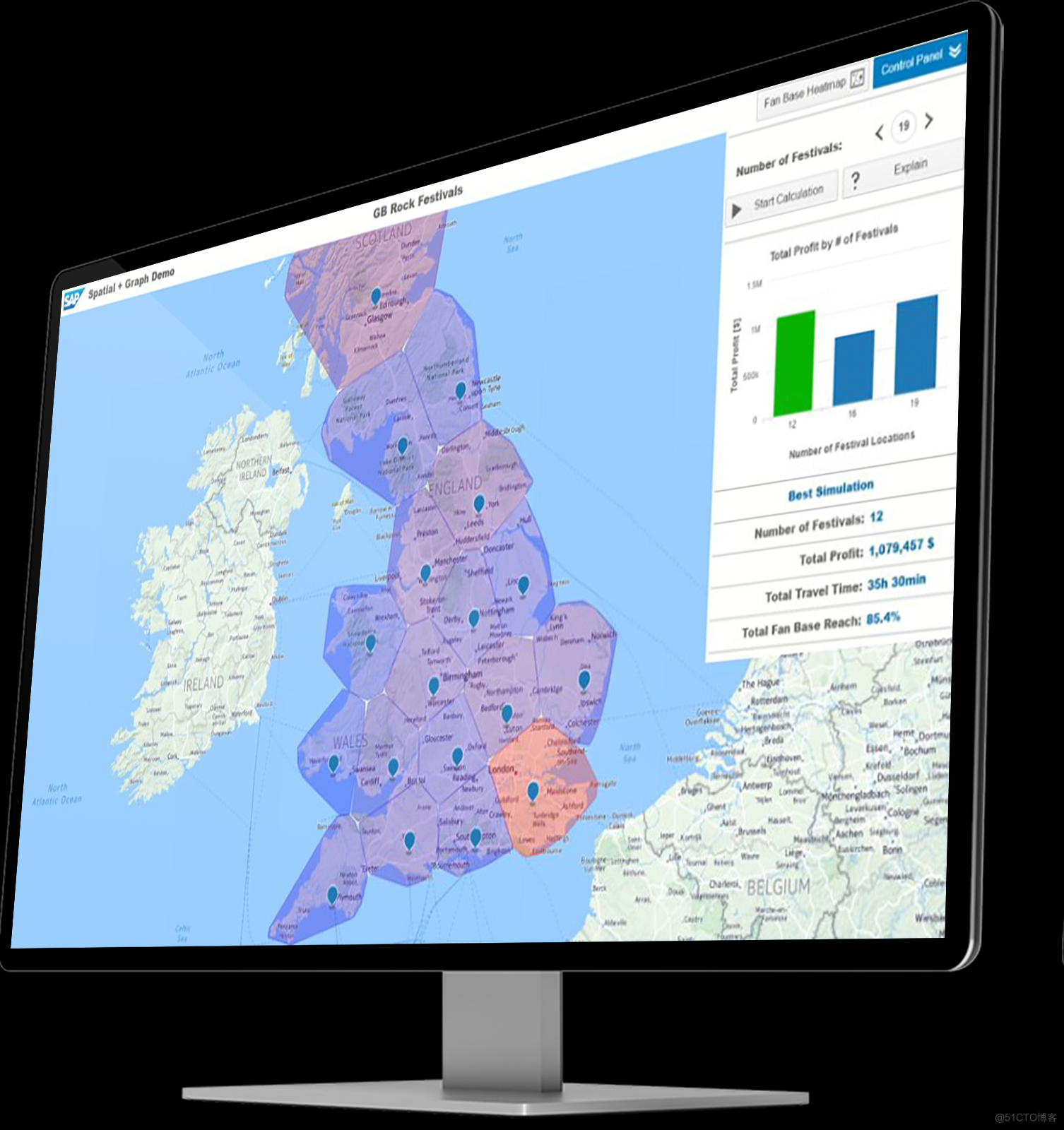

SAP HANA Expression yes SAP HANA Simplified version of , Designed for use on laptops and other mainframe computers （ Including cloud hosted virtual machines ） Up operation , Of course, it supports the Google Kubernetes Cluster Up operation . This version supports SAP HANA In addition to the traditional memory database function , Also provide bring-your-own-language And so on , Support microservices 、 Predictive analysis and machine learning algorithms , And geospatial processing for building insight driven applications .

This article will describe in detail how to Google Kubernetes Cluster Deploy and use HANA Expression Database Service.

stay Google Cloud Platform To create a Google Kubernetes Cluster example

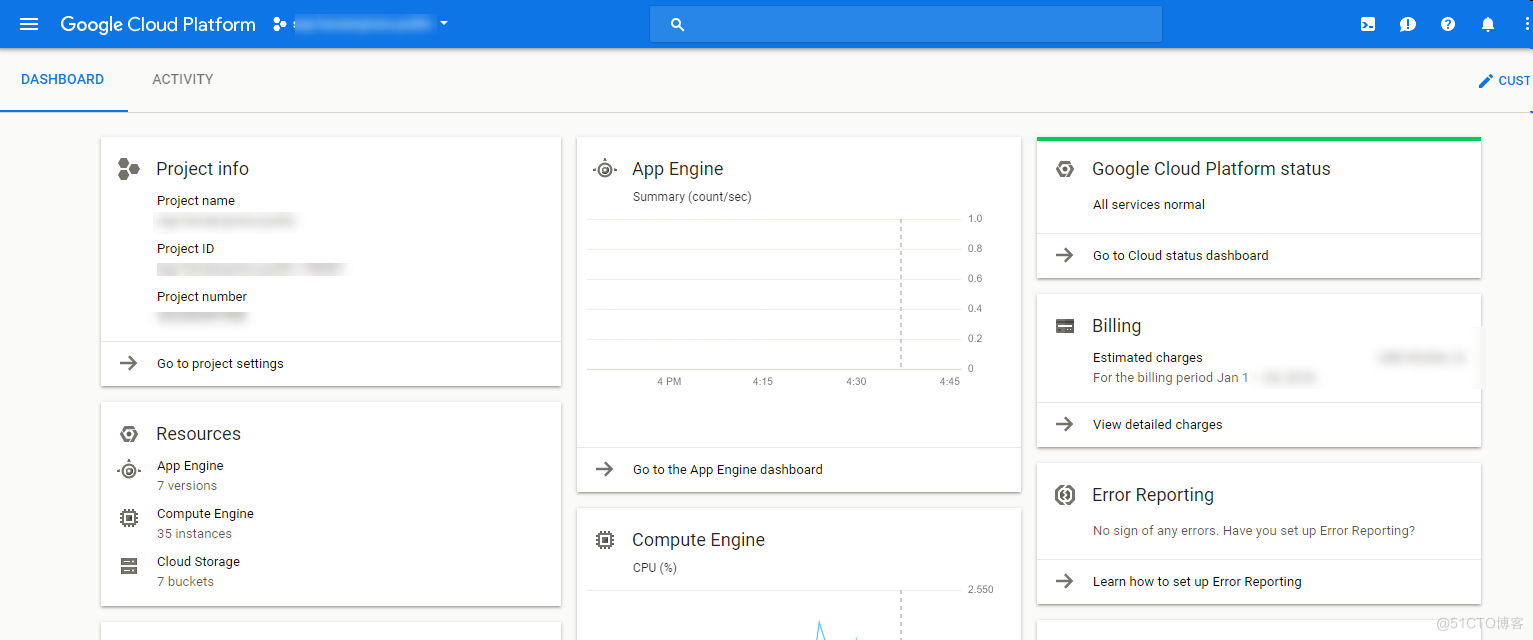

Sign in Google Cloud Platform Console ：

Click... In the upper left corner of the console Hamburger menu , Create a new Kubernetes Cluster：

maintain Cluster The name of , Choose the right version , Click on Customize customize ：

by Cluster Appoint CPU And memory parameters , selected Ubuntu As an operating system .Cluster The size of is set to 1.

Cluster After creation and successful deployment , Click on Connect Button to connect .

After successful connection , You can use Cloud Shell Operate the cluster ：

Cloud Shell The command line is provided in the same way as Cluster Interact .

stay Google Kubernetes Cluster Upper Department HANA Expression Database Service

Use the following command to create a secret In order to get Docker Mirror image ：

kubectl create secret docker-registry docker-secret --docker-server=https://index.docker.io/v1/ --docker-username=xxx --docker-password=yyyyyy [email protected]

Create a yaml Deployment configuration file in (Deployment Configuration File), Save as hxe.yaml file ：

Log in and copy

kind: ConfigMap
apiVersion: v1
metadata:
  creationTimestamp: 2022-06-25T19:14:38Z
  name: hxe-pass
data:
  password.json: |+
    {"master_password" : "JERRYHana1"}
---
kind: PersistentVolume
apiVersion: v1
metadata:
  name: persistent-vol-hxe
  labels:
    type: local
spec:
  storageClassName: manual
  capacity:
    storage: 150Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/data/hxe_pv"
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: hxe-pvc
spec:
  storageClassName: manual
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hxe
  labels:
    name: hxe
spec:
  selector:
    matchLabels:
      run: hxe
      app: hxe
      role: master
      tier: backend
  replicas: 1
  template:
    metadata:
      labels:
        run: hxe
        app: hxe
        role: master
        tier: backend
    spec:
      initContainers:
        - name: install
          image: busybox
          command: [ 'sh', '-c', 'chown 12000:79 /hana/mounts' ]
          volumeMounts:
            - name: hxe-data
              mountPath: /hana/mounts
      volumes:
        - name: hxe-data
          persistentVolumeClaim:
             claimName: hxe-pvc
        - name: hxe-config
          configMap:
             name: hxe-pass
      imagePullSecrets:
      - name: docker-secret
      containers:
      - name: hxe-container
        image: "store/saplabs/hanaexpress:2.00.030.00.20180403.2"
        ports:
          - containerPort: 39013
            name: port1
          - containerPort: 39015
            name: port2
          - containerPort: 39017
            name: port3
          - containerPort: 8090
            name: port4
          - containerPort: 39041
            name: port5
          - containerPort: 59013
            name: port6
        args: [ "--agree-to-sap-license", "--dont-check-system", "--passwords-url", "file:///hana/hxeconfig/password.json" ]
        volumeMounts:
          - name: hxe-data
            mountPath: /hana/mounts
          - name: hxe-config
            mountPath: /hana/hxeconfig
      - name: sqlpad-container
        image: "sqlpad/sqlpad"
        ports:
        - containerPort: 3000

---
apiVersion: v1
kind: Service
metadata:
  name: hxe-connect
  labels:
    app: hxe
spec:
  type: LoadBalancer
  ports:
  - port: 39013
    targetPort: 39013
    name: port1
  - port: 39015
    targetPort: 39015
    name: port2
  - port: 39017
    targetPort: 39017
    name: port3
  - port: 39041
    targetPort: 39041
    name: port5
  selector:
    app: hxe
---
apiVersion: v1
kind: Service
metadata:
  name: sqlpad
  labels:
    app: hxe
spec:
  type: LoadBalancer
  ports:
  - port: 3000
    targetPort: 3000
    protocol: TCP
    name: sqlpad
  selector:
    app: hxe




1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

54.

55.

56.

57.

58.

59.

60.

61.

62.

63.

64.

65.

66.

67.

68.

69.

70.

71.

72.

73.

74.

75.

76.

77.

78.

79.

80.

81.

82.

83.

84.

85.

86.

87.

88.

89.

90.

91.

92.

93.

94.

95.

96.

97.

98.

99.

100.

101.

102.

103.

104.

105.

106.

107.

108.

109.

110.

111.

112.

113.

114.

115.

116.

117.

118.

119.

120.

121.

122.

123.

124.

125.

126.

127.

128.

129.

130.

131.

132.

133.

134.

135.

136.

137.

138.

139.

140.

141.


This yaml The file defines a HANA Expression Of Docker Mirror image ：store/saplabs/hanaexpress:2.00.030.00.20180403.2

Use the following command line to run this Docker Image deployment to Kubernetes Cluster On ：

• kubectl create -f hxe.yaml
• kubectl describe pods

Wait for the deployment to complete successfully ：

Execute the command line kubectl get pods, Make sure pod Status as Running, Then enter Pod Inside of container ：

kubectl exec -it <<pod-name>> bash

You can use SQL Command line , The connection runs on Pod Inside HANA Expression The instance :

hdbsql -i 90 -d systemdb -u SYSTEM -p HXEHana1

Add... To the database document store Support for ：
alter database HXE add 'docstore';

from SQLPAD service get external IP Address ：

kubectl get services

With this externally accessible IP After the address , Visit its 3000 port , You can log in to the browser SQLPAD 了 ：

Click on Sign In, Create a Administration account.

Use Connections menu , Connect HANA Expression Database tables in the instance ：

from kubectl get services Found in the command line results list hxe-connect, Copy its External IP Address ：

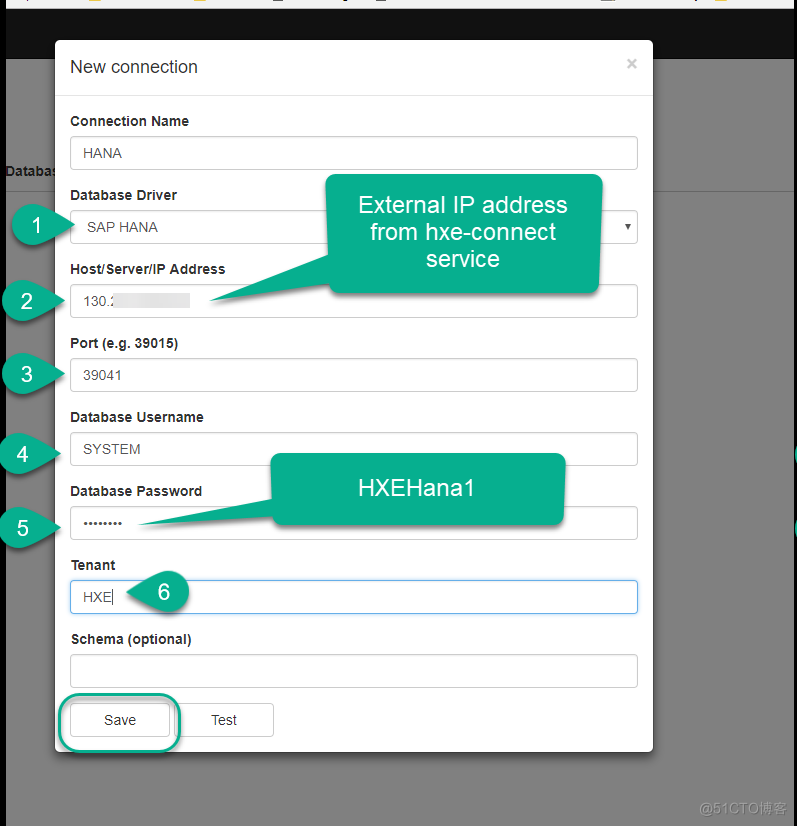

Create a new database connection , Maintain just copied External IP Address , Database user name and password ,Tenant Other login information ：

After the database connection is established , You can create a new one Query, Read and write it .

Create a name quotes Of document store, And insert some test data ：

Log in and copy

create collection quotes;
--Create a collection for document store and insert JSON values
insert into quotes values ( { "FROM" : 'HOMER',   "QUOTE" :  'I want to share something with you: The three little sentences that will get you through life. Number 1: Cover for me. Number 2: Oh, good idea, Boss! Number 3: It wai like that when I got here.', "MOES_BAR" : 'Point( -86.880306 36.508361 )', "QUOTE_ID" : 1  });
insert into quotes values ( { "FROM" : 'HOMER',   "QUOTE" :  'Wait a minute. Bart''s teacher is named Krabappel? Oh, I''ve been calling her Crandall. Why did not anyone tell me? Ohhh, I have been making an idiot out of myself!', "QUOTE_ID" : 2, "MOES_BAR" : 'Point( -87.182708 37.213414 )' });
insert into quotes values ( { "FROM" : 'HOMER',   "QUOTE" :  'Oh no! What have I done? I smashed open my little boy''s piggy bank, and for what? A few measly cents, not even enough to buy one beer. Weit a minute, lemme count and make sure…not even close.', "MOES_BAR" : 'Point( -122.400690 37.784366 )', "QUOTE_ID" : 3 });




1.

2.

3.

4.

5.


Create a Column surface , Turn on Fuzzy Search Support for ：

Log in and copy

create column table quote_analysis
(
	id integer,
	homer_quote text FAST PREPROCESS ON FUZZY SEARCH INDEX ON,
	lon_lat nvarchar(200)

);




1.

2.

3.

4.

5.

6.

7.


Insert into document store collection Copy the data to the above Column table ：

Log in and copy

insert into quote_analysis
with doc_store as (select quote_id, quote from quotes)
select doc_store.quote_id as id, doc_store.quote as homer_quote, 'Point( -122.676366 45.535889 )'
from doc_store;




1.

2.

3.

4.


Query and wait The word with the lowest similarity ：

Log in and copy

select  id, score() as similarity , lon_lat, TO_VARCHAR(HOMER_QUOTE)
from quote_analysis
where contains(HOMER_QUOTE, 'wait', fuzzy(0.5,'textsearch=compare'))
order by similarity asc




1.

2.

3.

4.


summary

thus , We finished in Google Kubernetes Cluster In the operation HANA Expression Database Service Operation steps of . It is not difficult to feel from the whole process , Will include HANA Expression Of Docker The image is deployed in Google Kubernetes Cluster And run in Pod Inside , Realized HANA Expression Service out of the box , Thus avoiding On-Premises In deployment mode HANA Expression Tedious installation and configuration steps .

---
