AutoCAD - line width setting

Set the line width of the drawing .

stay “ Layer Properties Manager ” Set the line width in the dialog box

1. Click... In the layer properties toolbar “ Layer properties ” Button , open “ Layer Properties Manager ” Dialog box . In the layer list, under the lineweight column, click the linetype name , The system opens as shown in the following figure “ Line width ” Dialog box .

2. Option description

（1） old ： Displays the lineweight previously assigned to the layer

（2） new ： Displays the new lineweight assigned to the layer

Set the line width directly

1. Way of execution

Command line ：LINEWEIGHT

menu bar ： Format → Line width

Layers toolbar : single click “ Line width ” In the drop-down list “ Line width setting ” Button

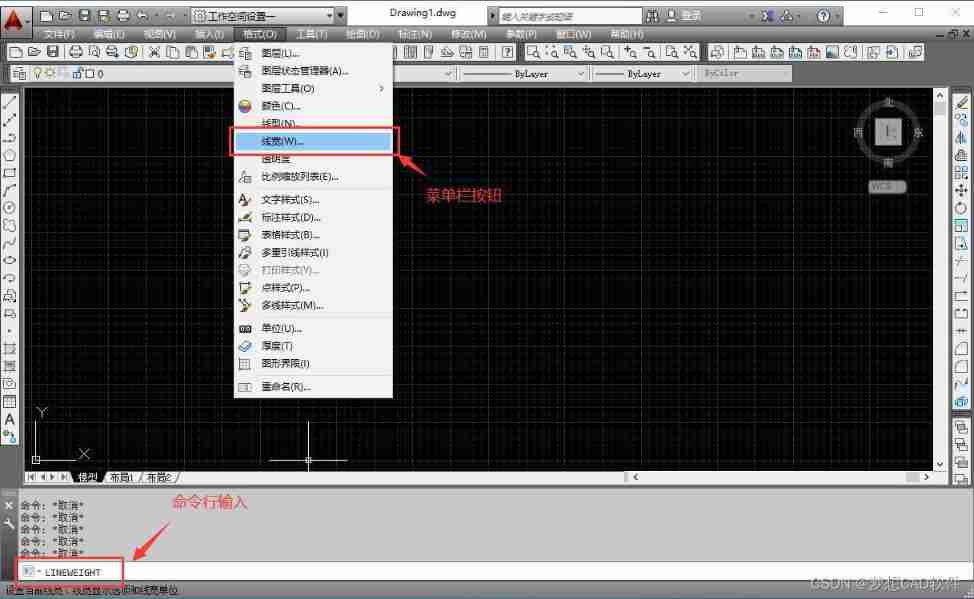

“ Line width operation command position ” Interface

After executing the above command , The system opens... As shown in the figure “ Line width setting ” Dialog box , You can set the linetype in this dialog box .

2. Option description

（1） Line width ： Displays the currently available lineweight values

（2） Current lineweight ： Displays the current lineweight

（3） Company ： Specifies whether lineweights are displayed in millimeters or inches

（4） Displays the lineweight ： Controls whether lineweights are displayed in the current drawing

（5） Default ： Controls the default lineweight of layers

（6） Adjust the display scale ： Controls the display scale of lineweights on the model tab
