Jenkins - email notification plug-in

introduction

utilize Jenkins establish Pipeline Job To achieve CICD, Email notification each Job The operation of is very necessary . Especially testing , Report the test case execution results , So this article introduces the related Jenkins Email notification plug-in ,Mailer Plugin and Email Extension Plugin.

Summary ：

1. Email Plugin
   Mailer Plugin
   Email Extension Plugin
2. Email Notification Jenkins The system configuration
3. Email Extension Plugin application
4. TroubleShooting Troubleshooting

Email Plugin

This paper mainly introduces 2 individual Email Plugin,Mailer Plugin and Extended E-mail Notification Plugin

Mailer Plugin

install Jenkins Suggested Plugin after , By default... Will be installed Mailer Plugin, Just for email notification Build result , Lack of customization space .

open Job Configure, It opens at Add post-build action Will see E-mail Notification Options

add to E-mail Notification Few configurable options .

Email Extension Plugin

Email Extension Plugin Allows you to fully and flexibly configure email notifications , You can customize when mail is sent , Who should receive the mail , What is the content of the email .

adopt Manage Jenkins -> Plugin Manager To install the plug-in
After successful installation , open Job Configure page , It opens at Add post-build action Will see Editable Email Notification Options

Email Notification Jenkins The system configuration

Want to pass Jenkins Email sent successfully , Need to pass through Manage Jenkins -> Configure System To configure SMTP Sending server and Admin mailbox .

What I have configured is iCloud mailbox , Need to Apple Official website Find a way to iCloud Mail server settings for the e-mail client . Other emails are similar , Find the corresponding configuration information .

Applicable to sending server SMTP Information Server name ：smtp.mail.me.com
If you need SSL： yes If you are using SSL When you see the error message , Please try using TLS or STARTTLS.
port ：587
If you need SMTP Identification of ： yes
user name ： Your integrity iCloud E-mail address （ for example ,[email protected], instead of emilyparker）
password ： Use the App Special password .

Each mailbox smtp Server and supported protocols The mailbox configuration is mentioned In particular ：
about ssl/tls encryption , Use 465 port
about starttls In general use 587 port

Mailer Plugin Configuration of

stay E-mail Notifiction part , The configuration is as follows ：

stay Jenkins Location Part of the configuration Admin mailbox , Be careful ： Not set up Admin Mailbox cannot send mail , This Admin E-mail must follow SMTP authentication The sender mailbox in the configuration is consistent .

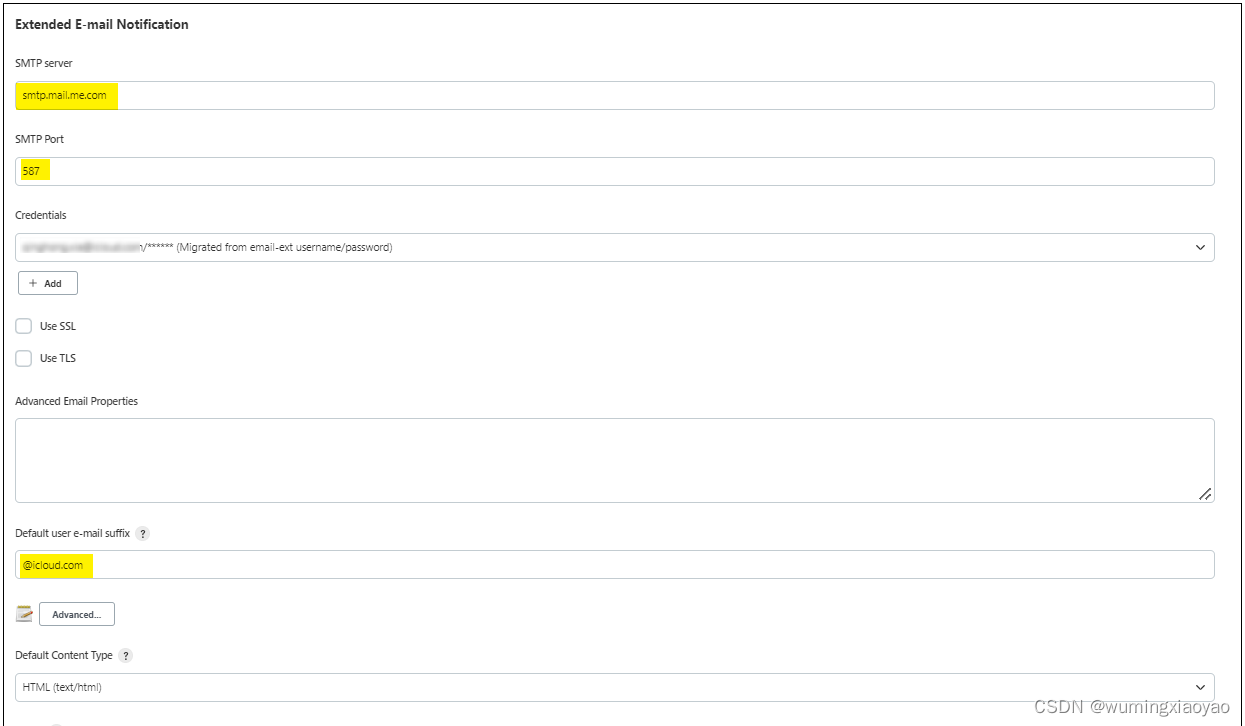

Email Extension Plugin To configure

stay Extended E-mail Notification part ,SMTP and Admin The mailbox settings are the same as Mailer Plugin equally , I won't repeat it here .

You can also set the default recipient , List of respondents , Of course, if in Job Configure There are configurations in that will override the default settings , Or access variables $DEFAULT_RECIPIENTS and $DEFAULT_REPLYTO Use the default settings directly .

Default email Subject and Content, Empathy Job Configure The settings in will override the default settings .

The conditions that trigger email notifications can also be overridden

It opens at Content Token Reference You can see the description of the available variables of the plug-in , Use... When customizing message headers and content . Please refer to Jenkins - Built in variable access The article specifically lists the mail configuration variables .

Here are some common variables
Build The cause of the trigger , such as ： It may be caused by some Pipeline job The trigger

The message content is from a file , This is more commonly used , Content files can be generated by scripts , Be careful PATH yes workspace Relative path to root .

Email Extension Plugin application

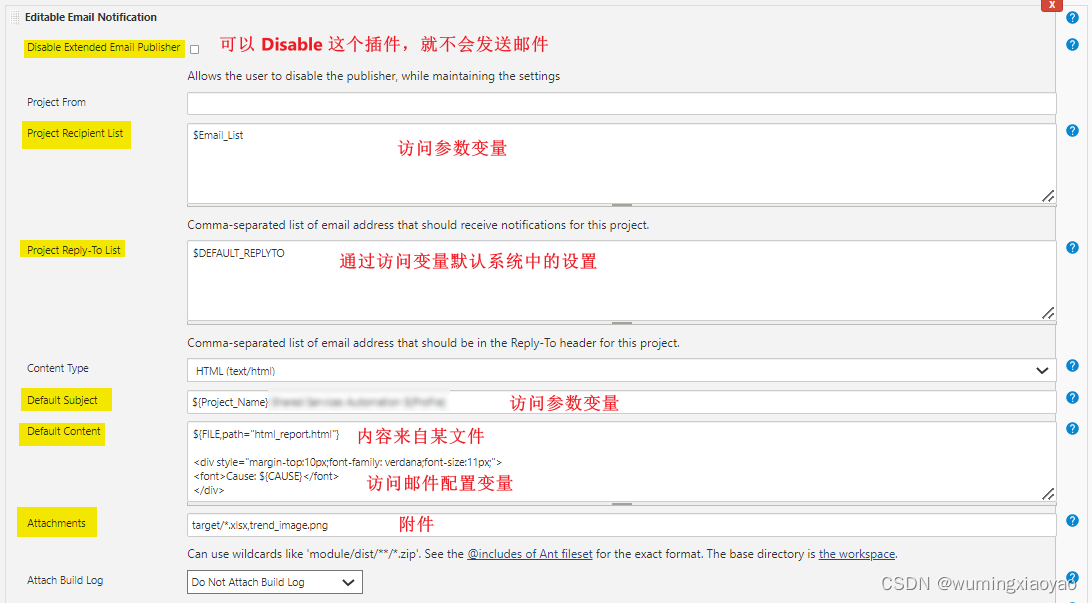

stay Job Configure in ,Add build-post actions add to Editable Email Notification

Be careful ： Email attachment , And content documents PATH It's all based on workspace Relative path to root . If the message content is also embedded with pictures , You also need to add this picture to the attachment , Generated html Just apply this image directly to the content , No additional paths are required .

 <img src="cid:trend_image.png">

Click on Advance
Set up Mail trigger condition ,Always It doesn't matter build What state , Send email notifications .

Set up recipients , There's a little pit here , The default may be to Developers add , This results in a custom recipient list for each recipient , And other people , This other person is still dynamic every day , It was later discovered that these dynamic recipients actually have submitted PR Code change people . If you don't want these people to receive emails, you have to remove them .

The following is the email notification content after application ： For the sake of content sensitivity, the fuzzy processing is carried out , Just know the general content

TroubleShooting Troubleshooting

Through arbitrary SMPT Service needs TLS To send email notifications , Default Jenkisn yes Disable 了 mail.smtp.starttls Options , I'm through icloud SMTP Service , And it uses 587 port , This is an application starttls , need Enable This option .

If Disable This option , You will receive the following exception ：
com.sun.mail.smtp.SMTPSendFailedException: 530 5.7.0 Must issue a STARTTLS command first

Windows Solution :

1. open Jenkins The installation directory , Can pass Jenkins UI To know the installation directory Manage Jenkins find Home directory attribute . The default installation path is C:\Program Files (x86)\Jenkins
2. open jenkins.xml And add -Dmail.smtp.starttls.enable=true stay arguments part

<executable>%BASE%\jre\bin\java</executable>
<arguments>-Xrs -Xmx256m -Dhudson.lifecycle=hudson.lifecycle.WindowsServiceLifecycle -Dmail.smtp.starttls.enable=true -jar "%BASE%\jenkins.war" --httpPort=8080 --webroot="%BASE%\war"</arguments>

4. restart Jenkins： adopt URL {base_jenkins_url}/restart

Linux Please refer to ：Fixing SMTPSendFailedException on Ubuntu 16.04
