Vertex buffer and shader (the cherno + leranopongl) notes

Catalog

Introduction of graphics rendering pipeline

（ One ） Vertex buffer

（ Two ）VAO/VBO/IBO

（ 3、 ... and ） Shaders

（ Four ） Index buffer

Draw the complete code of rectangle ：

Introduction of graphics rendering pipeline

1. The graphics rendering pipeline is mainly divided into two main parts , The first part is to put the 3D Coordinate conversion to 2D coordinate , The second part is to put 2D The coordinates are converted to pixels with actual colors . The general steps are ： Vertex shader -> Primitive Assembly -> Geometry shaders -> Rasterize -> Fragment Shader ->Alpha Testing and mixing .

2. Graphics rendering pipelines are highly specialized , So most graphics cards can execute in parallel , And in the GPU Run your own applet for each render pipeline stage on , These applets are called shaders . And shaders can also use their own shaders （GLSL） Instead of default .

---

（ One ） Vertex buffer

1. The concept and analysis of vertex buffer ： Basically, remove vertex, It's just a memory buffer , An array of memory bytes , Literally, it is a block of memory used to store bytes .

Differentiation and analysis ： But vertex buffer and C++ Memory buffers like character arrays in are different , It is OpenGL Memory buffer in , This means that it is actually in the video memory of the graphics card （Video RAM） On .

2. Conceptual understanding ： So the basic idea here is that I want to define some data to represent triangles , I want to put it into the graphics card VRAM in , Then you need to send DrawCall Draw instructions . In fact, we also need to tell the graphics card how to read and interpret these data , And how to put it on our screen , Once we send DrawCall Draw instructions , You have to clarify the memory layout of the shader , How to display it and what the graphics card needs to do , Need to program the graphics card , It's a shader . Shaders are a bunch of code that we can write to run in a very special way on the graphics card .

3. Operation principle ：“ Send data to the graphics card ---> Explain the data to the graphics card ---> Draw target steps ”. and OpenGL Like a state machine , We need to deal with a series of states rather than objects . This is it. OpenGL Rendering process .

4. Code practice ：

Statement ： Old edition OpenGL And new edition OpenGL There are implementation differences . For the new version VBO and VAO binding .

In addition, before generating the buffer object , Need to check glad Can I get the address , Otherwise, the buffer object cannot be generated .

    if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
    {
        std::cout << "Failed to initialize GLAD" << std::endl;
        return -1;
    }

// Old version processing ： It's written in glad Version of OpenGL China is out of date , But in glew.h You can run under the weather .
//（glad.h yes glew.h Evolution version ）
unsigned int buffer;
glGenBuffer(1,&buffer);
glBindBuffer(GL_VERTEX_BUFFER,buffer);
glBufferData(GL_ARRAY_BUFFER,6*sizeof(float),positions,GL_STATIC_DRAW);

glEnableVertexAttribArray(0);
glVertexAttribPointer(0,2,GL_FLOAT,GL_FALSE,sizeof(float)*2,0);

glBindBuffer(GL_ARRAY_BUFFER,0);

  Create a vertex buffer ：

unsigned int buffer;
glGenBuffers(1,&buffer);

// The first parameter ：  Specify that several declared buffers need to be generated
// The second parameter ：  Specify the memory address that returns an integer
// effect ：  Generate buffer id, It is an integer in representation , But it refers to the actual object .
// When you want to use this object, you can use this number to call .

  however , We want to render triangles , It needs to be explained that the buffer is used to render triangles , Pass this integer .

glBindBuffer(GL_ARRAY_BUFFER,buffer);

The next step is to specify the data . A simple way is to fill in vertex data directly when declaring data

float positions[6]={
      -0.5f,-0.5f,
      0.0f ,0.5f,
      0.5f,-0.5f
};

glBufferData(GL_ARRAY_BUFFER,6*sizeof(float),positions,GL_STATIC_DRAW);

// Then we usually need to create an index buffer , No index buffer can be called glDrawArrays() To draw the specified element

glDrawArrays(GL_TRIANGLE,0,3);

  This choice is similar to PS, Select the layer , Select the brush , Only this layer is affected .OpenGL It's the same thing , Before using it, you need to select or bind Necessary things , This is how it works , It is a context sensitive state machine .

Finally remember to call glEnableVertexAttribArray(), Enable glVertexAttribPointer();

glEnableVertexAttribArray(0);

glVertexAttribPointer(0,2,GL_FLOAT,GL_FALSE,sizeof(float)*2,0);

// effect ： These two pieces of code tell OpenGL What is the buffer layout , Theoretically, you can see triangles on the screen with a shader .

---

（ Two ）VAO/VBO/IBO

1. Several concepts introduced by the new version of vertex buffer

Vertex array object Vertex Array Object ,VAO

Vertex buffer object Vertex Buffer  Object ,VBO 【 It is equivalent to the vertex buffer of the old version 】

Element buffer object   Element    Buffer Object ,EBO/ Or index buffer object Index Buffer Object,IBO

Reading reflection ：

      stay LearnOpenGl The tutorial , mention OpenGL The core model of requirement We use VAO. This sentence means must . Read... Carefully , Even a tone may affect your grasp of the conditions of use .

      In addition, pay attention to accurate understanding The term . For example, when it comes to “ object " when , We can refer to C++ Understand the concepts of objects and attributes .

      Qualitative understanding . Vertex buffer object . The vertex is the data to be input , An object is an integration of States . The key word here is ” buffer “, So that means , This is a piece of memory . This refers to the memory of the object , Not memory objects .

2. Analysis of old and new versions

// Old version processing ： It's written in glad Version of OpenGL China is out of date . But in glew.h You can run under the weather .（glad.h yes glew.h Evolution version ）

//0. Generate a specified number of buffer objects
unsigned int buffer;
glGenBuffer(1,&buffer);

//1. Copy the array of pairs of vertices into the buffer for OpenGL Use
glBindBuffer(GL_VERTEX_BUFFER,buffer);
glBufferData(GL_ARRAY_BUFFER,6*sizeof(float),positions,GL_STATIC_DRAW);

//2. Set vertex property pointer
glVertexAttribPointer(0,2,GL_FLOAT,GL_FALSE,sizeof(float)*2,0);
glEnableVertexAttribArray(0);

//3. But when we render an object, we need to use shader program
glUseProgram(shaderProgram);

//4. Draw objects
glUseProgram(shaderProgram);

// Unbundling ： End the life cycle of an object
glBindVertexArray(0);

analysis ： Through the old version of the vertex array processing , We can observe that when we draw an object, we have to repeat this process , But if there are more than five vertex attributes , Hundreds of objects . Bind the correct buffer object , Configuring all vertex attributes for each object quickly becomes a hassle . This is the disadvantage of process oriented programming .

3. summary

// How to handle the new version

//   Initialization code （ Only run once  ( Unless your objects change frequently )）
// 1.  binding VAO
glBindVertexArray(VAO);

// 2.  Copy the vertex array to the buffer for OpenGL Use
glBindBuffer(GL_ARRAY_BUFFER, VBO);
glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

// 3.  Set vertex property pointer
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void*)0);
glEnableVertexAttribArray(0);

[...]

//  Draw code （ In the rendering loop ）
// 4.  Draw objects
glUseProgram(shaderProgram);
glBindVertexArray(VAO);
someOpenGLFunctionThatDrawsOurTriangle();

(1) VAO Design idea   Similar to the concept of object-oriented classes . We use a vertex array object to integrate any number of attributes . When configuring vertex attribute pointers , You only need to execute those calls once , Then when drawing objects, you only need to bind the corresponding VA0 That's it .

(2) VBO But I want to use VAO, We also need to bind the corresponding VBO To show that this is the memory of that object .VBO Like we call a function , It will occupy a virtual space on the stack ,（ Memory ） It will be released as the life cycle of the object ends ( It can be understood as failure ） therefore VBO And VAO Have life cycle .

(3) VAO +  VBO= One that stores our vertex attribute configuration and what should be used VBO Vertex array object .

4. Configure vertex attribute pointer

// Set vertex property pointer , Set location properties
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)0);
	glEnableVertexAttribArray(0);
	// Set color properties
	glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 6 * sizeof(float), (void*)(3 * sizeof(float)));
	glEnableVertexAttribArray(1);
    ........ We can also configure texture and other attributes next

notes ：

1.glVertexAttribPointer Function is used to configure vertex attributes .

The meanings of the parameters are ,1 The starting position of the vertex position ,2 In groups of several ,3 data type ,4 Whether standardization is needed ,5 step （ In bytes ）, Offset pointer （ Bytes are units )）

2.glEnableVertexAttribArray（） The vertex shader used to activate the corresponding attribute

---

（ 3、 ... and ） Shaders

1. Concept ： Shader is a program code that runs on a graphics card . Code form ： Written as text or string .

Compile the way ： Send to GPU Compile link to run .

CPU And GPU With ：GPU Processing graphics is much faster , So use the ability of the graphics card to draw graphics on the screen .

and CPU There are also good parts , We can send the result data to the graphics card while still CPU Upper processing .

2. type ： For most graphic programming ： Focus on two shaders , Vertex shaders and clip shaders .

（1） Vertex shader ： It will be called by every vertex rendered , It mainly tells the graphics card where we plan this vertex in the screen space . And the window is basically composed of pixels , The specified vertex needs to be filled with actual pixels , Outline the outline of the figure .

（2） Fragment Shader ： Vertex shader ends running , Enter the clip shader pipeline . The fragment shader is called once for each pixel that needs to be filled , It mainly determines the color of pixels . It is equivalent to coloring the outline .

contrast ： Vertex shaders and fragment shaders are similar in nature , But the cost of using fragment shaders is higher .

Because vertex shaders send data in batches at one time , But the fragment shader is run for each pixel , The latter is more expensive . also , Vertex shading input information , Fragment shaders require compositing information , The amount of information calculated is different . However Some things have to be calculated in pixels , Such as light source . Receiving light source , Environmental Science , texture , Provide the influence of surface material and other factors , The color value of each pixel is different . And after these inputs , The decision in the clip shader is just the color of a single pixel .

3. Code practice

There are three main tasks to be completed , Create shader binding to program , Compile shader source code as program , Call shader .

How to manage shader file ？ First, classify the code files with different functions to facilitate our management . So we will shader The source code of is placed separately .shader In file , among vertex shader and fragment shader The file can be divided into two , It can also be written as . But if in the future, for example, a vertex shader needs to be matched with multiple fragment shaders , It will still be divided into multiple files according to functions .

in addition ,shader After being independently documented , You need to establish links by reading files .

//shader  Source code
#shader vertex
#version 330 core

layout(location = 0) in vec4 position;

void main()
{
    gl_Position = position;
};

#shader fragment
#version 330 core

layout(location = 0) out vec4 color;

void main()
{
    color = vec4(1.0, 0.0, 0.0, 1.0);
};

  And then we need to use parse Line by line parsing shader, Resolved to #shader Just judge what type it is shader, Then fill in string stream in .

struct ShaderProgramSource
{
	std::string VertexSource;
	std::string FragmentSource;
};

static ShaderProgramSource ParseShader(const std::string& filepath)
{
	std::ifstream stream(filepath);  // From hard disk to memory
	enum class ShaderType
	{
		NONE=-1,VERTEX=0,FRAGMENT=1
	};
	std::stringstream ss[2];
	ShaderType type=ShaderType::NONE;
	std::string line;
	while (getline(stream, line))
	{
		if (line.find("#shader") != std::string::npos)
		{
			if (line.find("vertex") != std::string::npos)
				type = ShaderType::VERTEX;
			else  if (line.find("fragment") != std::string::npos)
				type = ShaderType::FRAGMENT;
		}
		else
		{
			ss[(int)type] << line << "\n";
		}
	}
	return { ss[0].str(),ss[1].str() };
}

4. Above, we have completed the generation of shaders , compile , Read . Next, call the shader program .  Then we need to create a buffer , Generate a specified number of buffer objects ; Bind buffer  ; Copy the data in memory to GPU In the video memory of ; Activate shader ; Specify the memory layout of the shader according to the attributes ; analysis shader Source code ; establish shader Program ; Activate program .

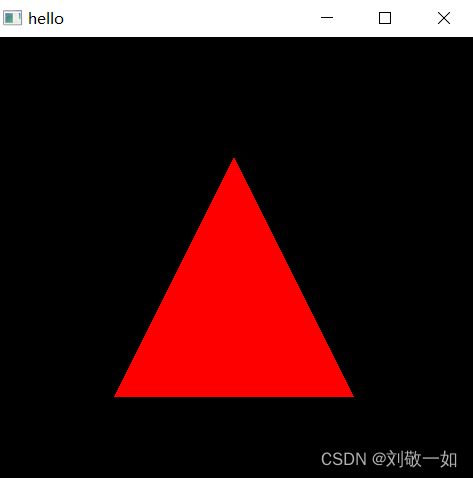

Running results

---

  Complete code

#include"glad/glad.h"
#include"GLFW/glfw3.h"
#include<iostream>
#include<fstream>
#include<sstream>

struct ShaderProgramSource
{
	std::string VertexSource;
	std::string FragmentSource;
};

static ShaderProgramSource ParseShader(const std::string& filepath)
{
	std::ifstream stream(filepath);  // From hard disk to memory
	enum class ShaderType
	{
		NONE=-1,VERTEX=0,FRAGMENT=1
	};
	std::stringstream ss[2];
	ShaderType type=ShaderType::NONE;
	std::string line;
	while (getline(stream, line))
	{
		if (line.find("#shader") != std::string::npos)
		{
			if (line.find("vertex") != std::string::npos)
				type = ShaderType::VERTEX;
			else  if (line.find("fragment") != std::string::npos)
				type = ShaderType::FRAGMENT;
		}
		else
		{
			ss[(int)type] << line << "\n";
		}
	}
	return { ss[0].str(),ss[1].str() };
}
static unsigned int CompileShader(unsigned int type, const std::string& source)
{
	unsigned int id = glCreateShader(type);
	const char* src = source.c_str();
	glShaderSource(id, 1, &src, nullptr);
	glCompileShader(id);
	//to do error handing
	int result;
	glGetShaderiv(id, GL_COMPILE_STATUS, &result);
	if (result == GL_FALSE)
	{
		int length;
		glGetShaderiv(id, GL_INFO_LOG_LENGTH, &length);
		char* message = (char*)alloca(length * sizeof(char));//C function , Allocate... On the stack

		glGetShaderInfoLog(id, length, &length, message);
		std::cout << "Failed to compile " << (type == GL_VERTEX_SHADER ? "vertex" : "fragment")
			<< " shader" << std::endl;

		std::cout << message << std::endl;
		glDeleteShader(id);
		return 0;
	}
	return id;
}

static unsigned int CreateShader(const std::string& vertexShader, const std::string& fragmentShader)
{
	unsigned int program = glCreateProgram();
	unsigned int vs = CompileShader(GL_VERTEX_SHADER, vertexShader);
	unsigned int fs = CompileShader(GL_FRAGMENT_SHADER, fragmentShader);
	glAttachShader(program, vs);
	glAttachShader(program, fs);
	glLinkProgram(program);
	glValidateProgram(program);
	glDeleteShader(vs);
	glDeleteShader(fs);
    return program;
}
 int main(void)
{
	GLFWwindow* window;
	glfwInit();
	if (!glfwInit()) return -1;
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

	window = glfwCreateWindow(480, 480, "hello", NULL, NULL);
	if (!window)
	{
		std::cout << "error" << std::endl;
		glfwTerminate();
		return -1;
	}
	glfwMakeContextCurrent(window);

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
	{
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}

	float positions[6] = {
		-0.5f,-0.5f,
		 0.0f, 0.5f,
		 0.5f, -0.5f
	};
	unsigned int VBO, VAO;
	glGenVertexArrays(1, &VAO);
	glGenBuffers(1, &VBO);

	glBindVertexArray(VAO);
	glBindBuffer(GL_ARRAY_BUFFER, VBO);

	glBufferData(GL_ARRAY_BUFFER, 6* sizeof(float) , positions, GL_STATIC_DRAW);

	glVertexAttribPointer(0,2,GL_FLOAT,GL_FALSE,8,(const void*)0);
	glEnableVertexAttribArray(0);

	ShaderProgramSource source = ParseShader("res/shaders/Basic.shader");
	unsigned int shader = CreateShader(source.VertexSource,source.FragmentSource);
	glUseProgram(shader);

	while (!glfwWindowShouldClose(window))
	{
		glClear(GL_COLOR_BUFFER_BIT);

		glDrawArrays(GL_TRIANGLES, 0, 3);

		glfwSwapBuffers(window);
		glfwPollEvents();
	}
	glDeleteVertexArrays(1, &VAO);
	glDeleteBuffers(1, &VBO);
	glDeleteProgram(shader);
	glfwTerminate();
	return 0;
}

VAO,VBO,IBO Model illustration



---

（ Four ） Index buffer

（1） background

The lines , Review the process of drawing a triangle , How can we draw a quadrilateral ？ From one angle We can think that all polygons are composed of triangles , Then we can draw several triangles in different positions in the same way to splice our target polygon . But once the model becomes complex , There will be many repeated vertices , This approach is completely unrealistic .

Another angle , according to “ link ” Think about it , We should outline the vertex shader pipeline , Then color the clip shader pipe . Obviously, the first angle does not meet OpenGL Design concept of .

The purpose of vertex buffer is not to provide redundant or repeated vertex positions .

 （2） Concept ：

Delete any duplicate vertices , You get a completely unique vertex in the vertex buffer , Then create an index to paint vertices more than once , And then we use IBO The binding code sends the index buffer to the graphics card ; Finally we use glDrawElement() Drawing graphics .

 （3） Code implementation ：

	unsigned int IBO;
	glGenBuffers(1, &IBO);
	glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, IBO);
	glBufferData(GL_ELEMENT_ARRAY_BUFFER, 6 * sizeof(unsigned int), indicesGL_STATIC_DRAW);


    //rendering
    glDrawElements(GL_TRIANGLES,6,GL_UNSIGNED_INT,nullptr);

---

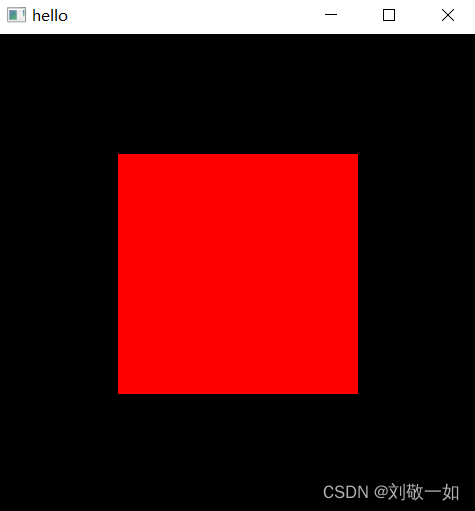

Draw the complete code of rectangle ：

//main.cpp
#include"glad/glad.h"
#include"GLFW/glfw3.h"
#include<iostream>
#include<fstream>
#include<sstream>

struct ShaderProgramSource
{
	std::string VertexSource;
	std::string FragmentSource;
};

static ShaderProgramSource ParseShader(const std::string& filepath)
{
	std::ifstream stream(filepath);  // From hard disk to memory
	enum class ShaderType
	{
		NONE=-1,VERTEX=0,FRAGMENT=1
	};
	std::stringstream ss[2];
	ShaderType type=ShaderType::NONE;
	std::string line;
	while (getline(stream, line))
	{
		if (line.find("#shader") != std::string::npos)
		{
			if (line.find("vertex") != std::string::npos)
				type = ShaderType::VERTEX;
			else  if (line.find("fragment") != std::string::npos)
				type = ShaderType::FRAGMENT;
		}
		else
		{
			ss[(int)type] << line << "\n";
		}
	}
	return { ss[0].str(),ss[1].str() };
}
static unsigned int CompileShader(unsigned int type, const std::string& source)
{
	unsigned int id = glCreateShader(type);
	const char* src = source.c_str();
	glShaderSource(id, 1, &src, nullptr);
	glCompileShader(id);
	//to do error handing
	int result;
	glGetShaderiv(id, GL_COMPILE_STATUS, &result);
	if (result == GL_FALSE)
	{
		int length;
		glGetShaderiv(id, GL_INFO_LOG_LENGTH, &length);
		char* message = (char*)alloca(length * sizeof(char));//C function , Allocate... On the stack

		glGetShaderInfoLog(id, length, &length, message);
		std::cout << "Failed to compile " << (type == GL_VERTEX_SHADER ? "vertex" : "fragment")
			<< " shader" << std::endl;

		std::cout << message << std::endl;
		glDeleteShader(id);
		return 0;
	}
	return id;
}

static unsigned int CreateShader(const std::string& vertexShader, const std::string& fragmentShader)
{
	unsigned int program = glCreateProgram();
	unsigned int vs = CompileShader(GL_VERTEX_SHADER, vertexShader);
	unsigned int fs = CompileShader(GL_FRAGMENT_SHADER, fragmentShader);
	glAttachShader(program, vs);
	glAttachShader(program, fs);
	glLinkProgram(program);
	glValidateProgram(program);
	glDeleteShader(vs);
	glDeleteShader(fs);
    return program;
}
 int main(void)
{
	GLFWwindow* window;
	glfwInit();
	if (!glfwInit()) return -1;
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

	window = glfwCreateWindow(480, 480, "hello", NULL, NULL);
	if (!window)
	{
		std::cout << "error" << std::endl;
		glfwTerminate();
		return -1;
	}
	glfwMakeContextCurrent(window);

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress))
	{
		std::cout << "Failed to initialize GLAD" << std::endl;
		return -1;
	}


	// Vertex Attribute

	float positions[] = {
		-0.5f,-0.5f,
		 0.5, -0.5f,
		 0.5f, 0.5f,
		 -0.5f,0.5f
	};
	unsigned int indices[] =
	{
		0,1,2,
		2,3,0
	};

	unsigned int VAO,VBO;
	glGenVertexArrays(1, &VAO);
	glBindVertexArray(VAO);

	glGenBuffers(1, &VBO);
	glBindBuffer(GL_ARRAY_BUFFER, VBO);
	glBufferData(GL_ARRAY_BUFFER, 6 * 2 * sizeof(float), positions, GL_STATIC_DRAW);


	glEnableVertexAttribArray(0);
	glVertexAttribPointer(0,2,GL_FLOAT,GL_FALSE,8,(const void*)0);


	unsigned int IBO;
	glGenBuffers(1, &IBO);
	glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, IBO);
	glBufferData(GL_ELEMENT_ARRAY_BUFFER, 6 * sizeof(unsigned int), indices, GL_STATIC_DRAW);

	ShaderProgramSource source = ParseShader("res/shaders/Basic.shader");
	unsigned int shader = CreateShader(source.VertexSource,source.FragmentSource);
	glUseProgram(shader);

	while (!glfwWindowShouldClose(window))
	{
		glClear(GL_COLOR_BUFFER_BIT);
		glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);// Wireframe mode
		glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, nullptr);

		glfwSwapBuffers(window);
		glfwPollEvents();
	}

	glDeleteProgram(shader);
	glfwTerminate();
	return 0;
}
