Jmeter- (II) basic interface and common components for interface testing

Preface ：

This is mainly about Jmeter test http Interface , Common components involved , Include ：

        （ One ） Basic interface and component concepts

        （ Two ） Common configuration components

        （ 3、 ... and ）HTTP Request standard components

---

（ One ） Basic interface and component concepts

1. test plan ： It's using jmeter The starting point for testing , It's something else jmeter Containers for test elements

2. Thread group ： Represents a certain number of concurrent users , It can be used to simulate the sending request of concurrent users . The actual request content is in the thread group -> Defined in the sampler , It is contained by the thread group , This can be done in the test plan --> add to --> Thread group to create

Parameter interpretation ：

Number of threads ： Maximum number of threads used in the test , The default is 1, It can be used to set the number of concurrent users .

Ramp-Up Period : Jmeter Time to reach the specified maximum number of threads .

①　0 Concurrent on behalf of ;

②　 If the number of threads is 3, The required duration is 3S, be 3/3=1  every other 1S Start a thread ;

③　 General Settings Ramp-Up= Number of threads , Then adjust it up and down to the desired .

cycles : If it is Forever, The threads in the thread group will continuously test the system , Of course, you can also set the number of tests per thread , When the specified number of times has been completed , The thread will automatically exit the thread group .

Scheduler ： It is mainly used to specify some time information of the test , For example, from what time to what time to run the test , If the test is not completed at the specified time , The test will also be stopped （ This is rarely used ）

（ Two ） Common configuration components

test http Interface request , You need to add a definition first header Related components ：

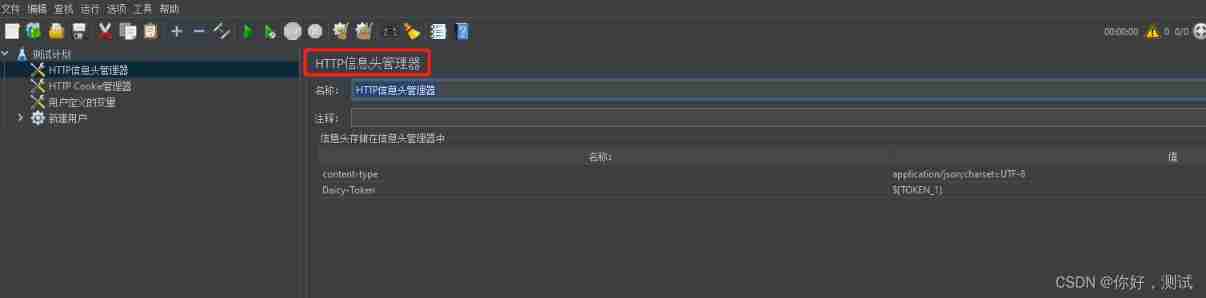

1. HTTP Header Manager ：

        HTTP The header manager allows you to customize JMeter stay HTTP What message does the request message send . The message header includes something like "User-Agent", "Pragma", "Referer" Equal attribute .

        HTTP The header manager is like HTTP Cookie The manager is the same , If you don't want to be different in your test for some reason HTTP The request object specifies a different header , Can be added to the thread group level .

         Select Add --> The configuration element -->HTTP Header Manager

Parameter interpretation ：

name / notes ： You can customize .

Message header ： You can add interface parameters by yourself , Set the corresponding name and value .

         It needs to be said here , If R & D does not provide relevant header information , We can also open the console ourselves ,F12（ Developer model ） Go down and get it ！！

 2. HTTP Cookie Manager ：

         Unless your application explicitly does not use Cookies, Almost all web applications use cookie Support . You want to add cookie Support , You can simply add one to each thread group in your test plan HTTP Cookie Manager . This ensures that each thread group has its own cookies.

         add to HTTP Cookie Manager , Simply choose this Thread group , Select Add --> The configuration element -->HTTP Cookie Manager , You can also add from the edit menu or by right clicking .

         It needs to be said here , If R & D does not provide relevant header information , We can also open the console ourselves ,F12（ Developer model ） Go down and get it ！！

 3. User defined variables ： Select sampler , Right click ： add to - The configuration element - User defined variables

      It usually parameterizes the values common to the whole thread , It is easy to maintain later , If there are changes, you do not need to modify each interface one by one .

（ 3、 ... and ）Http Request standard components

We have already introduced the basic components , Next, we can add interface requests under the thread .

1. HTTP request ： Thread group -> Sampler ->http Request add

explain ： Some interfaces have no message body , You need to directly transfer parameters on the interface path , In this case, we can directly add interface parameters .

2. Response assertion ： Mainly used to judge http Whether the request is called successfully , This and http The request is standard . Add a path ：http request -> Assertion -> Response assertion add

Parameter interpretation ：

Test fields ： Select the location where you want to judge the content , For example, the response header information is used to determine whether it is successful , This can be selected according to your own needs .

Matching specifications ： The literal meaning is easy to read , Choose exact match or include, and so on ...

Test mode ： This is the real judgment condition , Be consistent with the response information of the interface , If there is no match, the interface call fails .

3.  The regular expression extractor gets ： The main user obtains the parameters returned by the interface , Next to get token For example

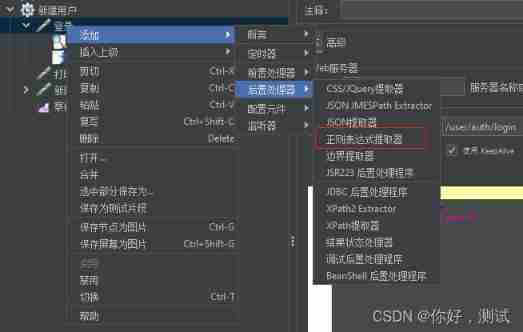

     Add location ： Post Processors - Regular expression extractor

  name + notes ： It is not necessary to modify , Just for the convenience of self identification

Fields to check ： Main body, etc , Generally, we choose the subject , That is, the main body information of the page returned by the server

　　【 Quote name 】： Is the parameter name , Quote elsewhere ; Such as the input TOKEN, Use when quoting elsewhere ${TOKEN}

　　【 Regular expressions 】： Expression () The contents in the are to be extracted . Such as "token": "(.+)", "userUpdate", Expression lookup token/ What follows the string , Until the first user End of time ;（ Note the extracted content in parentheses ）

             ()： The enclosed part is to be extracted .

　　　　.： Match any string .

　　 　 +： Once or more .

　　 　 ?： Stop after first match found .

　　【 Templates 】： use $$ To quote , If there are multiple regular expressions in a regular expression （ What's in brackets ）, It can be $1$（ Indicates that there is only one set of data ）,$2$ wait , Represents resolved to 1 individual 、 The first 2 Give a value to mysid

　　【 Match the Numbers 】：0 Represents a random value ,-1 On behalf of all ,1 Represents all values

　　【 The default value 】： If the parameter does not get a value , Then use the default value here

4. Commissioning the samplers ： The main user prints the parameter values obtained , Convenient for debugging

Add location ： Thread group -> Sampler -> Commissioning the samplers

5. Look at the fruit tree ： Used to view the returned results of the interface , It can be used directly after adding without configuration .

Add location ： Thread group -> Monitor -> View the result tree

Hello Test, So far we jmeter That's all for the basic components of , According to this document, we should be able to write a simple http Interface test script , Let's try it ~~ The following screenshot was written by me The user login -- Get login token-- A new user Script for , You can refer to the structure , In the next chapter, I will introduce how to write a simple script for creating a new user , Everyone pays attention in time , finger heart ~
