The first screen time, you said you optimized it, then you calculated it and showed it to me!

Preface

Hello everyone , I'm Lin Sanxin , Speak the most difficult knowledge points in the most easy to understand words It's my motto , Foundation is the premise of advanced It's my first heart

background

When we are doing project performance optimization , Optimize the first screen time It is an unavoidable optimization direction , But how many people have thought about the difference between these two things ：

White screen time
First screen time

And what's the difference between the calculation of these two times ？ Next, I will tell you about it ！

White screen time

What is it? ？

White screen time refers to ： The time when the page begins to display content . That is to say ： The time when the browser displays the first character or element

How to calculate ？

We just need to know when the browser starts displaying content , That is, the white screen time of the page can be obtained at the end time of the page white screen .

therefore , We usually think that browsers start rendering <body> Tag or parse <head> The time of the tag is the time when the white screen of the page ends .

Browser support performance.timing

<head>
<title>Document</title>
</head>
<script type="text/javascript">
//  White screen time end point
var firstPaint = Date.now()
var start = performance.timing.navigationStart
console.log(firstPaint - start)
</script>

Browser does not support performance.timing
```
<head>
<title>Document</title>
<script type="text/javascript">
  window.start = Date.now();
</script>
</head>
<script type="text/javascript">
//  White screen time end point
var firstPaint = Date.now()
console.log(firstPaint - window.start)
</script>
```
First screen time
What is it? ？
The first screen time is when the user opens the website , The time until the first screen of the browser is rendered . For the user experience , The first screen time is an important factor for users to experience a website .

Why not just use the lifecycle ？

Some of them will say ： Why not directly in App.vue Of mounted Calculate time in the life cycle ？ You can see that , Official website said mounted Execution does not mean that all elements on the first screen have been loaded , therefore mounted The calculated time will be shorter .

Why not use it directly nextTick？

nextTick When it comes back , First screen DOM It's all rendered , But calculation First screen time You don't have to render everything DOM, So the calculated time will be longer

How to calculate ？

We need to use MutationObserver monitor DOM The change of , Monitor every time DOM Changing fraction , The calculation rule is ：
(1 + The layer number * 0.5), Let me give you an example ：

<body>
    <div>
      <div>1</div>
      <div>2</div>
    </div>
</body>

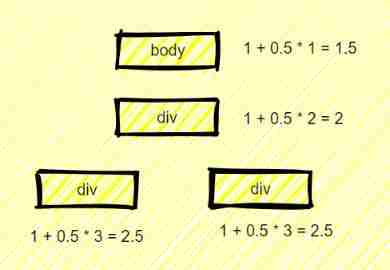

above DOM The score of the structure is ：

1.5 + 2 + 2.5 + 2.5 = 8.5( branch )

In fact, during the loading of the first screen , It will involve DOM An increase in 、 modify 、 Delete , So it will trigger many times MutationObserver , So we will count the number of different stages score, We put these score Stored in an array observerData in , The back is very useful

First screen time practice

Now let's start calculating the first screen time ！

Lead to

index.html：html page

<!DOCTYPE html>
<html lang="en">
<head> </head>
<body>
  <div>
    <div>
      <div>1</div>
      <div>2</div>
    </div>
    <div>3</div>
    <div>4</div>
  </div>
  <ul id="ulbox"></ul>
</body>
<script src="./computed.js"></script>
<script src="./request.js"></script>
</html>

computed.js ： File for calculating the first screen time

const observerData = []

let observer = new MutationObserver(() => {
//  Calculate every time DOM When modifying , The time before the page starts loading
const start = window.performance.timing.navigationStart
const time = new Date().getTime() - start

const body = document.querySelector('body')
const score = computedScore(body, 1)
//  Add to array  observerData  in
observerData.push({
  score,
  time
})
})
observer.observe(
document, {
  childList: true,
  subtree: true
}
)

function computedScore(element, layer) {
let score = 0
const tagName = element.tagName
//  Exclude these labels
if (
  tagName !== 'SCRIPT' &&
  tagName !== 'STYLE' &&
  tagName !== 'META' &&
  tagName !== 'HEAD'
) {
  const children = element.children
  if (children && children.length) {
    //  Recursively calculate the score
    for (let i = 0; i < children.length; i++) {
      score += computedScore(children[i], layer + 1)
    }
  }

  score += 1 + 0.5 * layer
}
return score
}

request.js ： Simulation request modification DOM

//  Simulation request list
const requestList = () => {
return new Promise((resolve) => {
  setTimeout(() => {
    resolve(
      [1, 2, 3,
        4, 5, 6,
        7, 8, 9
      ]
    )
  }, 1000)
})
}

const ulbox = document.getElementById('ulbox')

//  Simulation request data rendering list
const renderList = async () => {
const list = await requestList()
const fragment = document.createDocumentFragment()
for (let i = 0; i < list.length; i++) {
  const li = document.createElement('li')
  li.innerText = list[i]
  fragment.appendChild(li)
}
ulbox.appendChild(fragment)
}

//  Simulate minor changes to the list
const addList = async () => {
const li = document.createElement('li')
li.innerText = ' Add '
ulbox.appendChild(li)
}

(async () => {
//  Simulation request data rendering list
await renderList()
//  Simulate minor changes to the list
addList()
})()

observerData

When we are all ready to run the code , We got observerData , Let's see what it looks like ？

Calculate the first screen time

How do we base it observerData To calculate the first screen time ？ We can do that ： The first screen time is the time when the next score increases the most than the last score

A lot of people will ask , Why not take the time of the last item as the first screen time ？ We should pay attention to ： The first screen is not all DOM Render all , Let me take the code just now as an example , We finished rendering the list , Then add another one li, Which time period do you think is the first screen ？ It should be the first screen after rendering the list , Because only one has been added li, Small increase in scores , Negligible

So let's start calculating ：

const observerData = []

let observer = new MutationObserver(() => {
  //  Calculate every time DOM When modifying , The time before the page starts loading
  const start = window.performance.timing.navigationStart
  const time = new Date().getTime() - start
  const body = document.querySelector('body')
  const score = computedScore(body, 1)
  observerData.push({
    score,
    time
  })

  // complete Time to call  unmountObserver
  if (document.readyState === 'complete') {
    //  Only calculate 10 Seconds rendering time
    unmountObserver(10000)
  }
})
observer.observe(
  document, {
    childList: true,
    subtree: true
  }
)

function computedScore(element, layer) {
  let score = 0
  const tagName = element.tagName
  //  Exclude these labels
  if (
    tagName !== 'SCRIPT' &&
    tagName !== 'STYLE' &&
    tagName !== 'META' &&
    tagName !== 'HEAD'
  ) {
    const children = element.children
    if (children && children.length) {
      //  Recursively calculate the score
      for (let i = 0; i < children.length; i++) {
        score += computedScore(children[i], layer + 1)
      }
    }

    score += 1 + 0.5 * layer
  }
  return score
}

//  Calculate the first screen time
function getFirstScreenTime() {
  let data = null
  for (let i = 1; i < observerData.length; i++) {
    //  Calculate the amplitude
    const differ = observerData[i].score - observerData[i - 1].score
    //  Take the maximum amplitude , Record the corresponding time
    if (!data || data.rate <= differ) {
      data = {
        time: observerData[i].time,
        rate: differ
      }
    }
  }
  return data
}

let timer = null

function unmountObserver(delay) {
  if (timer) return
  timer = setTimeout(() => {
    //  Output the first screen time
    console.log(getFirstScreenTime())
    //  End MutationObserver Monitoring of
    observer.disconnect()
    observer = null
    clearTimeout(timer)
  }, delay)
}

Calculate the first screen time 1020ms

summary

My calculation method actually has many flaws , The deletion of elements is not taken into account , But I want you to know how to calculate the first screen time , That's the most important thing , I hope you can understand this calculation idea
