Instant messaging and BS architecture simulation of TCP practical cases

What does instant messaging mean , What kind of design should be implemented ？

1、 Instant messaging , It refers to the message sent by a client , Other clients can receive

2、 Before, our messages were sent to the server

3、 Instant messaging needs the design idea of port forwarding

4、 The server needs to put online Socket Pipe storage

5、 Once you receive a message, push it to other channels

client ：

import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;

public class TCP_ Practical cases _ Instant messaging  {
    public static void main(String[] args) throws Exception {
        System.out.println("----- The client starts -----");
        // establish Socket The communication pipeline requests a connection to the server
        /*
        public Socket(String host, int port)
         Parameter one 、 Server's IP Address
         Parameter two 、 The port of the server
         */
        Socket socket = new Socket("127.0.0.1", 7777);
        // Create a separate thread to be responsible for the client's message reading （ The server may forward at any time !）
        new ClientReaderThread(socket).start();
        // from Socket Get a byte output stream from the communication pipeline , Responsible for sending data
        OutputStream out = socket.getOutputStream();
        // Wrap the low-level byte stream into a print stream
        PrintStream ps = new PrintStream(out);
        Scanner sc = new Scanner(System.in);
        while (true) {
            System.out.println(" Please enter the message you want to send ：");
            String line = sc.nextLine();
            // Send a message
            ps.println(line);
            // Refresh
            ps.flush();
        }
    }
}
// Client read message thread
class ClientReaderThread extends Thread{
    private Socket socket;

    public ClientReaderThread(Socket socket) {
        this.socket = socket;
    }
    @Override
    public void run() {
        try {
            // from Socket Get a byte input stream in the communication pipeline
            InputStream is = socket.getInputStream();
            // The byte input stream is wrapped into a buffered byte input stream to receive messages
            BufferedReader br = new BufferedReader(new InputStreamReader(is));
            // Read the message by line
            String line;
            while ((line = br.readLine()) != null) {
                System.out.println(" Received a message ：" + line);
            }
        } catch (Exception e) {
            System.out.println( " The server has kicked you out ！");
        }
    }
}

  Server side ：

import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;
class TCP_ Instant messaging _ Server side  {
    // Define a static List Collections store all currently online socket The Conduit
    public static List<Socket> allonlineSockets=new ArrayList<>();
    public static void main(String[] args) throws Exception {
        System.out.println("----- Server startup -----");
        // Registered port
        ServerSocket serverSocket = new ServerSocket(7777);
        // Define an endless loop in which the main thread is responsible for continuously receiving the data from the client Socket Communication pipeline connection
        while (true) {
            // Every time a client receives Socket Communication pipeline , Give it to an independent sub thread to read the information
            Socket socket = serverSocket.accept();
            System.out.println(socket.getRemoteSocketAddress() + " launched ");
            allonlineSockets.add(socket);// Online completion
            // Create a separate thread to handle this socket The Conduit
            new ServerReaderThread(socket).start();

        }
    }
}
class ServerReaderThread extends Thread {
    private Socket socket;

    public ServerReaderThread(Socket socket) {
        this.socket = socket;
    }

    @Override
    public void run() {
        try {
            // from Socket Get a byte input stream in the communication pipeline
            InputStream is = socket.getInputStream();
            // The byte input stream is wrapped into a buffered byte input stream to receive messages
            BufferedReader br = new BufferedReader(new InputStreamReader(is));
            // Read the message by line
            String line;
            while ((line = br.readLine()) != null) {
                System.out.println(" Received the message ：" + line);
                // Port forward this message to all clients socket The Conduit
                sendMsgToAll(line);
            }
        } catch (Exception e) {
            System.out.println(socket.getRemoteSocketAddress() + " Get offline ");
            TCP_ Instant messaging _ Server side .allonlineSockets.remove(socket);// Delete
        }
    }
// Independent functions are independent methods
    private void sendMsgToAll(String msg) throws Exception {
        for (Socket socket : TCP_ Instant messaging _ Server side .allonlineSockets) {
            PrintStream ps=new PrintStream(socket.getOutputStream());
            ps.println(msg);
            ps.flush();
        }
    }
}

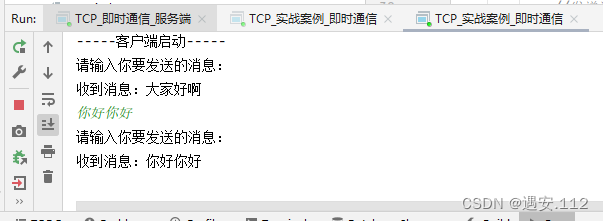

Running effect ：





  There is a flaw here, that is, the messages sent do not shield themselves , The two are the same because concurrency is enabled .

The following is the effect of closing the server ：





 BS Architecture simulation ：

1、 What were the previous clients like ？

In fact, that is CS framework , The client needs to be developed and implemented by ourselves .

2、BS What is the structure , Need to develop client ？

  Browser access server , No client development required .

Simple simulation ：

import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.concurrent.*;

public class TCP_BS framework  {
    public static void main(String[] args) throws Exception {
        // Registered port
        ServerSocket serverSocket = new ServerSocket(7070);
        // Define an endless loop in which the main thread is responsible for continuously receiving the data from the client Socket Communication pipeline connection
        while (true) {
            // Every time a client receives Socket Communication pipeline , Give it to an independent sub thread to read the information
            Socket socket = serverSocket.accept();
            // Create a separate thread to handle this socket The Conduit
            new ServerReaderThread2(socket).start();
        }
    }
}
class ServerReaderThread2 extends Thread {
    private Socket socket;

    public ServerReaderThread2(Socket socket) {
        this.socket = socket;
    }

    @Override
    public void run() {
        // The browser has been established with this thread socket The Conduit
        // The response message is displayed to the browser
        try {
            PrintStream ps=new PrintStream(socket.getOutputStream());
            // Must respond to HTTP Protocol format data , Otherwise, the browser does not recognize the message
            ps.println("HTTP/1.1 200 OK");// Protocol type and version   Respond to a successful message
            ps.println("Content-Type:text/html;charset=UTF-8");// The data type of the response ： Text / Webpage
            ps.println();// A space must be sent
            // Then you can respond to the data and go back to the browser
            ps.println("<span style='color:red;font-size:90px'>《 Yu an .》 </span>");
            ps.close();
        } catch (Exception e) {
            e.printStackTrace();
        }

    }
}

  Thread pool optimization ：

import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.concurrent.*;

public class TCP_BS framework  {
    private static ExecutorService pools = new ThreadPoolExecutor(3, 5,
            6, TimeUnit.SECONDS, new ArrayBlockingQueue<>(3),
            Executors.defaultThreadFactory(), new ThreadPoolExecutor.AbortPolicy());
    public static void main(String[] args) throws Exception {
        // Registered port
        ServerSocket serverSocket = new ServerSocket(7070);
        // Define an endless loop in which the main thread is responsible for continuously receiving the data from the client Socket Communication pipeline connection
        while (true) {
            // Every time a client receives Socket Communication pipeline , Give it to an independent sub thread to read the information
            Socket socket = serverSocket.accept();
           pools.execute(new ServerRunnable2(socket));
        }
    }
}
class ServerRunnable2 implements Runnable {
    private Socket socket;

    public ServerRunnable2(Socket socket) {
        this.socket = socket;
    }

    @Override
    public void run() {
        // The browser has been established with this thread socket The Conduit
        // The response message is displayed to the browser
        try {
            PrintStream ps=new PrintStream(socket.getOutputStream());
            // Must respond to HTTP Protocol format data , Otherwise, the browser does not recognize the message
            ps.println("HTTP/1.1 200 OK");// Protocol type and version   Respond to a successful message
            ps.println("Content-Type:text/html;charset=UTF-8");// The data type of the response ： Text / Webpage
            ps.println();// A space must be sent
            // Then you can respond to the data and go back to the browser
            ps.println("<span style='color:red;font-size:90px'>《 Yu an .》 </span>");
            ps.close();
        } catch (Exception e) {
            System.out.println(socket.getRemoteSocketAddress() + " Get offline ");
        }
    }
}

  In the browser rendering ：
