Mindoc makes mind map

mindoc Is based on editor.md A tool suitable for writing technical documents , I integrated it into engineercms in , I think its importance is second only to onlyoffice Online collaboration for , Because network writing is very suitable .

Integrated demo stay here .

mindoc Support 2 A way of mind mapping ：mindmap and mermaid

1 mindmap

The former needs to be slightly modified , Support size settings , see issue

mindmap The pattern seems to support only one style ？ It seems that someone has modified the style below , No experiments

Whether mind mapping is supported · Issue #734 · pandao/editor.md · GitHub

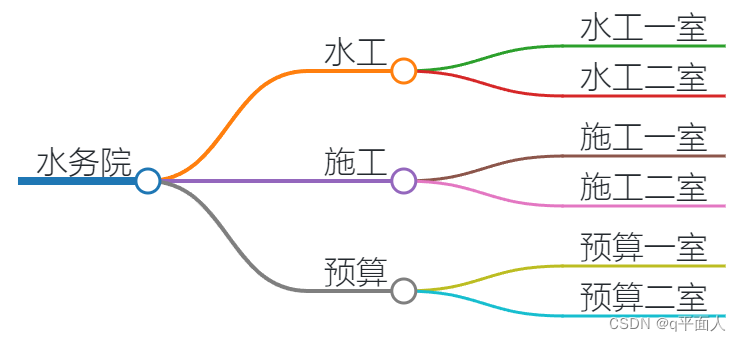

```mindmap>400
#  Water Affairs Institute
##  Hydraulic engineering
###  Hydraulic engineering room 1
###  Hydraulic engineering room 2
##  The construction of the
###  Construction room 1
###  Construction room 2
##  The budget
###  Budget room 1
###  Budget room 2
```

2 mermaid

https://doc.gsw945.com/docs/mindoc-docs
https://blog.csdn.net/wangyaninglm/article/details/52887045
https://mermaid-js.github.io/mermaid/#/
### 2.1 Add links
```
```mermaid
graph LR
    A --> B
    B --> C
    click B "https://www.github.com"
 ` ` `
```



2.2 Style class
In order to facilitate the use of style , You can define classes to use styles
Class definition example ：
classDef className fill:#f9f,stroke:#333,stroke-width:4px;
Use style classes for nodes ：
class nodeId className;
Use the same style class for multiple nodes at the same time ：
class nodeId1,nodeId2 className;
