Lvgl usage demo and instructions 2

brief introduction

This article continues the unfinished work above lvgl, Use examples to illustrate .

lvgl Introduction to canvas usage

Commonly used API explain

// Canvas creation
lv_canvas_create(lv_obj_t * parent);

// Set canvas BUFF
lv_canvas_set_buffer(lv_obj_t * obj, void * buf, lv_coord_t w, lv_coord_t h, lv_img_cf_t cf);

// Sketchpad initialization
lv_canvas_set_palette(lv_obj_t * obj, uint8_t id, lv_color_t c);

// Fill the canvas with color using the palette
lv_canvas_fill_bg(lv_obj_t * canvas, lv_color_t color, lv_opa_t opa);

// In the specified X,Y Area fill specifies the palette color
lv_canvas_set_px(lv_obj_t * obj, lv_coord_t x, lv_coord_t y, lv_color_t c);

// Place the converted image on the canvas
void lv_canvas_transform(lv_obj_t *canvas, lv_img_dsc_t *img, int16_t angle, uint16_t zoom, lv_coord_t offset_x, lv_coord_t offset_y, int32_t pivot_x, int32_t pivot_y, bool antialias);

// Draw a rectangle on the canvas
void lv_canvas_draw_rect(lv_obj_t *canvas, lv_coord_t x, lv_coord_t y, lv_coord_t w, lv_coord_t h, const lv_draw_rect_dsc_t *draw_dsc);

// Draw a text on the canvas
void lv_canvas_draw_text(lv_obj_t *canvas, lv_coord_t x, lv_coord_t y, lv_coord_t max_w, lv_draw_label_dsc_t *draw_dsc, const char *txt);

// Draw an image on the canvas
void lv_canvas_draw_img(lv_obj_t *canvas, lv_coord_t x, lv_coord_t y, const void *src, const lv_draw_img_dsc_t *draw_dsc);

// Draw a line on the canvas
void lv_canvas_draw_line(lv_obj_t *canvas, const lv_point_t points[], uint32_t point_cnt, const lv_draw_line_dsc_t *draw_dsc);

// Draw a polygon on the canvas
void lv_canvas_draw_polygon(lv_obj_t *canvas, const lv_point_t points[], uint32_t point_cnt, const lv_draw_rect_dsc_t *draw_dsc);

Examples

#define CANVAS_WIDTH 50
#define CANVAS_HEIGHT 50
/*Create a buffer for the canvas*/
static lv_color_t cbuf[LV_CANVAS_BUF_SIZE_INDEXED_1BIT(CANVAS_WIDTH, CANVAS_HEIGHT)];

/*Create a canvas and initialize its palette*/
lv_obj_t * canvas = lv_canvas_create(lv_scr_act());
lv_canvas_set_buffer(canvas, cbuf, CANVAS_WIDTH, CANVAS_HEIGHT, LV_IMG_CF_INDEXED_1BIT);
lv_canvas_set_palette(canvas, 0, lv_palette_main(LV_PALETTE_YELLOW));
lv_canvas_set_palette(canvas, 1, lv_palette_main(LV_PALETTE_BLUE));

/*Create colors with the indices of the palette*/
lv_color_t c1;
lv_color_t c0;

c1.full = 1;
c0.full = 0;

/*Red background (There is no dedicated alpha channel in indexed images so LV_OPA_COVER is ignored)*/
lv_canvas_fill_bg(canvas, c1, LV_OPA_COVER);

/*Create hole on the canvas*/
uint32_t x;
uint32_t y;
for( y = 0; y < 25; y++)
{

    for( x = 0; x < 25; x++)
    {

        lv_canvas_set_px(canvas, x, y, c0);
    }
}

The effect is as follows

lvgl image Control instructions

Commonly used API Introduce

// establish image The widget
lv_obj_t * lv_img_create(lv_obj_t * parent);

// Set image data for the display object
void lv_img_set_src(lv_obj_t * obj, const void * src);

// Set... For the image X Direction shift
void lv_img_set_offset_x(lv_obj_t *obj, lv_coord_t x);

// Set... For the image Y Direction shift
void lv_img_set_offset_y(lv_obj_t *obj, lv_coord_t y);

// Image rotation specified angle
void lv_img_set_angle(lv_obj_t *obj, int16_t angle);

// Picture antialiasing enable settings
void lv_img_set_antialias(lv_obj_t *obj, bool antialias);

Use examples

LV_IMG_DECLARE(img_cogwheel_argb);
lv_obj_t * img1 = lv_img_create(lv_scr_act());
lv_img_set_src(img1, &img_cogwheel_argb);
lv_obj_align(img1, LV_ALIGN_CENTER, 0, -20);
lv_obj_set_size(img1, 200, 200);

The effect is as follows

LVGL Layout introduction

level 、 Vertical layout

Commonly used API

// Create base object
lv_obj_create(lv_scr_act());

//  Set the object to use a row based drain flex layout flex
lv_obj_set_flex_flow(cont_row, LV_FLEX_FLOW_ROW);

//  Set the object to use a column based dropout elastic layout flex
lv_obj_set_flex_flow(cont_col, LV_FLEX_FLOW_COLUMN);

// Add layout settings when creating widget objects , Make it in the specified layout
lv_btn_create(cont_row);

Use examples 1

/* Create a container with horizontal expansion direction */
lv_obj_t * cont_row = lv_obj_create(lv_scr_act()); // Create base object
lv_obj_set_size(cont_row, 300, 75); // Set container size
lv_obj_align(cont_row, LV_ALIGN_TOP_MID, 0, 5); // Set alignment （ Align the middle and top of the screen ）
lv_obj_set_flex_flow(cont_row, LV_FLEX_FLOW_ROW); //  Set the object to use a row based drain flex layout flex

/* Create a container with a vertical expansion direction */
lv_obj_t * cont_col = lv_obj_create(lv_scr_act()); // Create base object
lv_obj_set_size(cont_col, 200, 150); // Set container size
lv_obj_align_to(cont_col, cont_row, LV_ALIGN_OUT_BOTTOM_MID, 0, 5); // Set alignment （ The column layout is outside the row layout and below the center - That is, the outer lower middle alignment ）
lv_obj_set_flex_flow(cont_col, LV_FLEX_FLOW_COLUMN);  //  Set the object to use a column based dropout elastic layout flex

uint32_t i;
for(i = 0; i < 10; i++)
{

   lv_obj_t * obj;
   lv_obj_t * label;

   /*Add items to the row*/
   obj= lv_btn_create(cont_row); // Add the created keys to the horizontal layout
   lv_obj_set_size(obj, 100, LV_PCT(100));

   label = lv_label_create(obj);
   lv_label_set_text_fmt(label, "Item: %u", i); // Set key name
   lv_obj_center(label);

   /*Add items to the column*/
   obj = lv_btn_create(cont_col); // Add the created keys to the vertical layout
   lv_obj_set_size(obj, LV_PCT(100), LV_SIZE_CONTENT);

   label = lv_label_create(obj);
   lv_label_set_text_fmt(label, "Item: %u", i); // Set key name
   lv_obj_center(label);
}

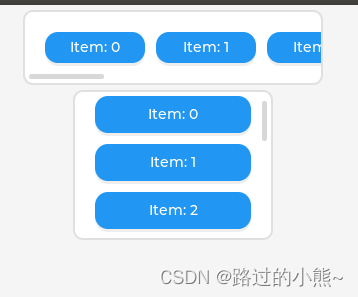

The effect is as follows

Use examples 2

 Add other layouts to the horizontal layout , for example ：

lv_obj_t * cont = lv_obj_create(lv_scr_act());
lv_obj_set_size(cont, 300, 220);
lv_obj_center(cont);
lv_obj_set_flex_flow(cont, LV_FLEX_FLOW_ROW);

lv_obj_t * obj;
obj = lv_obj_create(cont);
lv_obj_set_size(obj, 40, 40);           /*Fix size*/

obj = lv_obj_create(cont);
lv_obj_set_height(obj, 40);
lv_obj_set_flex_grow(obj, 1);           /*1 portion from the free space*/

obj = lv_obj_create(cont);
lv_obj_set_height(obj, 40);
lv_obj_set_flex_grow(obj, 2);           /*2 portion from the free space*/

obj = lv_obj_create(cont);
lv_obj_set_size(obj, 40, 40);           /*Fix size. It is flushed to the right by the "grow" items*/

The effect is as follows
