OA and fansoft Bi cross system users, departments and posts synchronous summary

Catalog

Preface ：

One 、 The original

1、 What needs to be prepared ？

2、 Synchronization interface or data set

3、 Build server data set

Code ：

effect ：

Two 、 Formal synchronization

1、 Build server data set

 2、 Create a server tree dataset

 3、 Select the corresponding relationship to synchronize

 4、 Wait and set the synchronization frequency

 5、 matters needing attention

Preface ：

         The number of employees in an enterprise is quite large , And because of the mobility of people , User information is constantly changing , If you add and modify manually every time , The workload will be very heavy .

        FineReport The user synchronization data set function can dynamically update the user information in the platform , Make it change with the user information in the database .

One 、 The original

         Problems solved synchronously across systems , We usually do system synchronization for ？ Information exchange ？ Information synchronization ？ Intelligent operation and maintenance ？ Standardization ？ wait . Ha ha ha ha , I think it's all , Because adults don't do multiple-choice questions .

1、 What needs to be prepared ？

         First, we need to establish a standard synchronization library , That is, we have to determine which system is a synchronized standard system or standard library . According to the application of general enterprises , Will choose OA perhaps ERP System . Because these two systems are generally initially established , Also started to do standardized system .

2、 Synchronization interface or data set

         This time with OA Soft with sail report For example , We just need to establish a standard data set . But we need to build data sets according to our enterprise architecture . The synchronized user data comes from the server data set , Support user departments There are levels and no levels Two kinds of . Users can choose one of them according to their own user structure .



No hierarchy

  Hierarchical structure

3、 Build server data set

         This synchronization takes hierarchical Department synchronization as an example .

Code ：

select ry.code,
       ry.name ryname,
       gw.name gwname,
       bm.sjbm,bm.fid sjbmid,
       bm.name bm,ORG_DEPARTMENT_ID bmid,
       ry.ORG_POST_ID gwid,
       nvl(ry.EXT_ATTR_1, ry.EXT_ATTR_3) sj,
       ry.EXT_ATTR_2 yx,
       bm.bmcode,
       bm.sjbmcode
  from V3XUSER.ORG_MEMBER ry
  left join V3XUSER.org_post gw
    on ry.ORG_POST_ID = gw.id
  left join (select ry.name,
                    ry.id,
                dw.name sjbm,
                    dw.id   fid,
                    ry.code bmcode,
                    dw.code sjbmcode
               from V3XUSER.org_unit ry
               left join V3XUSER.org_unit dw
              on  case when length(ry.code)>=8 then substr(ry.code,0,6)
                  else to_char(ry.ORG_ACCOUNT_ID) end=case when length(ry.code)>=8 then dw.code
                  else to_char(dw.id) end
                 --on ry.ORG_ACCOUNT_ID = dw.id
                 where  1=1
                and  ry.STATus = 1
                and ry.IS_DELETED = 0
                and ry.IS_ENABLE = 1) bm
    on ry.ORG_DEPARTMENT_ID = bm.ID
 where ry.STATE = 1
   and ry.IS_DELETED = 0
   and ry.IS_ENABLE = 1
   and gw.IS_DELETED = 0
   and gw.IS_ENABLE = 1
  union  all
  select '1' code,' headquarters ' ryname,'',' headquarters ',1,' headquarters ',1,1,' headquarters ','','company','' from dual

effect ：

Two 、 Formal synchronization

1、 Build server data set

 2、 Create a server tree dataset

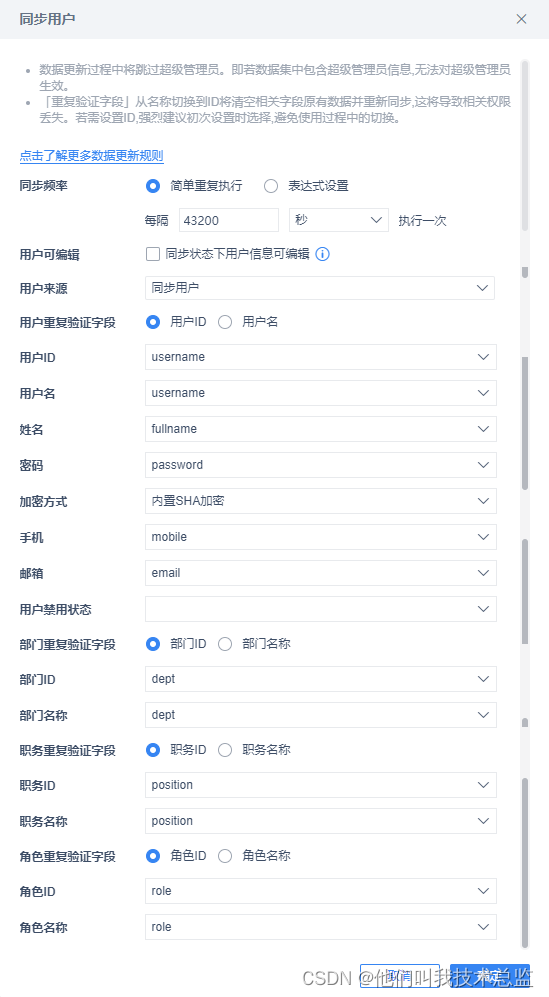

 3、 Select the corresponding relationship to synchronize

 4、 Wait and set the synchronization frequency

         The synchronization process is generally in 1-10 Within minutes , Later, it will automatically synchronize and update according to the set synchronization frequency .

 5、 matters needing attention

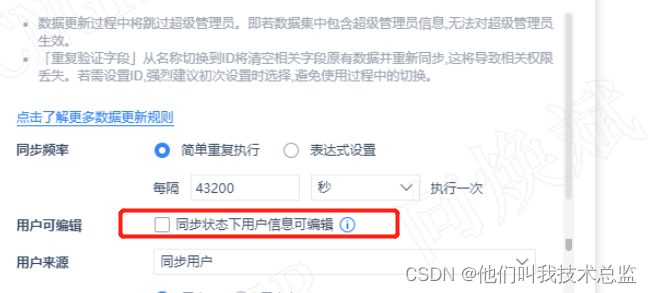

         If the account after synchronization is allowed , You can change the password , Remember to check [ User information can be edited in synchronization ] .
