What are the applications of 4.3-inch touch screen intelligent network central control host

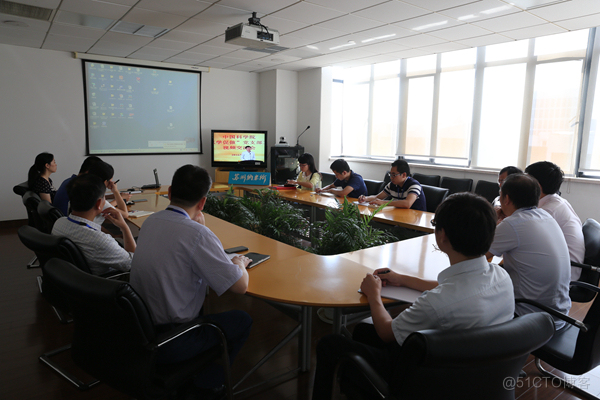

Network programmable central control host , Support open programming , Control a variety of 232 Interface instruction device , Most used in conference system , Can control the curtain 、 The electric appliance is turned on , terminal 、 Record and broadcast 、 Conference camera and other equipment control .

Pinico touch screen networked intelligent central control host NK-TS32CCH

main parameter ：

1. built-in 4.3 " IPS High definition capacitive touch screen , And 800*480 The resolution of the , It can be viewed and modified through the touch screen IP Address ;

2. have 32 road COM port , Support RS-232/422/485 agreement , among 16 road DB9 Type port ,16 Way Phoenix terminal interface ; have 1 road NET Bus interface , It can support multiple bus protocol devices ;

3. built-in 1 Universal two-way network interface , adopt TCP Mode can be connected at the same time 100 Controlled equipment , Time sharing connection 10000 Controlled equipment ; adopt UDP Mode supports broadcast transmission , You can also specify goals IP One on one ;

4. built-in 1 road TF Card interface , have 1 road USB Interface , Implement the import or export of the project program ;

5. have 16 road IR Infrared interface , Infrared devices can be controlled , Such as ： TV 、DVD Other equipment ;

6. have 8 Circuit relay RELAY Interface , It can control the opening of external equipment / closed , Such as ： The projection screen 、 Lifter, etc ;

7. have 8 road I/O Interface , Support high power 、 Low level triggers two modes ;

8. Open programming operations ： Support IPAD Flat 、 Android Tablet 、Windows The computer 、 RF touch screen and other devices are controlled synchronously , Multiple control terminals are synchronized , One of the control terminals operates , Real time feedback on several other terminals , Achieve collaborative operation ;

9. Support two-way feedback , The flat panel terminal can feed back the projector bulb time in real time 、 Projector switch status 、 Light detection 、PM2.5 testing 、 Door magnetic detection 、 Temperature detection, humidity detection and other detection results of various induction detectors ;

10. Support on Android /ios The tablet operation interface is embedded in the web page , Real time online weather display 、 Notice and other information ; Support embedded video playback module , Video files can be played 、 Show camera 、 Video conference terminal, etc RTSP\RTMP\HTTP Video stream image ;

11. Support multiple central control hosts to expand through the network , Realize the same APP Control multiple network central control hosts ; It also supports multiple terminals to control a single central control host ;

12. Support 5 The central control hosts back up with each other , When the central control host fails to work, it will automatically switch to the backup host , Ensure system stability ;

13. Embedded intelligent infrared learning function module , No need to configure professional learners ; It can import the infrared code base of various commonly used electrical equipment to the host computer , And realize control ;

14. Support Hongmeng 、Linux、Windows、 Apple IOS And so on Web control , The login password is required to open the web page control , Support remote control of corresponding equipment , Support online modification of control interface ;

15. Support to control the computer playing software to play video 、PPT Documents, etc. , It can be played 、 Pause 、 Forward 、 back off 、 Full screen 、 The zoom 、 Volume increase and decrease ;

16. Support automatic command execution after startup , To execute an order at an agreed time ;

17. The panel has an infrared learning window 、 Data status 、 Operation status indicator , Visual feedback serial port 、 infrared 、 The working state of the equipment ;

18. The built-in enhanced chip can extend the data transmission distance of the serial port ;

19. Adopt modular programmable control platform , Interactive control structure , Chinese and English programmable interface . Fully support third-party equipment and control protocols , Support user-defined programming to set any control protocol or control code .

20. Can support 1 road HDMI Video input ,1 Analog audio input , Support network preview function , Display the video matrix in the form of video window on the central control interface 、 Conference camera 、 Picture of conference terminal and other equipment ;

21. processor ：ARM32 position ,512M DDR-RAM,2G Flash;

22. Support data forwarding between ports , Data received by a serial port , It can output from other serial ports or networks , The data received by the network can also be output from the serial port ;

23. Working power supply ：AC 180V～240V

24. install ：19 Inch standard cabinet

25. Chassis height ：2U
